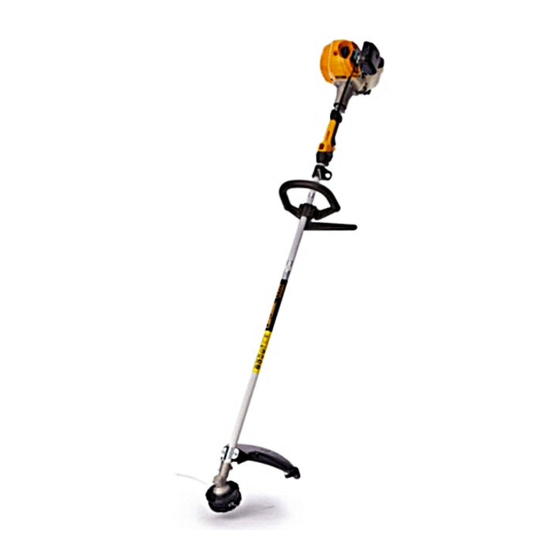

Cub Cadet CC924 Operator's Manual
  1. Manuals
  2. Brands
  3. Cub Cadet Manuals
  4. Brush Cutter
  5. CC924
  6. Operator's manual

Cub Cadet CC924 Operator's Manual

Hide thumbs

Advertisement

Table of Contents

·
·
·
·
·
Safe Operation Practices
Set-Up
Operation
Maintenance
Service
Troubleshooting

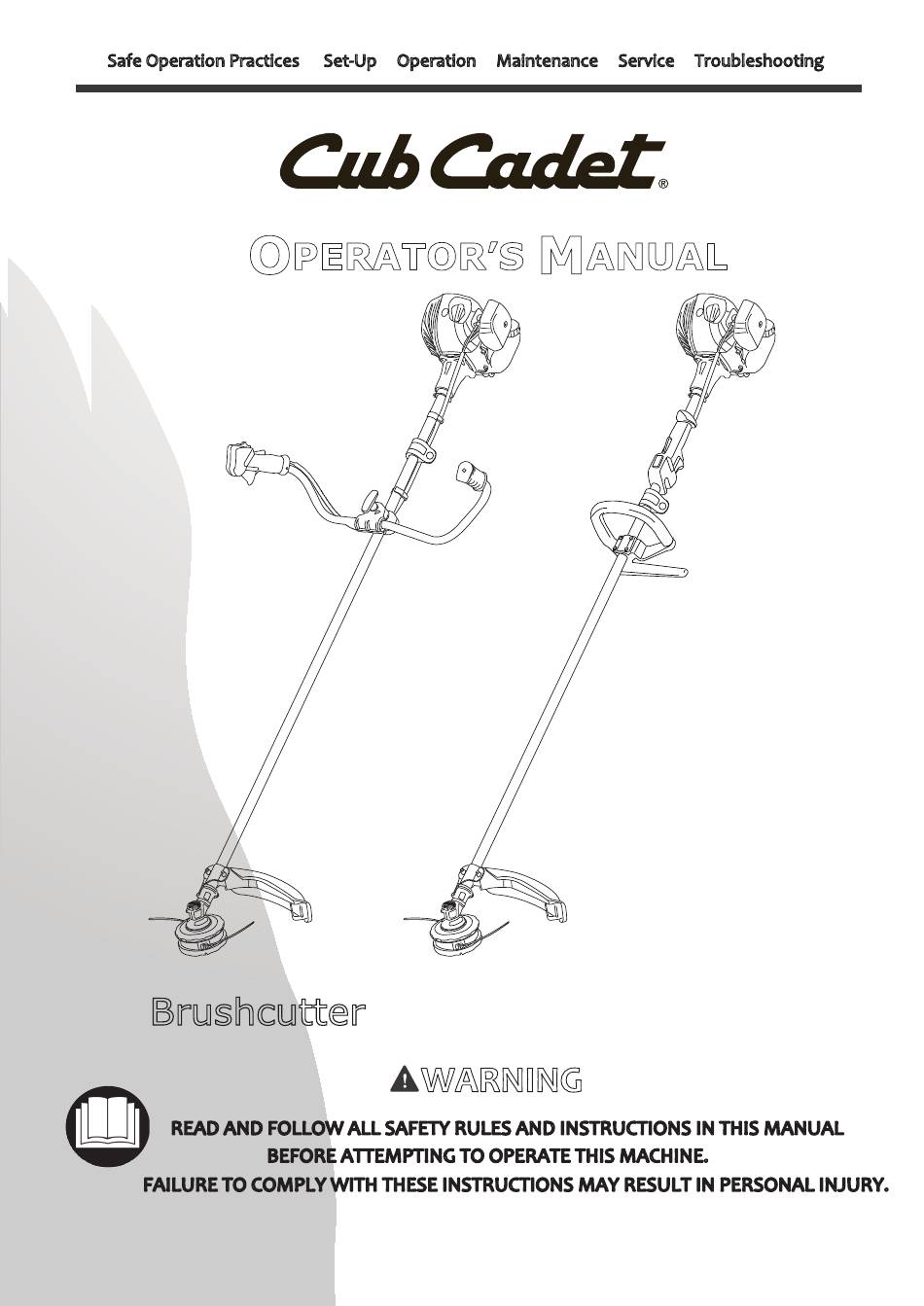

O
M
PERATOR'S
ANUAL
Brushcutter
CC924/CC927D/CC927U
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
FORM NO. 769-11081 02
01/25/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC924 and is the answer not in the manual?

Questions and answers

Teko
February 15, 2025

install the trimmer wire

User image 67b066020d594
0
1 comments:
Mr. Anderson
May 14, 2025

To install the trimmer wire on a Cub Cadet CC924:

1. Align the shaft bushing hole with the locking rod slot in the protective cover and the notch in the gear case.
2. Insert the locking rod into the aligned holes and hold it to keep the output shaft in place.
3. Ensure the threads of the trimmer head and the center of the output shaft are aligned.
4. Rotate the trimmer head clockwise (as observed by the operator) until it is securely attached.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Cub Cadet CC924

Summary of Contents for Cub Cadet CC924

  • Page 1 Maintenance Service Troubleshooting PERATOR’S ANUAL Brushcutter CC924/CC927D/CC927U WARNING READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. FORM NO. 769-11081 02...

  • Page 2: Table Of Contents

    Safety Instructions..........3 Maintenace and repair.........14 Symbols............5 Cleaning and Storage........17 Get to know yur brush cutter......7 ubleshooting...........18 Assembly Instructions........9 Fuel and Oil Instructions......11 Contents ............20 Operating Instructions.........12 Before setting up and operating your new equipment, please locate the model plate on the equipment and record the information in the provided area to the right.
  • Page 4 The rotary spool head and/or the cutting blade may keep running for a short time just after your shutting it down. Always be aware of the rotating parts; they are dangerous. If the cutting attachments cannot stop at idling, you should adjust the carburetor. Never use parts, accessories or attachments which are not authorized for this unit.

  • Page 5: Symbols

    SYMBOLS SAFETY AND WARNING SYMBOL Indicates danger,warning or a reason to be cautious.Can be used together with other symbols or pictograms. READ OPERATING MANUAL Non-compliance with the operating instructions and precautions may result in serious injuries.Read the operating manual before starting or operating the unit. WEAR EYE AND EAR PROTECTION CAUTION: Ejected objects may cause serious eye injuries and excess noise may cause loss of hearing.When operating the unit,wear eye and ear protection.
  • Page 6 IGNITION SWITCH IGNITION SWITCH OFF/STOP BEWARE OF HOT SURFACES SHARP BLADE CAUTION MAXIMUM RPM 9000 GLOVES Please wear sturdy gloves. SHOES Please wear afety shoes.

  • Page 7: Get To Know Yur Brush Cutter

    GET TO KNOW YOUR BRUSHCUTTER Muffler Cover Brushcutter with “D” Handle Spark Plug Cap Air Filter Cover Throttle Lockout Fuel Tank Ignition Switch Throttle Cable Harness Bracket D-Handle Throttle Trigger Shaft Tube Clamping Bracker For Cutting Attachment Shield Gear Case Cutting Attachment Shield Trimmer Head...
  • Page 8 GET TO KNOW YOUR BRUSHCUTTER Muffler Cover Brushcutter with “Bull” Handle Spark Plug Cap Air Filter Cover Harness Bracket Throttle Cable Throttle Lockout Fuel Tank Ignition Switch Throttle Cable Collector Throttle Trigger U-Handle Clamping Bracket For U-Handle Shaft Tube Clamping Bracket For Cutting Attachment Shield Gear Case Cutting Attachment Shield...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS INSTALL AND ADJUST HANDLE “D” Handle Push the handle down onto the tube,and Locking Knob set the lower handle into the right place, Washer so that the parts matched right. U-Handle Top Clamp Insert the bolt into the bolt hole and push it through.and put the nut into the nut hole on the lower handle back.tighten the bolt, but do not tighten the bolt completely.
  • Page 10 INSTALL THE TRIMMER HEAD INSTALL THE CUTTING BLADE(if attached) 1. Align the shaft bushing hole with the locking 1. Align the shaft bushing hole with the locking rod slot in the protective cover and the rod slot in the protective cover and the notch notch in the gear case, and then insert the in the gear case, and then insert the locking locking rod into these three holes/slots.

  • Page 11: Fuel And Oil Instructions

    FUEL AND OIL INSTRUCTIONS FUEL AND OIL INSTRUCTIONS 1. Only use high quality special oil for air cooled 2-stroke engine,JASO FC or FD, or ISO-L-EGC or EGD oil. Never use water cooled engine oil or any oil for 4-stroke engine. Fuel 1.

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS STARTING COLD ENGINE 7. While holding the starter handle in right WARNING : Before starting the hand. Gently pull the starter rope out until engine, keep the cutting attachment you feel that the pawls hook onto the clear of everything around it.
  • Page 13 SHOULDER HARNESS 1. Wear the harness on the shoulder then Close your stature until you feel comfortable with Full open it on. 2. Attach harness hook to the suspension loop on the shaft. Make sure the unit gets a good balance before operating. Choke Lever STARTING WARM ENGINE...

  • Page 14: Maintenace And Repair

    MAINTENANCE AND REPAIR MAINTENANCE AND REPAIR FUEL FILTER 1. Empty the fuel tank. fuel tank. Filter Filter Cover CARBURETOR 2. Adjusting the idle-speed screw clockwise Fuel Filter will increase the idling speed and adjusting it counterclockwise will decrease the idling speed.
  • Page 15 WARNING 7. Screw in the spark plug and tighten to a : Improper adjustment may cause damage to the unit. If engine does not run well after 8. Re-attach the spark plug cap. carburetor adjustment, please 9. If spark plug is damaged or the unit still contact the authorized dealer where cannot work well after cleaning, replace you bought the product.
  • Page 16 Carbon Removal of Engine Internal Parts TUBE/CLUTCH HOUSING Every 50 hours of operation or found strikingly Remove the two screws at the joint of clutch and low engine high-speed and rule out other causes tube ,disassemble the parts. then assemble the you need to clean up the engine internal carbon parts In the reverse order after repair.

  • Page 17: Cleaning And Storage

    CLEANING STORAGE LONG-TERM STORAGE TRANSPORTATION...

  • Page 18: Tro Ubleshooting

    TROUBLE-SHOOTING TROUBLE-SHOOTING Problem Cause Remedy 1. Reconnect wire. 1. Spark plug wire disconnected. 2. Set switch to ON. 2. Ignition switch set to OFF. 3. Add fuel. 3. Fuel tank empty. 4. Empty the tank and ll with fresh fuel 4.
  • Page 19 SPECIFICATION Model Number: CC927D CC924 CC927U Engine: MHI Air Cooled 2-Stroke Engine Displacement: 25.6cc 22.5cc 25.6cc Carburator: Diaphragm Clutch Type: Centrifugal Starter: Recoil Max.Power: 0.8KW 0.7KW 0.8KW Mixing Ration(Fuel/Oil) 50:1 Idle Speed: 3000+/-300rpm Speed at Max,Torque: 6000rpm 6000rpm 6000rpm Speed at Max,Power:...

  • Page 20: Contents

    CONTENTS Item Model Number: CC927D CC924 CC927U Main Unit(including D handle) Main Unit(including BULL handle) Back Pack Harness Cutting Attachment Shield Trimmer Head Manual Warranty Mixing Tank Clamping Bracket for U handle Tool Bag 10.1 Spark Plug Wrench 10.2 Screwdriver 10.3...
