PORTAMIX MEGA HIPPO Operating And Safety Instructions Manual

Hide thumbs Also See for MEGA HIPPO:
Table of Contents

Advertisement

Quick Links

Download this manual




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEGA HIPPO and is the answer not in the manual?

Questions and answers

Related Manuals for PORTAMIX MEGA HIPPO

Summary of Contents for PORTAMIX MEGA HIPPO

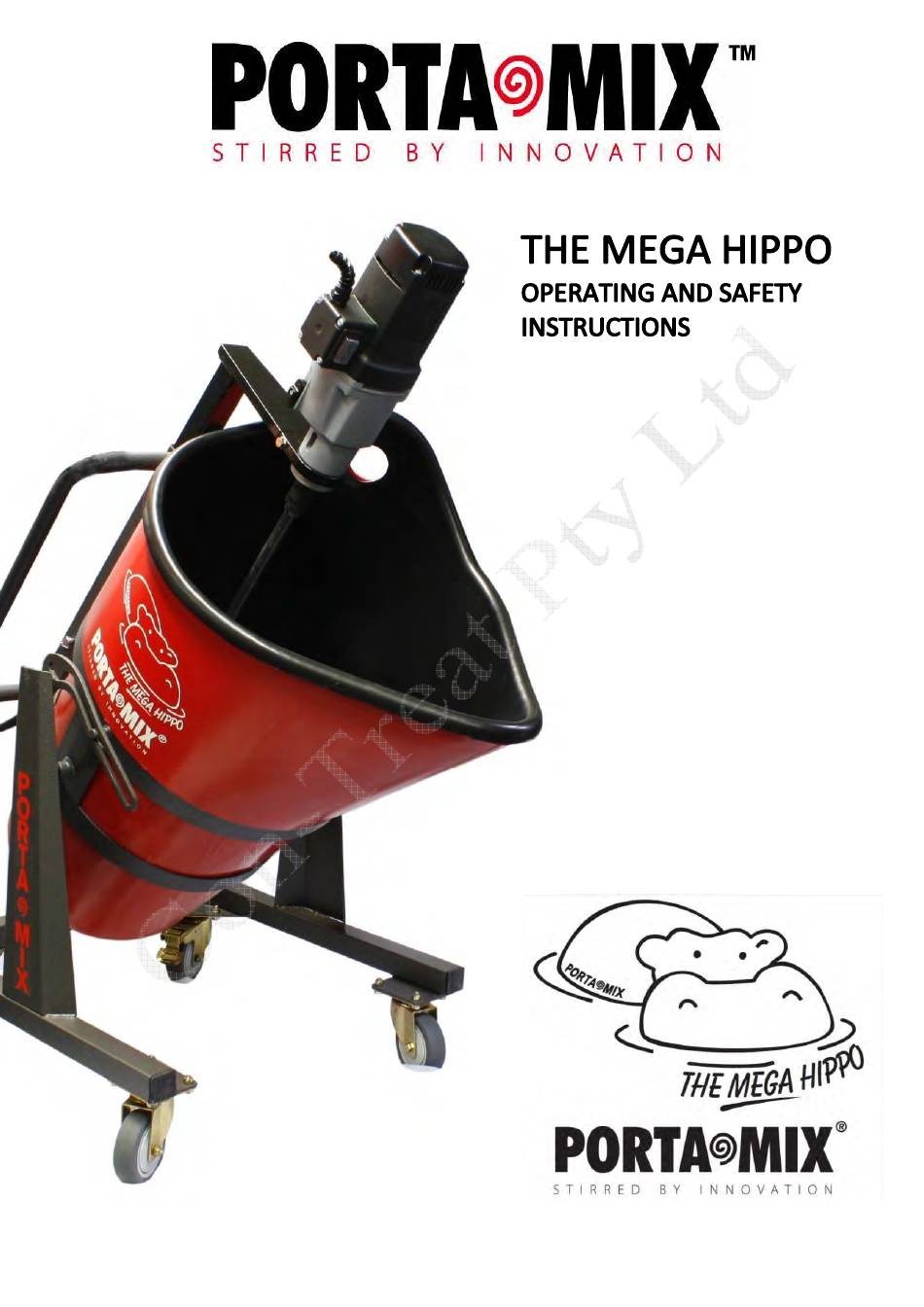

  • Page 1      ...

  • Page 2: Important Safety Instructions

    DO NOT operate the mixer on a sloping surface or on scaffolding The PortaMix® Hippo® is a rotary mixing device. Operators must ensure that any loose clothing and long hair is firmly tied back. Keep well clear of mixing shafts whilst in operation  ...

  • Page 3: Safety Instructions

      Mixing Motor Specifications Model Number: EHR32/2.4P EHR32/2.4P-110V   Rated Voltage: 230V 110V Power Input: 1800W 1800W Rated Current: 7.9A Frequency: 50 – 60Hz Spindle Connection: Protection class: Degree of protection: IP20 Net weight: 6.9KG Interference suppression: EN 55014 and EN 61000 Speed One 120rpm Speed Two...

  • Page 4: Electrical Connection

      Electrical Connection  Before starting the machine check the correspondence between voltage and frequency according to   the data mentioned on the identification plate. Voltage differences from + 6 % and – 10 % are allowed.  The motor is made in protection class II. ...

  • Page 5: Care And Maintenance

      Care and Maintenance Before the beginning of maintenance or repair works you have to disconnect the plug from the mains.   Repairs may be executed only by appropriately qualified and experienced personnel. After every repair the machine has to be inspected by an electric specialist. Due to its design, the machine needs a minimum of care and maintenance.

  • Page 6: Dust Protection

    Damages due to material defects or production faults shall be eliminated free of charge by either repair or replacement. Complaints will be accepted only if the tool is returned in non-dismantled condition to the manufacturer or an authorized PortaMix® Hippo® service center Declaration of Conformity EN 60 745 According to the regulations 2011/65/EU, 2004/108/EC, 2006/42/EC  ...

  • Page 7: Operating Hints

      Mixer Operation – Model PMH80 Before starting work please ensure:    The mixer is on a firm surface.  The motor unit is firmly held in the clamp by tightening the clamp nut.  The mixing shaft is firmly tightened onto the motor spindle. ...

  • Page 8: Dust Extraction

    Liner Option The Mega Hippo has a canister option, PH704, which allows the use of a liner. This liner can be used for mixing all the products that the Mega Hippo is designed to mix. The liner is particularly designed for mixing very abrasive materials or resins and epoxy materials that require solvent based cleaning products.
  • Page 9   PMH80 Exploded Diagram     Con-Treat 1300 044 625...
  • Page 10   PH400 F Series Wheel Kit   PH500 X Series Wheel Kit   Con-Treat 1300 044 625...
  • Page 11   Mega Hippo Mixing Station – Module A   PORTAMIX Hippo Mega Module Including:  Canister  PMH80 Motor  TW225 Helix  TW225D Helix PORTAMIX Hippo Mega – Rimless Module Including:  Canister  Liner PMH80/RL  Motor ...
  • Page 12     MANUFACTURED BY:   Con-Treat 1300 044 625...
  • Page 13     Ersatzteilliste EHR 32/2.3 A 230V Änderungen vorbehalten 03/12  ...
  • Page 14 EHR 32/2.3 P A - 230 V   No. Description Ref.-No. pc. Price No. Description Ref.-No. pc. Price   €/pc. €/pc. 1 rotor complete 7154F100 37 gearbox seal 82000057 2 stator complete 7154A150 38 notched pin plug 5x16 80200580 3 motor housing 80900042 39 gearbox housing 74521400...
