True Depth 3D Firestorm XL User Manual

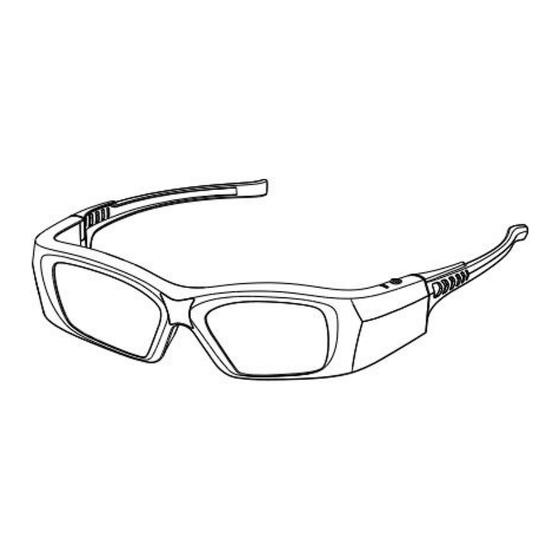

True Depth 3D DLP LINK Glasses
Product Features
5
Charge the 3D glasses: Please charge your 3D glasses by connecting the 3D glasses to the
USB port of your computer or the 3D glasses charger (sold separately) with supplied USB
charging cable when they give low battery warning . Red LED indicator will keep lighting on
until the charging is finished. A full charge may take 4 hours.
Operation Guide
Viewing 3D Contents with the DLP-Link 3D Active Glasses:
1. Turn on both your DLP 3D Ready projector and your 3D content source (such as 3D
Blu-ray player).
2. Set your DLP 3D Ready projector in "DLP 3D" BEFORE you turn on your content
source like a 3D Blu-ray player. The Blu-ray player communicates with the projectors to
determine whether or not the projector is capable of playing 3D content. If this
communication occurs before you set the projector to 3D mode, the player will think that
the projector is not capable of displaying a 3D image and will only play the video in 2D
format. If this happens, turn the 3D Blu-ray player off, set the projector to 3D mode, and
then turn the 3D Blu-ray player back on so the communication between the two can
connect correctly.
3. Turn on your 3D content source. You can now press and release the Power ON/OFF
button to turn on your DLP-Link 3D Glasses and start watching 3D content.
* The LED indicator will light on for 1.5s to indicate the glasses are turned on. If the
battery is low, the LED indicator will blink once per second. Please charge your 3D
glasses if this happened.
4. Turn off your 3D glasses by pressing and holding the power button for about 1.5s after
finish your 3D viewing.
* The LED indicator will blink 3 times to indicate the glasses are turned off. When the sync
signal is blocked or the projector is exited "DLP 3D" mode, the glasses will turn off after
5min in standby and will "wake up" if the signal is received within this period.
Active 3D Glasses
Package Contents
Following items are included in the package
1， Active 3D Glasses x1
3， Storage Pouch x1
5， USB Charge Cable x1
Maintain the 3D Active Glasses:
Clean the 3D active glasses with a clean and lint-free cotton cloth or with specified
disposable lenses cleaning tissue.
Specifications
Liquid Crystal
Shutter
96Hz/100Hz/120Hz/144Hz Transmittance
Refreshing rate
Working current
2.8mA
Battery Type
Rechargeable Li-Battery
24 hours continuously
Battery life
working
Working Temperature
Operating Condition
Storage Temperature
Use Tips
The 3D glasses will activate their Auto OFF and Auto run intelligently in the following
conditions
1. The 3D glasses are standby (for a period of 5 minutes) when powered on, and they will
turn into working mode once received the 3D sync signal during standby mode,
otherwise, the glasses will automatically turn off with the green LED indicator blinking
three times.
2. If the 3D glasses become disconnected with the SYNC signal because of :
1> incorrect distance and or angle,
2> input source changed,
3> switched to 2D mode, they will automatically work for a period of 5 seconds. The glasses
will resume working once a 3D sync signal is received; otherwise, the glasses will enter into
standby mode (for 5 minutes).
2
2， Cleaning Cloth x1
4， User's Guide x1
6，Nosepiece x1
Weight
39g
38+/-2%
Contrast ratio 1200:1
Sync operation DLP-Link
Using range <8 M
0℃ to 40℃
-10℃ to 75℃
3
1
