HERZ ETKF
Energy Saving Thermostatic Head 1 8250 02

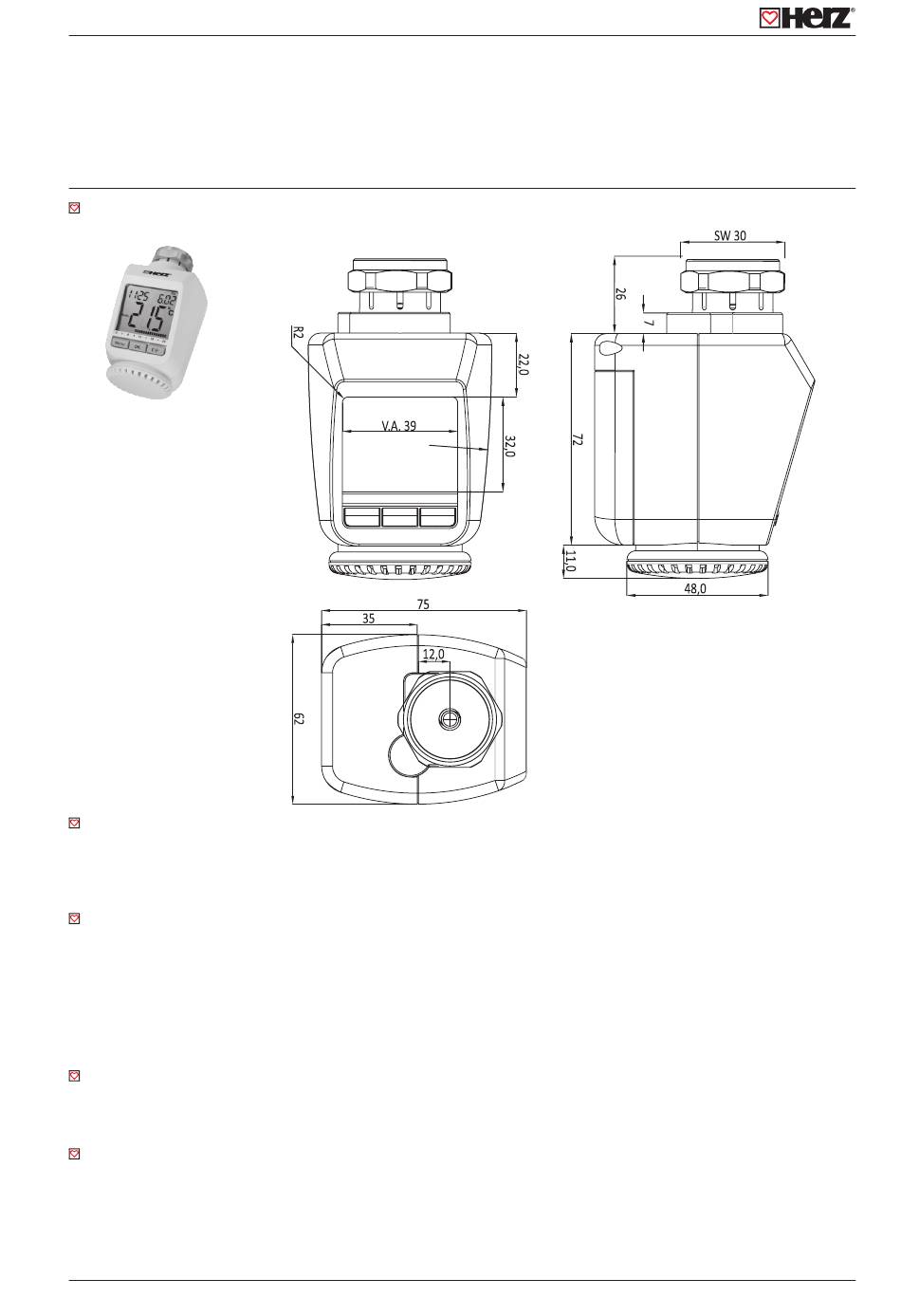

Size in mm
Version
1 8250 01

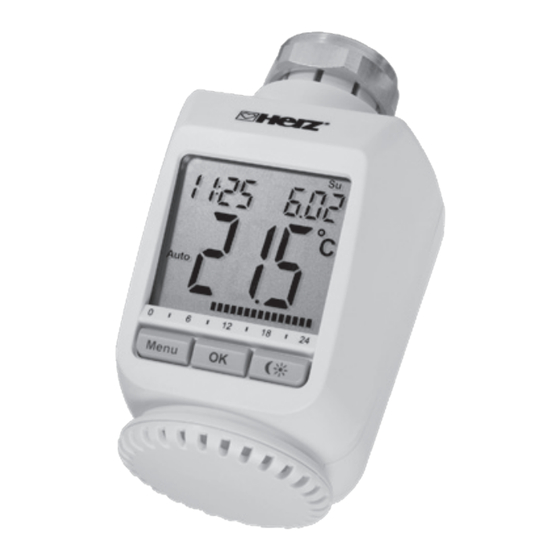

Energy Saving Thermostatic Head
The actuator with built in programmable temperature, time control and wireless receiver.
Thread connection M 28 x 1,5
Technical data Setting range:
Differential:
Batteries:
Receiver frequency:
max. surrent consumption:
Ambient temperature:
max. surface temperature:
linear stroke:
Application
The actuator can be installed on all HERZ-TRVs with M28x1,5.
Function
This energy saving controller for radiators can be used to control room temperature an the basis of time. The actuator moves
a valve, thereby allowing the amount of heat flowing to the heating appliance to be controlled.
The controller is compatoble with the most HERZ TRVs. The large illuminated display ensures user-friendly operation. A wire-
less receiver allows the device to receive commands from taught-in system components.
Energy Saving Thermostatic Head
5 °C bis 30 °C
0,5 K
2 x 1,5 V AA, LR6, Battery life approx. 2 years
868,3 MHz
100 mA
+5 °C bis +55 °C
+90 °C (of radiator)
4,2 mm
ETKF
Data sheet 8250, Issue 1011
Page 1
Advertisement
Summary of Contents for Herz ETKF 1 8250 02
- Page 1 The controller is compatoble with the most HERZ TRVs. The large illuminated display ensures user-friendly operation. A wire- less receiver allows the device to receive commands from taught-in system components.
-
Page 2: Installation
Once programming is complete, “InS” will reappear on the display and installation (Step 3) can commence. Step 3: Installing the energy-saving controller The actuator can be installed on all HERZ TRVs. There is no need to drain away water or fiddle around with the heating system before doing this. - Page 3 HERZ ETKF Setting the weekly program The weekly program allows you to set up to 3 separate heating periods (7 switching times) for each day of the week. Pro- gramming is performed in relation to the selected days, for which temperatures must be stored for a period from 00:00 to 23:59.
- Page 4 HERZ ETKF Configuration menu The configuration menu can be used to modify settings. To access this menu, press and hold down the menu button (for more than 3 seconds). • Pro: For setting the weekly program (see Section “1 Setting the weekly program”) •...
- Page 5 HERZ ETKF Setting the heating break If the heating is being switched off for the summer, you can save battery power. This involves opening the valve up fully. Limescale protection measures remain in place. Wireless commands from the window contact or remote control will no longer be executed.
- Page 6 HERZ ETKF Instructions for disposal Do not dispose of the device with regular domestic waste! Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with local directives governing waste electrical and electronic equipment.
-
Page 7: Operation
HERZ ETKF Inserting (replacing) batteries The remote control runs on two LR44 batteries. • Remove the battery compartment cover. • Insert two new LR44 batteries in the battery compartment (making sure that you insert them the right way round). •... - Page 8 HERZ ETKF Radio shutter (window) contact 1 8250 03 Intended use This window contact is used to detect when a window is opened. If the window contact is taught-in to a radio energy- saving controller (see 6), these devices will automatically reduce the temperature in the room during ventilation. Using the automa- tic temperature reduction function whilst windows are open enables heating costs to be lowered.
- Page 9 HERZ ETKF Adhesive strip method • This does not damage the door or window in any way. • Use the adhesive strips supplied. • Stick the strips on the rear sides of the brackets (1 and 2). • Then press the brackets onto the frame and window.
- Page 10 HERZ from any liability. This also applies to any conversion or modification work. The device is intended for private use only.
- Page 11 HERZ ETKF The help texts in the PC software indicate whether or not the operating system has detected the USB programming stick correctly. • Whe n the sof t wa re is re ady to se nd dat a , the “Submit” button will be available for selection and “USB programming stick is ready”...
