- Page 1 A Venturedyne, Ltd., Company 8800 DAQ Instruction Manual April 24, 2009...
- Page 2 All relevant issues have been considered in the preparation of this document. Should you notice an omission or any questionable item in this document, please feel free to contact the Thermotron Product Support group between 8:00am and 4:30pm Eastern Standard Time at (616) 392-6550.
-
Page 3: Safety Instructions
8800 DAQ Instruction Manual Safety Instructions For the safe operation of this unit, read and understand all warnings and cautions. WARNING: If you do not follow the instruction in a WARNING, injury can occur to you or to other personnel. - Page 4 Instruction Manual 8800 DAQ THERMOTRON...
- Page 5 Eliminates the need for additional test equipment and control hardware while running basic data • acquisition profiles. No new software to learn — use your existing knowledge of the 8800 controller to set up and run • your profiles. Collect data in the same format and location as your environmental conditions, and at the same •...
- Page 6 Thermocouple resolution 24-bit Tier 3: Offers the full capabilities of Thermotron’s Product Test Solutions Group. If you are interested in chamber data acquisition, but need a little more than is offered in Tiers 1 and 2 (such as more channels, faster data collection, etc.), please contact the Thermotron PTS Group.

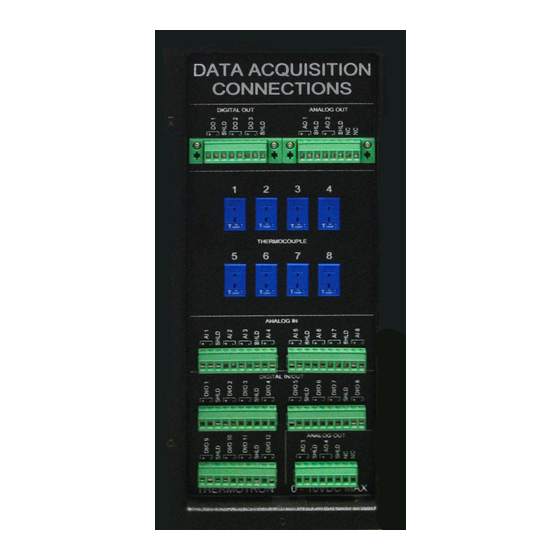

- Page 7 Instruction Manual DAQ Connections Screen NOTE: The 8800 DAQ Connections screen is available only if the 8800 detects that the required hardware is present. If present, the DAQ Connections screen replaces the 8800 monitor channel screen. To view the DAQ Connections screen, press SysInfo, then press the DAQ tab.
- Page 8 Instruction Manual 8800 DAQ Analog outputs (AO): Analog outputs • allow you to transmit chamber data as an analog signal. This signal is typically used as the input signal for an analog device such as a chart recorder. Configured channels display the actual channel value scaled by the range limits.
- Page 9 Instruction Manual Monitor channels (TC and AI): Monitor • channels allow you to use the 8800 as a data logger. Any monitor channel you set up is automatically included in the data log and may be viewed on the graph.
- Page 10 Instruction Manual 8800 DAQ Press the Setup button and then select the Chan / Aux Names tab to view all of the configured monitor channels. The displayed monitor channels can be named from this panel. THERMOTRON...
