Summary of Contents for EXS VISION NAVICENTER

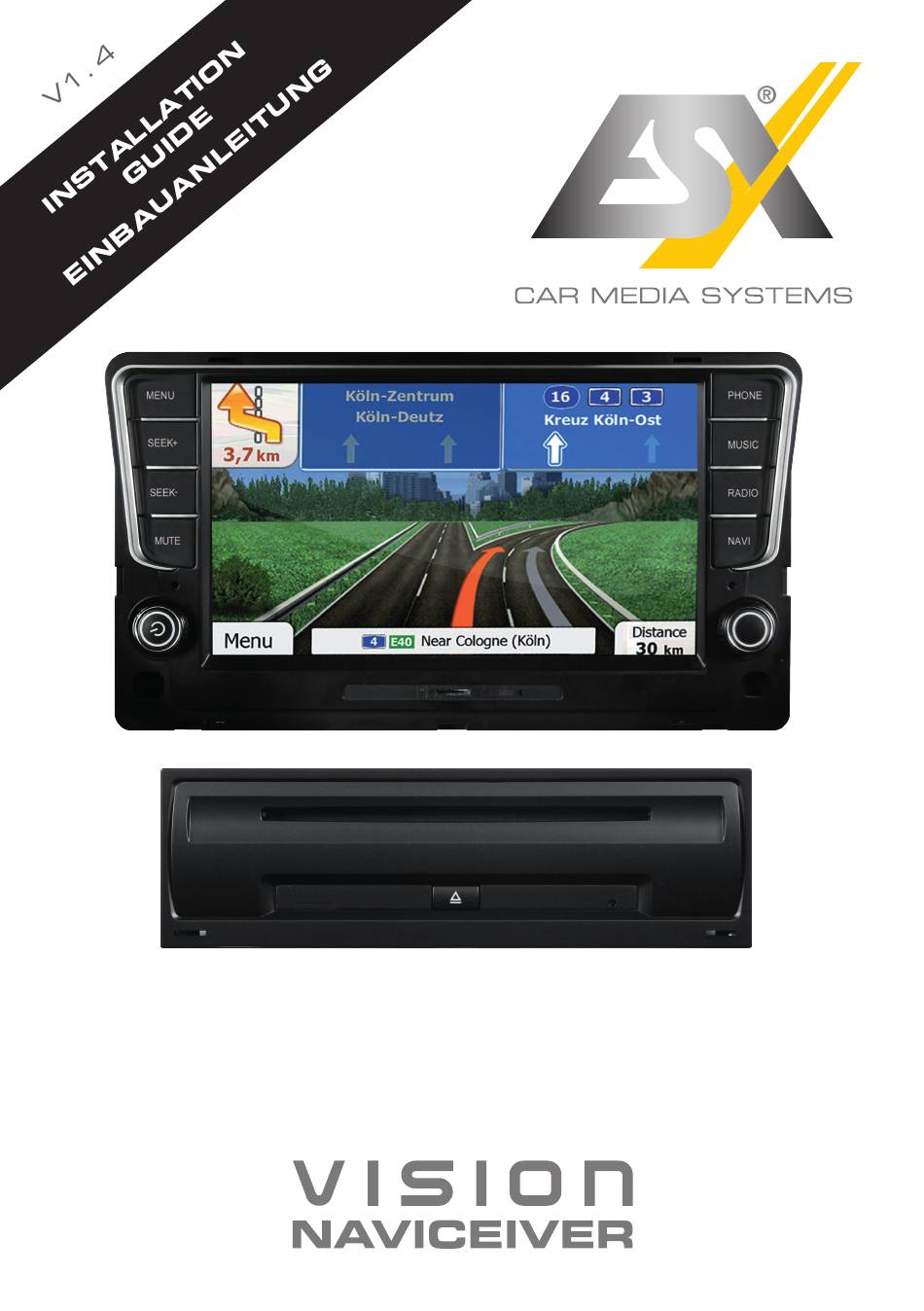

- Page 1 VN81 0 VW-G7 VN810 VW-G7-DAB...
- Page 2 SCOPE OF DELIVERY / Lieferumfang ITEM FIGURE SLOT QUANTITY Artikel Abbildung Steckplatz Anzahl MAIN DEVICE – Hauptgerät EXTERNAL DVD DRIVE – Externes DVD-Laufwerk RADIO PANEL (DARK RHODIUM) – Radioblende (Dark Rhodium) MAIN DEVICE DVD DRIVE CONNECTOR – Hauptgerät DVD-Laufwerk Verbindung STYLUS –...
- Page 3 SCOPE OF DELIVERY / Lieferumfang ITEM FIGURE SLOT QUANTITY Artikel Abbildung Steckplatz Anzahl VIDEO OUT (DUAL ZONE) Video-Ausgang (Dual Zone) AUDIO OUT (DUAL ZONE) Audio-Ausgang (Dual Zone) AUDIO OUT (SUBWOOFER/CENTER) Audio-Ausgang (Subwoofer/Center) USB CABLE SET WITH 2 CONNECTORS USB Kabelsatz mit 2 Anschlüssen BT-MICROPHONE BT-Mikrofon GPS ANTENNA...
- Page 4 CONNECTION DIAGRAM / Anschlussdiagramm BT-MICROPHONE BT-Mikrofon DUAL ZONE AUDIO OUT Dual Zone Audio Ausgang VN810 VW-G7-DAB DAB ANTENNA DAB Antenne AUDIO OUT (SUBWOOFER/CENTER) WITH REMOTE TURN ON Audio-Ausgang (Subwoofer/Center) mit Einschaltleistung „Remote“ VIDEO INPUT CABLE SET Video-Eingang Kabelsatz FRONT CAM INPUT (optional) Frontkamera-Eingang (optional) SPECIFIC CONNECTOR OF THE VEHICLE...
-
Page 5: Important Notes Prior To Installation
INSTALLATION NOTES / Installationshinweise Important Notes prior to installation: This guide is an installation aid for a proper installation of the device. Please read the following instructions prior installation: 1.) Please treat all parts of the sound system and the components of your vehicle with caution. 2.) Follow under all circumstance the regulations of the vehicle manufacturer and do not make any modifications on the vehicle, which could interfere the driving safety. -
Page 6: Installation Hints
INSTALLATION NOTES / Installationshinweise Installation hints: Einbautipps: Transportation lock: Remove both transportation locks on top of the external DVD drive before you start the installation. Transportsicherung: Entfernen Sie beide Transportsicherungen auf der Oberseite des externen DVD-Laufwerks bevor Sie mit der Installation beginnen. External DVD drive: If your car is not equipped with the factory CD drive in the glove box, you need the original glove box holder from Volkswagen to install the ESX DVD... - Page 7 INSTALLATION NOTES / Installationshinweise TMC cable antenna: Connect the enclosed TMC antenna (17) with the USB port and then lay the an- tenna to a suitable location on the windscreen. For optimal reception it should be fastened to the windscreen by using the suction cups, A hidden installation e.g.
- Page 8 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF VII COMPOSITION MEDIA Loosen at first the lower A/C panel on each side by using the mounting wedges (refer to pg. 5) in order to facilitate the installation. Lockern Sie zunächst die Blende der Klimaautomatik ringsum auf allen Seiten mithilfe der Montagekeile (Siehe S.
- Page 9 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF VII COMPOSITION MEDIA Here you can see the exact position of the two screws (T20) of the glove box holder. Hier sehen Sie die genaue Position der beiden Schrauben (T20) der Hand- schuhfachhalterung. Open the glove box and unlock the flap by pressing the tabs on the marked points upwards.
- Page 10 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF VII COMPOSITION MEDIA Remove the screw as marked on the image. Now you can unmount the glove box for an easier routing of the cables. Entfernen Sie die Schraube wie auf dem Bild markiert. Nun können Sie das Handschuhfach für ein besseres Verlegen der Kabel aushängen.
- Page 11 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF VII COMPOSITION MEDIA Set the ESX device into the bay. Before you complete the installation of the new ESX device, check its function. Please note that it may take up to 15 minutes, until a GPS signal can be received (in the open).
- Page 12 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de ©2017 All Rights Reserved...
