Summary of Contents for ACDC SDAW4.6-220
- Page 1 Domestic Hot Water Heat Pump Installation and Service Manual - Model：SDAW3.5-220 Model：SDAW4.6-220 SDAW6.7-220...
-
Page 2: Table Of Contents
Cycle diagram………..………….……………………….….……………………………………………………………………………… 3 SAFETY PRECAUTIONS …………………………………………………………………………………………………………….. 4 Warning ……………………………………………………………………………………………………………………………………….. 4 Caution ……………………………………………………………………………………………………………..………………………… 5 OVERVIEW OF THE UNIT ………………………………………………………………………………..………………….…….. 7 External view: SDAW3.5-220 …………………………………………………………….………………………………………….. 7 External view: SDAW4.6-220, SDAW6.7-220 ……………………………….………………………………………………… 8 Internal view: SDAW3.5-220 ……………………………………………………..………………………………….…………….. 9 Internal view: SDAW4.6-220, SDAW6.7-220 ……………………………..………………………………….…………….. 10 OPERATING THE UNIT ………………………………………………………………………………………………………………….. -
Page 3: Introduction
Thank you for choosing the heat pump water heater. Before starting installation, please make sure that all parts are found inside the product box. The Unit Box Item Image Quantity SDAW3.5-220 SDAW4.6-220 SDAW6.7-220 Installation and Service Manual Controller Controller Cover... -
Page 4: Cycle Diagram
Cycle diagram The whole cycle diagram is shown below. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user, other people, or property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. Install the unit only when it complies with local regulations, by-laws and standards. Check the main voltage and frequency. -
Page 6: Caution
Never use an extension cable to connect the unit to the electric power supply. If there is no suitable, earthed wall socket available, have one installed by a recognized electrician. Do not move/repair the unit yourself. Improper movement or repair on the unit could lead to water leakage, electrical shock, injury or fire. Have any repairs and/or maintenance only carried out by a recognized service engineer. - Page 7 Do not install the unit in a place where there is a chance of flammable gas leaks. If there is a gas leak and gas accumulates in the area surrounding the unit, it could cause an explosion. Perform the drainage/piping work according to the installation instruction. If there is a defect in the drainage/piping work, water could leak from the unit and household goods could get wet and be damaged.
-
Page 8: Overview Of The Unit

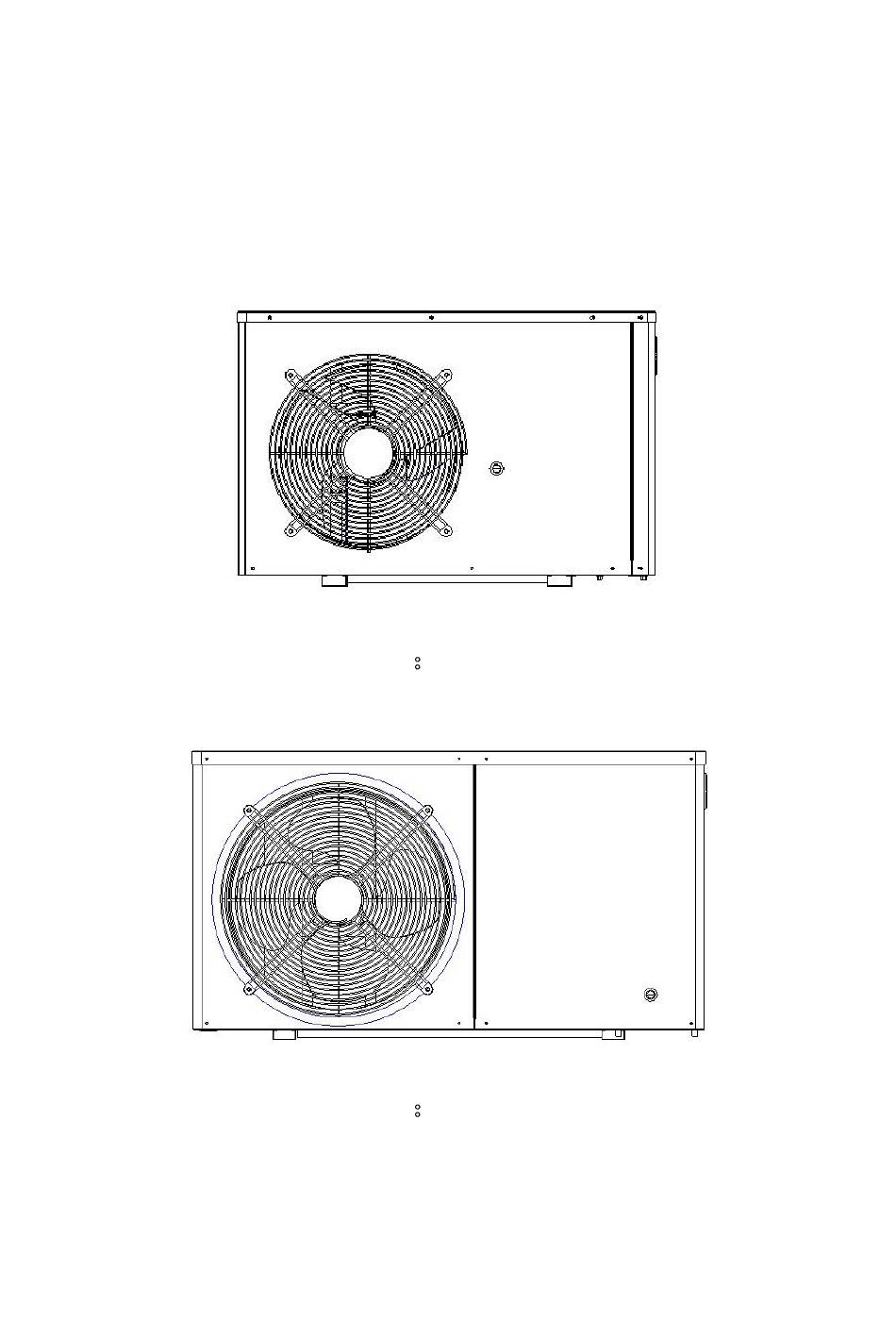

OVERVIEW OF THE UNIT External view: SDAW3.5-220... -
Page 9: External View: Sdaw4.6-220, Sdaw6.7-220
OVERVIEW OF THE UNIT External view: SDAW4.6-220 / SDAW6.7-220... -
Page 10: Internal View: Sdaw3.5-220
Internal view: SDAW3.5-220 No. Description No. Description Front panel Top cover Air outlet grill Electrical box Fan motor Compressor Water pump Fan motor holder Manometer Side grill Back right panel Back holder Shell & tube heat exchanger Evaporator Four-way valve assembly Back grill Pressure relief valve... -
Page 11: Internal View: Sdaw4.6-220, Sdaw6.7-220
Internal view: SDAW4.6-220 / SDAW6.7-220 No. Description No. Description Left front panel Manometer Air outlet grill Shell & tube heat exchanger Four-way valve assembly Fan motor Pressure relief valve Fan motor holder Water pump Evaporator Electrical box Back grill Compressor... -
Page 12: Operating The Unit
OPERATING THE UNIT Operating the unit comes down to operating the digital controller. NEVER LET THE DIGITAL CONTROLLER GET WET. THIS MAY CAUSE AN ELECTRIC SHOCK OR FIRE. NEVER PRESS THE BUTTONS OF THE DIGITAL CONTROLLER WITH A HARD, POINTED OBJECT. THIS MAY DAMAGE THE DIGITAL CONTROLLER. -
Page 13: Buttons
Press this button to select the running mode at any situation. Each time this button is pressed, the mode will change. It is applicable to heating & cooling unit. (Remark: For model SDAW3.5-220, SDAW4.6-220, SDAW6.7-220, only heating mode is available.) adjust buttons These are the multi-purpose buttons. -
Page 14: Controller Operations
6. Clock display The clock display shows the current time. When reading or programming the scheduled timer, the clock display shows the action time. 7. Timer ‘ON’ The icon indicates that the timer ‘ON’ function is enabled. 8. Timer ‘OFF’ The icon indicates that the timer ‘OFF’... -
Page 15: Parameter Checking And Adjustment
Max defrosting cycle period 0-15 min 8 min Adjustable System parameter Adjustable Auto restart function (0-No，1-Yes) Mode selection 0/1/2/3 Heating mode② Water pump working mode Adjustable (0-normal，1-specical) （ ① ②Remark: For model SDAW3.5-220, SDAW4.6-220, SDAW6.7-220, only heating mode is available. ) -
Page 16: Malfunctions And Error Codes
Some system status can be checked by the controller but cannot be adjustable. Below is the list. Status No. Description Range Remarks Inlet water temp. -9 ~ 99°C Real test value Outlet water temp. -9 ~ 99°C Real test value Coil temp. -
Page 17: Wiring Diagram
WIRING DIRGRAM... -
Page 18: Installation Of The Unit
INSTALLATION OF THE UNIT Installation guidelines Precautions for selecting the location MAKE SURE TO PROVIDE FOR ADEQUATE MEASURES IN ORDER TO PREVENT THAT THE OUTDOOR UNIT WILL BE USED AS A SHELTER FOR SMALL ANIMALS. SMALL ANIMALS MAKING CONTACT WITH ELECTRICAL PARTS CAN CAUSE MALFUNCTIONS, SMOKE OR FIRE. -
Page 19: Installation Space
Installation space Mounting the unit When installing the outdoor unit, please refer to “Installation guidelines” to select an appropriate location. 1. Check the strength and level of the installation ground so that the unit will not cause any operating vibration or noise after installation. 2. -
Page 20: Connecting The Water Circuit
Two stop valves are not delivered with the unit. To facilitate service and maintenance, please install one at each water inlet/outlet. Mind position of the stop valves. Orientation of the integrated drain and fill valves is important for servicing. ... -
Page 21: Charging Water
Be sure to install an earth leakage protector. Failure to do so may cause electrical shock. Wiring overview The table below gives a wiring overview of the required field wiring. Model SDAW3.5-220 Power supply ≥ 1.5 mm ×3 Model SDAW4.6-220, SDAW6.7-220 Power supply ≥ 2.5 mm ×3... -
Page 22: Pre-Operation Checks
Pre-operation checks Checks before initial start-up SWITCH OFF THE POWER SUPPLY BEFORE MAKING ANY CONNECTIONS. After the installation of the unit, check the following before switching on the circuit breaker: 1. Field wiring Make sure that the field wiring between the local supply panel and domestic hot water tank has been carried out according to the instructions, according to the wiring diagrams and according to European and national regulations. -
Page 23: Setting The Pump Speed
Setting the pump speed The pump speed can be selected on the pump. The default setting is high speed (III). If the water flow in the system is too high (e.g., noise of running water in the installation) the speed can be lowered (I or II). The available external static pressure (ESP, expressed in mH2O) in function of the water flow (l/min) is shown in the graph below. -
Page 24: Maintenance
MAINTENANCE In order to ensure optimal availability of the unit, a number of checks and inspections on the unit and the field wiring have to be carried out at regular intervals. BEFORE CARRYING OUT ANY MAINTENANCE OR REPAIR ACTIVITY, ALWAYS SWITCH ‘OFF’ THE CIRCUIT BREAKER ON THE SUPPLY PANEL, REMOVE THE FUSES OR OPEN THE PROTECTION DEVICES OF THE UNIT. -
Page 25: Troubleshooting
TROUBLESHOOTING This section provides useful information for diagnosing and correcting certain troubles which may occur in the unit. General guidelines Before starting the troubleshooting procedure, carry out a through visual inspection of the unit and look for obvious defects such as loose connections or defective wiring. Before contacting your local dealer, read this chapter carefully, it will save you time and money. - Page 26 1) Water flow is too low when 1) Check whether water flow fit unit is heating water, or water requirement, check whether temp is too high plate heat exchanger inlet water 2) Ambient temp is too high temp is too high when unit is cooling water or 2) Check unit ventilation High pressure...
-
Page 27: Temperature Sensor R-T Conversion Table
TEMPERATURE SENSOR R-T CONVERSION TABLE R25 = 5.0KΩ±1.0％ B25-50 = 3470K±1.0％ T(℃ ) Rmin(KΩ) R(KΩ) Rmax(KΩ) T(℃ ) Rmin(KΩ) R(KΩ) Rmax(KΩ) -30.0 61.254 63.465 65.749 46.0 2.287 2.328 2.369 -29.0 58.028 60.090 62.219 47.0 2.209 2.250 2.290 -28.0 54.991 56.914 58.898 48.0 2.135... - Page 28 10.249 10.429 10.611 83.0 0.708 0.729 0.751 9.822 9.990 10.160 84.0 0.688 0.709 0.730 9.414 9.572 9.730 85.0 0.668 0.689 0.709 10.0 9.027 9.173 9.321 86.0 0.649 0.669 0.690 11.0 8.657 8.794 8.932 87.0 0.631 0.651 0.671 12.0 8.305 8.432 8.561 88.0 0.613...
-
Page 29: Technical Data
TECHNICAL DATA Domestic hot water heat pump(split type-water cycle) TECHNICAL DATA SDAW3.5-220 SDAW4.6-220 SDAW6.7-220 Nominal capacity Heating Power input 0.875 1.24 1.79 4.02 Power supply V/Ph/Hz 220-240/1/50 Max. leaving water temperature ℃ (without using backup heater) Rated water yield Running temperature range -10-43 ℃...
