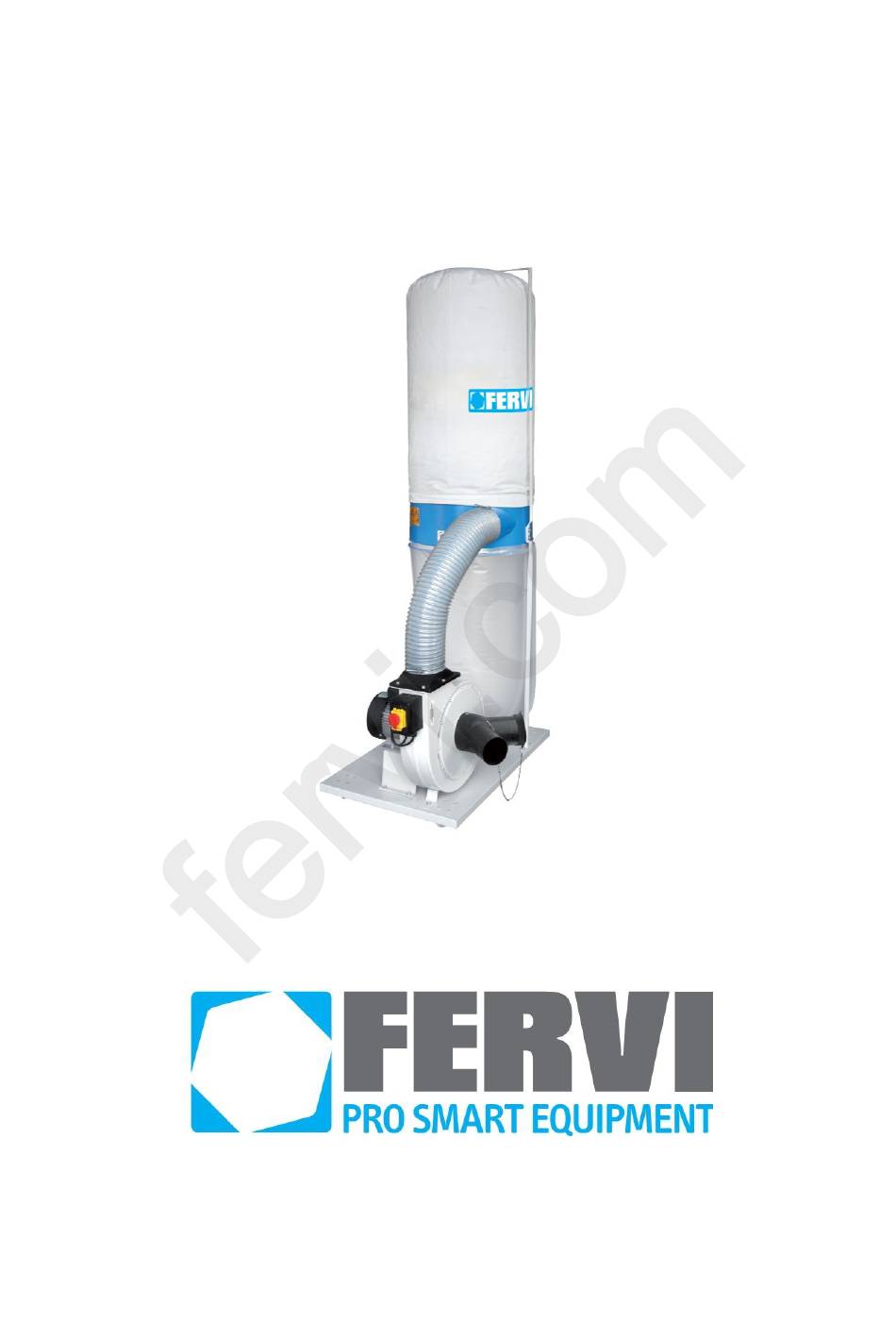

- Page 1 OPERATION AND MAINTENANCE MANUAL Partially assembled dust collector Art. 0759 ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issuance and listed herein; On the other hand, the machine may also be subject to important technical changes in the future, without the manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 3 October 2013...
-
Page 3: Table Of Contents
MACHINES AND ACCESSORIES CONTENTS INTRODUCTION ..................4 Preface..........................5 SAFETY WARNINGS .................. 6 General safety rules for machine tools ................6 Safety rules for electrical machine equipment ..............8 Technical support......................8 Other provisions ......................8 TECHNICAL SPECIFICATIONS ..............9 DESCRIPTION OF THE MACHINE ............. 10 Identification plate ..................... -
Page 4: Introduction
The purpose of this manual is to provide the knowledge necessary for the use and maintenance of the machine Aspiratore per trucioli Art. 0759 and create a sense of responsibility and an understanding of the capabilities and limitations of the means entrusted to the operator. -
Page 5: Preface
MACHINES AND ACCESSORIES RAPHIC REPRESENTATION OF SAFETY OPERATIONAL AND RISK WARNINGS The following boxes are designed to attract the attention of the reader / user for the proper and safe use of the machine: Pay attention This highlights behavioural rules to prevent damage to the machine and/or the occurrence of dangerous situations. -
Page 6: Safety Warnings
MACHINES AND ACCESSORIES 2 SAFETY WARNINGS 2.1 General safety rules for machine tools Risks related to Using the Machine Do NOT underestimate the risks related to the use of the machine and stay focused on the work you are carrying out. Risks related to Using the Machine Despite the implementation of all safety devices for safe use of the machine, it is necessary to take note of all the accident prevention requirements highlighted in various parts of this... - Page 7 MACHINES AND ACCESSORIES 1. Always check the efficiency and integrity of the machine. 2. Before connecting the machine to the mains make sure that the switch is in the rest position. 3. Do not start the machine in an enclosed or poorly ventilated area, or in the presence of a flammable and/or explosive atmosphere.
-
Page 8: Safety Rules For Electrical Machine Equipment
MACHINES AND ACCESSORIES 2.2 Safety rules for electrical machine equipment Risks related to Using the Machine 1. Do not modify the electrical system in any way. Any attempt in this regard may jeopardize the operation of electrical devices, thus causing malfunction or accident. 2. -
Page 9: Technical Specifications
MACHINES AND ACCESSORIES 3 TECHNICAL SPECIFICATIONS Model Art. 0759 Weight (kg) Rated voltage (V) Frequency (Hz) Power (W) 1,500 Motor speed (r/min) 2,950 Air flow rate (m 2,500 Noise emitted L (dB) Size (mm) 840 x 560 x 1800 Page 9 of 29... -
Page 10: Description Of The Machine
MACHINES AND ACCESSORIES 4 DESCRIPTION OF THE MACHINE Figure 1 – Overview. Suction fun Filter bag Electric motor Collection bag Start and stop switches Suction tube coupling Base of support Connection tube Bag support rod Page 10 of 29... -
Page 11: Identification Plate
MACHINES AND ACCESSORIES 4.1 Identification plate The following identification plate is attached to the machine (Figure 2). Figure 2 – Identification plate. 4.2 Pictograms The machine has the following warning pictograms: Pictogram indicating the rotation direction of the fan (Figure 3); Figure 3 –... - Page 12 MACHINES AND ACCESSORIES Attention pictogram with an indication of the main residual risks (projection of splinters, electric shock, etc.) and a graphical indication of some safety precautions (wear protective goggles, read the manual, etc.). Figure 5 – Attention and warning pictogram Page 12 of 29...
-
Page 13: Installation Of The Machine
MACHINES AND ACCESSORIES 5 INSTALLATION OF THE MACHINE 5.1 Assembling the vacuum Clean the workbench Before assembling the machine, clean the workbench of any dirt that may be present. Open the packaging box and remove all the parts that make up the machine A. - Page 14 MACHINES AND ACCESSORIES 2. Install the vacuum (B) on the support base ( 3. Figure 8), tightening the 4 fastening screws using an hex wrench. Figure 8– Mounting the vacuum on the base. 4. Position the exhaust manifold (L) onto the Figure 9 - Mounting the gasket.
- Page 15 MACHINES AND ACCESSORIES 6. Attach the upper support of the bag (E) to the conveyor body, using the appropriate fastening screws and a hex wrench. Figure 11 – Mounting the supports and the conveyor body. 7. Connect one end of the hose (A) to the exhaust manifold casing of the vacuum fan (Figure 11) and secure it with the jubilee clip (M).
- Page 16 MACHINES AND ACCESSORIES 8. Connect the opposite end of the hose (A) to the conveyor body (C) and secure it with the jubilee clip (M) (Figure 13). Figure 13 - Intermediate result. 9. Arrange the bags (H) on the manifold and secure with the retaining straps (Figure 14).
- Page 17 MACHINES AND ACCESSORIES 11.The double attachment tube (G) can now be inserted into the hole of the vacuum (Figure 16). Figure 16 - Mounting the attachment tube The machine is now fully assembly. For operation the vacuum has to be moved next to the woodworking machine to which it will be connected.
-
Page 18: Suction Tube Assembly
MACHINES AND ACCESSORIES 5.2 Suction tube assembly The chip vacuum is connected, via a suction tube (of suitable diameter), to one or two woodworking machines or other machinery that discharges sawdust and/or wood chips that must be collected. If it is connected to only one machine, attach the end of the chips exhaust tube to a vacuum inlet (ref. -
Page 19: Control Switches
MACHINES AND ACCESSORIES 6 CONTROL SWITCHES The switches are located on the body of the vacuum, under the emergency button cap which can be opened. They are used to turn the chip collection vacuum on and off. 6.1 On switch (start) The green button (I), is used for starting (turning on) the chip vacuum (Figure 19). -
Page 20: Operation
MACHINES AND ACCESSORIES 7 OPERATION The chip vacuum is a very easy machine to use. After connecting the power plug and the chip suction tube(s), the machine is ready for use. First turn on the chip vacuum, by pressing the green button (Figure 19) and then the woodworking machine. -
Page 21: Machine Safety Devices
MACHINES AND ACCESSORIES 8 MACHINE SAFETY DEVICES 8.1 Electrical safety devices The control device connected to the electrical circuit of the chip vacuum is a magnetic switch with two buttons. This prevents the danger of unwanted and/or accidental starts of the machine, since the switch can only be activated through a voluntary action suitable for the given purpose and when the machine is powered. -
Page 22: Mechanical" Safety Devices
MACHINES AND ACCESSORIES 8.2 "Mechanical" Safety Devices 8.2.1 Protective casing This has the function of preventing the wood chips vacuumed from being thrown towards the operator's face, and channelling them into the collection bag. Checking the safety devices Each time you use the chip vacuum check that the machine has been assembled and operates perfectly, as well as the positioning of the safety devices. -
Page 23: Maintenance
MACHINES AND ACCESSORIES 9 MAINTENANCE 9.1 Routine maintenance Electric shock Before maintenance or checks, turn off the machine and ALWAYS unplug the plug from the power outlet. This is so that there is no risk of electric shock. Regularly clean and take care of the machine to guarantee proper efficiency and a long working life. -
Page 24: Troubleshooting
MACHINES AND ACCESSORIES 10 TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Damaged bearings. Contact technical support. Lubricate. Noisy operation. Bearings not lubricated. Record the position of the Friction of a fan blade. conveyor. Electrical power supply. Check the mains power supply. Check the wiring connections. Wiring connections Contact the service The motor will not... -
Page 25: Replacement Parts
MACHINES AND ACCESSORIES 11 REPLACEMENT PARTS Page 25 of 29... - Page 26 MACHINES AND ACCESSORIES Description Quantity 0759/01 Swivel wheel 2.5 0759/02 Nut M8 0759/03 Base plate 0759/04 Flat washer 8mm 0759/05 Motor base 0759/06 M8x16 bolt 0759/08 Motor 0759/09 Switch 0759/11 Hex wrench 0759/13 Support for the upper bag 0759/15 Bolt M6x10...
- Page 27 MACHINES AND ACCESSORIES Description Quantity 0759/49 Power cable 0759/51 Nut M5 0759/52 Gauge 0759/53 Screw M4x60 0759/54 Switches upper cover 0759/55 Panel 0759/56 Screw ST4x10 Page 27 of 29...
-
Page 28: Disposal Of Parts And Materials
MACHINES AND ACCESSORIES 12 DISPOSAL OF PARTS AND MATERIALS If the machine is to be scrapped, its parts must be disposed of separately. Respect the environment! Contact a specialist centre for the collection of metallic materials. The structure of the chip vacuum is made of steel, the bags are made of fabric, the motor casing is made of plastic. -
Page 29: Electrical Circuit
MACHINES AND ACCESSORIES 13 ELECTRICAL CIRCUIT Page 29 of 29...
