CROSS ARM ASSEMBLY
CAA-xxxx-yyzz
Assembly and Operation
NOTE:
Clear parts are shown for
reference and are provided
with other modules
MNL0052, Rev A
1 of 12
Atoc Inc. © 2018 All rights reserved

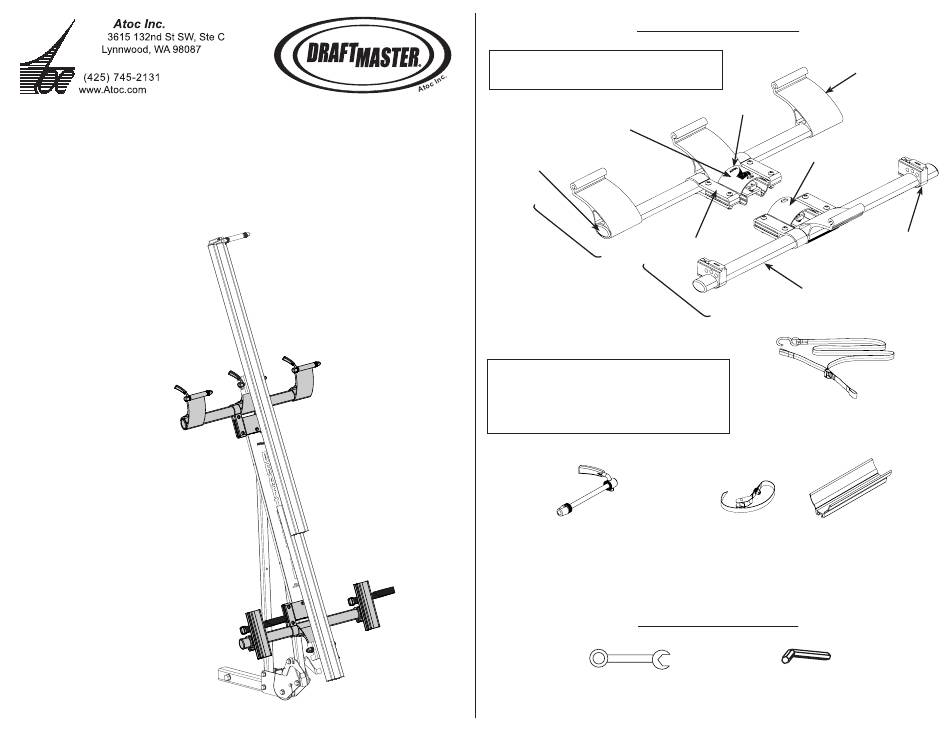

WHAT YOU GET
Components vary with configuration.
CAA-2100-3030 shown.
Upper Sleeve
( with ATOC logo )
End Cap
x 4
Grip x 4
Upper Cross Arm
sub-assembly
Lower Cross Arm
sub-assembly
* Quantity varies with configuration.
Some configurations do not have wheel trays.
† Upper & lower cross arms may be different
lengths.
Quick Release Skewer
( 1 per Fork Mount )
TOOLS NEEDED
1/2 inch or 13 mm wrench
Fork Mount *
Bumper
( hidden )
Lower Sleeve
Wheel Tray
Mounting Clamp *
Cross Arm x 2 †
Stability Strap x 2
( wider CAA configurations only )
Wheel Strap
+
Wheel Tray
( 1 each per Wheel Tray Mounting Clamp )
1/8 inch hex wrench
2 of 12
Advertisement
Related Manuals for Atoc DraftMaster CAA Series
Summary of Contents for Atoc DraftMaster CAA Series
- Page 1 Clear parts are shown for reference and are provided with other modules TOOLS NEEDED 1/2 inch or 13 mm wrench 1/8 inch hex wrench 1 of 12 2 of 12 MNL0052, Rev A Atoc Inc. © 2018 All rights reserved...
- Page 2 CROSS ARM HARDWARE BY BIKE TYPE CROSS ARM HARDWARE BY BIKE TYPE CAA-Xxxx-yyzz CAA-xxXx-yyzz Traditional singles & Delta trikes short recumbents over 48 inch wheelbase upper cross arm under 48 inch wheelbase upper cross arm Upper cross arm: Upper cross arm: 1 fork mount 1 fork mount Lower cross arm:...
-
Page 3: Installation
Atoc Logo Step 3: Slide cross arm sleeves onto the Interconnect spine. Step 6: The upper cross arm has the Atoc decal. Attach both Stability straps to ends of the upper Cross Arm. Note: Stability Straps are only provided with No Logo wider CAA configurations. - Page 4 ASSEMBLY FORK MOUNT POSITIONS Step 1: ALL BICYCLES SHOULD ALWAYS Place Quick Release Skewer BE MOUNTED FRONT END UP ON in fork mount. A DRAFTMASTER. Install nut. We position your fork mounts at the factory in the right-left position and up-down orientation that is most likely to work for your combination of bicycles.
-
Page 5: Operation
OPERATION BIKES & TRIKES Step 4: WITHOUT A SPECIALTY RAIL Secure the rear wheel in the wheel tray using the wheel strap. Step 1: Remove front wheel. SPECIALTY BIKES & TRIKES Step 2: REQUIRING A SPECIALTY RAIL Place the front fork of the bike onto the Quick Release Skewer of the Fork Mount. -
Page 6: Warranty
Atoc Inc. assumes responsibility only for products produced by or for Atoc Inc. The liability of Atoc Inc. is limited to the replacement or repair of merchandise which proves defective in materials and/or workmanship. This liability is further limited to one year from date of purchase.
