Summary of Contents for Vinoil VLS-83

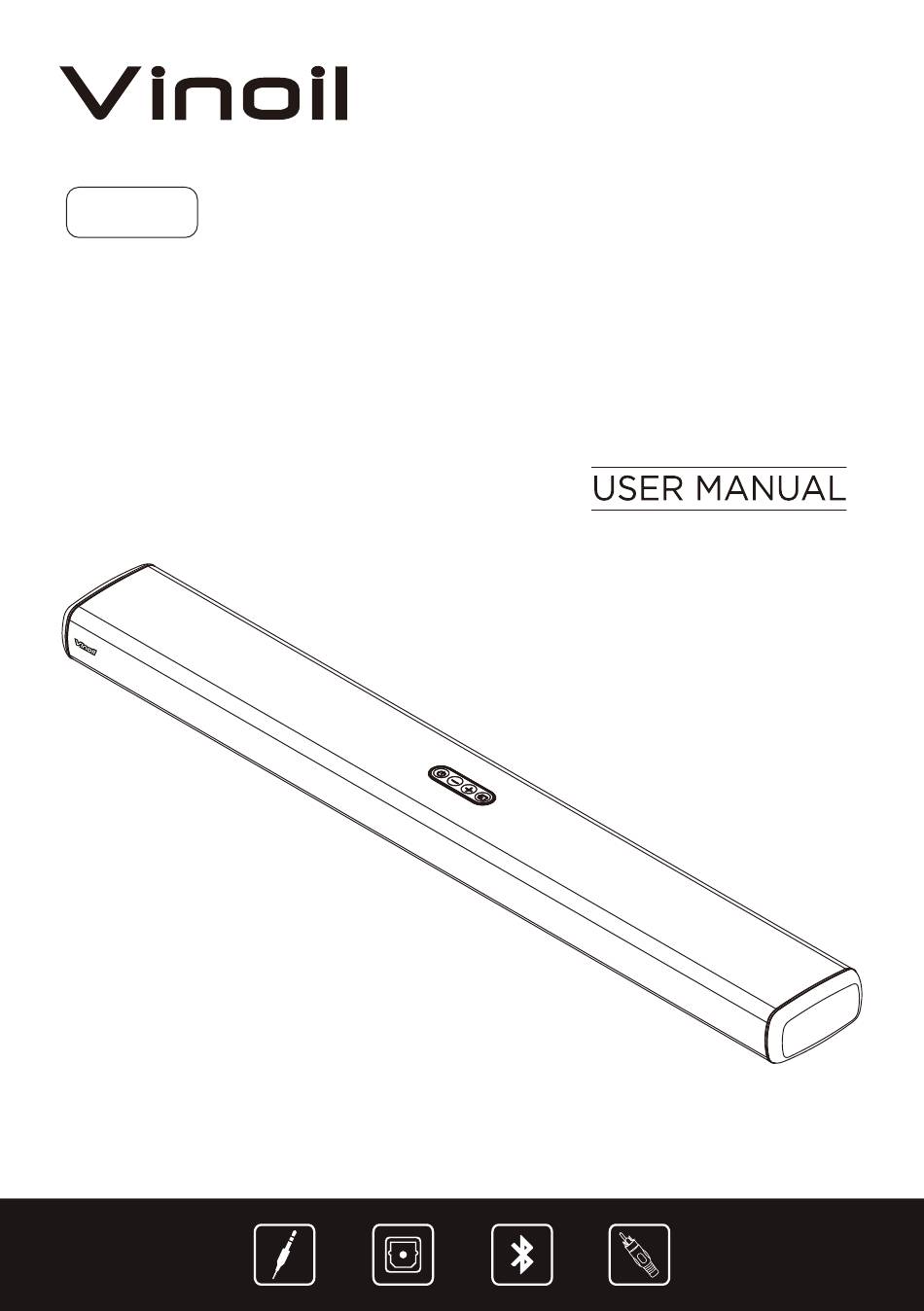

  • Page 1 VLS-83 2.1CH Soundbar...
  • Page 2: Important Safety Instruction

    Important Safety Instruction Thank you for purchasing the VLS-83 Soundbar. Please read this user manual carefully and keep for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.
  • Page 3: Important Safety Instructions

    6. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit. 7.
  • Page 4: Preparation For Use

    10. Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damage in any way, for example, when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 5: Important Notes

    Important Notes • This sound bar was especially developed for LED/LCD/Plasma TV's: It should not be used in combination with CRTTV's (Cathode Ray Tube TV's) in order to avoid image interference. • Safety and operating instruction manual should be retained for future reference. •...
  • Page 6: Product Diagram

    Product Diagram VOL+ DISPLAY COAXIAL INPUT STANDBY INPUT OPTICAL VOL- AC IN...
  • Page 7: Remote Control

    Remote Control Standby mode for power on/off. Volume increase. Prev song.(only work under BT mode.) Volume decrease. OPTICAL selection. Select the MUSIC EQ effect. Select the Movie EQ effect. Mute mode. Play/Pause/Reset Next song.(only work under BT mode.) AUX selection. COAXIAL selection.
  • Page 8 Mount on the wall WARNING: If you don’t feel confident to correctly and securely wall-mount the sound bar, Seek the assistance of an experienced person of professional. Install the speaker on a vertical, fast, reinforced area of wall. For plaster walls, it is recommended to screw into wall studs for greater security.
  • Page 9: Powering On/Off

    OPERATE INSTRUCTIONS Setting the Soundbar 1: Plug in the power cord and the display will light up (Standby mode) 2: Switch on the soundbar by using power button on soundbar of by using STANDBY button on remote. After switching on, the default input mode will appear on display 3: lnput mode can be changed by pressing the power button again or by using the INPUT button on remote 4:Below are input mode names appearing in the soundbar display: -Bluetooth Pairing mode,...
  • Page 10: Optical Mode

    1. Turn on sound bar and then short-press the multi-function button to switch to BT mode and the LED will show ( 2. Activate the pairing function on your phone of other compatible device and select “VLS-83 Vinoil” 3. When successfully paired, you will hear a tone and the LED indicator will stay on 4.
  • Page 11 • Switch the TV set and sound bar on. Set the connected TV to “PCM Stereo” or “Stereo 2.0”. • Start playing on the TV. • Press the “OPTICAL” button on the remote control to select this mode. • You can use the volume buttons to adjust the volume to your requirements. •...
  • Page 12: Specifications

    Specifications Model VLS-83 Technology BT/OPT/COA/AUX Drivers 1.75*2+2.75"*2 Audio Output Power 20W*2+40W=80W R.M.S. Frequency Response 70Hz~20KHz Signal-to-Noise Ratio 72dB lmpedance 4Ω*2+3Ω*2 Power lnput SMPS 110V-240V~50Hz/60Hz Bluetooth Operating Range Version: 4.2 Range:up to 10m Dimensions 84.5H*108D*900L mm Package Contents Sound bar X 1 1.6m line-in...
  • Page 13 Please check your local authorities for more details. ♦ Please note, Vinoil can only provide after sales service for products purchased directly from Vinoil. If you have purchased from a different seller, please contact them directly for service or warranty issues.
  • Page 14 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 15 Need support,please contact ct support@vinoilmusic.com For warranty issues, contact ct warranty@vinoilmusic.com wit with your order no...
