Summary of Contents for Jiafu JFMC-POES18

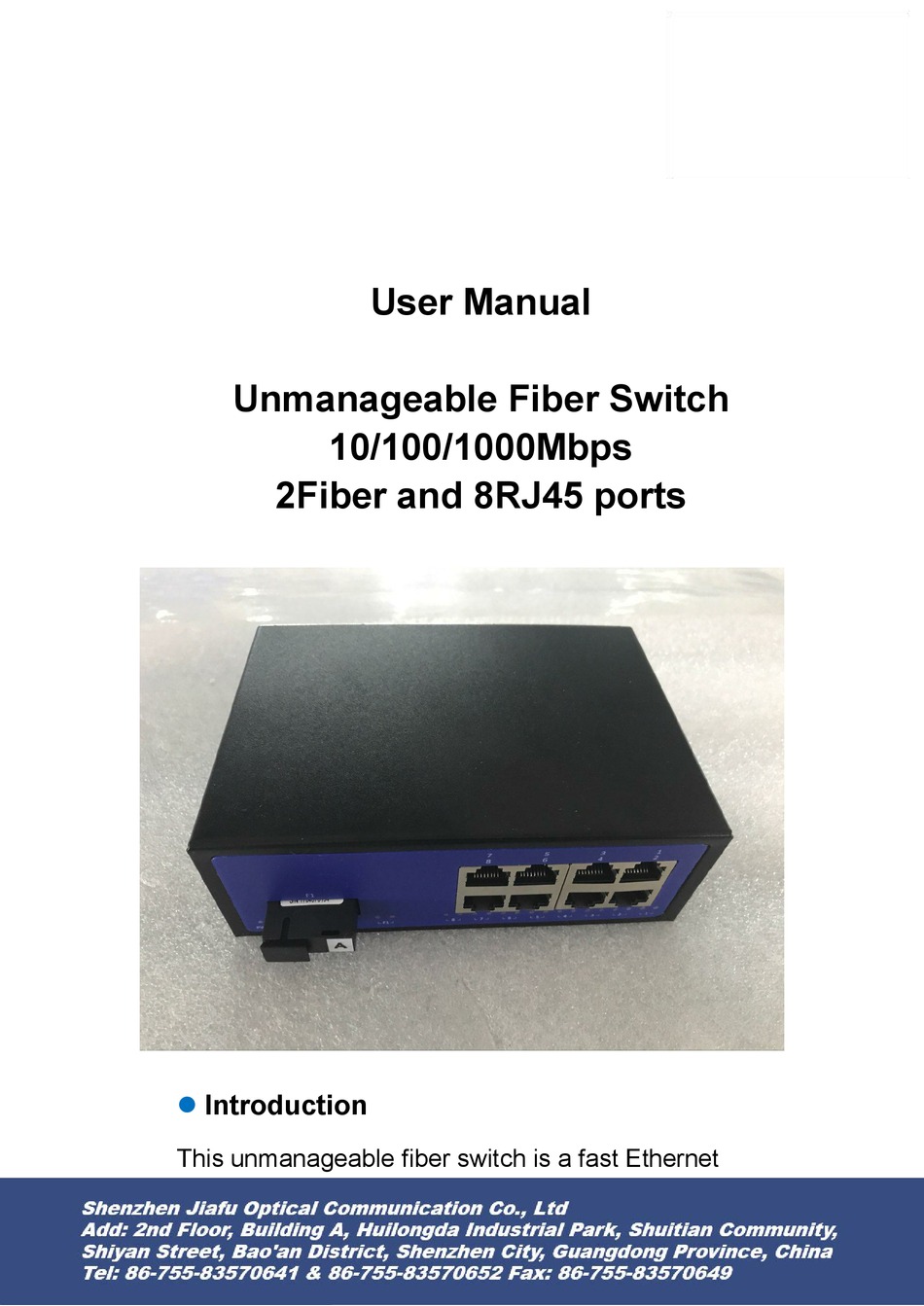

- Page 1 User Manual Unmanageable Fiber Switch 10/100/1000Mbps 2Fiber and 8RJ45 ports Introduction This unmanageable fiber switch is a fast Ethernet...
-
Page 2: Purchasing Guide
transmission device,compare with normal switch, it is transmitted by fiber optic cable for faster and anti-interference. 10/100/1000Mbps adaptive fast Ethernet fiber switch, with 8 internal 10Mbps/100Mbps/1000Mbps ports,10Base-T,100Base-Tx twisted-pair signal and 1000Base-Fx fiber signal can be inter-converted independently.It can be reach 120km(single mode and duplex), Purchasing Guide ... - Page 3 Features Adapt 10Mbps,100Mbps to 1000Mbps, easy for updating. Flow control, to reduce packets. Offer 4 independent 10M/100Mbps adaptive exchanged twisted-pair ports, achieve backup and multiple access Support Vlan, and different units link. Full-duplex and half-duplex transmission can support automatic negotiate and cross twisted-pair cables,easy for installing.
-
Page 4: Specification
Specification Type Feature Data Rate 10/100/1000Mbps Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/ FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree Wavelength 850nm/1310nm/1550nm Reach 2/20/40/60/80/100Km Cat 5 cable: 100m Port 8-RJ45 ports: TP/UTP Cat 5 cable 2Fiber ports: multimode SC/ST/LC/FC(50,62.5/125μm) Single mode SC/ST/LC/FC(9/125μm) Mode Media conversion, store and forward... -
Page 5: Packing List
-10~55℃ Temp. Humidity 5%~90% -40~70℃ Storage temp Storage humidity 5%~90% no condensing Dimension 216mm*108mm*28mm Packing List Unmanageablefiberswitch 1piece DC5V3Apoweradapter 1piece User manual 1 piece...
