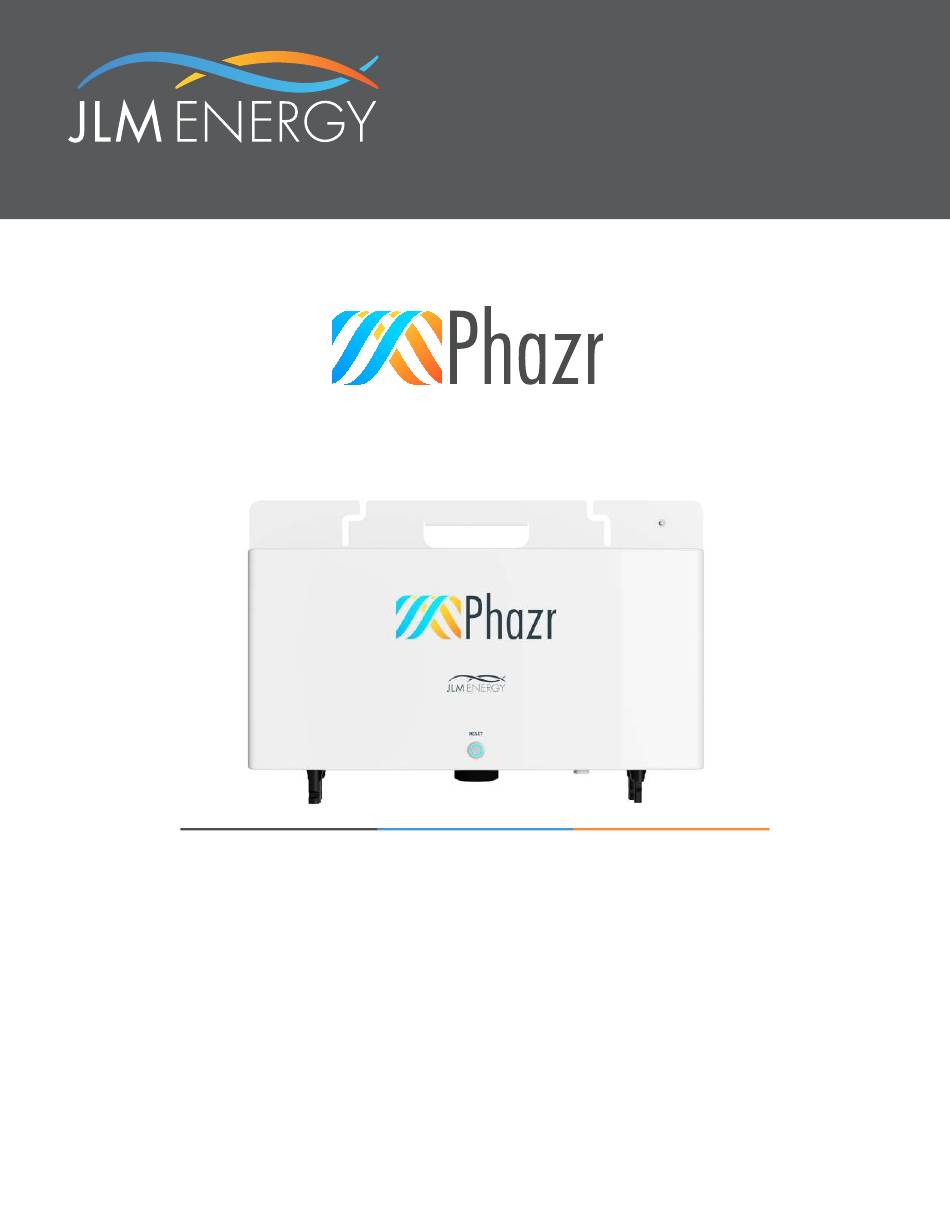

Declare your energy independence.
Installation & Setup Guide
The following guide details the steps and procedures
to properly install and commission a JLM Phazr system.
If you require assistance during the installation
or commissioning of a Phazr system, please contact:
JLM Energy Customer Support at
(800) 475-3960
Advertisement
Table of Contents
Summary of Contents for JLM Phazr
- Page 1 Declare your energy independence. Installation & Setup Guide The following guide details the steps and procedures to properly install and commission a JLM Phazr system. If you require assistance during the installation or commissioning of a Phazr system, please contact:...
-
Page 2: Table Of Contents
1.0 Phazr Installation 1.1 Roof Type and Mounting System Options 1.2 Mounting Phazr 2.0 Application (App) Installation 3.0 Phazr Hub and AmpliFi HD Router System Installation 4.0 Phazr Configuration 4.1 Linez Installation 5.0 Completing Installation 2017 ©JLM Energy Inc., All Rights Reserved. -
Page 3: Phazr Installation
Info: Install the PV array stand-offs and rails as far apart as possible to locate Phazr close to the exposed edge of the PV module. This allows access to the ON/OFF button located on the bottom of each Phazr. Info: The included DC jumper wires from the Phazr to the micro-inverter are three feet (3’) long. -
Page 4: Roof Type And Mounting System Options
The following mounting systems have been tested and proven to work with Phazr. These options are not specifically required for use with Phazr and are listed only as examples. It is the responsibility of the installer to provide mounting systems that provide the required clearances for Phazr. -
Page 5: Mounting Phazr
1.2 Mounting Phazr Info: Lay out and be aware of PV module frame locations to avoid mounting Phazr in a location that will interfere with the PV modules. Info: All micro-inverters or DC power optimizers should be mounted and connected to their associated truck cable (AC connection) prior to mounting Phazr for an easier installation process. - Page 6 Installation & Setup Guide Bond the Phazr chasis to the PV array grounding system using the factory- installed grounding lug on the Phazr. Unpackage the provided DC jumper cables and plug them into the Phazr DC OUT terminals. Plug the other end of the cables into the micro-inverter or DC power optimizer DC IN terminals.
-
Page 7: Application (App) Installation
Installation & Setup Guide Plug the PV module DC cables into the Phazr DC IN terminals and mount the PV module to the rails. DC IN 2.0 Application (App) Installation Search for JLM Energy in Google Play (Android) or the App Store (Apple) and you will find the Measurz Mobile App. -
Page 8: Phazr Hub And Amplifi Hd Router System Installation
(ceiling of the garage) provides a good location for the Linez unit if the Main Service Panel is close to the garage. Install Phazr Hub by plugging the provided micro USB cord and ethernet cable into the Amplifi Router. -
Page 9: Phazr Configuration
Verify you are connected to the PhazrConfig network and hit Next. • • Scan or type in the 8 digit barcode on the bottom of the Phazr Hub and hit Next. Click the select all button to select all Phazrs. Checkmarks will appear in all the configure and •... -
Page 10: Linez Installation
Install the Linez unit and configure according to the • installation / configuration of that product. • Linez is preconfigured to the same AmpliFi router / Phazr hub dedicated network. Once Linez is installed and powered on it will automatically connect to Measurz. 5.0 Completing Installation...
