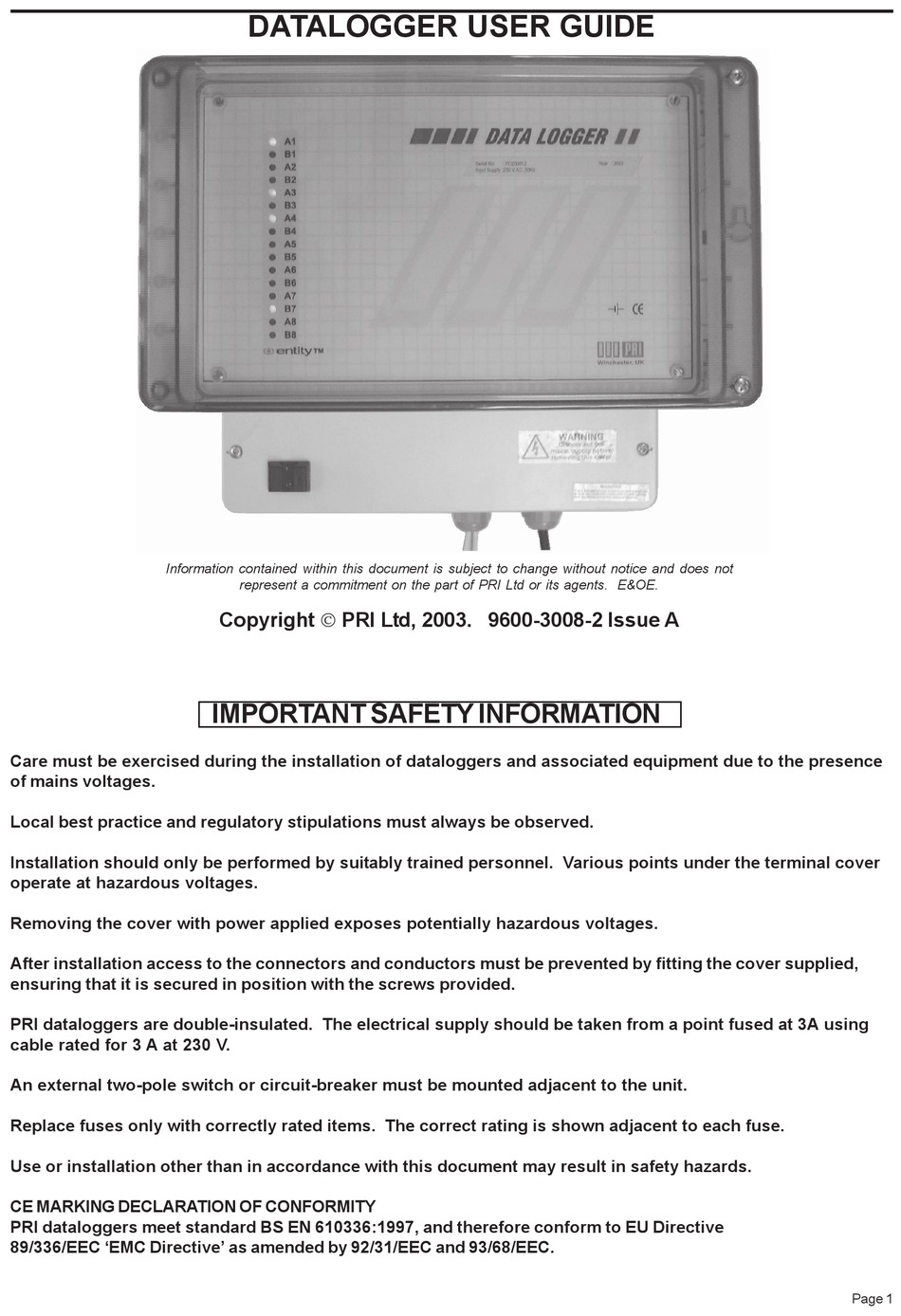

DATALOGGER USER GUIDE
Information contained within this document is subject to change without notice and does not
represent a commitment on the part of PRI Ltd or its agents. E&OE.
Copyright PRI Ltd, 2003. 9600-3008-2 Issue A
IMPORTANT SAFETY INFORMATION
Care must be exercised during the installation of dataloggers and associated equipment due to the presence
of mains voltages.
Local best practice and regulatory stipulations must always be observed.
Installation should only be performed by suitably trained personnel. Various points under the terminal cover
operate at hazardous voltages.
Removing the cover with power applied exposes potentially hazardous voltages.
After installation access to the connectors and conductors must be prevented by fitting the cover supplied,
ensuring that it is secured in position with the screws provided.
PRI dataloggers are double-insulated. The electrical supply should be taken from a point fused at 3A using
cable rated for 3 A at 230 V.
An external two-pole switch or circuit-breaker must be mounted adjacent to the unit.
Replace fuses only with correctly rated items. The correct rating is shown adjacent to each fuse.
Use or installation other than in accordance with this document may result in safety hazards.
CE MARKING DECLARATION OF CONFORMITY
PRI dataloggers meet standard BS EN 610336:1997, and therefore conform to EU Directive
89/336/EEC 'EMC Directive' as amended by 92/31/EEC and 93/68/EEC.
Page 1
Advertisement
Summary of Contents for PRI Entity
- Page 1 After installation access to the connectors and conductors must be prevented by fitting the cover supplied, ensuring that it is secured in position with the screws provided. PRI dataloggers are double-insulated. The electrical supply should be taken from a point fused at 3A using cable rated for 3 A at 230 V.
- Page 2 SECTION A: INSTALLATION How to fix the datalogger into position PRI dataloggers are designed for vertical mounting, and can be fitted to meter panels, boards, enclosures or walls. Suitable screws must be selected to ensure a Fig. 1 Fixing Centres for Datalogger good fixture.
- Page 3 The Modem Input RJ-11 port can be used to connect the datalogger integral modem to a telephone line. The PACTLAN Output can be used to connect the datalogger to a network of other PRI meters or dataloggers. The PACTLAN network can only be accessed remotely via the internal modem. It is not possible to access the PACTLAN network through the PACT port, so it is not possible to use a datalogger as a ‘PACTLAN repeater’.
- Page 4 Integral V22 modem with RJ-11 socket mounted on the base of the unit 9-pin D-type connector on base of unit for built-in PACTLAN distribution unit for connecting up to 16 compatible PRI meters or dataloggers Accessories: Glands for mains and pulse input cables. PACTLAN adapter cable; 9-pin D plug to free end, 5 m long.
