Vimco Lutron Sivoia SV-CP Operating Instructions Manual

Coupled shade system with end motor coupled pin kit

Advertisement

Quick Links

Motorized Shade Systems
Installation & Operating Instructions
Coupled Shade System
with End Motor

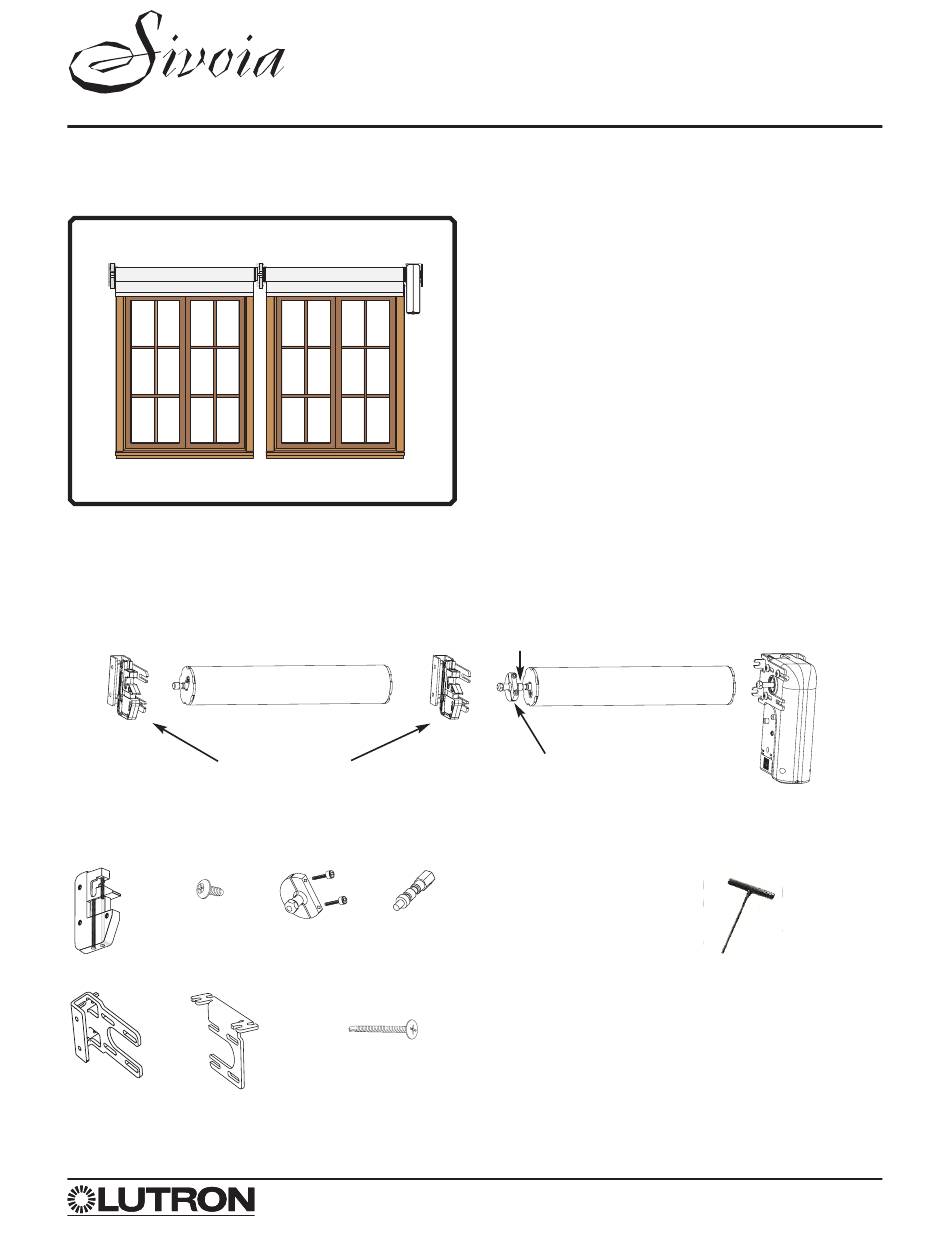

Expanded View of the Coupled Shade System
Idler Supports
Parts Included With This Kit:
1/2" Idler and
MDU Truss-
Head Screws
Idler Support (x2)
(x4)
Idler Mounting
Ceiling-Mount
Bracket
Bracket *
* See the SV-MDU-20 instructions for details on installing these brackets.
VIMCO
shading solutions by
®
2nd Shade
Coupled Idler
Adjustable Hub
Pin
2" Pan-Head Mounting
Bracket Screws (x8)
TM
SV-CP

Description

The Sivoia
SV-CP Coupled Pin Kit (to be used in
®
conjunction with an SV-MDU-20) allows a single Motor Drive
Unit (MDU) to drive more than one shade.
Important Notes
1. All shades controlled by the MDU must be the same height.
2. All shades must be made of the same fabric to ensure
hembar alignment.
3. The total combined fabric from all shades connected to the
MDU must not exceed 100 sq. ft. (30.5 sq. m).
4. The maximum width allowed for each tube in the coupled
system is 10 ft. (3.05 m).
5. All shades must be driven along a single axis (no off angle
positioning).
6. The MDU can be configured to operate from the left or right
side. See the original MDU Installation Instructions for
details.
Coupled Idler Pin
1st Shade
Adjustable Hub
Required Tools:
9/64" (3.6 mm) Hex
I
Wrench (T-bar style
preferable)
I
#2 Phillips Screwdriver
I
Tape Measure
I
Power Drill: Drill Bits, Screwdriver Attachments
Level
I
Coupled Pin Kit
MDU
Page 1
