Summary of Contents for ARK Travel System Series

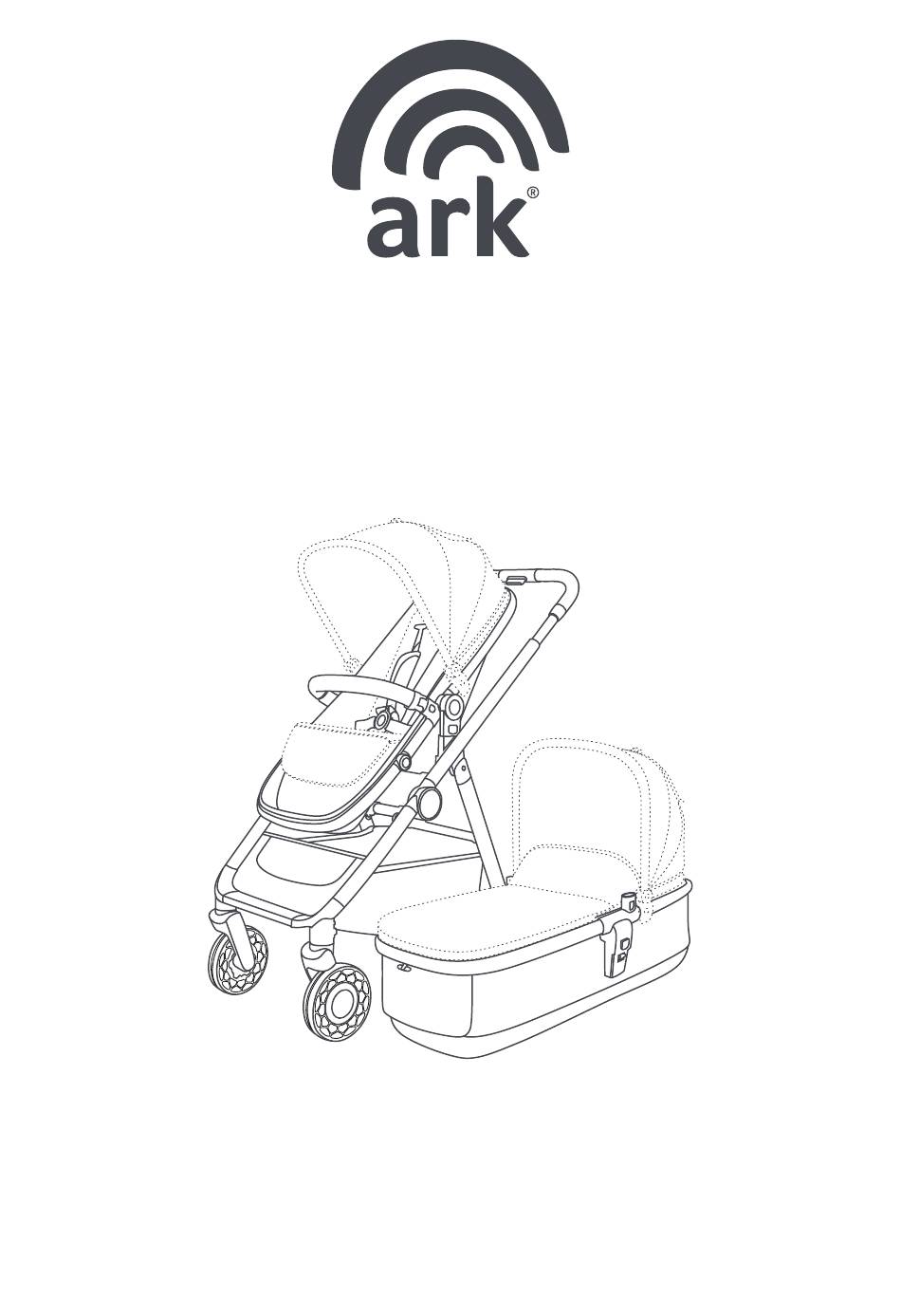

- Page 1 Frame, Seat & Carrycot Part of the Ark Travel System Range ® BASIC INSTRUCTION LEAFLET This product comes in conjunction with your chosen colour pack which contains your hood canopy, seat pad and carrycot cover.
- Page 2 Ark Global Innovations Ltd shall not be liable for technical errors or omissions. All rights are reserved. Ark - for the best start and all associated logo’s and assets are trademarks. They are not allowed to be reproduced or used without prior written permission from Ark Global Innovations Limited.
-
Page 3: Preparation For Use
Preparation for use Unfold the frame by raising the handle and lift until it clicks and locks open. The back wheels are interchangeable. Line up the protruding spoke from the wheel and push it into the frame until it clicks. The front wheels are left/ right specific. -
Page 4: Everyday Use
Everyday use To adjust the handle height, push the button on the centre of the handle and pull the handle up or down until it locks into the required position. There are 4 lock positions. To engage the brake: use your foot to press down on the back section of the break, indicated by a ‘stop’... -
Page 5: Assembling The Carrycot
Assembling the carrycot Fit the front tube of the carry cot frame into the plastic part until they click and lock into position. Secure the carrycot base by locking both the internal bars into the clips in the base. Pull back on the tab until the bars lock into the clips on both sides. - Page 6 Assembling the carrycot To fit the bumper bar lock the clips in both sides of the carrycot. To remove the bumper bar press the button on the side to release the clip. The bar can pivot on one side for access to the child. WARNING: DO NOT ATTACH CARRYCOT TO OR REMOVE FROM THE FRAME WITH A...
- Page 7 Assembling the carrycot Inside your separate colour pack you will find your hood canopy that fits on both the carry cot and seat frames. Hook the plastic clip over the bar and push down firmly so that the hole fits over the metal fixing.
-
Page 8: Assembling The Seat
Assembling the seat To fit the seat in the forward facing position lock the left and right clips into the side mountings of the frame with the seat facing away from the handle. To fit the seat in the rearward facing position lock the left and right clips into the side mountings of the frame with the seat facing towards the handle. - Page 9 Assembling the seat To raise the footrest lift until it clicks into position. To lower, press the buttons on the left and right of the footrest simultaneously to lower. To recline the seat press the circular button on the left and right of the seat and rotate the seat forwards and backwards until it locks into required position.
- Page 10 Assembling the seat To fit the bumper bar, lock the ends into the plastic parts until they click. To release, press one or both side buttons for access to the child. The bumper bar can pivot on one side for access for the child by pressing the button on the side to release the clip.
- Page 11 Assembling the seat There are 3 shoulder strap positions. To position the shoulder strap, feed the clip through the slot from the front until it is fully through the back board. The shoulder straps can be fitted in three height positions, depending on the size of the child.
- Page 12 Assembling the seat To unbuckle the harness, press the central circular button which release the straps. Tighten straps to remove slackness when the child is in the seat. The harness can be split into 5 sections for when fitting to the seatpad or snug sack.
- Page 13 Assembling the seat hood One hood fits the seat and the carrycot. Hook the plastic clip over the bar and push down so the hole fits over the metal fixing. Clip both sides onto the seat. Zip the hood on around the seat.
- Page 14 Fitting a carseat The carseat adapters are designed to fit with the Maxi-Cosi compatible carseats. The car seat adapters are left and right specific. The buttons face outwards. Fit the two car seat adapters into the fixtures on the frame. Ensure the correct orientation.
- Page 15 Removing a carseat To remove the car seat, press the release button on the car seat. This will vary depending on the car seat being used. Lift the car seat from the frame, the adapters will stay attached to the frame. To remove the adapter press the oval button to release.
- Page 16 3. Never leave your child unattended. 15. The Ark travel system is suitable 4. Do not use the Ark product if any for children from 0 to 36 months. part is broken, torn or missing. 16. The maximum weight for the Contact the Ark service team.
- Page 17 ONLY the mattress provided by the manufacturer. motor vehicle. 26. Do not assemble or use the Ark - To reduce the risk of SIDS, travel system until you have read the paediatricians recommend healthy user guide.
- Page 18 Never leave your child unattended while in or around your Ark travel system. 43. Check that all items are attached correctly to the frame and the brake is applied before placing your child in the travel system.
- Page 20 Please refer to the original instructions for the use of this product, or find them on the ARK website: www.arkbeststart.com Registered office: 71-75 Shelton Street Covent Garden London United Kingdom WC2H 9JQ Please contact your retailer or the Customer Service Team on: customersupport@arkbeststart.com...
