Summary of Contents for Bang & Olufsen DVD 1 MKII

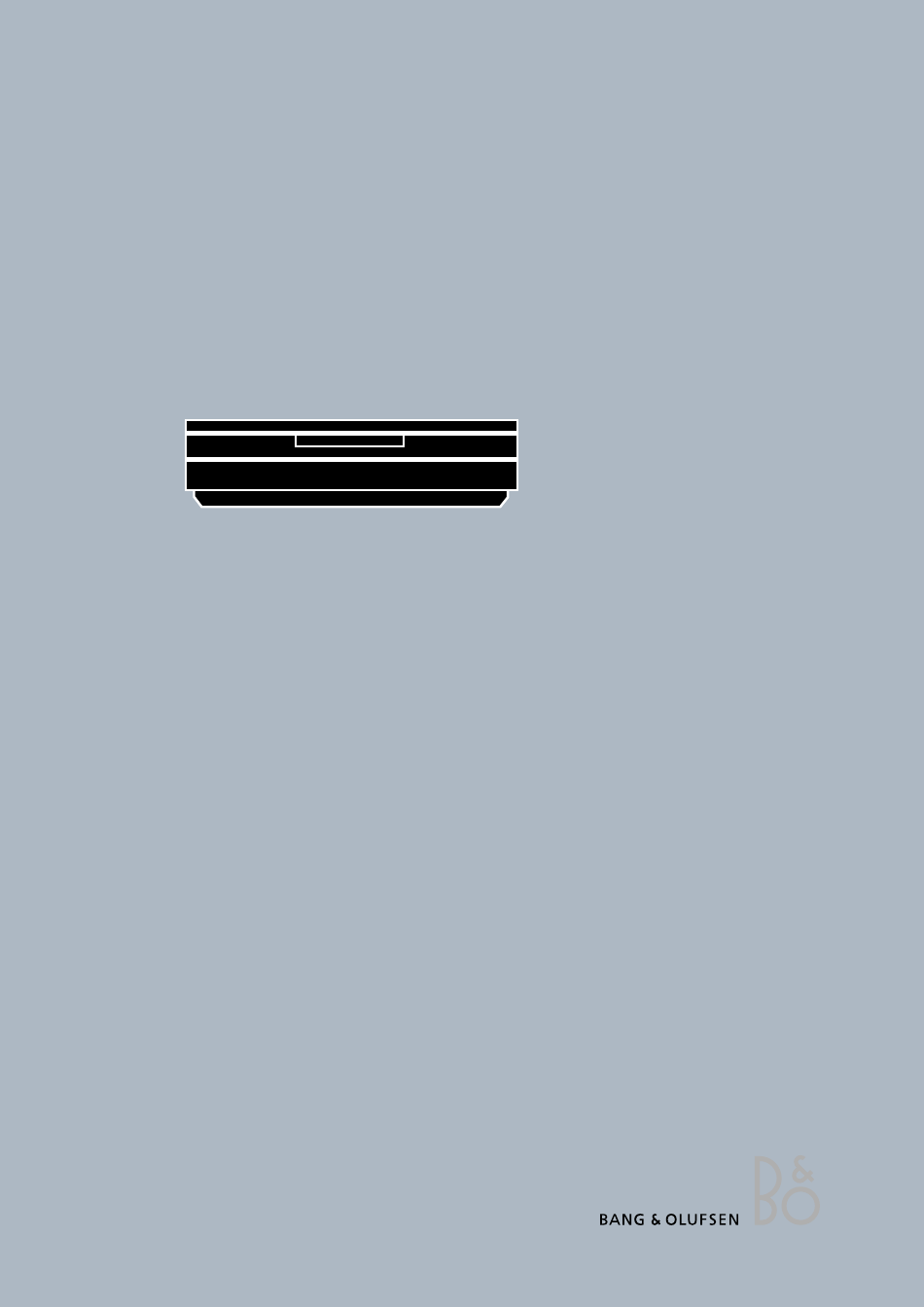

- Page 1 DVD 1 MKII Type 4621 - 4627 Service Center repair guide English...
-
Page 2: Table Of Contents
CONTENTS English..................... Disassembly..................Specification guidelines for service use ........Wiring diagram ................Available parts................There is no Brief operation guide in this Service Center repair guide. Instead an english version of the user guide is enclosed the back-up suitcase. - Page 3 Contents, Survey of modules, English How to service ................1.2 Cautions ................... 1.3 Service Mode ................1.4 ServiceTool ................1.5 Repair tips ................. 1.6 Final check after repair .............. 1.7 Survey of modules Keyboard & Display DVD Drive mechanism DVD Drive Main board SMPS A/V Board...
- Page 4 How to service, English How to service DVD1 mkII is supposed to be serviced in the customer’s home. In order to support the general service strategy the Back up suite case contains all replaceable modules. The ServiceTool is required in several service situations, e.g. Error codes –...
- Page 5 Cautions, English Caution Service The DVD1 may only be serviced by qualified technical personal. The product contains a laser system and is classified as a class 1 laser product The use of any controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.
- Page 6 Service Mode, English Service Mode Software version. Read SW version - Remove CD/DVD from loader. - Disconnect the mains supply. - Press and hold [PLAY] and [<<]. - Connect to the mains supply. - Switch on the mains supply. The software version is displayed on the Display. Memory clear.
- Page 7 ServiceTool, English ServiceTool Considerations before connecting the ServiceTool to the product. - Disconnect the product from the Mains supply. - Follow the instructions described in the ServiceTool. Contents in Servicetool. The ServiceTool will contain the complete information concerning: - How to connect the ServiceTool to the product. - List of functions handles by the ServiceTool.
-
Page 8: English
Repair Tips, English Repair tips Picture Poor picture Dirt on lens The laser lens must never be touched ! Refer to “Optical Disc Reference Book” for full description. The “Optical Disc Reference Book” is available in the following languages: English (Part no. 3540685), German (Part no. 3540686), French (Part no. 3540687), Danish (Part no. - Page 9 Repair Tips, English No picture DVD mechanism failure DVD main board failure AV Board failure Power supply failure Refer to wiring diagram for point of measurement. 1. Check Video signal on selected output. AV connector CVBS Video S-Video 2. Check Video signal, RGB or YC on input to AV Board. R, G, B and Y, C 3.
- Page 10 Final Check after repair, English Final Check after repair Insulation test DVD 1 must be insulation tested if it has been dismantled. Make the test when the DVD 1 is reassembled and is ready to be returned to the customer. Insulation test - Short-circuit the two pins of the mains plug and connect them to one of the terminals of the Insulation tester.
-
Page 11: Disassembly
Disassembly Disassembly TX10 TX10 TX10 TX10 Both sides of DVD1... - Page 12 Replacement of PCB1, PCB2 PCB1 Swich Mode Power supply PCB2 A/V Board 2P14 2P15 2P13 TX10 TX10...
- Page 13 Replacement of PCB3 Push to "unlock" front...
- Page 14 Replacement of PCB77 PCB77 DVD Main board 77P8 TX10 77P9 77P22 77P25 TX10...
- Page 15 Replacement of PCB95 PCB95 DVD Mechanism ������ ���� Remove PCB77 DVD Main board (1 - 5) When reconnecting - be sure to connect cables correct 77P8 Place cables so they are placed the same way as on the old mechanism...
-
Page 17: Specification Guidelines For Service Use
Specification guidelines for service use SPECIFICATION GUIDELINES FOR SERVICE USE DVD 1 MKII DVD Region * See type survey Cabinet finish Black, Silver Operation Close-up operation Beo 4, Beo 1 remote control via BeoVison recommended Disc size 12 cm. - 8 cm... - Page 18 Type survey * Type survey Type Market DVD Region Mains voltage 4621 Austria, Bahrain, Belgium, Croatia, Czech Repub., Denmark, Egypt, Finland, 220-240 Volts France, Germany, Greece, Holland, Hungary, Israel, Italy, Kuwait, Lebanon, Norway, Oman, Poland, Portugal, Qatar, Saudi Arabia, Slovak Rep., Slovenia, South Africa, Spain, Sweden, Switzerland, Turkey, UK, United Arab Emirates 4622 Taiwan...
-
Page 19: Wiring Diagram
Wiring diagram 10.1 10.1 Wiring diagram 10.1 Wiring diagram 6277194 6200075 CN22 > > < > > < > > > > > > > > < > > < < > > SMPS < AV BOARD > > DVD DRIVE MECHANISM >... -
Page 20: Available Parts
11.1 11.1 List of available parts AVAILABLE PARTS DVD 1 9001 3400482 Top cover, black 3400487 Top cover, silver DVD 1 MKII 9002 3451358 Iron chassis 9003 3320756 Side panel, left 9004 3320755 Side panel, right 9005 3451357 Front panel w/buttons... - Page 22 Bang & Olufsen DK-7600 Struer Denmark Phone +45 96 84 11 22* Fax +45 97 85 39 11 3538012 A 10-04...
