HME HM-420L Instructions Manual

Hd-dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

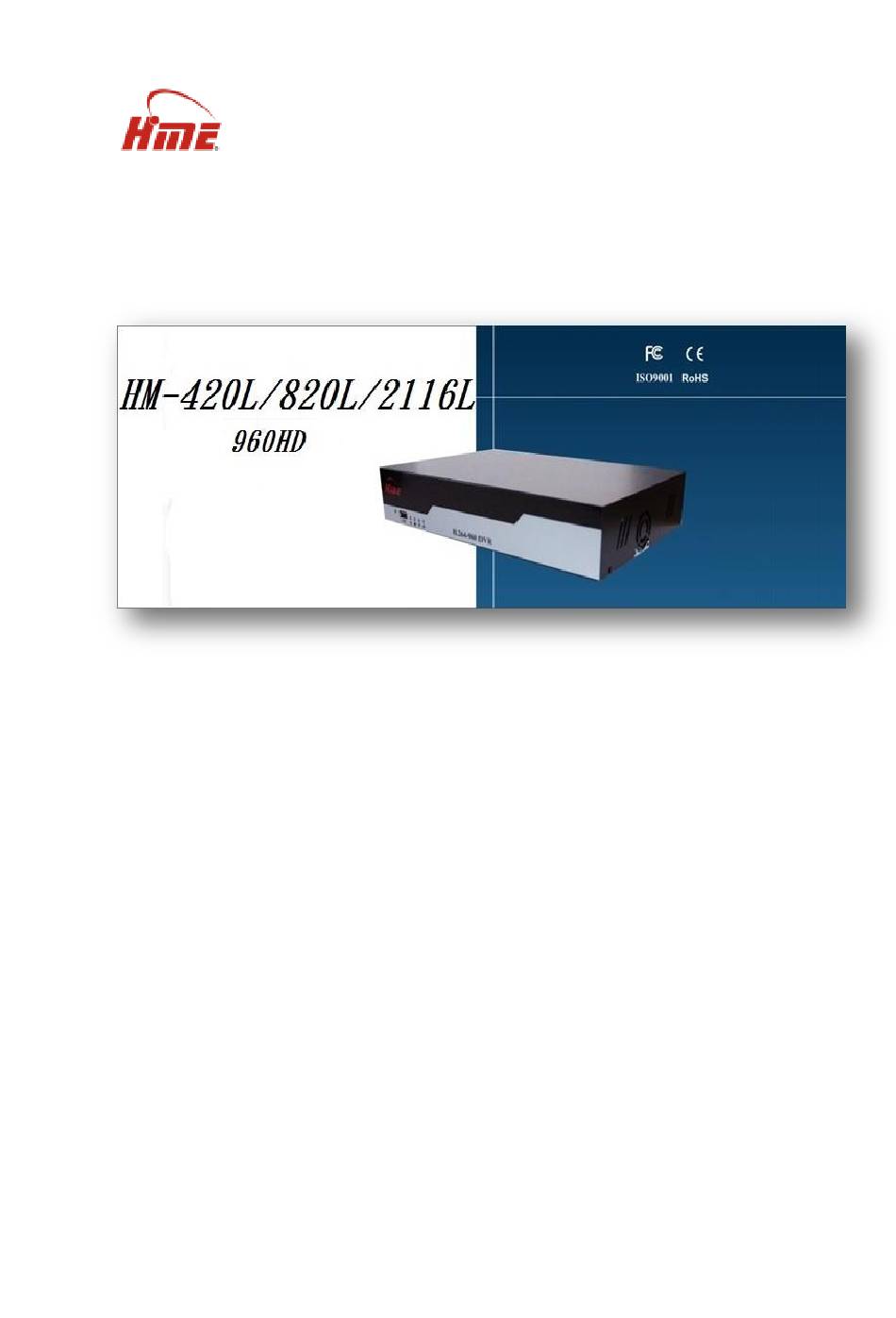

HM-420L/820L/2116L HD-DVR
Digital Video Recorder Instructions
~ Directory~
.............................................................................................4-6
................................................................7
2-1 Front Panel Controls .....................................................................7
2-2 Rear Panel Connectors ....................................................................8
......................................................9
3-1 Remote Control Instructions in LIVE Mode .........................................9
3-2 Operating Instructions of Right-Click Mouse Icon in Rapid Functional in
ble 3-2-6 Table 3-2-7 Table 3-2-8.......................................................10-16
..........................................................17
4-1Camera Setup ..............................................................................18
4-2 Event Setup ................................................................................19
4-2-1Motion Setup ..........................................................................20
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM-420L and is the answer not in the manual?

Questions and answers

Related Manuals for HME HM-420L

Summary of Contents for HME HM-420L

  • Page 1: Table Of Contents

    HM-420L/820L/2116L HD-DVR Digital Video Recorder Instructions ~ Directory~ Chapter 1 Hard Disk Installation (Standard shipping products not include hard ………………………………………………………………………………...4-6 disk) ……………….………………………………………7 Chapter 2 Panel Appearance 2-1 Front Panel Controls ……………………………………………………………7 2-2 Rear Panel Connectors ………………………………………………………..8 ………………………………………….…..9 Chapter 3 Live, Playback Operations 3-1 Remote Control Instructions in LIVE Mode …………………………………..9...
  • Page 2 4-2-2 Sensor Setup ………….………………………………………………………21 4-3 Recording Setup ………………………………………………………………..22 4-3-1Sequence Setup …………….…………………………………………………23 4-3-2 Video Quality and Frame Rate Setup ………………………………………24 4-4 Alarm Setup …………………………………………………………………..25 4-5 Hard Disk Management Setup ………………………………………………..26 4-5-1HDD Information …….………………………………………………………27 4-6 Networking Setup ………………………………………………………………28 4-6-1 Networking Connection ……………………………………………………..29 4-6-1-1 Local Area Network ……………………………………………………….29 4-6-1-2 DHCP ……………………………………………………………………….30 4-6-1-3 PPPoE ………………………………………………………………………31...
  • Page 3 4-9 EXIT Mani Menu Options …………………………………………………….50 ………………………………………….51 Chapter 5 Backup and Playback Search 5-1 Backup Setup ……………………………………………………………….51-52 5-1-1 DVF Player Usage ……………………………………………....53-54 5-2 Playback Search Setup ………………………………………………………...55 5-2-1 Time Search …………………………………………………………………..56 ………………………………………………57 Chapter6 Network Remote Control 6-1 Application Software Installation and Setup ……………………………..57-59 6-2 Do Remote Monitoring through IE ……………………………....60-61 6-3 Do Remote Monitoring through LIVE JPEG (Monitor Function only) ..62-64 6-4 Application Software and IE Operation ……………………………………...65...

  • Page 4: Chapter 1 Hard Disk Installation (Standard Shipping Products Not Include Hard Disk)

    Chapter 1 Hard Disk Installation ( Standard shipping products not include hard disk) Step 1 : Remove the three screws in rear case, as the following figure at circle marked. (420L /820L /2116L) Step 2 : Remove a screw in the right case, as the following figure at circle marked.
  • Page 5 Step 4 : Open the chassis cover along the direction of the arrow (upward) Step 5 : Put Hard Disk on the Hard Disk plate and fix it with four screws as the picture indicated. Connect SATA & Power wire to Hard Disk.
  • Page 6 Step 6 : Put the cover back and fix it with 5 screws as Step 1-3 indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual System Tools for ref- erence.

  • Page 7: Chapter 2 Panel Appearance

    Chapter 2 Panel Appearance 2-1 Front Panel Controls (1) IR Display IR Enable USB port (for USB，please use rear USB port (2) USB Port for mouse device) (3) LED- Power DVR power on REC : DVR recording ( or setup schedule and (4) REC open the recording function ) Alarm on alarm event, signal break and motion...

  • Page 8: Rear Panel Connectors

    2-2 Rear Panel Connectors (420L / 820L / 2116L) (1) Video In BNC input port for cameras (total of 16 jacks) (2) CVBS OUT Video output (3) Audio Out Audio signals RCA output port (Corresponding CH1) (4) Audio In Audio signals RCA input port (1~16) (5) VGA VGA port (6) HDMI...

  • Page 9: Chapter 3 Live, Playback Operations

    Chapter 3 Live, Playback Operations In LIVE mode, all of channel screens and live sounds can be monitored and screens can be changed and operated. The following describes the real-time monitoring mode, the operation of remote controller and mouse and screen’s prompts 3-1 Remote Control Instructions in LIVE Mode ICON...

  • Page 10: Live Mode; Table 3-2-1, Table 3-2-2, Table 3-2-3, Table 3-2-4, Table 3-2-5, Ta- Ble 3-2-6 Table 3-2-7 Table 3-2-8

    3-2 Operating Instructions of Right-Click Mouse Icon in Rapid Functional in LIVE Mode Table 3-2-1 ICON DESCRIPTION Camera setup – Show, auto, channel change, PTZ control, image con- trol, audio control Main menu. Clicking this icon will bring up the following nine menu icons.
  • Page 11 Quad display Nine display Sixteen display Table 3-2-2 After Right - Clicking Mouse, Graphical Icons Displays in LIVE Mode ICON DESCRIPTION CH1~CH16 signal screen Record = “REC” On/ Off record Stop = “FREEZE” Screen stop Play = “PLAY” Playback Freeze-screen is frozen Lock = “LOCK”...
  • Page 12 Table 3-2-3 Graphical Icons Displays on the Bottom Right of the Window in Remote Mode ICON DESCRIPTION Remote snapshot - Take picture on camera and store (pre-archived folder Documents Folder/DVRData/Snapshot) Select archive folder - Select the folder to store the photo and video Full screen - Switch to full screen HQ/ LQ image quality switch...
  • Page 13 The control panel description in PLAYBACK mode ICON DESCRIPTION Snapshot - Turn the current screen into the “Image” and store in USB device. Image will be stored in computer on remote mode Rewind fast. There are six speeds : 2x, 4x, 8x, 16x, 32x and 64x. Pause/ Signal screen playback Normal speed playback Stop...
  • Page 14 Table 3-2-6 Graphical Icons Displays in Remote Mode ICON DESCRIPTION USB device detected HDD not detected Lock is on - Need code to unlock Network connecting Recoding - Icon appears when one of the cameras is recording Event occur - Appear on alarm, lost channel, motion detected Recording - The icon appears in signal screen when the camera is recording Live audio is on in signal screen...
  • Page 15 Remote controller operation under PTZ mode ICON DESCRIPTION Arrow Keys Up, down, left, right Enter Key Executive function PTZ Arrow Keys Move PTZ camera Zoom In Let PTZ camera closer Zoom Out Let PTZ camera further Mouse operation under the PTZ mode ICON DESCRIPTION Patrol setup - Select location by arrow keys and press Enter...
  • Page 16 Focus out Focus in Table 3-2-8 DVR-HM-2116D Relay-Control Wiring Diagram RS485A_D+ (TX+) RS485A_D- (TX-) ALARM OUT_COM ALARM OUT_N.C ALARM OUT_N.O...

  • Page 17: Chapter 4 The Main Menu Setup

    Chapter 4 The Main Menu Setup Enter the setup menu first time, please choose the login account, and then enter the password. Administrator default password is "123456." Verify password, if correct will enter the setup menu...

  • Page 18: 4-1Camera Setup

    On/ Off No. of PTZ PTZ number (0~255) Select the PTZ camera transmission speed (2400, Baud Rate 4800, 9600, 19200) Support : PELCO-D, PELCO-P, HME PDZ, PTZ Protocol UNITED-D Brightness Brightness adjustment (from value1-255) Contrast Contrast adjustment (from value 1-255)

  • Page 19: Event Setup

    4-2 Event Setup ICON DESCRIPTION Motion Setup Enter motion detection setup Sensor Setup Enter sensing device setup...

  • Page 20: 4-2-1Motion Setup

    4-2-1 Motion Setup ICON DESCRIPTION 1 – 4/8/16 Each channel can be set dependently Enable Switch on or off the motion detection function Buzzer Alarm On/ Off Set up sensitivity from value 1 to 10 for each chan- Sensitivity nel. The higher value you set the higher sensitivity it will be.

  • Page 21: Sensor Setup

    4-2-2 Sensor Setup ICON DESCRIPTION Popup On/ Off On/ Off Low= “Start”, High= “+12V start” Polarity All Enable NO = All sensing device on All Disable NO = All sensing device off All Low Sensitivity all low All High Sensitivity all high Full Time Detection Full-time or schedule detection select...

  • Page 22: Recording Setup

    4-3 Recording Setup ICON DESCRIPTION 1 – 4/8/16 Each channel can be set independently OSD Position X Setup OSD X axis OSD Position Y Setup OSD Y axis OSD Position Setup Setup OSD axis Record Sound On/ Off HDD Circulate Record On/ Off Alarm Recording Time 1~60 seconds...

  • Page 23: 4-3-1Sequence Setup

    4-3-1 Sequence Setup ICON DESCRIPTION Stop REC Enter Motion REC Enter Full Time REC Enter SEQ = Schedule Record Manual/ Schedule record 1~6 All Same Recording mode all the same...

  • Page 24: Video Quality And Frame Rate Setup

    4-3-2 Video Quality and Frame Rate Setup ICON DESCRIPTION View Normal/ View Select recording mode Event Check/ Uncheck the box enable/ disable selected No. 1-4/8/16 channel recording Select recording resolution : Resolution NTSC : 480x240, 960x240, 960x480 Select quality : below basic/ basic/ normal/ high/ Quality highest Select recording frame rate...

  • Page 25: Alarm Setup

    4-4 Alarm Setup ICON DESCRIPTION Alarm Event Record On/ Off Video Loss Detect On/ Off Video Loss Alarm Time 0~99 seconds HDD and System Error Alarm On/ Off No HDD Alarm On/ Off Specified Screen Time 0~99 seconds Alarm Time Setup Sensing, motion, locking, alarm time Buzzer 0~99 seconds...

  • Page 26: Hard Disk Management Setup

    4-5 Hard Disk Management Setup ICON DESCRIPTION Cycle Record On/ Off Hard Disk Information Hard disk information instruction Hard Disk Format Setup Hard Disk Format...

  • Page 27: 4-5-1Hdd Information

    4-5-1 HDD Information ICON DESCRIPTION Ver = Version DVR current software version DVR network IP address. If DVR doesn’t con- IP Address nect, it will show “Network not connected” MAC ADDR = MAC Ad- Mac Address of DVR dress NO. = Number The number of the hard disk Name The name of the hard disk...

  • Page 28: Networking Setup

    4-6 Networking Setup ICON DESCRIPTION Connectivity Connectivity setup (PPPoE, DHCP, LAN, 3G) HTTP Setup Enter HTTP setup menu DDNS Setup Enter DDNS setup menu Email Setup Enter Email setup menu VPN Setup Enter VPN setup menu FTP Setup Enter FTP setup menu SMS Setup Enter SMS setup menu Push Notification Setup Enter push notification setup menu...

  • Page 29: Networking Connection

    4-6-1 Networking Connection (Four Connection Methods Available) 4-6-1-1 Local Area Network Select LAN for network connection, the following information is required. ICON DESCRIPTION Local IP Address Enter IP address provided by ISP Mask Enter IP address of subnet mask provided by ISP Gateway Enter IP address of gate way provided by ISP Enter DNS address provided by ISP.

  • Page 30: Dhcp

    4-6-1-2 DHCP When DHCP is selected, IP address will be assigned by DHCP server automati- cally.

  • Page 31: Pppoe

    4-6-1-3 PPPoE Select PPPOE for network connection, the following information is required. ICON DESCRIPTION User Name Enter user name provided by ISP Password Enter password provided by ISP...
  • Page 32 4-6-1-4 3G ICON DESCRIPTION 3G Card Enter 3G card number provided by ISP PIN Code Enter PIN code provided by ISP Enter APN provided by ISP Dial-up Number Enter dial-up number provided by ISP...

  • Page 33: Advanced Setup

    4-6-2 Advanced Setup ICON DESCRIPTION User Name Enter user name provided by ISP Password Enter password provided by ISP Local IP Address Enter IP address provided by ISP...

  • Page 34: Http Setup

    4-6-3 HTTP Setup ICON DESCRIPTION Startup Check to enable HTTP server. Users can remotely access into HTTP the DVR over the network, if the HTTP function is activated. Enter a valid port value from 1 up to 65000. The default value HTTP Port is 80.

  • Page 35: Ddns Setup

    4-6-4 DDNS Setup ICON DESCRIPTION Enable DDNS Enable/ Disable DDNS function Enter the registered SMTP server : DDNS Server DYNDNS.ORG, NO-IP.ORG Enter the completed registered SMTP Server. Host Name (Including username + Server) If the user name is hme264 and you choose DYNDNS.ORG as your server, you should enter : hme264.

  • Page 36: Email Setup

    4-6-5 EMAIL Setup ICON DESCRIPTION Enable Email On/ Off E-MAIL notification function Notification Enter to set up SMTP server name SMTP Server (varies according to the user) SMTP Port Normally it is 25 User Name Enter to set up user name Password Enter to set up password Enter to select events to send out e-mail notifications when...

  • Page 37: Vpn Setup

    4-6-6 VPN Setup ICON DESCRIPTION Enable VPN On/ Off VPN Server Address Enter address User Name Enter to set up user name Password Enter to set up password MPPE Encryption On/ Off encryption...

  • Page 38: Ftp Setup

    4-6-7 FTP Setup ICON DESCRIPTION Server FTP server account FTP Port Normally it is 21 User Name Enter to set up user name Password Enter to set up password...

  • Page 39: Sms Setup

    4-6-8 SMS Setup ICON DESCRIPTION SMS Server Enter SMS server Server Address Enter server address Link Port Normally it is 80 User Name Enter to set up user name Password Enter to set up password...

  • Page 40: Push Notification Setup

    4-6-9 Push Notification Setup ICON DESCRIPTION Enable Notification On/ Off enable notification Image Lead Time (sec) 0~30 seconds Remove All Mobile Regis- Whether to remove tered...

  • Page 41: Data Backup And System Tools

    4-7 Data Backup and System Tools ICON DESCRIPTION Enter “Data Backup” menu Data Backup Enter “CD/ DVD Data Backup” menu CD/ DVD Data Backup Enter “Backup to USB” menu Save DVR Setup to USB Set the DVR to a USB device. USB will appear the file.

  • Page 42: System Setup

    4-8 System Setup ICON DESCRIPTION Display name for application software log re- DVR Name motely into the DVR. Language Setup OSD display language VGA Resolution 1024x768 or 1920x1080 Video Type Auto or manual Menu/ Key Lock On/ Off DVR ID Number 0~63 Display Setup Enter display setup...

  • Page 43: Display Setup

    4-8-1 Display Setup ICON DESCRIPTION Time Display On/ Off date and time display Camera Info. Display On/ Off camera information Record Info. Display On/ Off record information Control Relay Display On/ Off control relay Border Display On/ Off border Time Position up~ down Disk and Status Info.

  • Page 44: Time/ Date Setup

    4-8-2 Time/ Date Setup ICON DESCRIPTION year/ month/ date ~ date/ month/ year ~ month/ Date Format date/ year Select Time Zone Adjust to Greenwich Mean Time (GMT) Change Date/ Time On/ Off change date/ time Daylight Saving Time Setup On/ Off daylight saving time Internet Time Setup On/ Off network time...

  • Page 45: Change Date/ Time Setup

    4-8-2-1 Change Date/ Time Setup Select the year/ month/ date and press “Yes.” 4-8-2-2 Daylight Saving Time Setup ICON DESCRIPTION Daylight Saving Time Mode On/ Off...

  • Page 46: Internet Time Setup

    4-8-2-3 Internet Time Setup ICON DESCRIPTION Check to enable DVR automatic synchronization function. Automatically Effective by this option selected, DVR will automatically Synchronize synchronize the time upon rebooting or by every 24 hours after booting. Effectively, date and time show on DVR will immediately Update Now correspond with those in internet server.

  • Page 47: User Account Setup

    4-8-3 User Account Setup The account setup menu is used to provide role-based permission independently setting for each user (maximum of 32users) to access DVR over network. The default admin account and password is “admin” and “123456” ICON DESCRIPTION Check to activate the user’s account Number No.

  • Page 48: Permission Setup

    4-8-3-1 Permission Setup ICON DESCRIPTION Camera Setup On/ Off Record Setup On/ Off Hard Disk Setup On/ Off Backup Setup On/ Off Stop Record On/ Off On/ Off Remote Relay Operation On/ Off Event Setup On/ Off Alarm Setup On/ Off Network Setup On/ Off System Setup...

  • Page 49: Control Relay Setup

    4-8-3-2 Control Relay Setup ICON DESCRIPTION Choose relay 1,2,3,4 Unstable Time 0 is the solid-state (1~255 seconds) Time Control Enter the setup menu 4-8-3-2-1 Relay Timer Setup There are 8 sections. Start the relay by setting the time and choose ON/OFF.

  • Page 50: Device Setup

    4-8-4 Device Setup Volume control : (1-16) 4-9 EXIT Main Menu Option...

  • Page 51: Chapter 5 Backup And Playback Search

    Chapter 5 Backup and Playback Search 5-1 Backup Setup Video data can be backed up from DVR hard disk. To do so, USB device must plug into DVR USB port before entering to the backup menu. The backup file, DVF file, can be played by “DVFPLAYER.” NOTE : Use the USB flash backup, the system will automatically copy "DVFPLAYER"...
  • Page 52 ICON DESCRIPTION Start Time The start time of backup file End Time The end time of backup file Choose CH1 – CH4 CH1-CH8 CH1-CH16 Backup Channel Backup Destination Select USB or PC as the backup device Free Space The available space in the backup device Request Space Show the size of the backup file Pause the Live Image...

  • Page 53: Dvf Player Usage

    5-1-1 DVF Player Usage Step 1 : Install “DVR play” software to your PC. You can get “DVR play” file from the CD with DVR Packing. PS : When you using USB to backup file, DVRplay.exe will copy to USB with the backup file automatically.
  • Page 54 Step 3 : Click “open” to choose and star a DVR backup file. Step 4 : “DVR play” software will plays the backup file automatically.

  • Page 55: Playback Search Setup

    5-2 Playback Search Setup ICON DESCRIPTION Time Search Enter time search menu Event Search Event search menu...

  • Page 56: Time Search

    5-2-1 Time Search Time Search can search for the specific time of recording data to playback. Press “Enter” or left click on the desired date to playback. Note that dates with re- cording data are marked with a red square “□” System will start playing back according to the date you selected.

  • Page 57: Chapter6 Network Remote Control

    Chapter 6 Network Remote Control “DVRemoteDesktop” and IE6.0 or above can allow you to remotely access and control the DVR from PC. P.S. Operation system currently supports Windows XP SP2 and above and Win- dows Vista, Windows 7. 6-1 Application Software Installation and Setup Step 1 : Enter the IP address of DVR in IE browser.
  • Page 58 Step 3 : Click on the link to start downloading the AP software. Step 4 : Run or save our AP software...
  • Page 59 Step 5 : If you choose to run the software, Start window will be shown up. Please enter information of login DVR : IP, Port, Username and Password, or choose “Play Recorded File” to open backup files in your PC. Step 6 : You’ve logged into the DVR...

  • Page 60: Do Remote Monitoring Through Ie

    6-2 Do Remote Monitoring through IE Step 1 : Enter the IP address of DVR in IE browser. The address appeared in this image is only for demonstration. Actual address is depending on the setup of on-site DVR. Step 2 : Windows as below will show up. Please enter the user name and pass- word.
  • Page 61 Step 3 : Click on “Internet Explorer 6, 7, and 8” to start downloading the AP software. (The first option is for IE view; please refer to next chapter for more information) P.S. There will be IE connection security issue when clicking this link for the first time.

  • Page 62: Do Remote Monitoring Through Live Jpeg (Monitor Function Only)

    6-3 Do Remote Monitoring through LIVE JPEG (Monitor Function only) Step 1 : Enter the IP address of DVR in IE browser. The address appeared in this image is only for demonstration. Actual address is depending on the setup of on-site DVR.
  • Page 63 Step 3 : Click on “LIVE JPEG” Step 4 : DVR images appear...
  • Page 64 P.S. : Only for viewer, without any operation function...

  • Page 65: Application Software And Ie Operation

    6-4 Application Software and IE Operation Table 6-4-1 System Requirements for AP Software Intel Pentium 4 above 512M above Microsoft Windows 7, Windows Vista, Windows XP SP2 above Need to support DirectX 9.0 (above) – VGA Card Note 1 Antivirus IE and AP connection need PORT 80 (according to HTTP PORT Software settings)

  • Page 66: Chapter7 Remote Connection Of Mobile Application And Dvr

    Chapter 7 Remote Connection of Mobile Appli- cation and DVR 7-1 Mobile Software and Operation with DVR Networking iPhone Software Installation and Operation AquilaDVR Software Installation Step 1 : Connect mobile phone to the internet and unlock Step 2 : Open and execute App Store program...
  • Page 67 Step 3 : Key in software name “Aquila” Step 4 : Display Software introduction and show “FREE” to download, click up- per right “FREE” to star downloading...
  • Page 68 Step 5 : Select upper right “Install” to star downloading APP When Login User Name is displayed, key in register Apple ID : Username/ pass- word Step 6 : After the installation is completed, it will show “AquilaDVR”...
  • Page 69 Step 7 : Add new DVR information For first time connection, must enter and save DVR information. Select bottom left “ ” Step 8 : Select bottom left “Add” to add new DVR information...
  • Page 70 Step 9 : Key in DVR name, address & port, user name, password then select “save” for saving Step10 : After saving, it shows “Host Name”, select “Host Name” then click “GO”...
  • Page 71 Step 11 : The logging time depends on network bandwidth. When login success- fully, it shows DVR live view...

  • Page 72: Mobile Software And Operation With Dvr Networking Google Android Phone Software Installation & Operation

    7-2 Mobile Software and Operation with DVR Networking Google Android Phone Software Installation & Operation Step 1 : Connect the mobile phone to the internet Step 2 : Open “Market”...
  • Page 73 Step 3 : Select upper right “Search” Step 4 : Key in Software name “Aquila” and search...
  • Page 74 Step 5 : Select “Aquila” and “Install” Step 6 : Select “OK” for authorization...
  • Page 75 Step 7 : Check “Notifications” for installation progress Step 8 : After installation completed, it shows the download file “Aquila DVR”...
  • Page 76 Step 9 : Execute “AquilaDVR” Step 10 : Add new DVR information for connecting DVR. For first time connec- tion, must enter and save DVR information. Select bottom left “New”...
  • Page 77 Step 11 : After saving, it shows “DVR”, click DVR twice continously to log in Step 12 : The logging time depends on network bandwidth. When login success- fully, it shows DVR live view.

This manual is also suitable for:

Hm-820lHm-2116l
