- Page 1 LANGUAGE - ENGLISH EDGEBANDER IC-1000 ELECTRONIC !!! For your safety !!! Read the manual instructions. Http://www.inmes.com.br 05040739 SAP: 421...

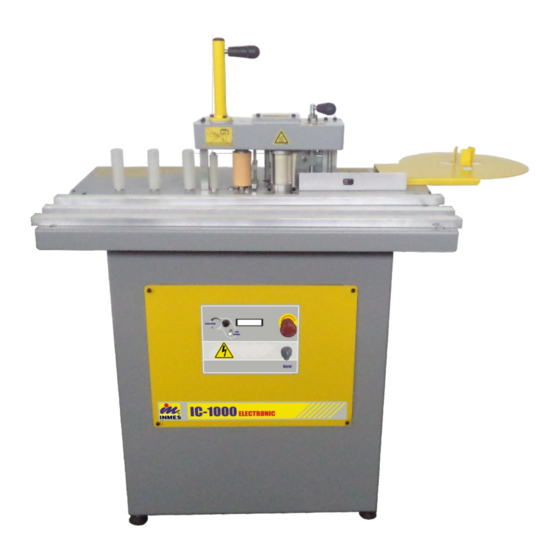

- Page 3 Your IC-1000 ELECTRONIC edgebander allows you to reach the highest productivity with a perfect performance in edgebanding (wood, paper, ABS, PVC) in flat profile pieces, besides a great finishing.
-
Page 4: Table Of Contents
1.6 - Proteçtion ..............................5 1.7 – When finished working with the machine ....................5 2 – RECEIVING THE IC-1000 ELECTRONIC EDGEBANDER ..............6 2.1 – Removing the machine from the crate ......................6 3 – FAMILIARIZING WITH YOUR MACHINE ....................7 4 –... -
Page 5: Safety Instructions
1.4 – Before each use of the machine Check for loose or damaged pieces. Remove potential existing residues and objects over the machine. Never use the machine if some protection or original parts are missing. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 6: Important Information For The Reduction Of Risks Of Accidents
1.7 – When finished working with the machine Turn the machine off; Remove the plug from the power outlet; Clean the machine and make sure it is ready for the next operation. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 7: Receiving The Ic-1000 Electronic Edgebander
2.1 – Removing the machine from the crate The IC-1000 ELECTRONIC edgebander is shipped from the factory inside a wood crate, per fig. 02. Using a hammer (does not come with the machine), open the wood crate, with caution, as nails and wedges may injure the operator. -
Page 8: Familiarizing With Your Machine
Important: Before starting the installation of the machine, make sure all components of the machines are present. If any unusual event is detected, please contact your local distributor or INMES INDUSTRIAL directly – export@inmes.com.br To request replacement parts, use the exploded view and the parts list that can be found at the end of the user manual. -
Page 9: Technical Specifications
4 – TECHNICAL SPECIFICATIONS INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 10: Installation
Fix the blade with a 10mm wrench 01 in part 02 fig. 10. Remove the bolts 01 fig. 11. Push the assembly lever 01 and fit it in part 02 as shown in fig. 12. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 11: Operation
Loose the handles 01 fig. 18 which are below the top table of the machine in order to adjust the dis- tance of one fence to another, making sure the piece is fully supported over them. Tighten the handles 01 fig. 18. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 12: Edgeband Adjustment
Simple place (do not press) the handles 02 and 03 on the edgeband per fig. 21 and then tighten the handles. Notice that the edgeband must remain loose. Proceed as the previous steps for the handles 01. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 13: Placing The Adhesive Into The Glut Pot
Never put your hands or other body parts inside the glue pot, as this presents risks of severe burning. Never mix adhesives with different formulations, this will decrease the efficiency of your edgebander. Always clean the glue pot when replacing the adhesives. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 14: Adhesive Temperature Adjustment
On the following screen, you will be able to choose the desired temperature by turning the button, per Fig.29. The temperature range is from 125ºC to 230 ºC (257 to 446 ºF). After defining the temperature, press the button to confirm, per Fig.30. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 15: Adhesive Adjustment
Fig.30 6.5 – Adhesive adjustment The IC-1000 ELECTRONIC edgebander is factory adjusted with the glue coat ready for use, however, if an adjustment is necessary, please proceed in the following way: When the temperature on the display reaches the adhesive application temperature, click the press the button beside the display to start the glue roller, as shown in fig. -
Page 16: Feed Rate Adjustment
8-12%. The edgebanding can be affected by the room temperature, for both the adhesive and the materials to be processed. Therefore, the minimum room temperature for working must be 18 °C (64 °F). INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... - Page 17 Fig. 34 Fig. 35 Fig. 36 Never leave your hands close to the edge of the piece when cutting the edgeband. Keep hands away from the cutting blade. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
-
Page 18: Machine Adjustments For Edgeband Thicker Than 0,5Mm (1/64") And Maximum 3,00Mm (1/8")
500mm long (19 11/16”) edgeband with the desired thickness (not supplied with the machine) for the adjustment, as shown in fig. 38. Fig. 38 Perform the edge banding on the MDF board, per 39. Fig. 39 INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... - Page 19 Loosen the fence bolts as shown in fig. 41. Fig. 41 Place the MDF piece so that it is supported on the two indicated points, as shown in fig. 42. Fig. 42 INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 20 Adjust the rollers and the fence so that they are perfectly supported by the MDF board as shown in fig. 44, keeping the board constantly touching the support points. Once they are adjusted, tighten all the bolts. Fig. 44 INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
-
Page 21: Recommendations
Loosen the bolt with the wrench as shown in fig. 40. Then, carefully turn the cutting blade fig. 41. This way, both sides of the blade can be used. When the two sides are dull, replace the blade. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 22: Cleaning The Glue Pot
With the 6mm Allen Key, loosen the bolts that fix the glue pot per fig. 43. Place the glue pot over the support and leave it for some minutes draining the adhesive fig. 44. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... -
Page 23: Precautions With Your Equipment
Never adjust the thickness of the adhesive until it has reached the work temperature or if the glue roller is off. When the temperature is reached, turn the roller on per fig. 47 and proceed with the adjustment by turning the handle fig. 48. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... - Page 24 The room temperature affects the edgeband adherence. It is recommended to pre heat the edgeband when the room temperature is below 18ºC (64 ºF) in order to obtain superior edgebanding results. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
-
Page 25: Troubleshooting
Wait until the ideal temperature is temperature reached. Not enough adhesive in large Adhesive thickness adjustment is too Reduce the amount of adhesive. pieces open. Excess of adhesive. Check item 6.5. Pg. 15. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... - Page 26 Emergency button is activated. management and only release the emergency button if the risk is elimi- nated. Press the button beside the display to Stand-by mode activated turn the machine on. INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
-
Page 27: -Exploded View
9 –EXPLODED VIEW INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC... - Page 28 EXCENTRIC PIN WITH ADHESIVE LIMITER STOP IC-1000 (M) P03000203 CHAIN PROTECTION COVER IC-1000 P03000516 EDGEBAND ROLL TRAY IC-1000 ELECTRONIC P03000520 EDGEBAND GUIDE IC-1000 ELECTRONIC (Z) P03050163 WASHER 6,30X15,00X2,00MM (Z) P05040134 TRAPEZOIDAL BLADE S01R-100P INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 29 INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 30 GLUE FUSE IC-1000 ELECTRONIC P03000508 GLUE TUBE COVER DE60,00XDI18,00MM IC-1000 ELECTRONIC (M) P03000542 RESISTANCE SUPPORT IC-1000 ELECTRONIC (Z) P03060316 HANDLE LOCK WASHER IM-30 SI (Z) P04123592 CARTRIDGE RESISTANCE AC 8,98X205MM 280W 240V CABLE 600,00MM INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 31 INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 32 GLUE BOX COVER 107,00X90,00MM IC-1000 (M) P03000545 LIMIT SWITH SUPPORT IC-1000 ELECTRONIC (Z) P03000547 FENCE IC-1000/IC-1000 PLUS ELECTRONIC P03000556 LIMIT SWITCH CABLE IC-1000 ELECTRONIC P03020249 BLADE PROTECTION WASHER IM-300 (Z) P03050163 WASHER 6,30X15,00X2,00MM (Z) INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 33 INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 34 IC-1000 ELECTRONIC DOOR P03000511 GEARMOTOR AXE IC-1000 ELECTRONIC (Z) P03000513 GEARMOTOR SUPPORT PIN IC-1000 (Z) P03000541 INV AND CONTROL ASSEMBLY IC-1000 / IC-1000 PLUS ELECTRONIC P03000575 GEARMOTOR ACTIVA CABLE ASSEMBLY IC-1000 ELECTRONIC INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 35 P03000585 INV AND CONTROL ASSEMBLY IC-1000 / IC-1000 PLUS ELECTRONIC EXP P03020249 BLADE PROTECTION WASHER IM-300 (Z) P03111152 ENCODER BUSHING BUTTON IM-2900 V30 INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 36 INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
- Page 37 FENCE BASE IC-1000 (M) P03000181 SCREW CAB HEX EXT M12X25,00MM FURO 6,00MM IC-1000 (Z) P03000228 ADHESIVE BOX IC-1000 P03000527 SQUARE COVER ADHESIVE BOX BASE IC-1000 ELECTRONIC P03020249 BLADE PROTECTION WASHER IM-300 (Z) INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC...
