BATTERY MONITOR
Quick Start Guide
GP-BMK-50
1
PLANNING
Plan where the battery monitor will be located in the RV keeping your
50' of cord in mind.
2
INSTALLATION
1.
Trace the base of the battery monitor on the wall where it will go (See Figure 2-A)
2.
Cut out the circle you have traced, (See figure 2-B)
3.
Remove any sharp edges from the hole.
4.
In Method 1, place the coupling through the wire and connect the wire to the
battery monitor. (See figure 3-A)
5.
Screw the coupling onto the back of the monitor. (See figure 3-B)
6.
In Method 2, click the mounting plate onto the battery monitor. (See figure 4-A)
7.
Place the monitor into the hole that has been cut and trace the four small
holes for the screws. (See figure 4-B)
8.
Then pull the monitor out and connect the cable before reinserting. (See
figure 4-C)
9.
Place the connected monitor back into the hole and secure with the four
screws before snapping the faceplate on for the final step. (See figure 4-D)
©2018 Go Power! | 201-710 Redbrick Street, Victoria, BC Canada V8T 5J3 | info@gpelectric.com
Go Power! Quick Start Guide: GP-BMK-50
©2018 Go Power!

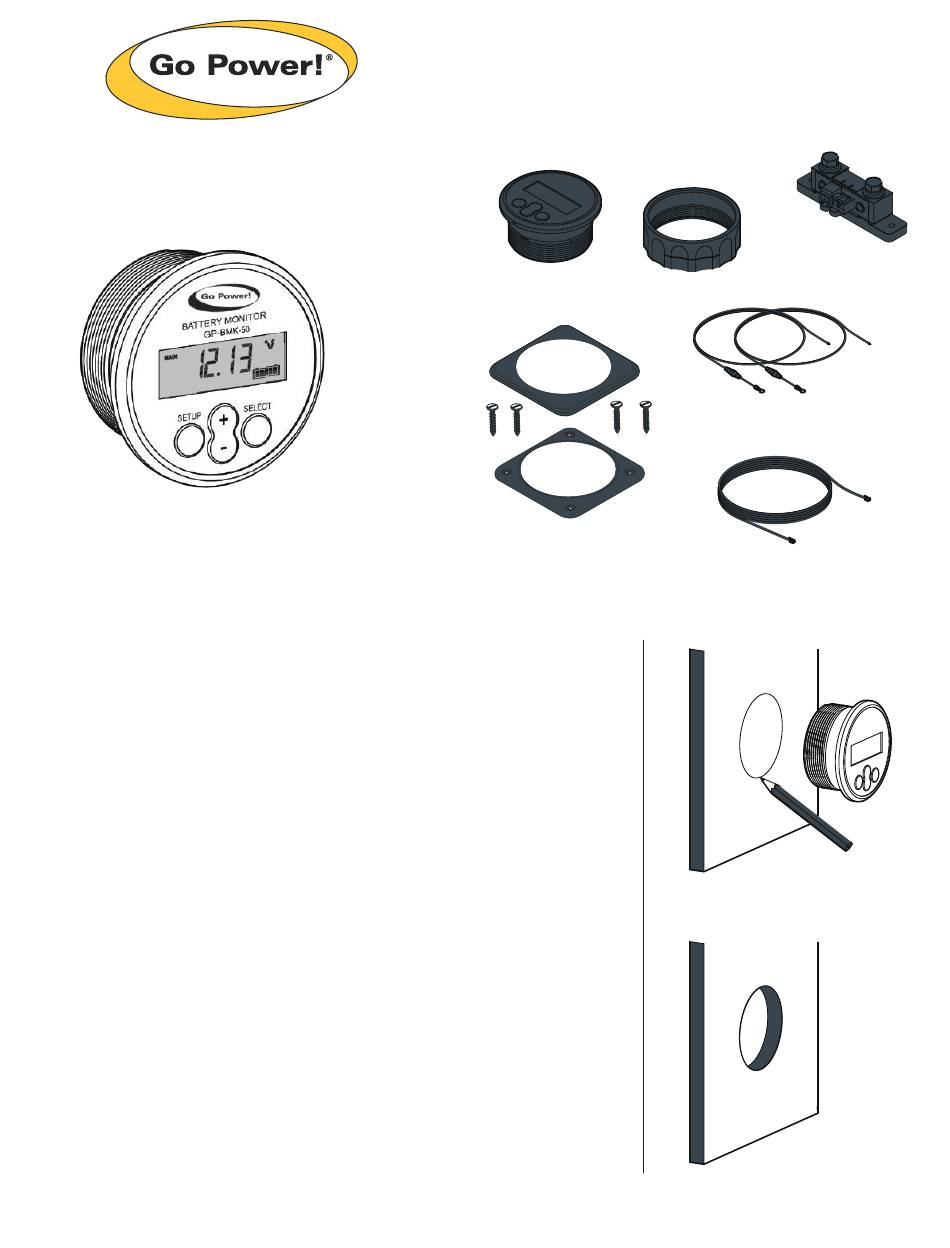

INCLUDES:
1 x Battery
1 x Battery monitor
coupling
1 x Face plate
4 x Screws
1 x Mounting plate
INSTALL_GP-BMK-50_RevC
1 x Battery
Monitor Connector
2 x Pos. supply
cable
1 x UTP cable
FIGURE 2-A
FIGURE 2-B

Advertisement

loading
Need help?

Need help?

Do you have a question about the GP-BMK-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Go Power GP-BMK-50

  • Page 1 Go Power! Quick Start Guide: GP-BMK-50 ©2018 Go Power! INSTALL_GP-BMK-50_RevC INCLUDES: BATTERY MONITOR 1 x Battery 1 x Battery monitor coupling Quick Start Guide 1 x Battery Monitor Connector 1 x Face plate 2 x Pos. supply cable 4 x Screws...
  • Page 2 Go Power! Quick Start Guide: GP-BMK-50 ©2018 Go Power! INSTALL_GP-BMK-50_RevC INSTALLATION METHOD 1 FIGURE 3-B FIGURE 3-A INSTALLATION METHOD 2 FIGURE 4-B FIGURE 4-A FIGURE 4-D FIGURE 4-C ©2018 Go Power! | 201-710 Redbrick Street, Victoria, BC Canada V8T 5J3 | info@gpelectric.com...
  • Page 3 Go Power! Quick Start Guide: GP-BMK-50 ©2018 Go Power! INSTALL_GP-BMK-50_RevC BATTERY SHUNT CONFIGURATION Battery Monitor Connector to battery to load WARNING - ELECTRIC SHOCK Connect the negative pole of the battery LAST! GP-BMK-50 CONFIGURED FOR STARTER/MAIN/AUXILARY BATTERY MONITORING WIRING DIAGRAM...
  • Page 4 Go Power! Quick Start Guide: GP-BMK-50 ©2018 Go Power! INSTALL_GP-BMK-50_RevC PLEASE NOTE: gpelectric.com/support/battery-monitor-support for more information: gpelectric.com/support/battery-monitor-support WIRING DIAGRAMS Connect the negative pole of the battery LAST! ©2018 Go Power! | 201-710 Redbrick Street, Victoria, BC Canada V8T 5J3 | info@gpelectric.com...
