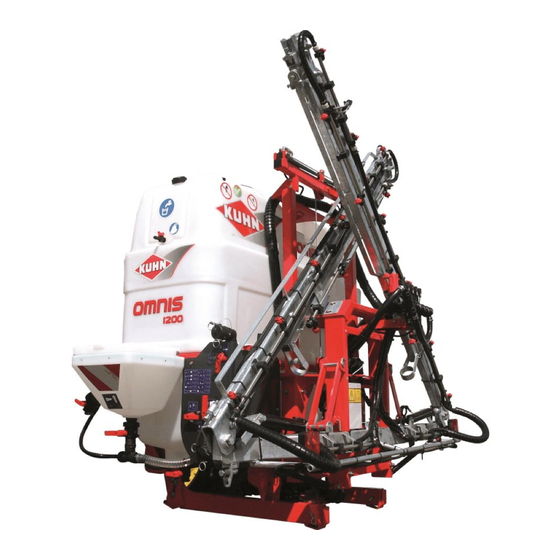

Page 1 OPERATOR'S MANUAL GN007AGB C Mounted field sprayers - English - 06-2010 GN007AGB C...
Page 3: Dear Owner
OMNIS $Dear Owner In buying a Kuhn machine you have chosen wisely. Into it have gone years of thought, research and improvement. You will find, as have thousands of owners all over the world, that you have the best that engineering skill and actual field testing can produce.
Page 4: Table Of Contents
Mounted field sprayers OMNIS $Contents Dear Owner ........................1 Contents..........................2 Identification of the machine..................5 Front view............................5 Rear view............................6 Model identification plate ........................7 Optional equipment..........................8 Safety..........................10 Description of symbols used in this document................10 Safety instructions ......................... 11 Location and description of safety decals on the machine ............25 Road safety equipment and recommendations................29 Machine specifications ....................30 Description and glossary.......................30...
Page 5 Mounted field sprayers OMNIS Putting into service ..................... 57 Description of control elements ....................57 Description of the section valves ....................60 Description of the box AE ......................62 Description of the box DPS ......................64 Description of the box RPB......................66 Description of the box RSB3/REB3 ....................
Page 6 Mounted field sprayers OMNIS Optional equipment....................126 Spray offset on boom end ......................126 Cleaning the machine on the outside ..................128 Second tractor equipment ......................129 Pipe pressure gauge ........................130 Filling hose............................130 GPS speed sensor........................130 Tank gyrocleaner ..........................131 Foam marker ..........................137 Flashing light ..........................137 Control box DPI ..........................138 Emptying valve on section end....................139 Storage compartment ........................141...
Page 7: Identification Of The Machine
Mounted field sprayers OMNIS $Identification of the machine 1. Front view Identification of the machine...
Page 8: Rear View
Mounted field sprayers OMNIS 2. Rear view Identification of the machine...
Page 9: Model Identification Plate
Mounted field sprayers OMNIS 3. Model identification plate Please write below the type and serial number of the machine. This information is to be indicated to the dealer for all spare parts orders. Type: Serial no.: Identification of the machine...
Page 10: Optional Equipment
See machine corresponding to a specific configuration. Check with your authorized KUHN dealer the equipment compatibility with your machine. Tick box corresponding to the equipment fitted on your machine: Spray offset on boom end Kit no.
Page 11 Mounted field sprayers OMNIS Sundry Kit no. 1346027: Filling hose Kit no. 1346186: GPS speed sensor Kit no. 1346089: Tank gyrocleaner Kit no. 1346314: Foam marker Kit no. 1346013: Flashing light Kit no. 1346007: Control box DPI Kit no. 1346244: Emptying valve on section end Kit no.
Page 12: Safety
Mounted field sprayers OMNIS $Safety 1. Description of symbols used in this document This symbol indicates a potentially hazardous situation that if not avoided, could result in serious bodily injury. This symbol is used to identify special instructions or procedures which, if not followed strictly, could result in machinery damage.
Page 13: Safety Instructions
Never let anyone operate the machine who is not trained to do so. Should you have any difficulties in understanding certain parts in this manual, please contact your KUHN dealer. Precautions to be taken before carrying out any operations on the machine...
Page 14 Mounted field sprayers OMNIS Precautions to take before using the machine Ensure that all operating controls (ropes, cables, rods, etc) are placed so as they cannot be operated unintentionally and cause damage or injury. Prior to each machine use, check tightness of bolts and nuts, in particular those securing the tools (booms, wheels...).
Page 15 Mounted field sprayers OMNIS Maximum speed Always keep to the legal speed limit for driving a tractor- machine assembly on public roads. Precautions when driving on public roads Always obey current regulations for driving on roads Dimensions Depending on the dimensions of the machine, contact the relevant authorities to ensure that it can be legally transported on public roads.
Page 16 Mounted field sprayers OMNIS Gross weight and weight per axle The drawings are not legally binding, their only aim is to illustrate the method to use. Prior to driving on public roads, check that criteria are met to be in conformity with the countrie's regulations: - When coupling a tool to the front and rear 3-point lift linkage, the maximum authorized payload must not be exceeded.
Page 17 Mounted field sprayers OMNIS Stage 1: To measure: - Tractor tare (T). Stage 2: - Couple the machine to the tractor. To measure: - Load on front axle (t1): • Tractor + machine (transport position). To do: - If the front axle load (t1) is below 20% of the tractor tare (T), add ballast weights (M1) to exceed the minimum load on the front axle.
Page 18 Mounted field sprayers OMNIS Stage 3: To measure: - Total weight (t): • Tractor + machine (transport position). • Ballast weights. Checking: - To go to the next stage: • Check in the tractor's operator's manual that the value measured is below the tractor's Gross Combined Weight Rating.
Page 19 Mounted field sprayers OMNIS Precautions when coupling Prior to coupling the machine, check that it can't move unexpectedly (place wedges underneath the wheels or lock handbrake) and that the parking stand is the the adequate position. Never stand between the tractor and the machine when operating the three point linkage.
Page 20 Mounted field sprayers OMNIS PTO shaft Use only PTO shafts supplied with the machine or recommended by the manufacturer. The protective shield of the tractor PTO stub, the PTO shaft guards and the protective covering of the machine input shaft must always be in place and in good condition.
Page 21 Mounted field sprayers OMNIS Precautions during manoeuvres When moving the machine from the transport position to the working position and vice versa, make sure that nobody is within the machine pivoting area. Remote controlled components Danger of crushing and shearing can exist when components are operated by hydraulic or pneumatic controls.
Page 22 OMNIS Hydraulically controlled components For machines fitted with a solenoid valve block assembly, maintenance or repair on the hydraulic block with emergency controls must be carried out by a KUHN technician. Hydro-pneumatic accumulator A hydro-pneumatic accumulator contains nitrogen under pressure (risk of suffocation in closed rooms).
Page 23 For your own safety and for correct machine operation, only use original manufacturer parts. It is strongly recommended to have your machine checked by your Kuhn dealer after each season, especially tools and their attaching hardware. Safety...
Page 24 Mounted field sprayers OMNIS Boom handling Prior to handling the booms, check that overhead power lines are at a safe distance. If the machine comes into contact with a power line: - Immediately stop the tractor, turn off the engine and apply park brake.
Page 25 Mounted field sprayers OMNIS Phytosanitary products Keep phytosanitary products away from children. During use of phytosanitary products, do not smoke or eat. Keep water taps and machine control components clean, wash hands prior to handling them in conformity with rules and regulations. Do not clean inputs, nozzles, hoses or any other small parts by blowing with your mouth.
Page 26 Mounted field sprayers OMNIS Body protection Do not wear loose clothing which could become caught up in moving parts. Wear waterproof clothing whenever there is a risk of splashing from or contact with crop protection products, even in diluted form. Wear specific protective clothing (suit, gloves, boots, glasses, mask) when handling phytosanitary products).
Page 27: Location And Description Of Safety Decals On The Machine
Mounted field sprayers OMNIS 3. Location and description of safety decals on the machine Location of safety decals Safety...
Page 28 Mounted field sprayers OMNIS Safety...
Page 29 Mounted field sprayers OMNIS Description of safety decals Operating instructions (1) The operators' manual contains all the information necessary for using the machine safely. It is imperative to read and comply with all instructions. Manoeuvring area (2) Stay a safe distance from the machine. Crushing hazard.
Page 30 Mounted field sprayers OMNIS Electric lines (4) Before any machine unfolding/folding operation, check that the electric lines are distant enough. There is a risk of an electric shock and electrocution. Passenger transport (5) Never transport passengers on the machine. Manhole (6) Never enter in the tank.
Page 31: Road Safety Equipment And Recommendations
4. Road safety equipment and recommendations The road safety equipment is mounted in the factory or by your authorized Kuhn dealer according to current safety regulations. Always keep to the legal speed limit for driving a tractor-machine assembly on public roads.
Page 32: Machine Specifications
Mounted field sprayers OMNIS $Machine specifications 1. Description and glossary Boom Manhole Hand-wash tank Gauge Parking stand Coupling device Main tank Pressure gauge Machine specifications...
Page 33 Mounted field sprayers OMNIS Boom suspension Central frame Central arm Second arm Third arm Outer arms Boom safety Section filter Nozzle holder 10 : Tubing Machine specifications...
Page 34 Mounted field sprayers OMNIS Pump Suction filter Valve operating panel Suction Discharge Machine specifications...
Page 35: Technical Specifications
Mounted field sprayers OMNIS 2. Technical specifications Pump Factory delivered with the following pumps: Piston-diaphragm pump PM105: 540 min Rotation speed 15 bar (218 psi) Maximum pressure 105 L/min (27.7 US gal/min) Nominal output Piston-diaphragm pump PM125: 540 min Rotation speed 15 bar (218 psi) Maximum pressure 125 L/min (33 US gal/min)
Page 36 Mounted field sprayers OMNIS Filter Tank filling strainer 18 MESH Suction filter (White) 32 MESH Pressure filter White 32 MESH 50 MESH Blue 100 MESH Section filters Blue 50 MESH 100 MESH Dimensions Working position See boom chart Width from 1.30 m to 1.65 m Length (from 4’3’’...
Page 37: Technical Specifications Per Model
Mounted field sprayers OMNIS Sundry Coupling device The machine adapts to tractors fitted with a 3 point linkage category 2. PTO speed 540 min Hydraulic valve bank Electro-hydraulic selector from 1 to 3 functions from 4 to 10 functions Solenoid valve block DPM regulation (Directly proportional to motor) DPME regulation (output proportional to engine Regulation...
Page 38: Water Circuit
Mounted field sprayers OMNIS 4. Water circuit Section filter Section valve Flow regulation valve BYPASS valve Accessory valve Product incorporator lever (optional) Discharge valve Incorporator rinsing valve Incorporation valve 10 : Pump 11 : Suction filter 12 : Rinsing tank valve (optional) 13 : Suction valve Machine specifications...
Page 39 Mounted field sprayers OMNIS Operating principle Pump (10) sucks up the liquid through suction filter (11). The valve lever position indicates the origine of the liquid sucked by the pump: - Suction valve (13): • External suction. • Main tank suction. - Rinsing tank valve (12) (optional): •...
Page 40: Booms
Mounted field sprayers OMNIS 5. Booms The machine is factory fitted with the following booms: Sections Manual boom RPL Working width (for your information) Manual boom RPL 9 9 m (29’6’’) 4 / 5 / 6 Manual boom RPL 10 10 m (32’10’’) 4 / 5 / 6 Manual boom RPL 12...
Page 41: Circulation
Mounted field sprayers OMNIS 6. Circulation The machine is factory supplied with the following circulations: 2-way standard circulation (N2) Section valve Flowmeter Flow regulation valve Pump Main tank Machine specifications...
Page 42 Mounted field sprayers OMNIS 3-way standard circulation (N3) Section valve Flowmeter Flow regulation valve Pump Main tank Calibrated return Machine specifications...
Page 43 Mounted field sprayers OMNIS 2-way semi-continuous circulation (S2) Section valve Flowmeter Flow regulation valve Pump Main tank Flow limiting disc Upper foil Machine specifications...
Page 44 Mounted field sprayers OMNIS 3-way semi-continuous circulation (S3) Section valve Flowmeter Flow regulation valve Pump Main tank Calibrated return Flow limiting disc Upper foil Machine specifications...
Page 45: Required Equipment
See machine corresponding to a specific configuration. Check with your authorized KUHN dealer the equipment compatibility with your machine. PTO shaft The machines are factory fitted with one of the following PTO shafts: Pto shaft S2 1 3/8’’...
Page 46 Mounted field sprayers OMNIS Regulation The regulation enables spraying a constant dose. The machine is factory supplied with one of the following flow regulations: DPM regulation (Directly proportional to motor): The boom flow is proportional to the engine speed. Main section valve and section shut off is manual: Main section valve is manual.
Page 47 Mounted field sprayers OMNIS DPME regulation (output proportional to engine speed): The boom flow is proportional to the engine speed. Section shut off is electric. Electric main flow control valve. The control box enables the opening and shutting of main flow control valve and to adjust the spraying pressure.
Page 48 Mounted field sprayers OMNIS DPM regulation (Directly proportional to motor) Main section valve and section shut off is manual Section valve (Manual) Main stop valve (Manual) Flow regulation valve (Manual) Pump Main tank Machine specifications...
Page 49 Mounted field sprayers OMNIS DPM regulation (Directly proportional to motor) Main section valve is electric and the section shut off is manual Section valve (Manual) Main stop valve (Electric) Flow regulation valve (Manual) Pump Main tank Machine specifications...
Page 50 Mounted field sprayers OMNIS DPM regulation (Directly proportional to motor) Main section valve and section shut off is electric Fuse CAN BUS wiring harness Junction box Control box Battery Section valve (Electric) Flow regulation valve (Manual) Pump Main tank Machine specifications...
Page 51 Mounted field sprayers OMNIS DPME regulation (output proportional to engine speed) Fuse CAN BUS wiring harness Junction box Control box Battery Section valve (Electric) Flow regulation valve (Electric) Pump Main tank Machine specifications...
Page 52 Mounted field sprayers OMNIS DPAE regulation (Ground speed related application rate control) Fuse CAN BUS wiring harness Junction box Control box Battery Section valve Flowmeter or Pressure sensor Flow regulation valve Speed sensor 10 : Wheel 11 : Pump 12 : Main tank Machine specifications...
Page 53 Mounted field sprayers OMNIS Control box This machine is equipped with a control box to make all adjustments. The machine is factory delivered with the following equipment: Without control box: Main section valve and section shut off is manual. Control box AE (1): Main section valve is electric and the section shut off is manual.
Page 54 Mounted field sprayers OMNIS Control box RPB (4): DPAE regulation (output proportional to the groundspeed). Control box RSB3/REB3 (5): DPAE regulation (output proportional to the groundspeed). The control box DPS / RPB / RSB3/REB3 functioning and setting are discribed in the complementary instructions supplied.
Page 55 Mounted field sprayers OMNIS Boom activators The boom activators provide following hydraulic functions: - Boom height adjustment (1). - Unfolding/folding of the boom arms (2). - Slope corrector (3). - Locking/unlocking of the boom central frame. The machine is factory delivered with the following equipment: Manual boom: Hand winch.
Page 56 Mounted field sprayers OMNIS Tank level The machine is factory delivered with the following equipment: Floating gauge. Floating gauge Independent filling flowmeter: This equipment enables informing the user on the following points: - Volume of liquid added in the tank. - Instantaneous filling flow.
Page 57 Mounted field sprayers OMNIS Incorporator The machine is factory delivered with the following equipment: Incorporator. Incorporator with spray lance. Without product incorporator. Description The container rinse enables cleaning the container inside. The lance and the rinsing boom enables the inside of the product incorporator to be rinsed.
Page 58: Sound Levels
Mounted field sprayers OMNIS 8. Sound levels Sound levels have been measured in accordance with the measuring methods as defined in: NF EN ISO 4254-1 «Agricultural machinery - Safety - Part 1: General requirements» Weighted equivalent continuous acoustic pressure level at the driver's seat (closed cabin) L (A) eq: Tractor only: 72 dB(A).
Page 59: Putting Into Service
Mounted field sprayers OMNIS $Putting into service 1. Description of control elements The machine is fitted with the following components: Main section valve and section shut off is manual. Control box AE (1): Main section valve is electric and the section shut off is manual.
Page 60 Mounted field sprayers OMNIS Control box DPS: DPM regulation. Main section valve and section shut off is electric. Manual main flow control valve. Control box DPS: DPME Regulation (output proportional to the engine speed). Control box RPB: DPAE regulation (output proportional to the groundspeed).
Page 61 Mounted field sprayers OMNIS Control box RSB3/REB3: DPAE regulation (output proportional to the groundspeed). For models fitted with a solenoid valve block: - Control box CH10. - Outlets. Putting into service...
Page 62: Description Of The Section Valves
Mounted field sprayers OMNIS 2. Description of the section valves Main section valve and section shut off is manual Main stop valve Section valve Main stop valve: Position a: Outlet opened. Position b: Outlet closed. Section valve: Position a: Outlet opened. Position b: Outlet closed.
Page 63 Mounted field sprayers OMNIS Main section valve is electric and the section shut off is manual Main stop valve Section valve Section valve: Position a: Outlet opened. Position b: Outlet closed. Putting into service...
Page 64: Description Of The Box Ae
Mounted field sprayers OMNIS 3. Description of the box AE Positioning and parking The control box must be easily accessible from the tractor cab. Control box mounting The control box is placed in the tractor cab on a support to be installed. Control box removal Disconnect and store control box in a dry and clean place.
Page 65 Mounted field sprayers OMNIS Description of the controls Opening / closing of the main shut-off valve Not used Putting into service...
Page 66: Description Of The Box Dps
Mounted field sprayers OMNIS 4. Description of the box DPS This machine is equipped with a control box to make all adjustments. The control box DPS functioning and setting are discribed in the complementary instructions supplied. Positioning and parking The control box must be easily accessible from the tractor cab.
Page 67 Mounted field sprayers OMNIS For increased safety, it is recommended to use the harness supplied with the machine.. Check that the connectors are in a good condition and clean. - Connect the wiring harness directly to the battery terminals respecting the polarities. Description of the controls Start/Stop: Housing Selection key...
Page 68: Description Of The Box Rpb
Mounted field sprayers OMNIS 5. Description of the box RPB This machine is equipped with a control box to make all adjustments. The control box RPB functioning and setting are discribed in the complementary instructions supplied. Positioning and parking The control box must be easily accessible from the tractor cab.
Page 69 Mounted field sprayers OMNIS For increased safety, it is recommended to use the harness supplied with the machine.. Check that the connectors are in a good condition and clean. - Connect the wiring harness directly to the battery terminals respecting the polarities. Description of the controls Start/Stop: Housing Screen...
Page 70: Description Of The Box Rsb3/Reb3
Mounted field sprayers OMNIS 6. Description of the box RSB3/REB3 This machine is equipped with a control box to make all adjustments. The control box RSB3/REB3 functioning and setting are discribed in the complementary instructions supplied. Positioning and parking The control box must be easily accessible from the tractor cab.
Page 71 Mounted field sprayers OMNIS For increased safety, it is recommended to use the harness supplied with the machine.. Check that the connectors are in a good condition and clean. - Connect the wiring harness directly to the battery terminals respecting the polarities. Description of the controls Start/Stop: Housing Screen...
Page 72: Description Of The Box Ch10
Mounted field sprayers OMNIS 7. Description of the box CH10 For models fitted with a solenoid valve block: The machine is fitted with a CH10 control box that groups the hydraulic functions. The control box CH10 functioning and setting discribed complementary instructions supplied.
Page 73 Mounted field sprayers OMNIS Description of the controls Start/Stop: Housing Switch: Unfolding/folding of the left outer arm Switch: Unfolding/folding of the central arms Switch: Unfolding/folding of the right outer arm Switch: Auxiliary hydraulic function Switch: Locking/unlocking of the boom central frame Switch: Positioning of the follower axle Switch: Automatic/manual guidance of the follower axle Switch: Raising/lowering of the left variable geometry...
Page 74: Description Of The Valves
Mounted field sprayers OMNIS 8. Description of the valves Suction valve Rinsing tank valve (optional) Discharge valve Product incorporator lever (optional) Accessory valve External suction External suction + Incorporation (optional) Incorporation (optional) Spraying Rinsing of the incorporation circuit (optional) Boom rinsing (optional) Tank rinsing (optional) Cleaning the machine on the outside (optional) Filter cleaning...
Page 75 Mounted field sprayers OMNIS Suction valve: The valve lever position indicates the origine of the liquid sucked by the pump. Position a: External suction. Position b: Main tank suction. Discharge valve: The valve lever position indicates the destination of the liquid that has flown back from the pump. Position a: Outer discharge.
Page 76: Coupling And Uncoupling
Mounted field sprayers OMNIS 9. Coupling and uncoupling Description of coupling elements The machine is fitted with the following components: - A PTO shaft. - A 3-point hitch. - 1 electric plug for the signalling equipment. - 1 machine 12 V power plug. - 1 CAN BUS connector linked to the control box.
Page 77 Mounted field sprayers OMNIS Preparing the tractor For driver safety, always use a tractor equipped with a cab. The machine adapts to tractors fitted with a 3 point linkage category 2. The tractor must be equipped with: - A 7-pin electric plug for the electrical signalling equipment.
Page 78 Mounted field sprayers OMNIS For models fitted with a solenoid valve block: - 1 single acting outlet with free return to the tank. The machine is fitted with a CH10 control box that groups the hydraulic functions. The control box CH10 functioning and setting are discribed in complementary instructions...
Page 79 Mounted field sprayers OMNIS Hitch pin parallelism - Adjust tractor lift rods so that lower linkage arms are at equal height from ground. For models fitted with DPAE regulation (output proportional to the groundspeed): Speed sensor The speed sensor detects the presence or not of a metal mass (Lug stud, screw head etc.).
Page 80 Mounted field sprayers OMNIS Coupling the machine Prior to coupling the machine, check that it can move inadvertently and that the parking stand is in the required position. Couple the machine only with the tank empty. Place the machine on level ground. Make sure the spraying boom is folded.
Page 81 Mounted field sprayers OMNIS Electrical connections - Connect the electric signalling plug. - After making the connections, check that there is no risk of the cables being caught during operation. Hydraulic connections Before connecting hoses to the tractor hydraulics, ensure that tractor and machine circuits are not under pressure.
Page 82 Mounted field sprayers OMNIS Primary PTO shaft Make sure that the PTO shaft is correctly adjusted, to avoid premature wear and tear. The tractor pto must rotate at a maximum speed of 540 min - Separate the two half PTO shafts and connect them to the machine's input shaft and to the tractor PTO stub.
Page 83 Mounted field sprayers OMNIS Never operate the PTO shaft at an angle X exceeding 30°. To avoid serious accidents, the PTO drive shaft guards must be properly in place and fixed with the chains provided. - Attach PTO shaft guard using chain provided in order to prevent it from rotating.
Page 84 Mounted field sprayers OMNIS 3-point attachment - Slowly reverse the tractor until the lower link ball joints are in line with the lower hitch pins. - Unlock and remove the lynch pin of each hitch pin. - Couple the lower link ball joints to the lower hitch pins. - Secure each lower link with lynch pin.
Page 85 Mounted field sprayers OMNIS Parking stands The parking stands must be adjusted in the same position. Front parking stands: - Remove the parking stand lock pin (1). - Reinstall parking stand (2). - Insert pin in hole corresponding to transport position (3).
Page 86 Mounted field sprayers OMNIS Adjusting the machine Lateral adjustment of the lower linkage arms - Balance the play on either sides of the lift linkage and lock lower link stabilizers. Adjusting the machine's horizontality - Adjust the top link length so that the machine is horizontal with regards to the ground.
Page 87 Mounted field sprayers OMNIS Adjustment of the calibrated returns Adjustment to make before each nuse with a new nozzle colour. For models fitted with a standard 2-way or 2-way semi-continuous circulation: - Fully tighten the calibrated returns. Putting into service...
Page 88 Mounted field sprayers OMNIS For models fitted with a standard 3-way or 3-way semi-continuous circulation: - Fill the main tank to half its capacity with clean water. - Place valves in spraying position. - Engage the tractor PTO. PTO speed: 540 min - Open all sections.
Page 89 Mounted field sprayers OMNIS Uncoupling the machine Park the machine on an even fairly level ground. Only unhitch the machine when the tank is empty. Make sure the spraying boom is folded. Tighten tractor parking brake before placing yourself between the tractor and the machine. From the transport position: - Disengage the tractor PTO and switch off the engine.
Page 90 Mounted field sprayers OMNIS For models equipped with boom RVA / RHX: Rear parking stands: - Remove pin (1). - Remove the parking stand lock pin (2). - Lower parking stand (3). - Insert pin in the hole corresponding to the parking position (4).
Page 91 Mounted field sprayers OMNIS Primary PTO shaft - Disconnect the PTO shaft from the tractor. - Secure PTO shaft into its' support (1). 3-point attachment - Unlock and remove the lynch pin of the hitch pin. - Remove the upper hitch pin. - Detach the top link from the machine end.
Page 92 Mounted field sprayers OMNIS - Unlock and remove the lynch pin of each hitch pin. - Uncouple lower linkage arms. - Secure each lower link with lynch pin. - Lower the tractor three-point linkage. - Move forward with the tractor The machine is uncoupled.
Page 93: Instructions For Transport
Mounted field sprayers OMNIS $Instructions for transport Before placing the machine into transport position: - Check that nobody is within the machine pivoting area. If there is someone, make sure the person moves away. - Place the machine on level ground. 1.
Page 94 Mounted field sprayers OMNIS - Fold the outer arms. - Fold the left central arm. - Fold the right central arm. - Lock the right boom: • Reinstall plate (2). • Refit pin (1). The machine is in transport position. Instructions for transport...
Page 95 Mounted field sprayers OMNIS Boom RJP2 From the working position: - Fully lower the booms. - Lock the central boom frame. For models fitted with a 2 arm boom: - Fold the outer arms. For models fitted with a 3 arm boom: - Unlock the third arm.
Page 96 Mounted field sprayers OMNIS - Lock the left boom. - Unlock the right boom. - Fold the right central arm. - Lock the right boom. The machine is in transport position. Instructions for transport...
Page 97 Mounted field sprayers OMNIS Boom RHX From the working position: - Fully lower the booms. - Fold the outer arms. - Fold the central arms. For models fitted with a 2-function electro- hydraulic selector: For models fitted with a 3-function electro- hydraulic selector: The machine is fitted with a DPS / RPB / RSB3/REB3 control box that groups the...
Page 98 Mounted field sprayers OMNIS Boom RVA From the working position: - Fully lower the booms. - Fold the outer arms. - Fold the central arms. For models fitted with a 2-function electro- hydraulic selector: For models fitted with a 3-function electro- hydraulic selector: The machine is fitted with a DPS / RPB / RSB3/REB3 control box that groups the...
Page 99: Conformity With The Road Regulations
Mounted field sprayers OMNIS 2. Conformity with the road regulations Before driving the machine on public roads, ensure that the machine complies with current highway code regulations. Always keep to the legal speed limit for driving the machine assembly on public roads.
Page 100: Instructions For Work
Mounted field sprayers OMNIS $Instructions for work Before placing the machine in working position: - Check that nobody is within the machine pivoting area. If there is someone, make sure the person moves away. - Place the machine on level ground. 1.
Page 101 Mounted field sprayers OMNIS - Unfold the right central arm. - Unfold the left central arm. - Unfold the outer arms. - Unlock the main boom frame. During an asymmetrical boom unfolding, keep the central boom frame locked. The machine is in working position. Instructions for work...
Page 102 Mounted field sprayers OMNIS Boom RJP2 From the transport position: - Unlock the right boom. - Unfold the right central arm. - Unlock the left boom. - Unfold the left central arm. For models fitted with a 2 arm boom: - Unfold the outer arms.
Page 103 Mounted field sprayers OMNIS Boom RHX From the transport position: During an asymmetrical boom unfolding, lock the central boom frame. For models fitted with a 2-function electro-hydraulic selector: For models fitted with a 3-function electro-hydraulic selector: - Shift the tractor hydraulic valve. For models fitted with a solenoid valve block: The machine is fitted with a CH10...
Page 104 Mounted field sprayers OMNIS Boom RVA From the transport position: For models fitted with a 2-function electro- hydraulic selector: For models fitted with a 3-function electro- hydraulic selector: - Always unfold the boom symmetrically. For models fitted with a solenoid valve block: - During an asymmetrical boom unfolding, lock the central boom frame.
Page 105: Adjustments In Working Position
Mounted field sprayers OMNIS Adjustments in working position Working height For models fitted with a rigid central frame: - Remove flanges (1). - Adjust the boom height: • High position (2) • Central position (3) • Low position (4) - Reinstall flanges (1). For models fitted with a hand winch: - Raise the boom: •...
Page 106 Mounted field sprayers OMNIS For models fitted with a hydraulic winch: - Shift the tractor hydraulic valve. For models fitted with a 2-function electro- hydraulic selector: For models fitted with a 3-function electro- hydraulic selector: - Shift the tractor hydraulic valve. For models fitted with a solenoid valve block: The machine is fitted with a CH10 control box that groups the hydraulic functions.
Page 107 Mounted field sprayers OMNIS Work on slopes For models fitted with a mechanical slope corrector: The machine is fitted with an automatic slope corrector. For models fitted with a hydraulic slope corrector: For models equipped with boom RJP2: Shift the tractor hydraulic valve. For models fitted with a 2-function electro-hydraulic selector: For models fitted with a 3-function...
Page 108: Groundspeed
Mounted field sprayers OMNIS Groundspeed Pay particular attention if working on very uneven grounds. Adapt the groundspeed to the conditions of work and the machine operating range. When the main tank is full, reduce travel speed to limit rolling movement in the tank. Reduce groundspeed difficult...
Page 109: Machine Use
Mounted field sprayers OMNIS $Machine use Certain cropt treatment products are very aggressive with regards to materials that build the sprayer. The use of these products can cause malfunctions. These products are known to cause damage to spraying circuits: - Trifluraline (Example: Tréflan) - Alachlore (Example: Lasso) - Phenmédiphame (Example: Betanal) - Ethofumesate (Example: Tramat)
Page 110: The Tanks
Mounted field sprayers OMNIS 2. The tanks Fill the hand-wash tank and rinsing tank only with clean water. Keep water taps and machine control components clean, wash hands prior to handling them in conformity with rules and regulations. Place the machine on level ground. Hand-wash tank The hand-wash tank of a capacity of 16 L (4.2 US gal) enables the user to wash hands...
Page 111 Mounted field sprayers OMNIS Removable tank: - Remove the bolt (1). - Pull tank (2) out of its housing. - Remove filler plug (3). - Fill with clean water, capacity 16 L (4.2 US gal). - Reinstall filler plug (3). - Reinstall tank (2) in its housing.
Page 112 Mounted field sprayers OMNIS Rinsing tank (optional) The rinsing tank enables rinsing the main tank and the spraying circuit by diluting the residual spray mixture. Rinsing tank filling: - Remove filler plug (1). - Fill with clean water, capacity 100 L (26.4 US gal). - Reinstall filler plug.
Page 113 Mounted field sprayers OMNIS Main tank Do not insert filler hose in the tank to prevent any product return in the waterworks system. - Place a tank filling strainer in the filling hole (manhole) to prevent any particles from entering in the sprayer. Filling of the main tank: 3 methods are possible: - Filling by external hose.
Page 114 Mounted field sprayers OMNIS Filling by suction: - Open the manhole cover. - Place valves in external suction position: • Suction valve: 1 • Rinsing tank valve (optional): 4 • Accessory valve: G • Product incorporator lever (optional): E • Discharge valve: C - Remove the quick coupler plug (1).
Page 115 Mounted field sprayers OMNIS Simultaneous filling and incorporation (optional): - Open the manhole cover. - Place valves in external suction and incorporation position: • Suction valve: 1 • Rinsing tank valve (optional): 4 • Accessory valve: G • Product incorporator lever (optional): D •...
Page 116: Incorporator (Optional)
Mounted field sprayers OMNIS 3. Incorporator (optional) Description The incorporator enables safe, fast and easy preparation of the spray mixture. The incorporator is made up of the following components: - Rinsing valve of the incorporator and container rinser (1). - Incorporation valve (2). - Product incorporator rinsing boom (3).
Page 117 Mounted field sprayers OMNIS Incorporation valve Position a: Outlet closed. Position b: Outlet opened. Rinsing valve of the incorporator and container rinser: Position a: Outlet closed. Position b: Container rinser. Position c: Rinsing the incorporator. For models fitted with a spray gun: Position a: Outlet closed.
Page 118 Mounted field sprayers OMNIS Incorporation: During incorporation, the main tank must not be fully empty. - Place valves in the incorporation position: • Suction valve: 2 • Rinsing tank valve (optional): 4 • Accessory valve: G • Product incorporator lever (optional): D •...
Page 119 Mounted field sprayers OMNIS Rinsing the incorporator: Check that the quick coupler caps are in place. 2 methods are possible: - Rinsing only the incorporator. - Simultaneous filling and rinsing of the incorporator. Rinsing only the incorporator - Place valves in incorporation circuit rinsing position: •...
Page 120 Mounted field sprayers OMNIS Container rinsing - Open the cover. - Position the container to rinse on the container rinse. - Open the container rinse valve (1). - Press vertically on the container until container rinse is activated. - Wait for 10 seconds. - Shut-off the container rinse valve (2).
Page 121: Spraying
Mounted field sprayers OMNIS 4. Spraying Fit the machine with additional lights if the tractor ones are not sufficient (work at night, fog...). Do not treat when the wind is too strong, in conformity with the legislation in force. Use an adequate anti-drift device. - Place valves in spraying position: •...
Page 122: Rinsing (Optional)
Mounted field sprayers OMNIS 5. Rinsing (optional) Rinse booms and the tank on the treated crop, preventing run-off. Do not exceed the maximum authorized dose. The main tank and the spraying circuit must be rinsed between 2 treatments with different products.
Page 123 Mounted field sprayers OMNIS - Place valves in boom rinsing position: • Suction valve: 1 • Rinsing tank valve (optional): 3 • Accessory valve: G • Product incorporator lever (optional): E • Discharge valve: C - Open all sections. - Open the boom end offset jet (optional equipment). - Engage the tractor PTO.
Page 124 Mounted field sprayers OMNIS Machine rinsing - Spray until pump unpriming. The quantity of clear water added and/or the number of tank rinse must be sufficient to divide the tank bottom concentrate by at least 100. For models fitted with DPAE regulation (output proportional to the groundspeed): - Go to manual mode.
Page 125 Mounted field sprayers OMNIS - Place valves in spraying position: • Suction valve: 2 • Rinsing tank valve (optional): 4 • Accessory valve: G • Product incorporator lever (optional): E • Discharge valve: C For models fitted with DPAE regulation (output proportional to the groundspeed): - Switching into automatic mode.
Page 126: Outer Discharge
Mounted field sprayers OMNIS 6. Outer discharge Prior to emptying the booms and tank bottoms, rinse the spraying circuit. Drain booms and tank bottoms on the treated cultivation another authorized cultivation, preventing run-off. In any case, conform with the current legislation.
Page 127: Emptying The Tank
Mounted field sprayers OMNIS 7. Emptying the tank Prior to emptying the booms and tank bottoms, rinse the spraying circuit. Drain booms and tank bottoms on the treated cultivation another authorized cultivation, preventing run-off. In any case, conform with the current legislation.
Page 128: Optional Equipment
See machine corresponding to a specific configuration. Check with your authorized KUHN dealer the equipment compatibility with your machine. 1. Spray offset on boom end Kit no. 1356177: Manually controlled jet offset on boom end to the left.
Page 129 Mounted field sprayers OMNIS Putting into service This equipment is controlled by the DPS / RPB / RSB3/REB3 control box. Refer to control box operator's manual. Sprayer protection against freeze Never spray or spread an antifreeze agent on the environment. Do not overwinter with liquid nitrogen.
Page 130: Cleaning The Machine On The Outside
Mounted field sprayers OMNIS 2. Cleaning the machine on the outside Kit no. 1356199: 15 m (49’2’’) Automatic reel and spray gun. Kit no. 1346319: 15 m (49’2’’) automatic reel and spot spray gun. This equipment enables rinsing the machine outside. Description This equipment includes the following parts: - Automatic reel 15m (49’2’’) (1).
Page 131: Second Tractor Equipment
Mounted field sprayers OMNIS 3. Second tractor equipment Kit no. 1346085: Control box attachment bracket. Kit no. 1346086: Speed sensor. This option enables installing a control box on a second tractor. Description This equipment includes the following parts: Control box attachment bracket: - 1 3-pin socket.
Page 132: Pipe Pressure Gauge
Mounted field sprayers OMNIS 4. Pipe pressure gauge For models equipped with boom RHX: Kit no. 1346293: Pipe pressure gauge. For models equipped with boom RVA: Kit no. 1346294: Pipe pressure gauge. For models equipped with boom RPL / RJP2: Kit no. 1346315: Pipe pressure gauge. The pressure gauge on the pipe indicates the boom pressure.
Page 133: Tank Gyrocleaner
Mounted field sprayers OMNIS 7. Tank gyrocleaner Kit no. 1346089: Tank gyrocleaner. This equipment enables cleaning the main tank inside. Description of the valves Suction valve Rinsing tank valve (optional) Discharge valve Product incorporator lever (optional) Tank rotary cleaner lever Optional equipment...
Page 134 Mounted field sprayers OMNIS External suction External suction + Incorporation (optional) Incorporation (optional) Spraying Rinsing of the incorporation circuit (optional) Boom rinsing (optional) Tank rinsing (optional) Cleaning the machine on the outside (optional) Filter cleaning Outer discharge Tank rotary cleaner lever: Position a: Outlet opened.
Page 135 Mounted field sprayers OMNIS Water circuit Section filter Section valve Flow regulation valve BYPASS valve Tank rotary cleaner lever Product incorporator lever (optional) Discharge valve Incorporator rinsing valve Incorporation valve 10 : Pump 11 : Suction filter 12 : Rinsing tank valve (optional) 13 : Suction valve Optional equipment...
Page 136 Mounted field sprayers OMNIS Operating principle Pump (10) sucks up the liquid through suction filter (11). The valve lever position indicates the origine of the liquid sucked by the pump: - Suction valve (13): • External suction. • Main tank suction. - Rinsing tank valve (12) (optional): •...
Page 137 Mounted field sprayers OMNIS Rinsing Rinse booms and the tank on the treated crop, preventing run-off. Do not exceed the maximum authorized dose. The main tank and the spraying circuit must be rinsed between 2 treatments with different products. Machine rinsing - Spray until pump unpriming.
Page 138 Mounted field sprayers OMNIS - Place valves in tank rinsing position: • Suction valve: 1 • Rinsing tank valve (optional): 3 • Tank rotary cleaner lever: F • Product incorporator lever (optional): E • Discharge valve: C - Wait for 20 seconds. - Place valves in spraying position: •...
Page 139: Foam Marker
Mounted field sprayers OMNIS 8. Foam marker Kit no. 1346314: Foam marker. The foam marker enables marking the field limits already treated. Description This equipment includes the following parts: - Tank (1). - Compressor (2). - Hose (3). - Foam spreading nozzle (4). Putting into service This equipment is controlled by the DPS / RSB3/REB3 control box...
Page 140: Control Box Dpi
Mounted field sprayers OMNIS 10. Control box DPI Kit no. 1346007: Control box DPI. The DPI control box enables managing the individual shut-off of 9 sections. Description of the connection For models fitted with a 3-function electro- hydraulic selector: - Connect the electric wiring harness connector that links the machine to the auxiliary control box DPI (2).
Page 141: Emptying Valve On Section End
Mounted field sprayers OMNIS 11. Emptying valve on section end Kit no. 1346244: Emptying valve on section end. This option enables controlling the following functions: - Full emptying of the boom. - Avoid deposits in section end. Description This equipment includes the following parts: - 2-way valve (1).
Page 142 Mounted field sprayers OMNIS Maintenance When spraying liquid nitrogen, spray fluid or paraffined oil on the machine steel parts. Clean: - Rinse the spraying circuit. - Empty the main tank completely through the tank draining valve. - Fully drain the boom through the section end draining valve: •...
Page 143: Storage Compartment
Mounted field sprayers OMNIS 12. Storage compartment Kit no. 1346318: Storage compartment. This equipment enables storing personal protective equipment. 13. Quick coupler Kit no. 1346269: Quick coupler. Quick coupler (Standard) (1). Quick coupler (optional equipment) (2). Optional equipment...
Page 144: Automatic Hitch (Easy Hitch)
Mounted field sprayers OMNIS 14. Automatic hitch (EASY HITCH) Kit no. 1346317: Automatic hitch. Description This equipment includes the following parts: - Automatic three point frame. Coupling the machine Prior to coupling the machine, check that it can move inadvertently and that the parking stand is in the required position.
Page 145 Mounted field sprayers OMNIS In parking position: - Fit the automatic A-frame to the tractor lower links: • Unlock and remove the lynch pin of each hitch pin. • Remove the lower hitch pins. • Position the lower link ball joints inside the automatic three point frame lower coupling yoke.
Page 146 Mounted field sprayers OMNIS Electrical connections - Connect the electric signalling plug. - After making the connections, check that there is no risk of the cables being caught during operation. Hydraulic connections Before connecting hoses to the tractor hydraulics, ensure that tractor and machine circuits are not under pressure.
Page 147 Mounted field sprayers OMNIS Primary PTO shaft Make sure that the PTO shaft is correctly adjusted, to avoid premature wear and tear. The tractor pto must rotate at a maximum speed of 540 min - Separate the two half PTO shafts and connect them to the machine's input shaft and to the tractor PTO stub.
Page 148 Mounted field sprayers OMNIS Never operate the PTO shaft at an angle X exceeding 30°. To avoid serious accidents, the PTO drive shaft guards must be properly in place and fixed with the chains provided. - Attach PTO shaft guard using chain provided in order to prevent it from rotating.
Page 149 Mounted field sprayers OMNIS - Lower the tractor three-point linkage. - Slowly reverser the tractor until the automatic three point frame hooks are in line with the hitch pins. - Raise the tractor lift to hook the automatic three point frame hooks on the hitch pins.
Page 150 Mounted field sprayers OMNIS For models equipped with boom RVA / RHX: Rear parking stands: - Remove pin (1). - Remove the parking stand lock pin (2). - Reinstall parking stand (3). - Insert pin in hole corresponding to transport position (4).
Page 151 Mounted field sprayers OMNIS Uncoupling the machine Park the machine on an even fairly level ground. Only unhitch the machine when the tank is empty. Make sure the spraying boom is folded. Tighten tractor parking brake before placing yourself between the tractor and the machine. From the transport position: - Disengage the tractor PTO and switch off the engine.
Page 152 Mounted field sprayers OMNIS For models equipped with boom RVA / RHX: Rear parking stands: - Remove pin (1). - Remove the parking stand lock pin (2). - Lower parking stand (3). - Insert pin in the hole corresponding to the parking position (4).
Page 153 Mounted field sprayers OMNIS Primary PTO shaft - Disconnect the PTO shaft from the tractor. - Secure PTO shaft into its' support (1). - Remove the automatic three point frame: • Unlock and remove the lynch pin of each hitch pin. •...
Page 154: Maintenance And Storage
Mounted field sprayers OMNIS $Maintenance and storage Before leaving tractor before adjusting, maintaining or repairing the machine, disengage the PTO drive, turn off the engine, remove ignition key and wait until all moving parts have come to a complete stop and apply park brake. 1.
Page 155 Mounted field sprayers OMNIS Each time After the At the end first 15 Every 40 Every 100 of each machine is hours of hours hours season used Maintenance Clean: - Machine - Filters - Nozzles Check: - Oil level - Water circuit - Booms Check: - BYPASS valve...
Page 156: Lubrication
Mounted field sprayers OMNIS 2. Lubrication Lubrication intervals are indicated for normal conditions of use. Clean grease nipples before greasing. PTO shaft Every 40 hours or at the end of the season: - U-joints (1). - Transmission tube (The two grease nipples (2)). - guide rings (3): •...
Page 157 Mounted field sprayers OMNIS Oil change: Prevent any contact with skin, eyes and mouth. The pump maintenance must be carried out when off. Only use the recommended oil. Collect possible residual oil and give it to an appropriate processing center. For models fitted with a PM105 pump: Capacity: 0.6 L (0.16 US gal) of SAE 20W30 oil.
Page 158 Mounted field sprayers OMNIS - Place a container of sufficient capacity under drain plug. - Remove filler plug (1). - Remove drain plug (2). - Allow oil to drain completely. - Wait for dripping to stop. - Clean and reinstall drain plug (2). Replace it if necessary.
Page 159: Maintenance
Mounted field sprayers OMNIS 3. Maintenance Never enter in the tank. Clean Clean the machine on treated crop or on another authorized crop, preventing run-off. Only wash the sprayer with clean water. When cleaning with a high pressure washer, do not insist on the seals of the cylinder, hydraulic hoses, wiring...
Page 160 Mounted field sprayers OMNIS Filters - Place the valves in filter cleaning position: • Suction valve: 1 • Rinsing tank valve (optional): 4 • Tank rotary cleaner lever: G • Product incorporator lever (optional): E • Discharge valve: A - Remove nut (1). - Remove protection (2).
Page 161 Mounted field sprayers OMNIS Pressure filter - Fully turn the knob counterclockwise to open the drain shut-off valve. - Clean the boom. - Fully turn knob clockwise to shut-off the drain valve. Nozzles Do not blow on the nozzle using your mouth to unclog it.
Page 162 Mounted field sprayers OMNIS Check Immediately replace worn or damaged parts with genuine KUHN parts. Oil level: - The oil level must be over the level indicator (1). - Check oil level and top up if necessary. - Remove filler plug (2).
Page 163 Mounted field sprayers OMNIS Water circuit - Check condition of pipes, replace them if damaged. - Check filter sealing. Booms - Check that all nuts and bolts are sufficiently tightened: • Torque: 21 daN m (155 lbf ft). Pressure gauge Check the condition of the pressure gauge and do not hesitate to replace it if necessary.
Page 164 Mounted field sprayers OMNIS Nozzle flow The values indicated by the control box depend on the flowmeter and pressure gauge. Ensure that lightings and signallings are clean and in good working order. For models fitted with DPM regulation: For models fitted with DPME regulation (output proportional to the engine speed): - Rinse the spraying circuit.
Page 165 Mounted field sprayers OMNIS For models fitted with DPAE regulation (output proportional to the groundspeed): - Rinse the spraying circuit. - Clean the filters. - Clean the nozzles. - Check condition of the anti-drips. - Fill the main tank to half its capacity with clean water.
Page 166 Mounted field sprayers OMNIS Adjustments Adjusting the 3D safety - Unfold the booms. - Tighten or loosen screw (1) to align the 3D safety and the boom. - Proceed the same way on the other side. In case of whiplash of the 3D safety: - Tighten threaded rog (2) of safety spring.
Page 167: Storage
- Check that all nuts and bolts are sufficiently tightened. - Touch up any areas of damaged paintwork. - Immediately replace worn or damaged parts with genuine KUHN parts. - Remove and service the PTO shaft. Follow the instructions in the PTO shaft operating manual.
Page 168: Machine Recycling
Mounted field sprayers OMNIS At the start of each season - Re-read the operators' manual. - Check that the machine is greased. - Check that all nuts and bolts are sufficiently tightened. - Make sure that all protection devices are in place and in good condition.
Page 169: Trouble Shooting Guide
Adjust the BY-PASS valve (7 adjustment is incorrect. bar (102 psi)). Punctured diaphragm. Contact KUHN Presence of water in the oil. authorized dealer. Worn or dirty valve. Clean or replace the valve. Swirl during suction on the Reduce the pto speed.
Page 170 Mounted field sprayers OMNIS Problem Cause Remedy The tank return flow is too Open the recycling valve. low. Clean the tank return tube. tank return tube Make sure there are no clogged. foreign bodies. The manometer pressure DPAE regulation (output increases.
Page 171 Mounted field sprayers OMNIS Problem Cause Remedy Flow regulation Too low groundspeed with regards Adapt groundspeed Lack in pressure. to the programmed application rate. programmed application rate. Too fast ground speed with regards Adapt groundspeed Too much pressure. to the programmed application rate. programmed application rate.
Page 172 Unstable boom. Immediately replace worn or The nylon wear parts are worn damaged parts with genuine and/or rough. KUHN parts. Solenoid valve block The boom is fully raised Invert the hydraulic valve Incorrect oil input. as soon as the tractor direction of action.
Page 173: Description Of Fuses
Mounted field sprayers OMNIS 1. Description of fuses Prior to any maintenance or repair on the junction box, disconnect the machine and tractor power supply. Never replace damaged fuse by a fuse of higher value. Keep fuses safe from rain and humidity. The fuses are in the junction box, at the rear of the machine (1).
Page 174 Mounted field sprayers OMNIS Housing: Powered valves Outputs: Gy H: Relay control. Gy M: +12 V Flashing light. 1H: Filling stop valve - 1M: Filling stop valve + 2H: Main stop valve - 2M: Main stop valve + 3H: Flow regulation valve - 3M: Flow regulation valve + 4H: Section valve 1 - 4M: Section valve 1 +...
Page 175 Mounted field sprayers OMNIS Sensors: 1M: Signal frequency: Wheel. 2M: Signal frequency: Flowmeter. 3M: Reserved. 4M: Signal frequency: Filling flowmeter. 5M: Analog signal: Pressure sensor. 6M: Analog signal: Electronic gauge. 7M: Reserved. 8M: Reserved. From 1H to 8H: +12 V. From 1B to 8B: Ground.
Page 176 Mounted field sprayers OMNIS Housing: Solenoid valve block Outputs: Gy H: Relay control. Gy M: +12 V Flashing light. 1H: Reserved. 1M: Reserved. 2H: Reserved. 2M: Reserved. 3H: On / Off. 3M: Automatic / Manual. 4H: Left outer arm opening. 4M: Left outer arm closing.
Page 177 Mounted field sprayers OMNIS Sensors: 1M: Signal frequency: Wheel. 2M: Analog signal: Gauge. 3M: Analog signal: Follower axle / Articulated hydraulic drawbar (Front). 4M: Analog signal: Follower axle / Articulated hydraulic drawbar (Rear). 5M: Reserved. 6M: Analog signal: Height. 7M: Reserved. 8M: Reserved.
Page 178: Appendix
Mounted field sprayers OMNIS $Appendix 1. Calculating the load on an axle When coupling a tool to the front and rear 3-point lift linkage, the maximum authorized payload must not be exceeded. The load on the tractor front axle must always represent 20 % of the tractor unladen weight. Prior to use, check that these conditions are satisfied by making this calculation or by weighing the tractor-machine unit Define the total weight, axle loads, tyre...
Page 179 Mounted field sprayers OMNIS Rear tool or front-rear combination: 1) Calculation of the minimum front ballast weight M1 minimum M2 x (c+d) - T1 x b + 0.2 x T x b minimum Write the minimal additional weight in the chart. Front tool: 2) Calculation of the minimum rear ballast weight M2 minimum...
Page 180 Mounted field sprayers OMNIS Table: Actual value obtained Value authorized Double value of the by calculation according to authorized capacity operator's manual per tyre (2 tyres) Minimum front/rear ballasting kg ≤ Total weight kg ≤ kg ≤ Load on front axle kg ≤...
Page 181 Mounted field sprayers OMNIS - T1: Load on front axle. • Tractor only. - T2: Load on rear axle. • Tractor only. - T: Axle loads. • Tractor only. Appendix...
Page 182 Mounted field sprayers OMNIS Rear tool or front-rear combination: If the total unit weight exceeds the tractor Gross Combined Weight Rating in accordance with the countrie's legislation, empty the hopper to travel on public roads. In any case, we recommend to travel on public roads with empty hoppers and tanks. - Measure dimension (b).
