IriSys IRI2010 User Manual

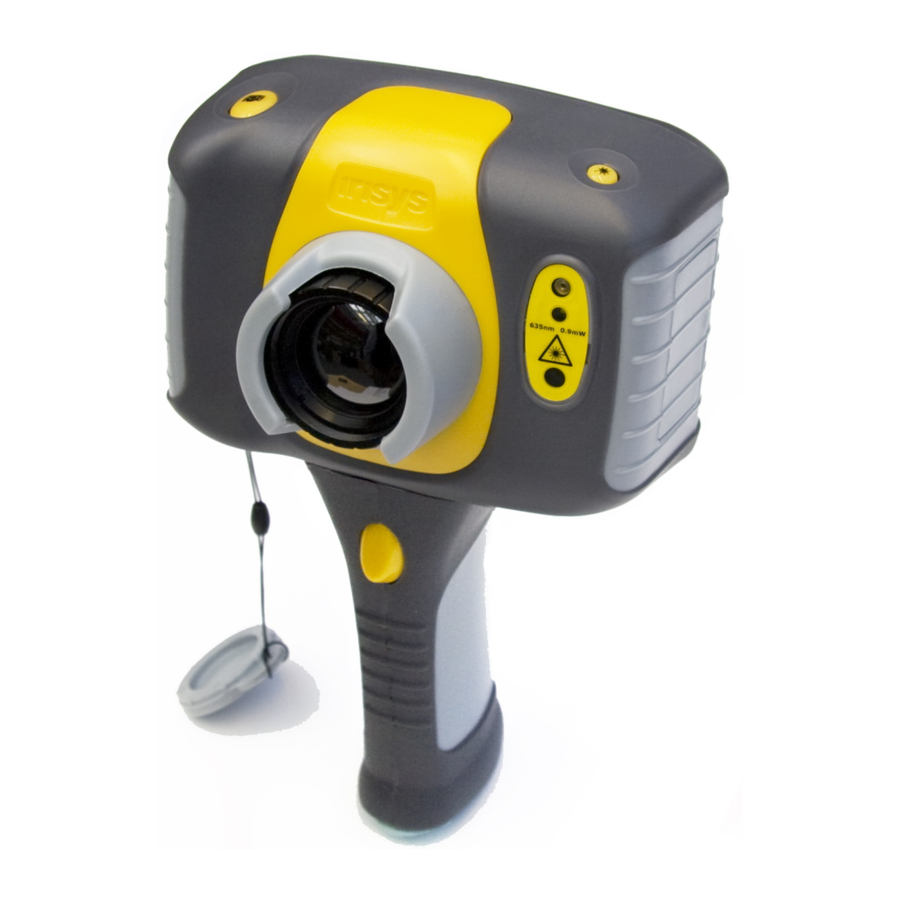

Thermal imaging camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

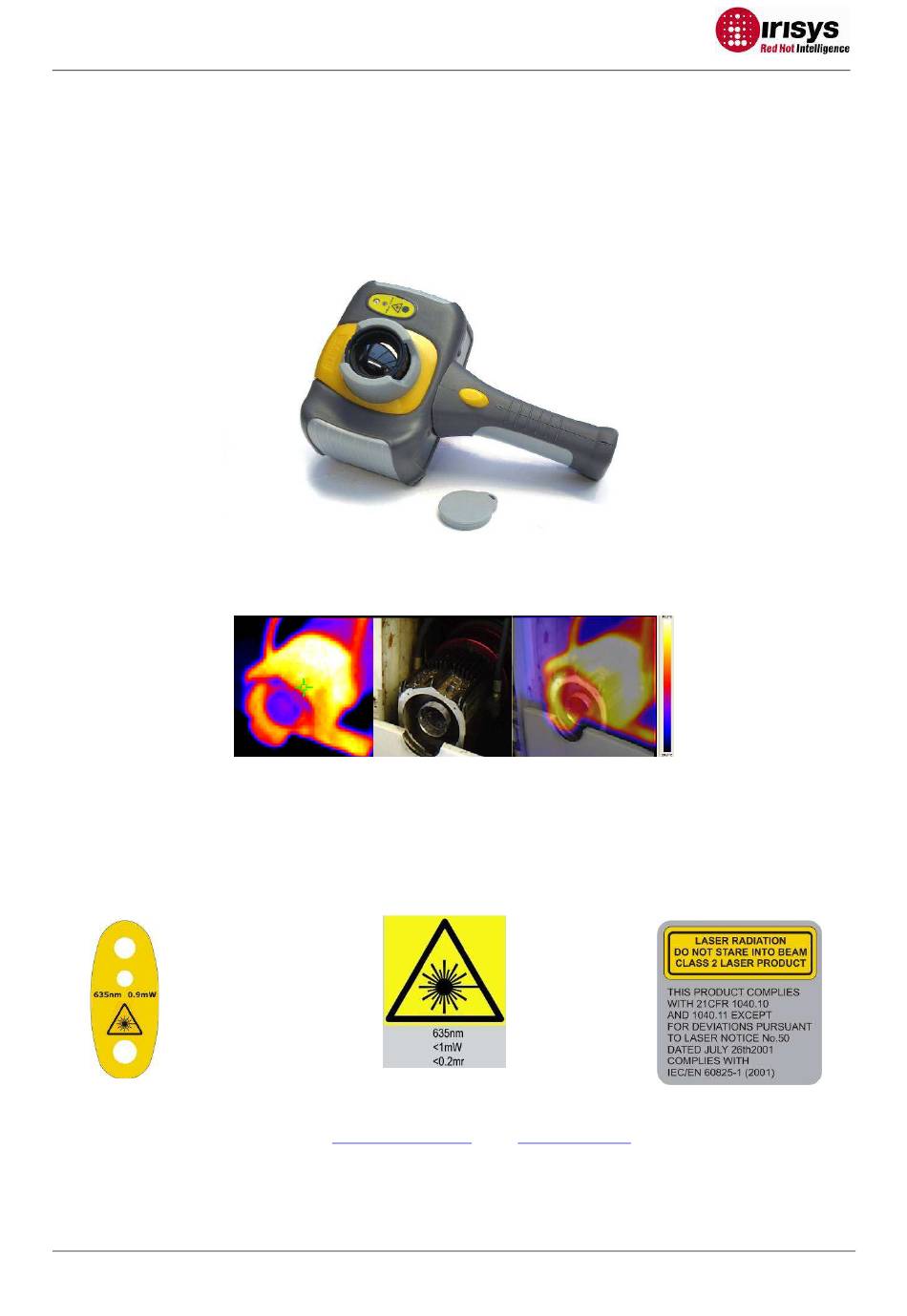

IRI2010 Thermal Imaging Camera
User Manual
Safety Warning:
The equipment described in this document uses a Class 2 laser.
Under no account should
anyone look directly into the laser beam or the laser beam exit aperture, irreversible damage
to the eye may occur. The laser should not be operated when there are personnel in the
imager's field of view.
Caution – use of controls or adjustments or performance of procedures other than those
specified in this document may result in hazardous laser radiation exposure.
InfraRed Integrated Systems Ltd
Park Circle, Tithe Barn Way, Swan Valley, Northampton, NN4 9BG, UK
Tel: +44 (0) 1604 594200
Fax: +44 (0) 1604 594210
Email:
support@irisys.co.uk
www.irisys.co.uk
© 2009 InfraRed Integrated Systems Limited (Irisys). No part of this publication may be reproduced without prior permission in writing from
Irisys. Whilst Irisys will endeavor to ensure that any data contained in this product information is correct, Irisys do not warrant its accuracy or
accept liability for any reliance on it. Irisys reserve the right to change the specification of the products and descriptions in this publication without
notice. Prior to ordering products please check with Irisys for current specification details. All brands and product names are acknowledged and
may be trademarks or registered trademarks of their respective holders.
IPU 40211 issue 1
Page 1 of 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRI2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IriSys IRI2010

  • Page 1 © 2009 InfraRed Integrated Systems Limited (Irisys). No part of this publication may be reproduced without prior permission in writing from Irisys. Whilst Irisys will endeavor to ensure that any data contained in this product information is correct, Irisys do not warrant its accuracy or accept liability for any reliance on it.

  • Page 2: Table Of Contents

    Contents Page 1. Contents of the case..................... 3 2. Main features and controls..................4 3. Getting started....................5 4. Thermal and visible image blending ................ 7 5. Menu structure....................9 5.1. Infrared settings ..................10 5.2. Measurement options ................

  • Page 3: Contents Of The Case

    1. Contents of the case. The case. Camera. PSU and International adaptors. CD – User manual and software. USB cable (camera to PC). Handle. Quick start guide. IPU 40211 issue 1 Page 3 of 21...

  • Page 4: Main Features And Controls

    2. Main features and controls. Laser button Save button Microphone Speaker On/Off button Toggle button 4 Navigation buttons Hotkey 1 Hotkey 4 Hotkey 2 Hotkey 3 Laser Light Visible camera Infrared lens Laser button Save button IPU 40211 issue 1 Page 4 of 21...

  • Page 5: Getting Started

    3. Getting started. a) Switching the camera on/off Press the on/off button to switch the camera on. Press and hold for a few seconds to switch the camera off. b) Charging the internal battery The camera’s built in battery is charged via Note: When the camera the charging port.
  • Page 6 Hotkey buttons Hotkey1 Hotkey2 Hotkey3 Hotkey4 The Hotkey functions are indicated by the icons or text displayed on the screen above them. These functions vary according to the operating options chosen by the user. A yellow box around the icon for Hotkey1 or Hotkey2 indicates that this option is selected and this defines the operation of the navigation and toggle buttons.

  • Page 7: Thermal And Visible Image Blending

    f) Temperature measurement Temperature readings are displayed at the top of the display. In the default mode, a single temperature in °C is of the centre point of the cursor. The other readings at the top of the display are emissivity settings and reflected temperature setting. Two cursors or a measurement area can be selected from the measurement options menu (see section 5).
  • Page 8 Image alignment As the visible and thermal camera are not co-axial the visible and thermal image often need to be aligned. This is usually required when moving to view objects at different distances. 1. Press Hotkey 2 to toggle through to the Visible On/Off icon .

  • Page 9: Menu Structure

    5. Menu structure. a) Select the menu by pressing Hotkey 4 b) Navigate through the menu using the navigation buttons and press Hotkey 3 to select the required option. The highlighted item will have a yellow box around it. c) Use the up/down buttons to move in the selected list and select the required item.

  • Page 10: Infrared Settings

    5.1. Infrared settings See frequently asked questions for more details of each item. ♦ Emissivity Set emissivity value between 0.10 and 1.00 for measuring temperature. Pressing Hotkey 3 (ε Table) gives a table of emissivity values of common materials from which a selection can be made. ♦...

  • Page 11: Measurement Options

    5.2. Measurement options This menu enables the selection of options for temperature measurements. The symbols shown below indicate the icons shown for Hotkey 1 when the various options are selected. See frequently asked questions for more details of each item. ♦...

  • Page 12: Camera Settings

    5.3. Camera settings See frequently asked questions for more details. ♦ LCD brightness Select from 1 (low) to 9 (high) to control the screen brightness to save battery power. ♦ Caption mode Select “On” to enable the addition of a text caption when saving an image. Options will then be displayed when saving an image, to be selected by means of Hotkey 2 and hotkey 3.

  • Page 13: Audio Settings

    5.4. Audio settings See frequently asked questions for more details of each item. ♦ Imager sounds Select “Off” to mute all audible outputs. ♦ Voice annotation Select “Session” to add a voice message at the start of a set of images (A session ends when the imager is switched off).

  • Page 14: Image Browser

    5.5. Image browser The saved images are shown on the screen with the most recently saved image first. Select the desired image by means of the navigation keys. To display the selected image press Hotkey 3. To delete the selected image press Hotkey 2, to confirm deletion press Hotkey 3. When a stored image is displayed, press Hotkey 3 to return to live imaging.

  • Page 15: Language Selection

    5.7. Language selection When the language is highlighted (shown by a yellow box around it) press Hotkey 3 to select. French German Italian Spanish Portuguese Chinese Korean Japanese IPU 40211 issue 1 Page 15 of 21...

  • Page 16: Adding Captions When Saving Images

    6. Adding captions when saving images 6.1. Voice message When saving an image with Individual Voice Annotation turned on, there is the option of saving a voice message with each image. The screen shots below describe the procedure: a) Do you wish to attach a voice message to b) Start voice recording? Hotkey 3 for yes.

  • Page 17: Text Captions

    6.2. Text captions When saving an image with Caption Mode turned on, there is the option of attaching a text caption to each image. The screen shots below describe the procedure: a) Do you wish to attach a text caption message to this image? Hotkey 2 for No Hotkey 3 for Yes 1.

  • Page 18: Appendix

    Appendix A1. Emissivity tables Emissivity look up tables in Camera 1.00 0.98 = Human skin 0.95 0.94 = Paint, oil 0.93 = Brick red 0.92 = Concrete 0.90 = Planed Oak Wood 0.85 0.80 0.79 = Oxidized steel 0.78 = Oxidized Copper 0.76 = Sand 0.75 0.70 = Red Rust...

  • Page 19: A2. Full Icon List

    A2. Full icon list. Hotkey one Cursor one. Isotherm low. Cursor two. Profile horizontal. Alignment. Profile vertical. Tracking. Alarm high. Area. Alarm low. Isotherm high. Playback. Hotkey two Camera off. Light off. Camera on. Light on. Auto temperature range. Manual temperature range. Yes.

  • Page 20: A3. Technical Specification

    A3. Technical specification Performance Temperature range: -10°C to +350°C Field of view (FOV): 20°x 20° Spectral Response: 8µm to 12 µm ≤0.3°C @ 30°C Sensitivity: Detector: 47 x 47 pixel array Frame rate: Focus Range: 0.5m to infinity Image storage Number: Up to 1000 images on SD card supplied Medium:...
  • Page 21 (Analysis and report writer) Computer requirements (for PC software) PC: IBM compatible PC with a minimum of: 300MHz processor, MS Windows XP 128MB RAM (see Irisys website for current list of operating systems supported). 16 bit colour graphics with 1024x768 capability Environment Temp.
