Summary of Contents for Q-SYS NV-32-H

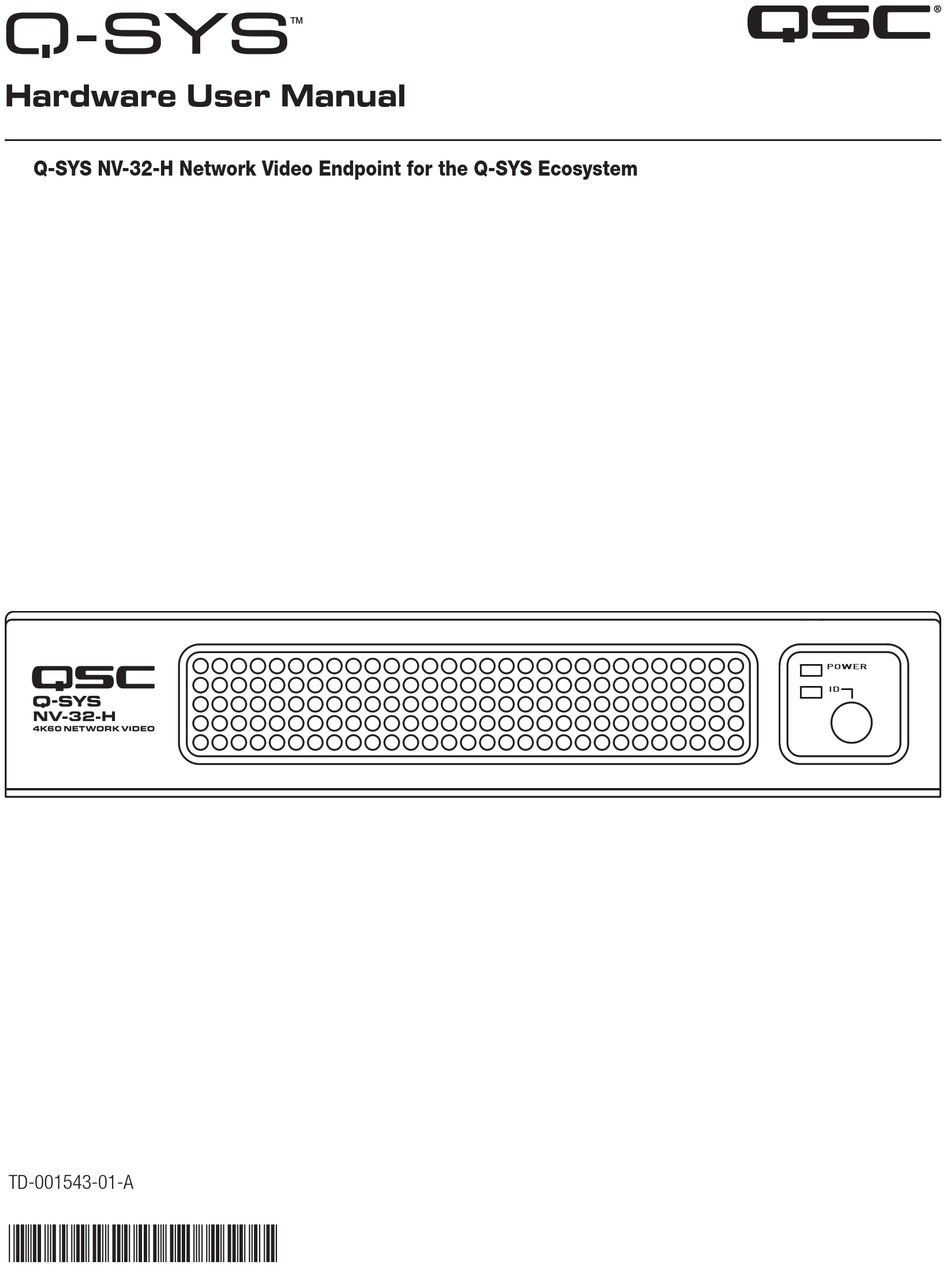

- Page 1 ™ Hardware User Manual Q-SYS NV-32-H Network Video Endpoint for the Q-SYS Ecosystem POWER TD-001543-01-A *TD-001543-01*...
-
Page 2: Important Safety Instructions
The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating and maintenance instructions in this manual. IMPORTANT SAFETY INSTRUCTIONS Refer to Safety Information and Regulatory Statements Q-SYS NV-32-H 4K60 Network Video for important information. Warranty For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com... -
Page 3: Installation
I power supply. The Q-SYS NV-32-H has a flexible power solution that allows the integrator to choose to use either a 48VDC power supply or a 802.3bt PoE++ injector. Please note that 802.3bt is a high-power over Ethernet standard that allows for up to 71W of power delivered to end-point devices over standard Ethernet cabling. - Page 4 One Q-SYS NV-32-H 19-inch Rack (Left or Right Mount) (x1) Top Side Top Side (x1) Front Panel Front Panel (x1) (x5) (x1) B. One Q-SYS NV-32-H 19-inch Rack (Center Mount) (x1) Top Side vv(x2) Front Panel (x4) (x2) TD-001543-01-A...
- Page 5 Two Q-SYS NV-32-H's 19-inch Rack (x2) Bottom Side (x2) Unit 2 Front Panel (x2) Bottom Side Unit 1 (x6) Front Panel (x1) (x6) One Q-SYS NV-32-H Half Rack (x1) (x2) Top Side (x6) Front Panel TD-001543-01-A...
-
Page 6: Rack Mounting Options
Rack Mounting Options All Configurations Using the examples shown in mounting options A through E, you can mount any of the Q-SYS NV-32-H configurations. The example at the lower right can be flipped to accommodate a single Q-SYS NV-32-H on the left side. -
Page 7: Front Panel
Features Front Panel — Figure 1 — Power LED – illuminates blue when the Q-SYS NV-32-H is ID Button – Locates the Q-SYS NV-32-H in Q-SYS Designer powered on GUI and Configurator ID LED – LED blinks when placed into ID Mode via ID Button or... - Page 8 Dimensions 220.0 mm 8.66 in 286.6 mm 11.28 in 220.0 mm 8.66 in POWER 43.6 mm 1.72 in TD-001543-01-A...
-
Page 9: Specifications
No functionality at initial release RS-232 Three-pin Euro connector for extension of Q-SYS Control to third-party devices, user configurable USB Type A USB type A host connectors (blue connector is for USB 3.0 connection). 1.0 A total is available for all four Type-A USBs. -
Page 10: Mailing Address
FAX: +1.714.754.6173 © 2017 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. Q-SYS, Q-LAN and, Q-SYS Designer are trademarks of QSC, LLC. Patents may apply or be pending.
