Summary of Contents for Surewerx JET MINI-MITE II Series

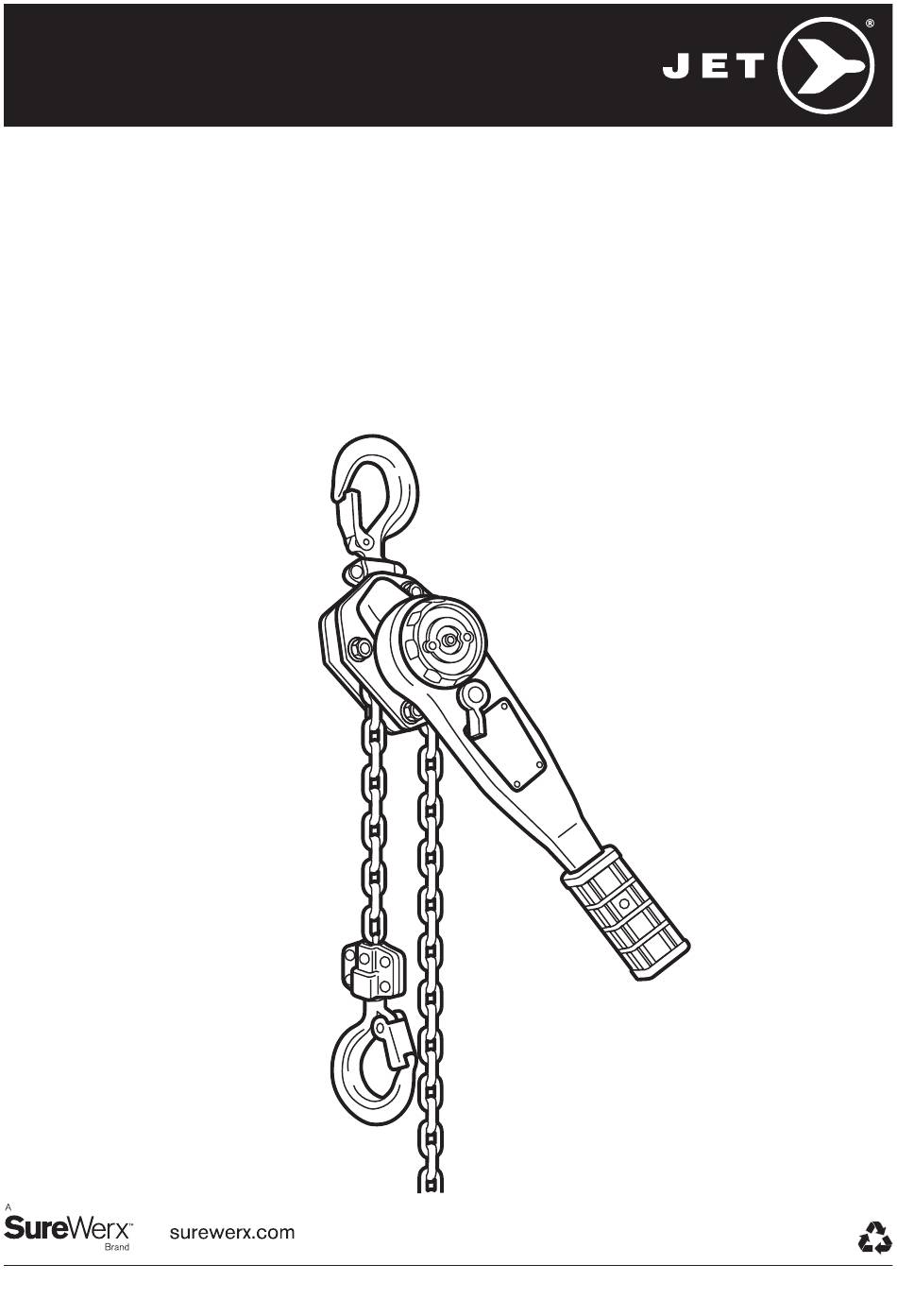

- Page 1 OPERATOR’S MANUAL MINI-MITE II SERIES LEVER CHAIN HOISTS 1/4 TON THROUGH 6 TON M19-MH110903-04-110506-16_ENG-FRE_REV1...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warranty policy ..............1 Information for your safety ..........1 Prior to installation ............2 Safety precautions ............2 Operation ...............3 Inspection and maintenance ........4 Hooks ................5 Chain ................5 Disassembling and assembling ........6 ONE YEAR LIMITED WARRANTY Lever Chain Hoists are guaranteed to be free of defects in material and workmanship. If one of these products fails ®... -
Page 4: Prior To Installation
PRIOR TO INSTALLATION Check for damage during shipment. Place claim with carrier if any damage is discovered. DO NOT install or use a damaged lever hoist. Check and verify that structure or other equipment that will support the lever hoist has a rated load capacity equal to or greater than the rated load capacity of the lever hoist to be used. -
Page 5: Operation
OPERATION TO RAISE LOAD: Set change lever on handle to “UP” position. Operate handle to move load. TO LOWER LOAD: Set change lever on handle to “DOWN” position. Operate handle to move load. TO ADJUST CHAIN LENGTH: TO SHORTEN: Set change lever to “NEUTRAL ” and turn feed hand wheel clockwise or pull free end of chain. TO LENGTHEN: Set change lever to ”NEUTRAL ”... -
Page 6: Inspection And Maintenance
INSPECTION AND MAINTENANCE Prior to initial use, all new, modified, and repaired hoists shall be inspected in accordance with Table 2. Thereafter, inspections shall be conducted at intervals shown in Table 1; and items to be inspected are indicated in Table 2 by F (Frequent) or P (Periodic). -
Page 7: Hooks
HOOKS WARNING Any hook that requires replacement because of excessive bends, twists, or throat opening indicates abuse or overloading of the hoist. Therefore, other load-supporting components of the lever hoist should be inspected for possible damage when such conditions are found. Never repair hooks by welding or reshaping. -
Page 8: Chain
CHAIN Inspect chain at least once a month. Between regular inspections, check visually daily for nicks, gouges, weld splatter, corrosion, or distorted links. Inspect chain thoroughly if it does not feed smoothly over load sheaves. Inspect as follows: Clean chain with solvent before inspection. Test hoist with load and observe operation of chain over load sheaves. - Page 9 MINI MITE II LEVER CHAIN HOIST PRODUCT 110903, 110904 PART PART PART PART REF. NUMBER NUMBER DESCRIPTION REQ. REF. NUMBER NUMBER DESCRIPTION REQ. 1 PEL-MM50-1 PEL-MM25-1 TOP HOOK 26 PEL-MM50-26 PEL-MM25-26 CHAIN GUIDE ASSY. 2 PEL-MM50-2 PEL-MM25-2 SAFTEY LATCH 27 PEL-MM50-27 PEL-MM25-27 CHAIN STRIPPER 6 PEL-MM50-6 PEL-MM25-6...
- Page 10 MINI MITE II LEVER CHAIN HOIST PRODUCT 110506, 110507, 110509, 110510...
- Page 11 MINI MITE II LEVER CHAIN HOIST PRODUCT 110506, 110507, 110509, 110510 PART PART REF. NUMBER DESCRIPTION REQ. REF. NUMBER DESCRIPTION REQ. 1 PEL-MM80-1 MM80 - TOP HOOK ASS’ Y. 1 PEL-MM160-1 MM160 - TOP HOOK ASS’ Y. 2 PEL-MM80-2 MM80 - SAFETY LATCH ASS’Y. 2 PEL-MM160-2 MM160 - SAFETY LATCH ASS’Y.
- Page 12 MINI MITE II LEVER CHAIN HOIST PRODUCT 110512, 110513, 110515, 110516...
- Page 13 MINI MITE II LEVER CHAIN HOIST PRODUCT 110512, 110513, 110515, 110516 PART PART REF. NUMBER DESCRIPTION REQ. REF. NUMBER DESCRIPTION REQ. 1 PEL-MM320-1 MM320 - TOP HOOK ASS’ Y. 1 PEL-MM630-1 MM630 - TOP HOOK ASS’ Y. 2 PEL-MM320-2 MM320 - SAFETY LATCH ASS’Y. 2 PEL-MM630-2 MM630 - SAFETY LATCH ASS’Y.
