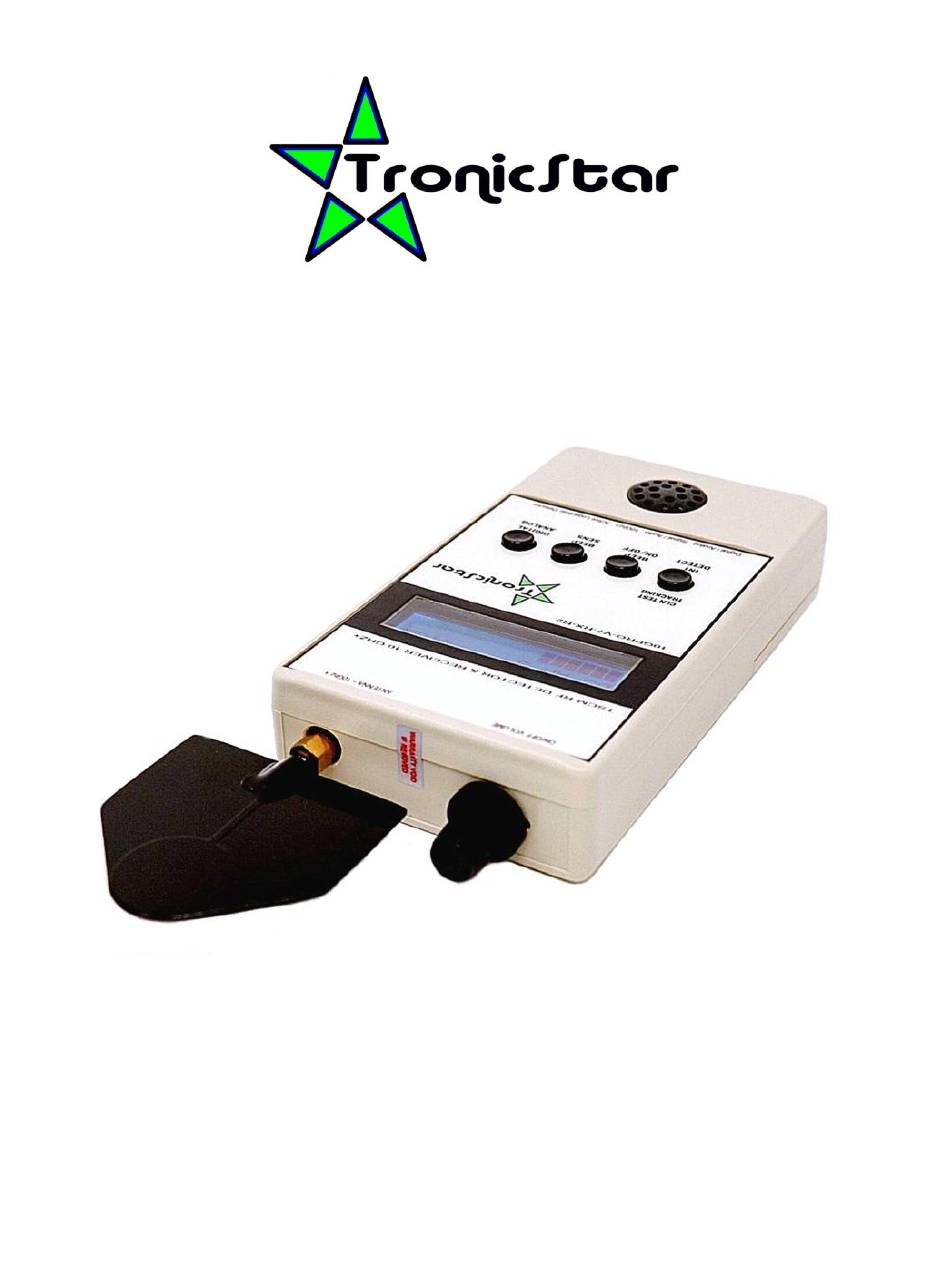

  • Page 1 User Manual 10GPRO-V7-RX-R2 TSCM RF Detector & Receiver Rev. 26319...
  • Page 2 TronicStar 10GPRO-V7-RX-R2...
  • Page 3 Real-time detection unlike other detectors that have frequency and detection speed limits, the TronicStar 10GPRO-V7-RX-R2 detects in real time all digital or analog radio frequency spy devices. Detects pulses of 0.8 ns (1200 Mhz) between...
  • Page 4 TronicStar 10GPRO-V7-RX-R2...

  • Page 5: On/Off Volume

    TronicStar 10GPRO-V7-RX-R2 DESCRIPTION ON/OFF VOLUME on-off knob and demodulated audio volume. Always keep it off when replacing battery, avoiding irreparable damage to the detector by reversing polarity. Use only alkaline batteries, as ordinary batteries do not provide sufficient current. BATTERY LEVEL indicating 8 or 9 for new batteries and 1 for uncharged batteries.

  • Page 6: Antenna Connector

    TronicStar 10GPRO-V7-RX-R2 SPEAKER you can listen to the demodulated audio. AM and FM conversations are possible to understand, digital communications are listened like pulsating sounds or buzzing. It is important to memorize the sounds of various digital devices during the tests to be identified in future scans.
  • Page 7 TronicStar 10GPRO-V7-RX-R2 ANTENNAS The signal capture system consists of 3 antennas designed for different types of spy transmitters and frequencies: Low frequency HF and VHF antenna with superior performance lower frequencies, blocks high frequency signals UHF, SHF. It is the antenna used for basic eavesdropping scans that operate over the commercial FM range and VHF.
  • Page 8 TronicStar 10GPRO-V7-RX-R2 Medium frequency UHF and SHF antenna better performance in frequencies from 800 to 2400 Mhz, indicated to detect all the spy devices between UHF and SHF- this antenna has no filter and can be used in general way or as the initial sweep antenna.
  • Page 9 TronicStar 10GPRO-V7-RX-R2 Check the link on the website product page for the sample audio file sounds emitted by different devices. The audio receiver is turned on while the detector is on. The only setting is the audio volume controlled by the same knob used to turn the detector on and off.
  • Page 10 TronicStar 10GPRO-V7-RX-R2 In analog mode the LCD display preferably shows the signals from devices such as analog eavesdropping and analog wireless video cameras. In digital mode, display shows the signals of digital devices like GSM bugs, trackers, cell phones, routers, WIFI cameras etc.
  • Page 11 TronicStar 10GPRO-V7-RX-R2 If a safe room is constructed correctly, there will be no RF signal inside the room. If it is in a more remote or underground location, the signal level will be small or null depending on the existence of nearby transmitting equipment such as routers, Wi-Fi, AM FM radio stations, cell phone tower etc.
  • Page 12 TronicStar 10GPRO-V7-RX-R2 Take the vehicle to place where there is no radio interference, location from city, underground garage, or any place where the signals are very weak. With the detector in the CLN TEST mode, you must wait for some strong signal coming from the car, if it occurs,...
  • Page 13 TronicStar 10GPRO-V7-RX-R2 SCANNING THE PLACE Scanning the environment may be more dificult in places where existis signals from others RF transmitters coming from outside, we treat these signals as "interferences" because they can cover and camouflage the signals from the spy devices we are looking for.
  • Page 14 TronicStar 10GPRO-V7-RX-R2 IN THE MEETINGS All mobile phones communicate with carrier towers even when they are not on a call. This communication occurs through sporadic data exchanges necessary to locate the device and maintain contact to send messages or make calls. This can also happen via data or wi-fi, so there is always data exchange that makes the cell transmit.
  • Page 15 TronicStar 10GPRO-V7-RX-R2 CONVENTIONAL TELEPHONE LINE Wireless spy devices connected inside the handset are easily detected. Make a call with the detector next to the telephone set, the spy will be active during the call and the transmission will be detected.

  • Page 16: Beep Mode

    TronicStar 10GPRO-V7-RX-R2 In certain cases, with the detector speaker near to the spy microphone, we can hear the audio feedback like an audio tone, this confirm that the detector is near to the spy microphone. BEEP MODE The detector is equipped with a beep type sound device emits whistles when the detected signal reaches a pre- programmed level by the user.
  • Page 17 TronicStar 10GPRO-V7-RX-R2 DETECTOR FREQUENCY AND SENSITIVITY In a safe room, even if the spy device signal is weak, less than -50dBm, still will be detected. DBM LEVEL MEASUREMENT To measure dBm level, select the analog mode "An" and the display will indicate the dBm level. When the...
  • Page 18 TronicStar 10GPRO-V7-RX-R2 00 barras = -70dBm 01 barras = -65dBm ▓ 02 barras = -60dBm ▓ ▓ 03 barras = -55dBm ▓ ▓ ▓ 04 barras = -50dBm ▓ ▓ ▓ ▓ 05 barras = -45dBm ▓ ▓ ▓ ▓ ▓...

  • Page 19: Optional Accessories

    TronicStar 10GPRO-V7-RX-R2 OPTIONAL ACCESSORIES Directional Log Periodic Antenna covers from UHF to frequencies up to 8Ghz. With this antenna we obtain the direction of the signal. When positioned in the direction of the emitter, the level of the signal increase. Use near or far from the spy device.
  • Page 20 TronicStar 10GPRO-V7-RX-R2 EXTENDED ANTENNA covering VHF frequencies up to 8Ghz, facilitate the detection of wireless spy devices hidden in hard to reach places. High-capacity rechargeable battery recommended for continuous use of the detector, autonomy of more than 8 hours, comes with charger.

  • Page 21: Specifications

    TronicStar 10GPRO-V7-RX-R2 SPECIFICATIONS • Active logarithmic system: ultra-fast digital detector for 3G, 4G, 4.5G... • Response time to capture digital pulses: 8/10ns. • Sensitivity: 0.0000001 mW (-70 dBm). • Frequency coverage from 1 MHz to more than 10GHz. • No coverage intervals, real time full frequencies.
  • Page 22 TronicStar does not accept tampered equipments for maintenance, either inside or outside warranty. Properly use your TronicStar detector, in case of doubt please contact our support e-mail: contact@tronicstar.com...
