EcoPro G2
SGD700U & EP700L2MD McDonalds Models
AR2-28 B1Q4E-1FS Controller & LCD5S Display
English
ISO 9001
ISO 14001
Call: +44 (0)843 216 8800
Fax: +44 (0)843 216 4700
www.fosterrefrigerator.co.uk
By Appointment to
Her Majesty Queen Elizabeth II
Suppliers of Commercial Refrigeration
Foster Refrigerator, King's Lynn
Foster Refrigerator
Oldmedow Road
King's Lynn
Norfolk, PE30 4JU
United Kingdom
A division of ITW Ltd
Email:support@foster-uk.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the EcoPro G2 SGD700U and is the answer not in the manual?

Questions and answers

Related Manuals for Foster Refrigerator EcoPro G2 SGD700U

Summary of Contents for Foster Refrigerator EcoPro G2 SGD700U

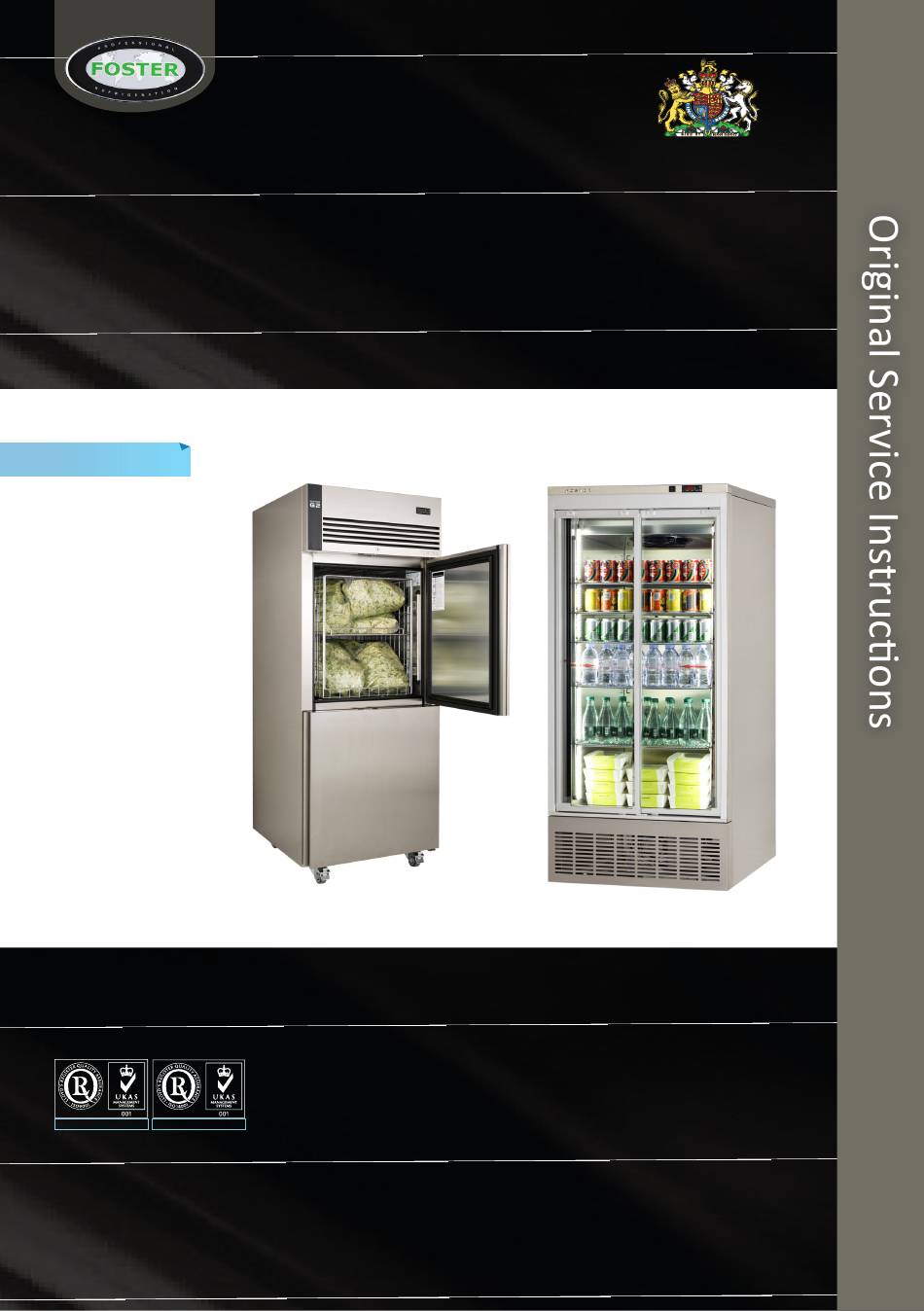

  • Page 1 By Appointment to Her Majesty Queen Elizabeth II Suppliers of Commercial Refrigeration Foster Refrigerator, King’s Lynn EcoPro G2 SGD700U & EP700L2MD McDonalds Models AR2-28 B1Q4E-1FS Controller & LCD5S Display English Foster Refrigerator Oldmedow Road King’s Lynn Norfolk, PE30 4JU United Kingdom...
  • Page 2 English Contents For the SGD700U & EP700L2MD Manual information & Health & safety Notes Environmental Management Policy Disposal Requirements & Electrical Safety Cabinet Descriptions Display Icons, Buttons & Information Start up, Standby, User Adjustments, Set Point, Key Security for Both models Real Time Clock Setting &...

  • Page 3: Environmental Management Policy

    1. Ensure that wherever possible waste is removed from the client’s site, where arrangements are in place all waste should be returned to Foster Refrigerator’s premises. In certain circumstances waste may be disposed of on the client’s site; if permission is given, if the client has arrangements in place for the type of waste.

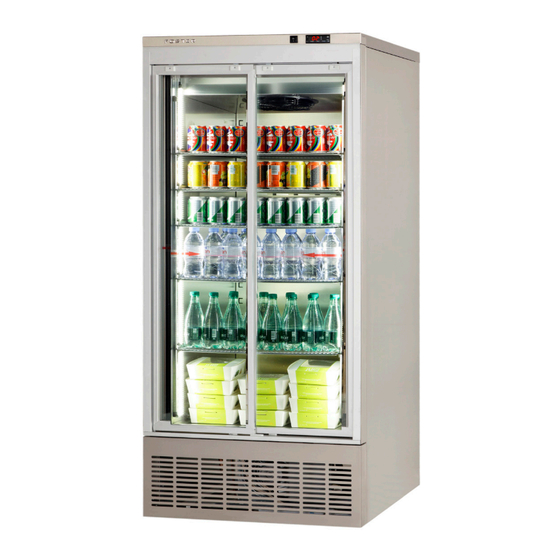

  • Page 4 English SGD700U Sliding Glass Door Undermount Cabinet The SGD700U has been specially designed for quick service restaurants. The sliding glass door not only allows ease of access to product, but also provides a display case that keeps food fresh. This range runs on environmentally friendy R134 & R290 hydrocarbon refrigerant and conforms to the latest sustainable development requirements.

  • Page 5: Start-Up And Operation

    English Start-Up and Operation Initial Set Up After unpacking clean and allow the cabinet to stand for 2 hours before turning on. Ensure the cabinet is situated where neither hot nor cold air sources will affect its performance. Make sure that a minimum clearance of 310mm above and 50mm around the cabinet is available for ventilation and effective operation.

  • Page 6: Real Time Clock Set Up

    English Real Time Clock Set Up The controller requires a time reference for correct operation; provided by an internal ‘real-time’ clock. When the mains power is removed a battery maintains the clock settings for up to 150 hours/ 6 days (this is not a replaceable battery and re-charges while mains power is supplied).
  • Page 7 English Defrost Automatic Defrost This defrost starts automatically at fixed time intervals or when programmed intervals have been set (a max of 6 per 24 hours). • Timed Defrost – With DFM = TIM defrosts take place at regular intervals when the timer reaches the value DFT. E.g with DFM = TIM and DFT = 06, a defrost will take place every 6 hours.
  • Page 8 English AR2-28 Controller Connection Drawing AR2-28 Technical Data Power Supply Measurement Range 230Vac±10%, 50/60Hz, Operating 3w -50 / -9.9 … 19-9/ 80°C (NTC 10K only) Relay Output Max Load (230Vac) Measurement Accuracy AR2-28B1Q4E-1FS <0.5°C within the measurement range Operating Conditions Compressor –...
  • Page 9 English SGD700U Parameter List Configuration of Parameters for the SGD700U Parameters should not be changed unless you have an understanding of their purpose and the following instructions are fully understood. • To gain access to the parameters access the configuration menu by pressing together for 5 seconds.
  • Page 10 English SGD700U Parameter List Para Min: Mid: Max: Description default Setting 0 min 120 min Maximum evaporator fan stop period following defrost. Evaporator fan mode during thermostatic control. Te-Ta difference for fans to turn off after compressor -120o stopped. (Only if T2 = YES and FCM = TMP). Temperature differential for evaporator fan restart.
  • Page 11 SGD700U Parameter List English Para Min: Mid: Max: Decritption default Setting Light control mode Auxiliary relay 1 operation Auxiliary relay 2 operation 0 sec 120 sec Auxiliary compressor start delay Temperature sensor(s) type. -12.5oC 12.5oC Air temperature probe (T1) offset. T2 probe operation.
  • Page 12 English Wiring Diagram – SGD700U...
  • Page 13 English Air and Evaporator Probe Details / Diagram...
  • Page 14 English EP700L2MD Parameter List Configuration of Parameters for the EP700L2MD Parameters should not be changed unless you have an understanding of their purpose and the following instructions are fully understood. • To gain access to the parameters access the configuration menu by pressing together for 5 seconds.
  • Page 15 EP700L2MD Parameter List English Parameter Min: Mid: Max: Description Default Setting Maximum evaporator fan stop period following de- 0 min 120 min frost. Evaporator fan mode during thermostatic control. Te-Ta difference for fans to turn off after compressor -120⁰ 0⁰ stopped.
  • Page 16 English EP700L2MD Parameter List Parameter Min: Mid: Max: Description Default Setting Light control mode Auxiliary relay 1 operation 0 - 1 0 - 1 Auxiliary relay 2 operation 0 sec 120 sec Auxiliary compressor start delay Temperature sensor(s) type. -12.5⁰C 12.5⁰C Air temperature probe (T1) offset.
  • Page 17 English Wiring Diagram – EP700L2MD...
  • Page 18 English Air and Evaporator Probe Details / Diagram...

  • Page 19: Troubleshooting

    English Troubleshooting Problem Possible Cause Solution Audible & Visual alarms / warning Cancel audible alarm and > > Low temperature alarm. investigate cause. Cancel audible alarm and > > High temperature alarm. investigate cause. > > T1 Air probe failure. Check and replace the air probe.
  • Page 20 English Problem Possible Cause Solution Compressor will not start (continued) Fuse blown or circuit breaker > > Replace fuse or reset circuit breaker. tripped. > > Power cord unplugged. Plug in power cord. Set controller to lower > > Controller set too high. temperature.
  • Page 21 English Problem Possible Cause Solution The Temperature is not hot enough (continued) Advise user to decrease if > > Too many door(s) opened. possible Excessive heat load placed in Advise user not to put in products > > cabinet. that are too hot. Check to see if condensation or The refrigerator has been ice crystals have formed on the...
  • Page 22 English Problem Possible Cause Solution Extreme condensation inside the refrigerator Set the controller to a warmer Controller is set at a very cold > > position & check to see if the position. compressor stops as it should. The outside environment’s This type of occurrence is caused by >...
  • Page 23 English Notes...
  • Page 24 UK Head Office Foster Refrigerator Oldmedow Road Kings Lynn Norfolk PE30 4JU a Division of ITW (UK) Ltd Tel: +44 (0)843 216 8833 Fax: +44 (0)843 216 4707 Email: support@foster-uk.com Website: www.fosterrefrigerator.co.uk...
