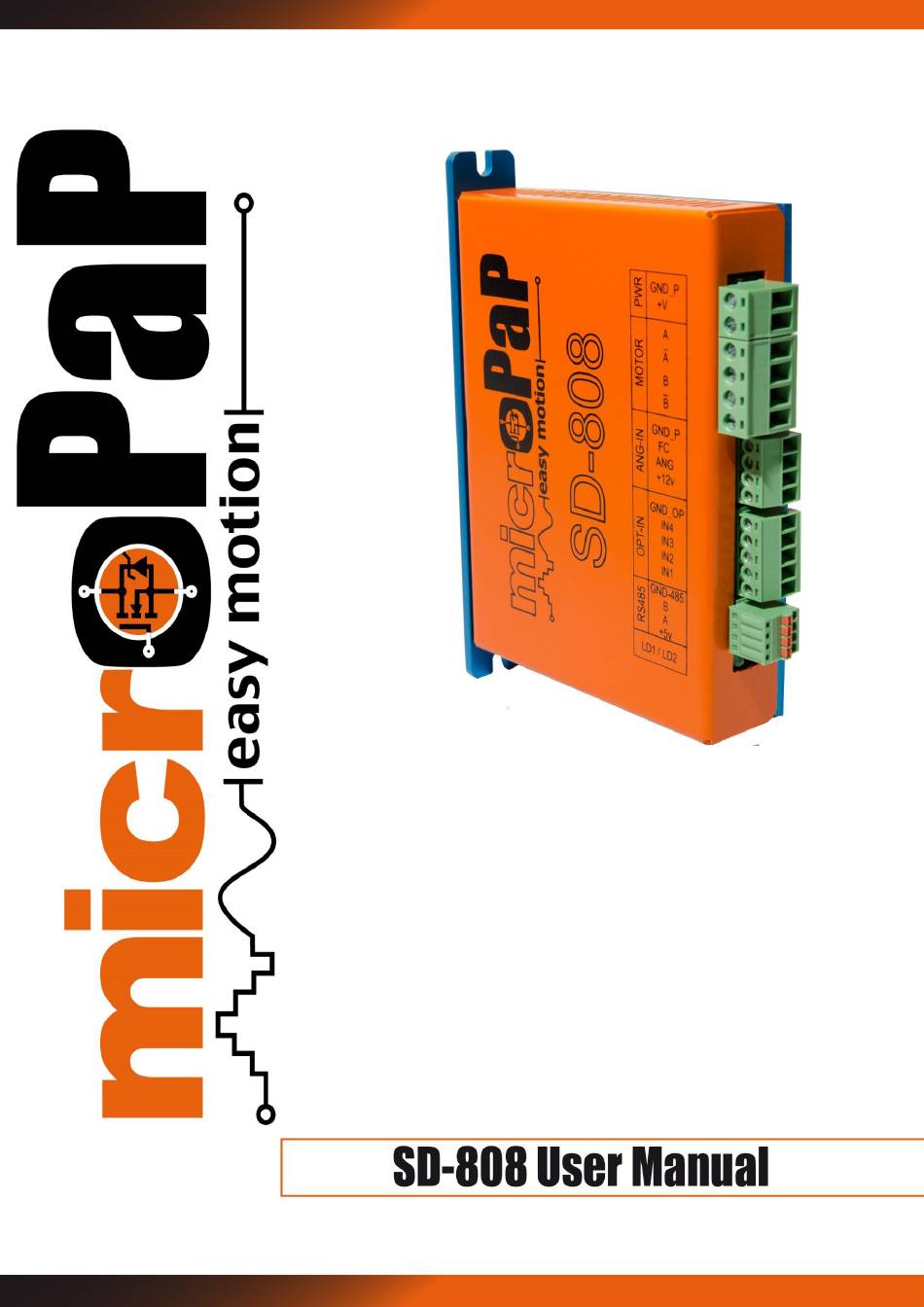

MicroPAP Easy Motion SD-808 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-808 and is the answer not in the manual?

Questions and answers

Summary of Contents for MicroPAP Easy Motion SD-808

  • Page 2 SD808 - USER MANUAL Change Management VERSION DESCRIPTION DATE APPROVAL Initial version 2012/04/30 2012/05/03 Protocol version 2012/06/03 2012/06/03 Controller and application revision 2014/07/02 2014/07/17 Enable mode suppression, application 2016/06/03 2016/06/05 of track numbers and activation Format 2016/06/03 2016/06/05 Format 2016/06/19 2016/06/19 English translation 2017/06/03...

  • Page 3: Table Of Contents

    SD808 - USER MANUAL Index 1 Presentation ..............5 2 Initial Precautions ............6 3 Connections ..............7 4 Power Supply ..............10 5 Motors................10 Motor current...................11 Temperature Control ..............12 Limit Switch ..................12 6 Operation Modes ............13 Serial mode ..................13 Track mode ..................13 7 Communications ............
  • Page 4 SD808 - USER MANUAL 11 Specifications ..............34 11.1 Electrical Values ................34 11.2 Mechanical Dimensions ..............35 Page 4 of 35...

  • Page 5: Presentation

    SD808 - USER MANUAL 1 Presentation Thank you for purchasing the new MICROPAP EASY MOTION SD-808 driver. SD-808 is a circuit designed for the operation of bipolar step motors with serial RS-485 communication. Main Features:  RS-485 asynchronous serial port galvanically isolated.

  • Page 6: Initial Precautions

    SD808 - USER MANUAL 2 Initial Precautions Make sure you read the information on motor current adjustment and motor connection method with special wiring configurations carefully.  Make sure that the power supply has enough power.  Choose wires with a suitable section, without pre-tinning or with pressed tips and as short as possible.

  • Page 7: Connections

    SD808 - USER MANUAL 3 Connections The SD-808 has plug-in terminals of different pitch (to minimize connection errors) for communication signals, auxiliary input, limit switches and power connectors. Figure 1 Serial mode connections Page 7 of 35...
  • Page 8 SD808 - USER MANUAL Figure 2 Track mode connections Page 8 of 35...
  • Page 9 SD808 - USER MANUAL CONNECTOR SIGNAL + V (Supply voltage) GND_P (Ground) (*) Phase B (Connect to the extreme 1 of first motor coil) Phase /B (Connect to the extreme 2 of first motor coil) MOTOR Phase A (Connect to the extreme 1 of second motor coil) Phase /A (Connect to the extreme 2 of second motor coil) +12V (Auxiliary power supply 12VDC) ANG (Analog input or track activation)

  • Page 10: Power Supply

    SD808 - USER MANUAL 4 Power Supply The voltage of the driver’s power supply must be between 24VDC and 72VDC, with a maximum current of 8A. The value of the right voltage to power a stepper motor depends on the desired high maximum speed performance.

  • Page 11: Motor Current

    SD808 - USER MANUAL Figure 5 8-wire serial connection Figure 6 Parallel 8-wire connection  It is very important not to disconnect/connect the motor  with the controller supplied.  Check the connections before turning on the power!  5.1 Motor current The adjustment of the maximum current provided by the controller must be selected at the peak rated motor current (Inominal * 1.41) in order to avoid overheating in its windings which would shorten its life.

  • Page 12: Temperature Control

    SD808 - USER MANUAL 5.2 Temperature Control The driver self-protects against excessive current demands and associated temperature risings. The driver includes a heat sink designed to cool the parts of the circuit which, under normal operation, are subject to heating. For its proper ventilation, the driver must be maintained vertically.

  • Page 13: Operation Modes

    SD808 - USER MANUAL 6 Operation Modes The SD-808 driver allows you to work in two different modes: 6.1 Serial mode In this mode, the movements are made by sending a serial frame from a control device or PC. Serial communication can be point-to-point or through bus connection of several drivers.

  • Page 14: Driver Configuration

    SD808 - USER MANUAL 7.1 Driver Configuration The configuration of the driver is done through a point-to-point connection and with initial device identifier 0x30. The configuration allows to vary, among other parameters, the device identifier, the maximum current level and the working mode of the device. Frame format sent to the driver: Nº...

  • Page 15: Motion Command

    SD808 - USER MANUAL Device identifier for acting in serial RS-485 mode 0x30, 0x31, 0x32, ..., 0x4F Reserved 0x30 Reserved 0x30 Carry Return 0x0D 7.2 Motion Command Frame format sent to the driver: NºByte Description Possible Value Error Device identifier 0x30, 0x31, 0x32, 0x33,...

  • Page 16: Dynamic State Request

    SD808 - USER MANUAL 200 steps motor 400 steps motor  0x31 = ½ steps  0x41 = ½ steps Microsteps selector and  0x32 = 8  0x42 = 8 motor type  0x33 = 16  0x43 = 16 ...

  • Page 17: Static State Request

    SD808 - USER MANUAL Device identifier 0x31, 0x32, 0x33,... 0x4F Dynamic status request D=68D=0x44 d=100D=0x64 Carry Return 0x0D Response from the driver: Nº byte Description Possible values Device identifier 0x31, 0x32, 0x33,... 0x4F Dynamic status request identifier D=68D=0x44 (RAM)  0x30 = Stop Motor state ...

  • Page 18: Tracks Settings

    SD808 - USER MANUAL Nº byte Description Possible values Dynamic status request identifier S=83D=0x53 Maximum temperature reached 0x30 + Temperature (0 to 200) Maximum voltage reached 0x30 + Voltage (0 to 200) Programmed current level 0x30 + Current level (0 to 200) ...
  • Page 19 SD808 - USER MANUAL  0x30 = Track 0  0x31 = Track 2 Track to read / write / delete  …  0x39 = Track 9 Carry Return 0x0D Response to the configuration frame from the driver (The answer is the data stored in the internal memory): Nº...

  • Page 20: Speed Profile

    PC (or PLC) command. Generally it improves the speed performance as it allows to define ramps of acceleration and breaking. The SD-808 driver allows an acceleration and deceleration (braking) ramp of up to 1000 steps in each of them and a total movement of 1000000 steps.

  • Page 21: Speed Limits

    SD808 - USER MANUAL Figure 8 Speed Profile 8.1 Speed Limits The system has certain speed limitations that depend on the micro-selector switch, the selected type of motor and the power supply voltage of the driver. The following table shows the speed limit values: 200 steps motors 400 steps motors Full Steps...

  • Page 22: Communication Example

    SD808 - USER MANUAL 9 Communication Example 9.1 Control Frame If you want to make the following motion with an engine:  Device number 1  123450 moving steps.  600 steps of acceleration.  250 braking steps.  Clockwise direction. ...

  • Page 23: Configuration Frame

    SD808 - USER MANUAL Answer 1 (Incorrect communication): The communication has been incorrect. Movement has not started. # BYTE VALUE 0x31 0x4D 0x15 0x0D Answer 2: Switch Limit reached. # BYTE VALUE 0x31 0x4D 0x79 0x0D Answer 3: Movement finished without reaching Switch Limit. # BYTE VALUE 0x31...
  • Page 24 SD808 - USER MANUAL BYTE VALUE 0x30 0x51 0x6C 0x53 0x35 0x30 0x0D Response from the driver: BYTE VALUE 0x35 0x51 0x6C 0x53 0x35 0x30 0x30 0x0D The response has been the expected so the driver is reconfigured. We strongly recommend that the motor current and other parameters are adjusted using the free software provided.

  • Page 25: Software

    SD808 - USER MANUAL 10 Software MicroPaP offers an application for the management and configuration of the driver that can be downloaded from the website (http://www.micropap.com/download). At the start of the program the following window will appear: Figure 9 Initial Screen The tabs on the right side of the window allow you to identify and connect the PC port.
  • Page 26 SD808 - USER MANUAL  Working mode selection tabs.  Driver Settings.  Static controller status.  Communications.  Historical actions. These last two areas, as well as the working mode selection tabs are common in all working modes that can be given with this controller. Figure 10 Application screen sections.

  • Page 27: Communications

    SD808 - USER MANUAL  Track. It allows the generation, execution and storage of up to 10 movements with different profiles that are called tracks.  Special. Reserved for programming designed especially for the client.  Exit. Allows the application to exit. In order to enable the Series, Track and Special tabs, select the appropriate mode of operation of the driver in the configuration area / tab.

  • Page 28: Configuration

    SD808 - USER MANUAL In this window, the frames sent from the PC to the controller are represented in green and each byte is E =>, on the other hand, the bytes of the frames received from the controller are represented in blue and each byte is preceded by R <=. In all cases the representation of the value of given bytes is carried out in hexadecimal format.
  • Page 29 SD808 - USER MANUAL Figure 13 Configuration mode screen Controller parameters to configure are the following:  Real time device identifier: By default, all controllers have ID 0. Thus, if various controllers are connected to the power supply, each of them will have to be programmed with a unique identifier.

  • Page 30: Serial

    SD808 - USER MANUAL  Device identifier.  Maximum working temperature.  Maximum supply tension.  Maximum current.  Configuration of the device: In this point, it is shown whether the driver is working in serial, track or special mode. 10.3 Serial The serial tab, allows to send a frame of the movement for a motor connected to the controller.
  • Page 31 SD808 - USER MANUAL Parameters to configure in the screen:  Device identifier to which the frame has to be sent.  Total number of steps.  Acceleration steps (slider bar).  Breaking steps (slider bar)  Step type:  Complete step ...

  • Page 32: Track

    SD808 - USER MANUAL Figure 14 shows the pop-up window that contains the previous information. Figure 15 Serial mode screen. Dynamic status. 10.4 Track Track tab allows the configuration of different movements that will be stored for its future execution from the controller. Figure 15 shows the corresponding screen of this mode.
  • Page 33 SD808 - USER MANUAL  Stop current (in %, referring to the value of maximum current previously configured)  Track number: Up to a maximum of 10 tracks. Once verified that the motor’s movement is the one wished, using the buttons que el SAVE, SEND or DELETE the last track will be saved in the controller.
  • Page 34 SD808 - USER MANUAL  Step type  Rotation steps  Motor speed  Stop current 11 Specifications 11.1 Electrical Values  Supply voltage: 24 a 80 VDC  Phase current: 400mA a 8A (200 levels)  Current phase reduction in stop mode: 25% to 75% in 4 levels ...
  • Page 35 SD808 - USER MANUAL 11.2 Mechanical Dimensions *Dimensions in mm Page 35 of 35...
