NE-MI

USER MANUAL

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE

INSTALLATION. LEAVE A COPY FOR THE END USER/MAINTENANCE

ENGINEER FOR FUTURE REFERENCE.

Version No. : V2.0

Table of Contents

Need help?

Do you have a question about the NE-MI and is the answer not in the manual?

Questions and answers

Summary of Contents for Surelight NE-MI

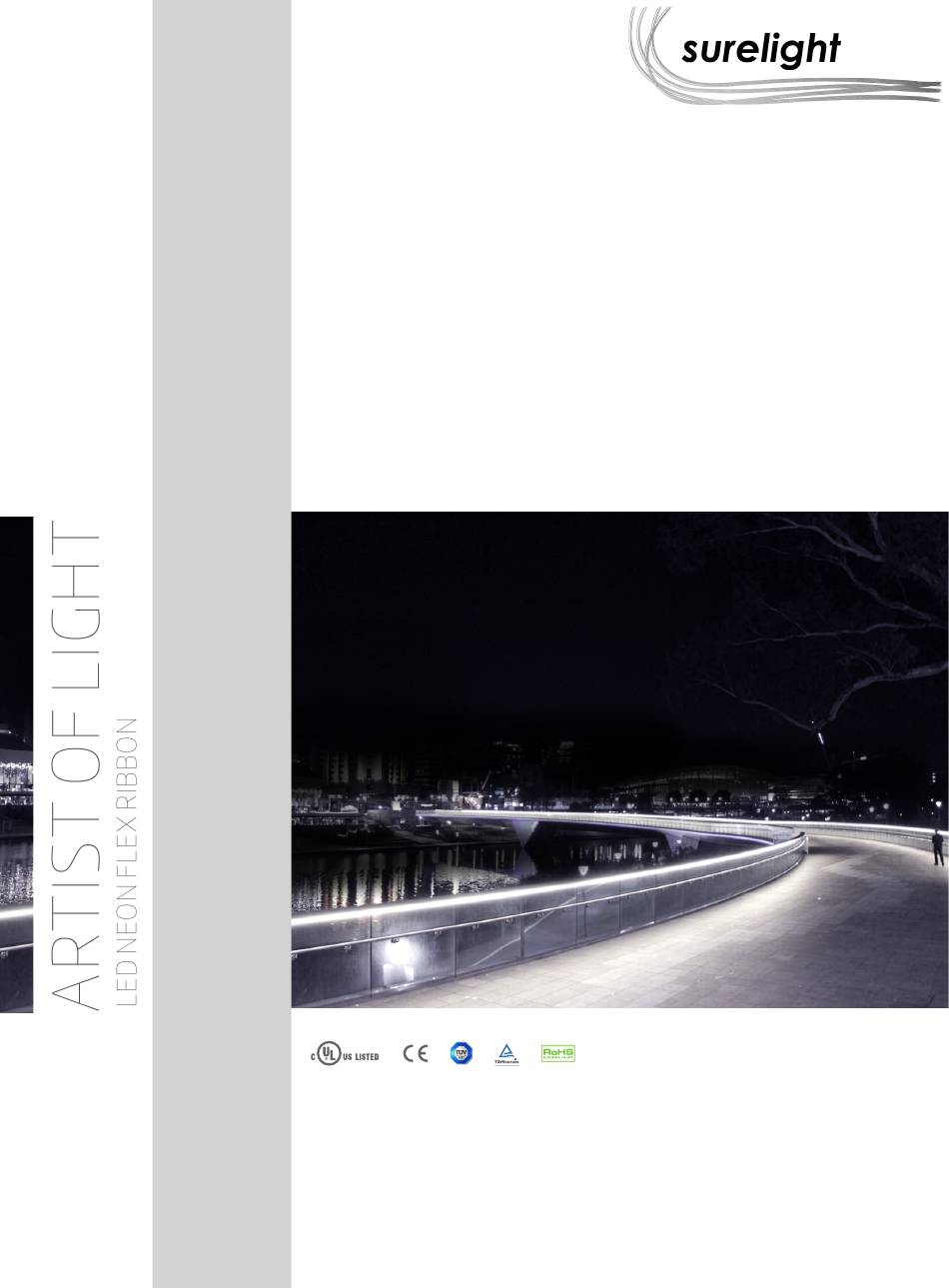

Page 1 NE-MI USER MANUAL PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. LEAVE A COPY FOR THE END USER/MAINTENANCE ENGINEER FOR FUTURE REFERENCE. Version No. : V2.0...
Page 2: Table Of Contents
Unpacking Basic Parameters Cautions Instructions for Cutting Light Clasp Front Connector Clasp End Cap Snap Front Connector Snap End Cap Swivel Front Connector Swivel End Cap Diagram of Light Wiring Mounting Profile Options Troubleshooting Limited Warranty Appendix www.surelight.com USER MANUAL...
Page 3: Unpacking
Unpacking White Box Packaging www.surelight.com USER MANUAL...
Page 4 Unpacking Reel Packaging Note: Two people are needed to uncoil the light. www.surelight.com USER MANUAL...
Page 5 Rotate the roller edge to uncoil the light with another hand Use recommended cutter to cut the light vertically Roll up the rest of the light Uncoiling Roller (Optional Device) Protect the light end and fix it www.surelight.com USER MANUAL...
Page 6: Basic Parameters
7. Long Iifetime: 5 years. 8. Working ambient temperature: -20°C~45°C (High Voltage: -20°C~35°C ) . 9. Environmental Installation Tempeature: 0°C~45°C (High Voltage: -0°C~35°C ). Note: Unless otherwise stated, the tolerance of the light is ±0.3mm. Light Type: NE-MI Light Color LED Qty/mtr Working Voltage...
Page 7: Cautions
User Manual. 9.Do not energize the light over 30 minutes in coil packaging. (HB)Horizontal Bending Light Surface Twist the light Light Surface Light Surface WARNING: The above wrong approaches will damage the light. www.surelight.com USER MANUAL...
Page 8: Instructions For Cutting Light
Please use a smooth and sharp cutter for cutting when the dedicated cutter is not available, any rusty or jagged cutter is prohibited. Note: Waterproof may not achieved with the following situations. Don't cut slantingly www.surelight.com USER MANUAL...
Page 9: Clasp Front Connector
The light ends are marked with either an 01 or an 02. Always make sure to use an identically labeled connector for the appropriate direction. Anti-skidding Clip (1pc) U Steel Plate (1pc) Feed Connector (1pc) [Contain Silicone Gasket(1pc)] 2.Tools Inducer Gripper www.surelight.com USER MANUAL...
Page 10 Insert the feed connector pins into the cavity that you created with the inducer (backside of PCB) The following operations are prohibited: Insert into the front side of the PCB Insert crosswise into the PCB Insert crosswise into the PCB www.surelight.com USER MANUAL...
Page 11 Notice tightly and align with the light end edge. its installation direction. 3.4 Installation fo U Steel Plate Push the bulging points on the anti-skidding clip into th slots on the U steel plate. www.surelight.com USER MANUAL...
Page 12 U steel plate. Use the gripper to help tighten the piece. Please energize the light to check its functionality and do waterproof reliablity testing (refer to "waterproof reliability testing instruction" video) after connector assembly. www.surelight.com USER MANUAL...
Page 13: Clasp End Cap
Explosive View using tools. 4.Repeated assembly or reuse of the connector may result in waterproof failure. Finished Assembly View 1.Components of End Cap Anti-skidding Clip (1pc) U Steel Plate (1pc) Silicone Gasket(1pc) Tail Plug (1pc) 2.Tools Gripper www.surelight.com USER MANUAL...
Page 14 Unfold the anti-skidding clip about 20 degrees on both sides. Place the anti-skidding clip onto the end of the light. Notice its installation direction. Fit the anti-skidding clip to the end of the light tightly and align with the light end edge. www.surelight.com USER MANUAL...
Page 15 U steel plate. Use the gripper to help tighten the piece. Please energize the light to check its functionality and do waterproof reliablity testing (refer to "waterproof reliability testing instruction" video) after connector assembly. www.surelight.com USER MANUAL...
Page 16: Snap Front Connector
Anti-skidding Clip (1pc) U Steel Plate (1pc) PC Cover (1pc) Feed Connector-top end (1pc) Feed Connector-side (1pc) Feed Connector-bottom (1pc) [Contain Silicone Gasket (1pc)] [Contain Silicone Gasket (1pc)] [Contain Silicone Gasket (1pc)] 2. Tools Inducer www.surelight.com USER MANUAL...
Page 17 Insert the inducer to the backside of PCB around 10~12mm, move the inducer up and down 3~5 times gently to create a small cavity. It will damage the light if insert into front Insert the inducer into the backside of PCB side of PCB www.surelight.com USER MANUAL...
Page 18 Place the anti-skidding clip onto the assembly end of the light. Pay attention to its direction Fit the anti-skidding clip to the end of the light so that it wraps tightly and its brim is aligned with the cut edge on both sides. www.surelight.com USER MANUAL...
Page 19 Please energize the light to check its functionality and do waterproof reliablity testing (refer to "waterproof reliability testing instruction" video) after connector assembly. Slide back the PC cover till it snaps in the feed connector. www.surelight.com USER MANUAL...
Page 20: Snap End Cap
Explosive View Printing on opposite side of light Finished Assembly View 1. Components of End Cap Anti-skidding Clip (1pc) U Steel Plate (1pc) PC Cover (1pc) Tail Plug (1pc) [Contain Silicone Gasket (1pc)] 2. Tools Inducer www.surelight.com USER MANUAL...
Page 21 Insert the inducer to the backside of PCB around 10~12mm, move the inducer up and down 3~5 times gently to create a small cavity. It will damage the light if insert into front Insert the inducer into the backside of PCB side of PCB www.surelight.com USER MANUAL...
Page 22 Place the anti-skidding clip onto the assembly end of the light. Pay attention to its direction Fit the anti-skidding clip to the end of so that it wraps tightly and its brim is aligned with the cut edge on both sides. www.surelight.com USER MANUAL...
Page 23 Please energize the light to check its functionality and do waterproof reliablity testing (refer to "waterproof reliability testing instruction" video) after connector assembly. Slide back the PC cover till it snaps in the tail plug. www.surelight.com USER MANUAL...
Page 24: Swivel Front Connector
Feed Connector-top end (1pc) Note: [U Steel Plate (1pc)] The light ends are marked with either an 01 or an 02. Alays make sure to use an identically labeled connector for the appropriate direction. 2. Tools Inducer www.surelight.com USER MANUAL...
Page 25 PCB tightly. The silicone gasket is attached on the feed connector. The following operations are prohibited: Insert into the front side of the PCB Insert crosswise into the PCB Insert crosswise into the PCB www.surelight.com...
Page 26 2.3 Rotate back till the light seat into the steel plate tightly Apply power to test light after assembly www.surelight.com USER MANUAL...
Page 27: Swivel End Cap
2.2 Installation of Tail Plug Put the light end and end cap together and rotate it to seat into the steel plate horizontally. Slide the light to the end cap and make sure they are attached tightly. www.surelight.com USER MANUAL...
Page 28: Diagram Of Light Wiring
(Compatible with most 0~10V lengths within allowed maximum length by feeding Driver dimming controllers.) light both ends. Max.Continuous Length Article No. Single End Feed Single End Feed Double Ends Feed Double Ends Feed Red/Amber Green/Blue/White Red/Amber Green/Blue/White NE-MI www.surelight.com USER MANUAL...
Page 29 Part 1 can power Part 2 or Part 3 directly. Part 2: Extension With injeciton-moulded connectors on both ends, Part 2 can be used for light extension. Part 3: Power connector & terminal Connect with Part 1 directly. Max.Continuous Length Article No. Single End Feed NE-MI www.surelight.com USER MANUAL...
Page 30: Mounting Profile Options
11mm Dimensions: Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm. Model W*H(mm) Length(mm) L1(mm) L2(mm) Screw Hole(mm) Hole Number NE-MI 11*21 Φ 1000 Φ 2000 Φ 1.2 Self-locking Aluminum Profile (Using with the clip) Clip 14.3mm Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
Page 31 Φ 1.4 L Shape Self-locking Aluminum Profile Ver. 2 (Using with the Clip) Φ3.5 Φ3.5 Model: NE-MI 12.8mm Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm. 100mm 1.5 T Shape Self-locking Aluminum Profile Ver. 2 (Using with the Clip) Φ3.5...
Page 32 1.6 X Shape Self-locking Aluminum Profile Ver. 2 (Using with the Clip) Φ3.5 Φ3.5 Φ3.5 Φ3.5 12.8mm Model: NE-MI 150mm Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm. 1.7 Self-locking Aluminum Profile Ver. 2, Bottom Feed (Using with the Clip) Φ3.5 Φ3.5 12.8mm...
Page 33 1.10 Self-locking Aluminum Profile Ver. 2, Side Feed From Right (Using with the Clip) Φ3.5 Φ3.5 Model: NE-MI 16.2mm Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm. 1.11 Plastic & Aluminum Combination Profile 7.5mm Φ3.5mm Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
Page 34 2.2 Correct Installation of Standard Aluminum Profile Install the screw into position and Screw head above to the base Gradient installing of screw. ensure the screw head is flush or of aluminum profile. lower the base of aluminum profile. www.surelight.com USER MANUAL...
Page 35 2.3 Correct Installation of Self-locking Aluminum Profile Install the screw into position and Screw head above to the base of Gradient installing of screw. ensure the screw head is flush or aluminum profile. lower the base of aluminum profile. www.surelight.com USER MANUAL...
Page 36 It is forbidden to let any connector aluminum mounting piece The space between aluminum profile and aluminum mounting on the aluminum profile and make light deformation. piece less than 10mm is forbidden. <10 mm Install light in one direction. Don't let it choke in middle. www.surelight.com USER MANUAL...
Page 37 It is forbidden to curl or pull the front connector cable with It is forbidden to curl or pull the front connector cable with excessive excessive force. force. It is forbidden to force the injection-moulded end to fit into the mounting profile and make light deformation. www.surelight.com USER MANUAL...
Page 38 It is forbidden to curl or pull the front connector cable Mechanical stress on front connector cable shall be avoided. with excessive force. Install the light in one direction, no matter what kind of connector used . Don't let it choke in middle. www.surelight.com USER MANUAL...
Page 39 Do not bend against the first or last unit of the light, if bending diameter is tighter than defined otherwise it will lead to failure of connector waterproof. min. bending diameter. The circuit board could be damaged if installing angle larger than 15 degree. www.surelight.com USER MANUAL...
Page 40: Troubleshooting
Check the power supply to ensure it supports the length you are using. Select the appropriate strength or install an additional power supply to support your installation. Check power supply output voltage is stable. Check front connector is properly installed with good contact with the copper PCB. Check proper controller is connected for light working. www.surelight.com USER MANUAL...
Page 41: Limited Warranty
(Surelight Ltd will, at its own dissection, select the shipping way ); if the product was found not to be defective or exclusion of warranty, the claimant shall bear all the...
Page 42: Appendix
1.Please adhere to parameters in below chart, feed cable length longer than what specified here will create voltage drop and eventually affect the lumen output of light. 2.The 0.3m feed cable length attached to front connector is not included in this cart 3. Feed cable length over 10m is NOT recommended unless special circumstances, especially for pixel addressable lights. www.surelight.com USER MANUAL...
Page 43 Note : 1. These are the light maximum recommended running length subject to selected power supply. 2. For example: It is recommended to use one 80W power supply loading maximum 18m light (3.5w/m) or maximum 14m light (4.5w/m) by energizing the light. www.surelight.com USER MANUAL...
