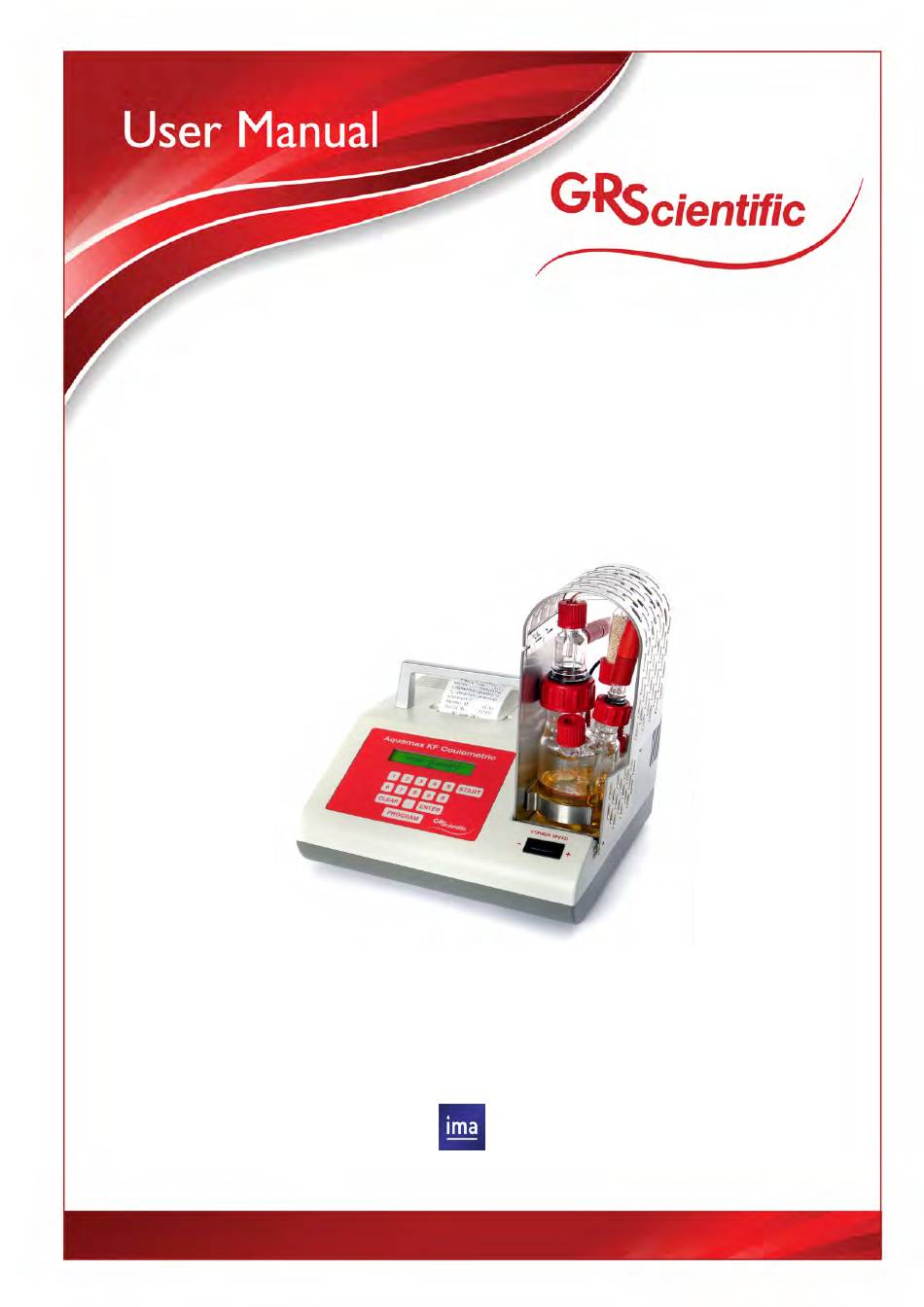

- Page 1 Aquamax KF “Portable” UK Distribution by: IMA Ltd, Parkwell House, Otley Road, Guiseley, West Yorkshire, LS20 8BH, England Tel: +44(0)1943 878877 Email: info@ima.co.uk Website: www.ima.co.uk Aquamax KF Portable v.13.08...
-
Page 2: Table Of Contents
Aquamax KF Portable v.13.08 CONTENTS Introduction …………………………………………………….……… Page 3 Principle of Measurement ……………………………………………… Page 4 Technical Specifications ..……………………………………………… Page 5 Unpacking & Parts List ……………………………………………… Page 6 Titration Cell Assembly Instructions …………………………………… Page 7-8 OPS Workstation ……………………………………………………….. Page 9 Filling & Changing Reagents ………………………………………….. Page 10 Front &... -
Page 3: Introduction

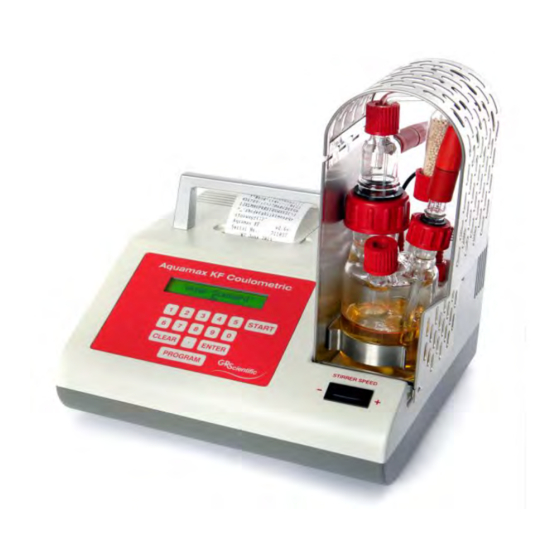

Designed primarily for the oil and power industries, the Aquamax KF Portable is the only model on the market with a carry handle attached directly to the unit. It also features a protective stainless steel cage, built-in printer and single button operation for water standards analysis, using either distilled water or water pellets. -
Page 4: Principle Of Measurement
Aquamax KF Portable v.13.08 PRINCIPLE OF MEASUREMENT Karl Fischer titration is simply a means to measure water content of samples. Modern instruments, such as the Aquamax KF, use the coulometric principle, whereby the water present in the sample is coulometrically titrated to a predefined end point at which there is a minute excess of free iodine present. -
Page 5: Technical Specifications
Aquamax KF Portable v.13.08 Technical Specifications Aquamax KF Portable Titration Method: Coulometric Karl Fischer titration Electrolysis Control: Patented “ACE” control system GB2370641 Titration vessel: Low Drift Cell design, no grease or PTFE sleeves required End Point Detection: AC polarisation End point indication:... -
Page 6: Unpacking & Parts List
Remove all of these items and check that they have arrived undamaged. The built-in battery may lose some charge if stored for prolonged period. We advise connecting the Aquamax KF Portable to mains power supply for 12 hours before first switching the power on. -
Page 7: Titration Cell Assembly Instructions
Aquamax KF Portable v.13.08 AQUAMAX KF TITRATION CELL STEP BY STEP ASSEMBLY INSTRUCTIONS (SHOWN WITHOUT PROTECTIVE CAGE OR CARRY HANDLE) Position titration vessel on Aquamax KF titrator The glass joints do not require PTFE sleeves or grease. The special screw fittings... - Page 8 Aquamax KF Portable v.13.08 AQUAMAX KF TITRATION CELL...
-
Page 9: Ops Workstation
Aquamax KF Portable v.13.08 OPS WORKSTATION The Aquamax KF Portable can also be supplied complete with an OPS Workstation. A sturdy outer case secures and enables transportation of the titrator complete with spare anode reagent bottles, cathode reagent vials, distilled water and 10 microlitre syringe of water standard test, pellet sampler and water standard pellets, 1.0ml &... -
Page 10: Filling & Changing Reagents
Aquamax KF Portable v.13.08 FILLING & CHANGING REAGENTS The Aquamax KF Portable has been designed to operate with all major coulometric Karl Fischer reagents, however optimum performance can be obtained by using Aquamax KF Formula reagents which have been specifically formulated for use with these instruments. For most routine applications 100ml of Formula “A”... -
Page 11: Front & Rear Panel Description
Aquamax KF Portable v.13.08 DESCRIPTION Front Panel Printer Display panel Keypad Stirrer speed Rear Panel Power Jack:- Nominal 18v DC 45w. Supply Input Fuse:- 3,15amp T type Time delay RS232:- Standard 4 wire RS232 Input / Output Port. USB-B:- Direct cable to PC / Results Manager Port. -
Page 12: Setting Time & Date
Aquamax KF Portable v.13.08 SETTING THE DATE AND TIME 1. Switch on the Aquamax KF Portable and wait for it to display the following: Aquamax KF Portable Press START 2. Hold down the key until the Aquamax KF Portable displays:-... -
Page 13: Connection & Start Up Procedure
1. Assemble glassware (see Assembly Instructions 2. Charge vessel and generator electrode with reagents (see Filling & Changing Reagents 3. Locate assembled titration vessel onto the Aquamax KF Portable 4. Connect electrode leads 5. Connect mains lead / power cord 6. - Page 14 Aquamax KF Portable v.13.08 PROGRAM FUNCTIONS When the Aquamax KF Portable displays Ready you can enter titration parameters, recall or edit existing • methods, enter new method files, etc., by using the PROGRAM, ENTER, CLEAR keys. Key Functions:- PROGRAM press PROGRAM key to scroll through menus listed.
- Page 15 Aquamax KF Portable v.13.08 PROGRAMMING FLOW CHART...
-
Page 16: Programming A Method
Aquamax KF Portable v.13.08 PROGRAMMING A METHOD After the initial drift has been calculated, in micrograms (µg) of water per minute, the Aquamax KF Portable is ready for operation. It is now possible to step through the PROGRAM parameters and enter the required calculation data. - Page 17 Aquamax KF Portable v.13.08 CALCULATION MODE The Aquamax KF Portable has four standard calculation modes in memory. Each of these allow the instrument to divide the microgram count by the gram weight of sample introduced so that the calculated result can be printed out in either ppm or percentage of water.
- Page 18 PRINT DRIFT The Aquamax KF Portable can be programmed to print out the drift value for each titration. This is a useful indicator of titration cell stability. If drift is above 25 μg / minute print will show **XX**. This is a...
- Page 19 Aquamax KF Portable v.13.08 DELAY TIMES The Aquamax KF Portable has been programmed to accept two different types of delay times, one at the start of titration and one at the end as a minimum titration time. START DELAY TIME The Aquamax KF Portables has a preset delay of five seconds which allows samples to be dispersed into the reagents before the titration starts.
- Page 20 Aquamax KF Portable v.13.08 LANGUAGE The Aquamax KF Portable can be programmed to show all display prompts and print outs in various • languages. Use the decimal point key to select language then press ENTER. GENERATOR ELECTRODE The Aquamax KF Portable can be operated using generator electrodes with or without frit (diaphragm).
-
Page 21: Water Standard Test
In Water Standard Test mode the Aquamax KF Portable will display only microgram counts and print out the final result in micrograms. This is an absolute result to check that the titrator is performing correctly and within required parameters. - Page 22 Aquamax KF Portable v.13.08 EXAMPLE COULOMETRIC METHODS The Aquamax KF series of Coulometric Karl Fischer titrators can be used for the following standard methods, either by direct sample introduction or in conjunction with accessories such as water evaporators:- ASTM D 1533...
-
Page 23: Example Methods & Applications
Aquamax KF Portable v.13.08 EXAMPLE APPLICATIONS LIQUID SAMPLES Liquid samples are usually introduced into the titration vessel by using a syringe. The greater the amount of water introduced into the titration cell will cause the titration to take longer and also consume the reagents more quickly. - Page 24 Some lubricating oils contain additives which can coat the detector electrode or block the glass frit of the generator electrode. For these applications we suggest using the Aquamax KF Portable in conjunction with an oil evaporator such as the model 51000.
-
Page 25: How To Run A Test
Please read the section PROGRAMMING A METHOD then use the PROGRAMMING FLOW CHART before running any samples, Example: Transformer oil sample by V/SG Program the Aquamax KF Portable with parameters for the analysis. For Transformer Oil samples, these parameters are usually:- Result Format... - Page 26 Aquamax KF Portable v.13.08 Example: Crude Oil by W/w Program the Aquamax KF Portable with parameters for the analysis. ANALYSIS METHOD (1) 1. Confirm that Aquamax KF Portable is in “Ready” mode 2. Flush 1.0ml syringe several times (minimum 6 times) with sample 3.
-
Page 27: Printer
Aquamax KF Portable v.13.08 LOADING THE PRINTER (SHOWN WITHOUT PROTECTIVE CAGE OR CARRY HANDLE) To load the paper into the printer, first open the paper roll holder lid above the print head and remove the old roll and rollers. Now fit rollers to new paper roll (503073), load as shown and insert the paper into the slot at the rear of the print head. -
Page 28: Example Print Out
Aquamax KF Portable v.13.08 PRINT-OUTS The Aquamax KF Portable allows you to select different print modes. If you choose to have the printer on, you will receive a hard copy of the result obtained, together with the selected parameters for that particular titration every time a titration is performed. -
Page 29: Drift Compensation
This ensures that the displayed result is corrected for any ingress of atmospheric moisture during the titration period. Whilst in READY condition, the Aquamax KF Portable continually compensates for any drift caused by atmospheric moisture ingress or reagent decomposition and displays this information, which is updated every 10 seconds. -
Page 30: Cleaning The Glassware
FASTER THE INSTRUMENT WILL STABILISE READY FOR OPERATION AFTER RECHARGING REAGENTS. Under normal conditions, the Aquamax KF Portable should be ready for operation within 5 – 10 minutes after reassembly, however it could take up to 20 minutes before to completely stabilise if the drying... -
Page 31: Troubleshooting
Aquamax KF Portable v.13.08 TROUBLESHOOTING OVERTITRATION Detector senses too much Iodine. Usually caused by old reagents or stirrer switched off. Check stirrer speed. Add 3-5 microlitres of water until detector bars activate, and allow to precondition. EXCESS DRIFT Indicates excess moisture ingress or condensation on cell walls. Switch OFF. Remove titration cell from clamp and gently swirl anode reagent around the cell walls. -
Page 32: Other Products
Aquamax KF Portable v.13.08 OTHER PRODUCTS IN THE GR SCIENTIFIC RANGE Aquamax KF This is an economical entry level titrator which has single injection port glassware, full numeric keypad for data entry, results manager software for data storage and retrieval. For use with generator electrodes either with or without frit. - Page 33 Aquamax KF Portable v.13.08 Aquamax KF Volumetric adaptable titrator capable of titrating with superior accuracy and precision even for samples with low moisture content. Dual syringes enable the operator to dispense titrant and standard automatically eliminating cell opening which may introduce moisture to the system.
- Page 34 Aquamax KF Portable v.13.08 E-chem pH & Conductivity meters The E-chem range of pH/conductivity benchtop meters have been developed to provide cost effective, robust and simple to use solutions for your needs. The E512 pH meter offers research grade specifications with a comprehensive range of features and functions, ideal for general laboratory, QC and GLP based applications.
