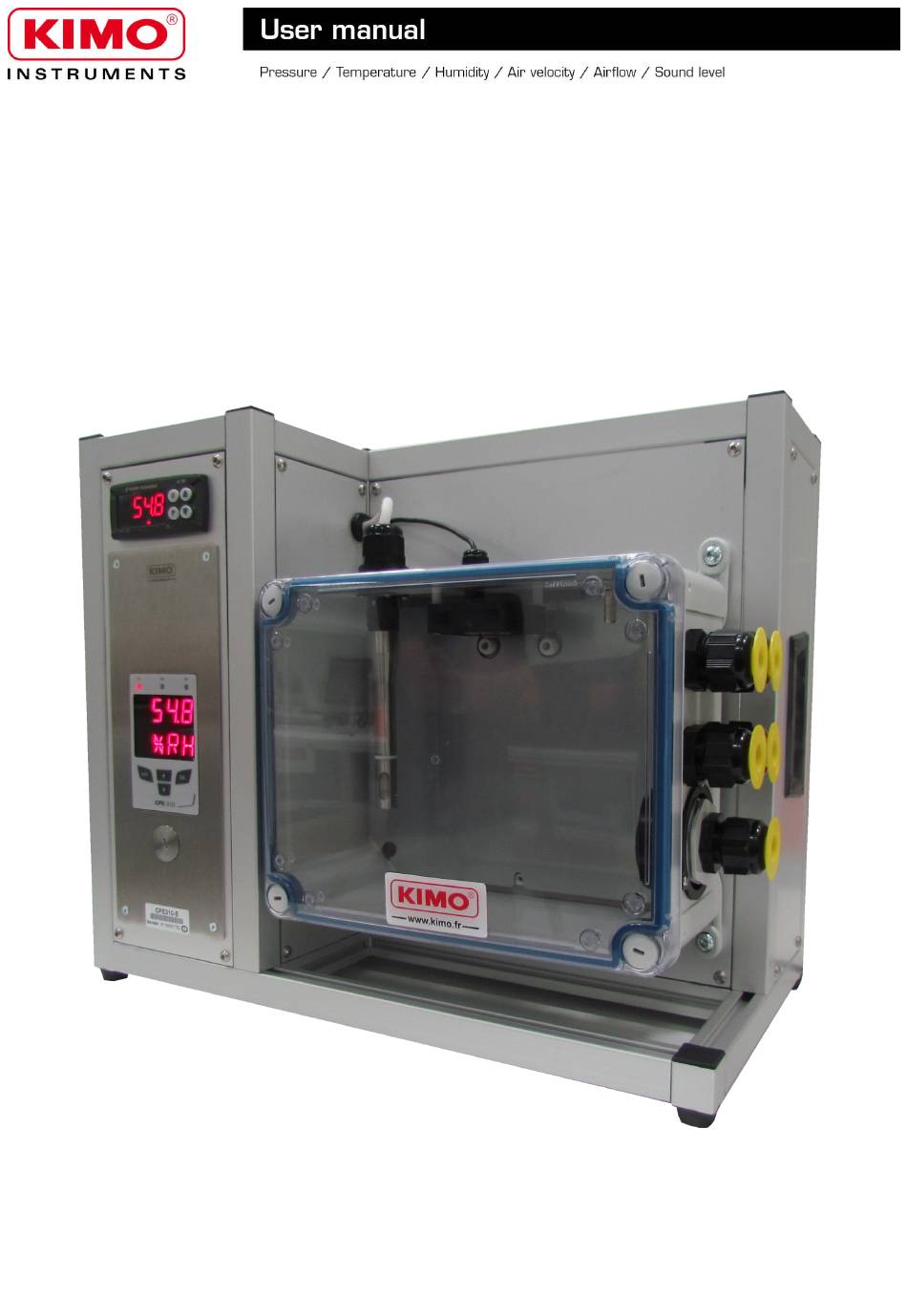

- Page 1 GH 500 Hygrometry generator...
-
Page 3: Table Of Contents
Table of Contents 1 Security..............................4 1.1 Precautions for use........................4 1.2 Symbols used..........................4 2 Instrument description..........................5 2.1 Schematic drawing........................5 2.2 Dimensions (in mm)........................5 2.3 Description............................6 3 Operating..............................7 3.1 K38 display description.........................7 3.2 Operating principles........................7 3.3 Enter a setpoint value........................7 3.4 Performances..........................7 3.5 Use advice............................7 4 Change the consumables........................8 4.1 Regeneration of the desiccant pearls...................8... -
Page 4: Security
1.1 Precautions for use Please always use the device in compliance with the intended use and in the limit of described parameters in the technical features in order not to compromise the protection ensured by the device. The device must be connected on a low voltage installation in compliance with the regulation of the country where •... -
Page 5: Instrument Description
GH500 instrument is the key instrument to adjust and calibrate in ambient air your measuring instruments in hygrometry. Easy-to-use, it will guarantee fast and stable hygrometry generations. 2.1 Schematic drawing 2.2 Dimensions (in mm) Internal dimensions Side view Front view of the measuring chamber... -
Page 6: Description
2.3 Description 01. K38 controller with adjustable setpoints 08. Overpressure control exhaust outlet 02. K38 keypad : selection of the setpoint value 09. Measuring chamber with front opening 03. CPE 310-S tramsitter for measurement of the chamber 10. Cable gland for probes 04. -
Page 7: Operating
3.2 Operating principles The GH 500 is a device which allows to generate points of relative humidity on a range from 10 to 85% HR. It works on the principle of a mix of moist air and dry air in different proportions, in order to obtain the required relative humidity value. For the generator works optimally, it must be placed in the most stable room in temperature (between 20 and 25 °C). -
Page 8: Change The Consumables
4.1 Regeneration of the desiccant pearls Before using the device, put a cotton filter at each end of the dessicant pearls tube. The dessicant pearl is a material which allows to drain the air; the little balls pick up moisture: their colours pass from orange to transparent. -
Page 9: Cable Glands
The M36 thread is adapted to insert a mirror for example. During the transportation, please empty the cartridge of demineralised water. Unclip the drying cartridge and empty it in the flask n°2. Desiccant pearls flask (110 g) GH500 Location for accessories Flask n°2 for the Demineralised...
