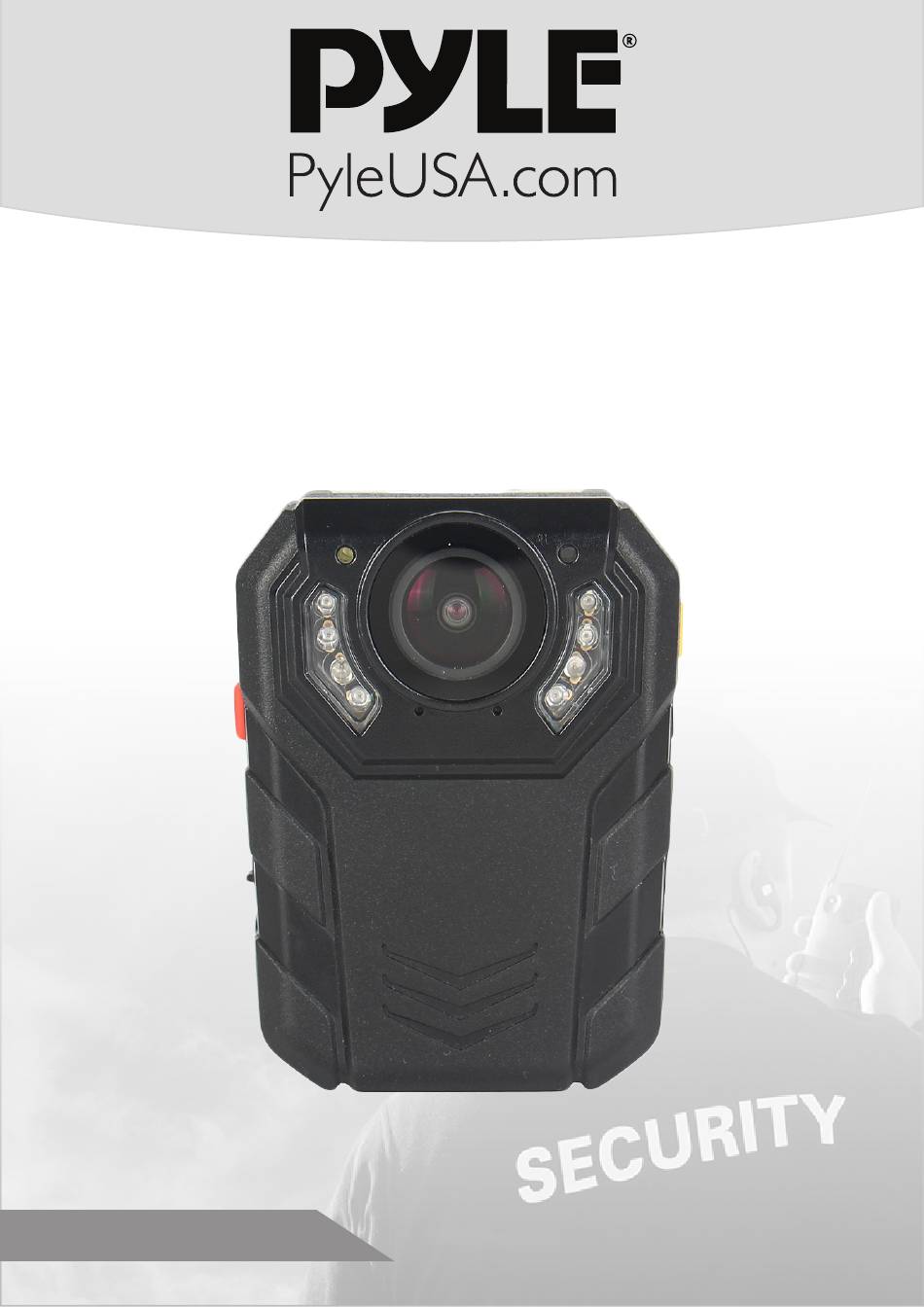

- Page 1 COMPACT BODY CAMERA INSTRUCTION MANUAL Model: PPBCM22...
-
Page 2: Product Diagram
PRODUCT DIAGRAM Note: For the reset button, open the USB rubber plug and you will find a hole for the reset button. -
Page 3: Audio Button
Remote Control Key - Optional REMOTE INDICATOR PHOTO BUTTON VIDEO BUTTON AUDIO BUTTON LCD SCREEN... -
Page 4: Video Recording
Getting Started: Press and hold the Power button (located on the bottom-right of the device) for about 3 seconds, the unit will vibrate with sound and a green indicator on top of the unit will turn on. The camera and LCD display will turn on and enter into standby mode. - Page 5 Camera Use Video: Power: Blinking Red = On/Standby Green = On/Standby Audio: Battery: Blinking Yellow: Recording CHARGING: Via USB: - You can charge the camera using the included USB cable and wall charger via any power outlet. - You can also charge the camera by plugging the camera into your computer via the USB cable.
-
Page 6: Menu Settings
Camera Use VIDEO, PHOTO, AND AUDIO PLAYBACK: A. Press the Playback/OK Function button to enter into the Playback Menu. B. Use the Up/Down button to select the desired icon, and then press the OK button to display all saved recording files of that type. C. -
Page 7: Video Quality
Camera Use VIDEO QUALITY: A. In the Video Setup Menu, select “Quality” and press the OK button. B. There are three options to select from: a. S.Fine b. Fine c. Normal C. Select the option you prefer and press the OK button. Tip: This refers to the video bit rate. -
Page 8: Motion Detection
Camera Use MOTION DETECTION: A. In the Video Setup Menu, select “Motion Detection” and press the Menu button. B. There are two options to select from: a. On = device will automatically begin recording when it senses motion. b. Off = motion detection will be disabled. C. -
Page 9: Language Setting
Camera Use MULTI CAPTURE: A. In the Camera Setup Menu, select “Multi Capture” and press the OK button. B. There are four options to select from. a. Multi Capture 1 b. Multi Capture 5 c. Multi Capture 10 d. Multi Capture 20 C. -
Page 10: Display Setting
Camera Use RECORD MODE SETTING: A. In the System Setting Menu, select “Record Mode Setting” and press OK button. B. There are two options to select from: a.Auto Record(camera will start recording automatically the moment camera is turned on ) b.Manual Record C. -
Page 11: Version Info
Camera Use POWER SAVING-SET: A. In the System Setting Menu, select the “Power saving-set” and press OK button. B. There are two options to choose from: a.Off B.on( camera will enter low power consumption mode, but when turn on camera again, camera will delay 1-2seconds to be power on.) C. - Page 12 Camera Use LOW POWER DISPLAY: When the battery voltage is too low, the battery icon in the upper right corner of the screen will turn red and flashing produce a Tone, in 5 minutes the camera will automatically shut down. In a low power state, please charge immediately, so as not to affect your use.
-
Page 13: Specifications
Specifications Sensor ....................5MP CMOS Chip ............Ambarella A7LSDK540: SVNR155888M Photo resolution ..32 M(7552×4248 16×9)(30M/23M/20M/18.5M16M/4M) Video Resolution ...........Multiple video resolution: 2304*1296 30fps 2305*1296 15fps 1920*1080 30fps 1920×1080 30fps/ 1280×720 60fps/ 1280×720 30fps / 848×480 60fps at 16:9 Video Format .............. H.264 .AVI/ MPEG4(.mp4) Photo Format ....................JPEG Fast Forward ...............2X, 4X, 8X,16X, 32X, 64X Rewind .................2X, 4X, 8X,16X, 32X, 64X... -
Page 14: Video Camera
VIDEO/PICTURE PLAYBACK LCD Screen ....... 2 inches TFT-LCD high-resolution color display Audio Playback ..................Supported Video output .....................AV Video Conversion .................. USB 2.0 VIDEO CAMERA Recording angle ............Wide-angle 170 degrees Night vision ..........Within 5-10 meters can see the face Waterproof ....................IP68 Clip ........ - Page 15 Troubleshooting and handling DEVICE DOES NOT BOOT, NO RESPONSE 1. Please connect the charger to equipment, charging 2 hours later ,then check the problem. 2. Please check the charger and the connecting line is normal. 3. Please press the reset key to restore the device to factory settings, and then check to the problem.
