SINUS Powerline 18 Q4W RGBW User Instructions

Advertisement

Thank you for purchasing this product. For your own safety, please read this user manual carefully
before you initially start-up

SAFETY INSTRUCTIONS

◆ Every person involved with the installation, operation and maintenance of this device has to :
be qualified
-
-
follow the instructions of this manual
◆ CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous
electric shock when touching the wires!
◆ This device has left our premises in absolutely perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
◆ Important: Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
Keep away from heaters and other heating sources!
◆ If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch
it on immediately. The arising condensation water might damage your device. Leave the device switched off
until it has reached room temperature.
◆ Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the
power-cord from time to time.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
◆ Shields, lenses or ultraviolet screens shall be changed if they have become visibly damaged to such an
extent that their effectiveness is impaired, for example by cracks or deep scratches.
◆ Never let the power-cord come into contact with other cables! Handle the power-cord and all connections
with the mains with particular caution!
◆ Make sure that the available voltage is not higher than stated in this manual.
◆ Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord
◆ During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
◆ DANGER OF BURNING! Never touch the device during the operation! The housing heats up to the
housing temperature TSURFACE.
◆ Don't switch the device on and off in short intervals as this would reduce the lamp's life
◆ HEAL TH HAZARD! Never look directly into the light source, as sensitive persons may suffer an
epileptic shock (especially meant for epileptics)!

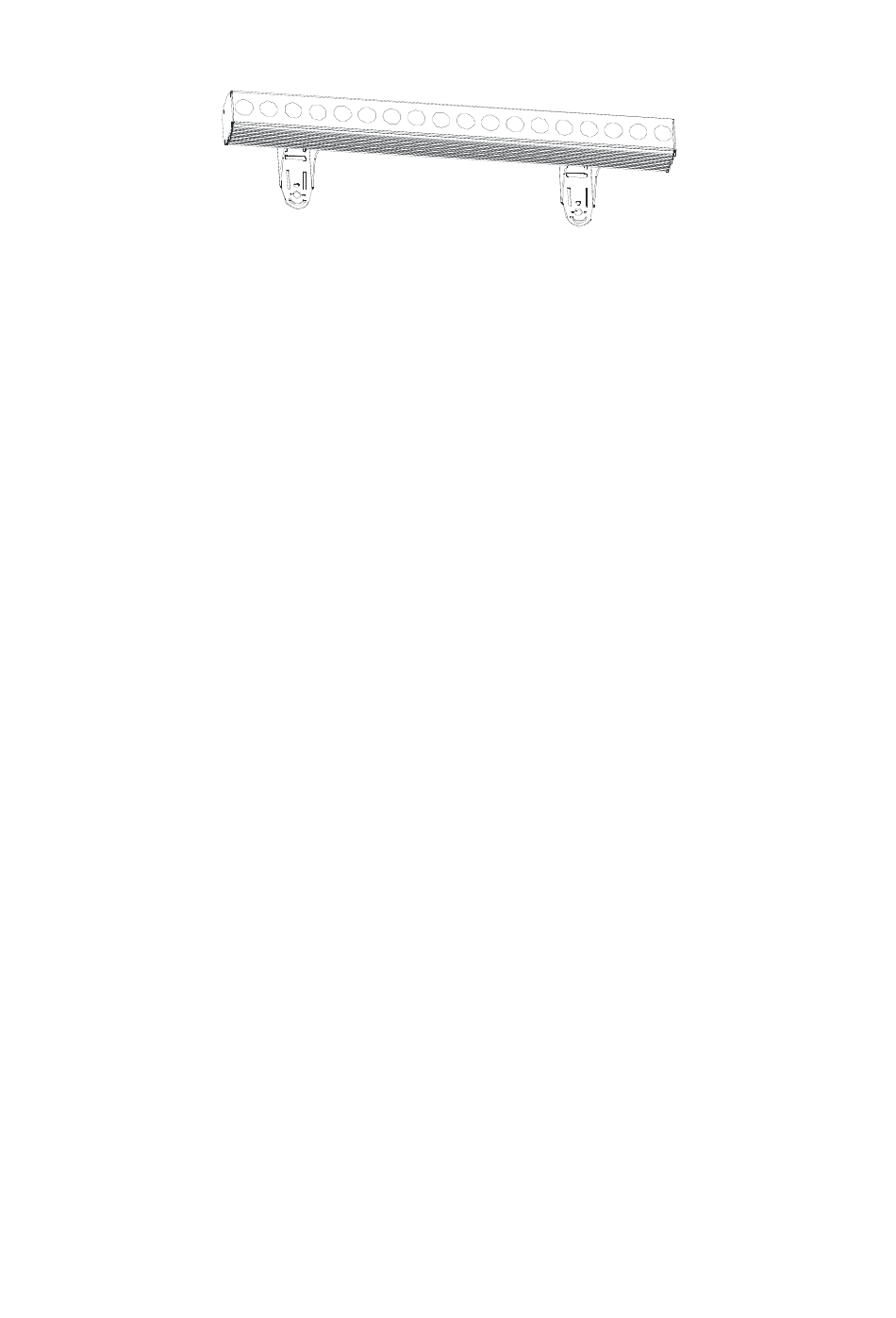

Powerline 18 Q4W RGBW
User Instruction
by the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powerline 18 Q4W RGBW and is the answer not in the manual?

Questions and answers

Summary of Contents for SINUS Powerline 18 Q4W RGBW

  • Page 1 Powerline 18 Q4W RGBW User Instruction Thank you for purchasing this product. For your own safety, please read this user manual carefully before you initially start-up SAFETY INSTRUCTIONS ◆ Every person involved with the installation, operation and maintenance of this device has to :...
  • Page 2 ◆ Always disconnect from the mains, when the device is not in use or before cleaning it ◆ Please note that damages caused by manual modifications on the device or unauthorized operation by unqualified persons are not subject to warranty. ◆...
  • Page 3 4 CH 2 DMX-4Channels ***--DMX address (1~512) DMX address CH1(R)/CH2(G)/CH3(B)/CH4(W) mode 6 CH 2 DMX-6Channels ***--DMX address (1~512) DMX address CH1(R)/CH2(G)/CH3(B)/CH4(W)/CH5(MACRO)/CH6(DIMMER) 8 CH 2 DMX-8Channels ***--DMX address (1~512) DMX address CH1(R1)/CH2(G1)/CH3(B1)/CH4(W1)/CH5(R2)/CH6(G2)/CH7(B2)/CH8(W2) 12 CH 2 DMX12Channels ***--DMX address (1~512) DMX address CH1(R1)/CH2(G1)/CH3(B1)/CH4(W1)/.../CH9(R3)/CH10(G3)/CH11(B3)/CH12(W 24 CH 2 DMX24Channels...
  • Page 4 Technical Specificatiion Voltage input: AC 100-240V 47-63Hz (230V 50Hz 0.67A) Consumption: 131W Dimension(L×W×H): L1008×W210 ×H 207mm Weight: 8.5Kg Fuse: T3.5 AL 250V Macro mode black macro mode22 macro mode1 macro mode23 macro mode2 macro mode24 macro mode3 macro mode25 macro mode4 macro mode26 macro mode5 macro mode27...
