Summary of Contents for Beckhoff ZB8610
- Page 1 Documentation ZB8610 Fan cartridge for EtherCAT and Bus Terminals Version: Date: 2017-08-07...
-
Page 3: Table Of Contents
2 Product overview............................ 8 Introduction ............................. 8 Technical data .......................... 10 Mounting and demounting ...................... 11 LED display and connection ...................... 17 Basic Function Principles and Commissioning ................ 18 3 Appendix .............................. 19 UL notice............................ 19 Support and Service ........................ 20 ZB8610 Version: 1.5... - Page 4 Table of contents Version: 1.5 ZB8610...
-
Page 5: Foreword
The TwinCAT Technology is covered, including but not limited to the following patent applications and patents: EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Documentation Issue Status
- Update chapter “Commissioning” - Update chapter “Technical Data” - Update chapter “Technical Data” - Update chapter “Basic Function Principles and Commissioning” - Addenda - Addenda - Addenda, 1 public issue - first provisional documentation for ZB8610 ZB8610 Version: 1.5... -
Page 8: Product Overview

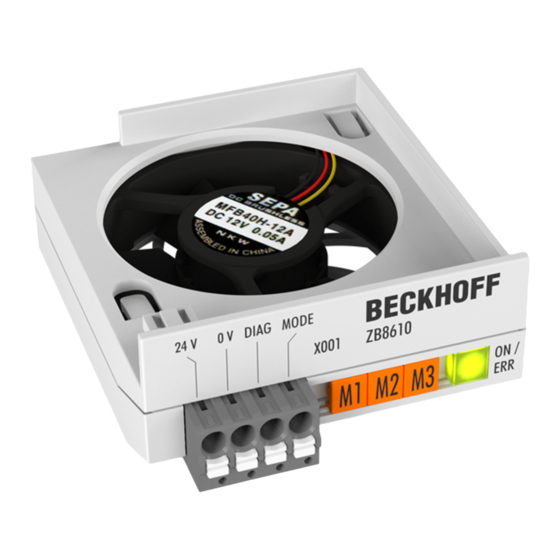

Fig. 1: ZB8610 Fan cartridge for EtherCAT and Bus Terminal The ZB8610 fan cartridge is used for forced ventilation within the terminal housing and ensures better heat dissipation from the housing. It extends the thermal operating range of EtherCAT Terminals (ELxxxx) and Bus Terminals (KLxxxx) and offers a wide range of new application options. -
Page 9: Fig. 2 Components Zb8610
Product overview Fig. 2: Components ZB8610 ZB8610 Version: 1.5... -
Page 10: Technical Data
Product overview Technical data Technical data ZB8610 Number of channels 1 fan Nominal voltage 24 V DC (-15 %/+20 %) Current consumption ca. 45 mA (at 24 V operating voltage) Operating modes temperature-controlled, full speed, frequency- controlled Rotational frequency fan adjustable in 9 steps via frequency (1…9 Hz), max. -
Page 11: Mounting And Demounting
Product overview Mounting and demounting The ZB8610 fan cartridge is snapped onto a 48-mm wide terminal group of Beckhoff standard or high- density (HD) terminals using the "8-channel/16-channel fan cartridge holder" supplied as an accessory. Fig. 3: Fan cartridge holder, 8-channel Fig. 4: Fan cartridge holder, 16-channel... -
Page 12: Fig. 5 Engaging The Holder For The Fan Cartridge
"Engaging the holder for the fan cartridge". Fig. 5: Engaging the holder for the fan cartridge The holder is correctly engaged when a clear click sound is heard. Fig. 6: Correctly engaged holder, front view Version: 1.5 ZB8610... -
Page 13: Fig. 7 Correctly Engaged Holder, Side View
2. Push the fan cartridge onto the holder as shown in fig. "Attaching the fan cartridge". The holding tab and the recess (see fig. "Push fan cartridge with recess over holding tab") on the fan cartridge fit each other and close flush in a downward direction. Fig. 8: Attaching the fan cartridge ZB8610 Version: 1.5... -
Page 14: Fig. 9 Push Fan Cartridge With Recess Over Holding Tab
3. Make sure that the latching tab is pushed into the groove until a click noise is heard as in fig. "Push latching tab into groove". The fan cartridge is now correctly attached. Fig. 10: Push latching tab into groove Version: 1.5 ZB8610... -
Page 15: Fig. 11 Correctly Attached Fan Cartridge, Front View
Product overview Fig. 11: Correctly attached fan cartridge, front view Fig. 12: Correctly attached fan cartridge, side view Removal 1. To dismantle, pull the fan cartridge off the terminal group in the direction of the arrow (see fig.). ZB8610 Version: 1.5... -
Page 16: Fig. 13 Pull The Fan Cartridge Off Towards The Front
When installing terminals with mounted fan cartridge module ensure that an adequate spacing (> 35 mm) is maintained between other components above and below the termi- Note nals (incl. fan cartridge) in order to guarantee a flawless operation of the fan cartridge and adequate ventilation of the terminals. Version: 1.5 ZB8610... -
Page 17: Led Display And Connection
Product overview LED display and connection Fig. 15: ZB8610 LED Diagnosis LED Display No power supply green supply voltage present, fan does not move, revolution temperature-controlled flashing Operating display, flashing frequency depends on revolution (see table connection “Mode”) Error/ fan malfunction... -
Page 18: Basic Function Principles And Commissioning
Basic Function Principles and Commissioning Area of application The ZB8610 fan cartridge is delivered ready to operate. No adjustments need to be made to the device. A typical application of the fan module is extension of the performance range of the terminals through forced cooling. -
Page 19: Appendix
Beckhoff EtherCAT modules are intended for use with Beckhoff’s UL Listed EtherCAT Sys- tem only. Examination For cULus examination, the Beckhoff I/O System has only been investigated for risk of fire and electrical shock (in accordance with UL508 and CSA C22.2 No. 142). For devices with Ethernet connectors Not for connection to telecommunication circuits. -
Page 20: Support And Service
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 21 Correctly attached fan cartridge, front view ................. Fig. 12 Correctly attached fan cartridge, side view.................. Fig. 13 Pull the fan cartridge off towards the front ................... Fig. 14 Remove the holder using a screwdriver ..................Fig. 15 ZB8610 LED ..........................ZB8610 Version: 1.5...
