Summary of Contents for ZIEHL-ABEGG Acontrol PTE-6AHQ

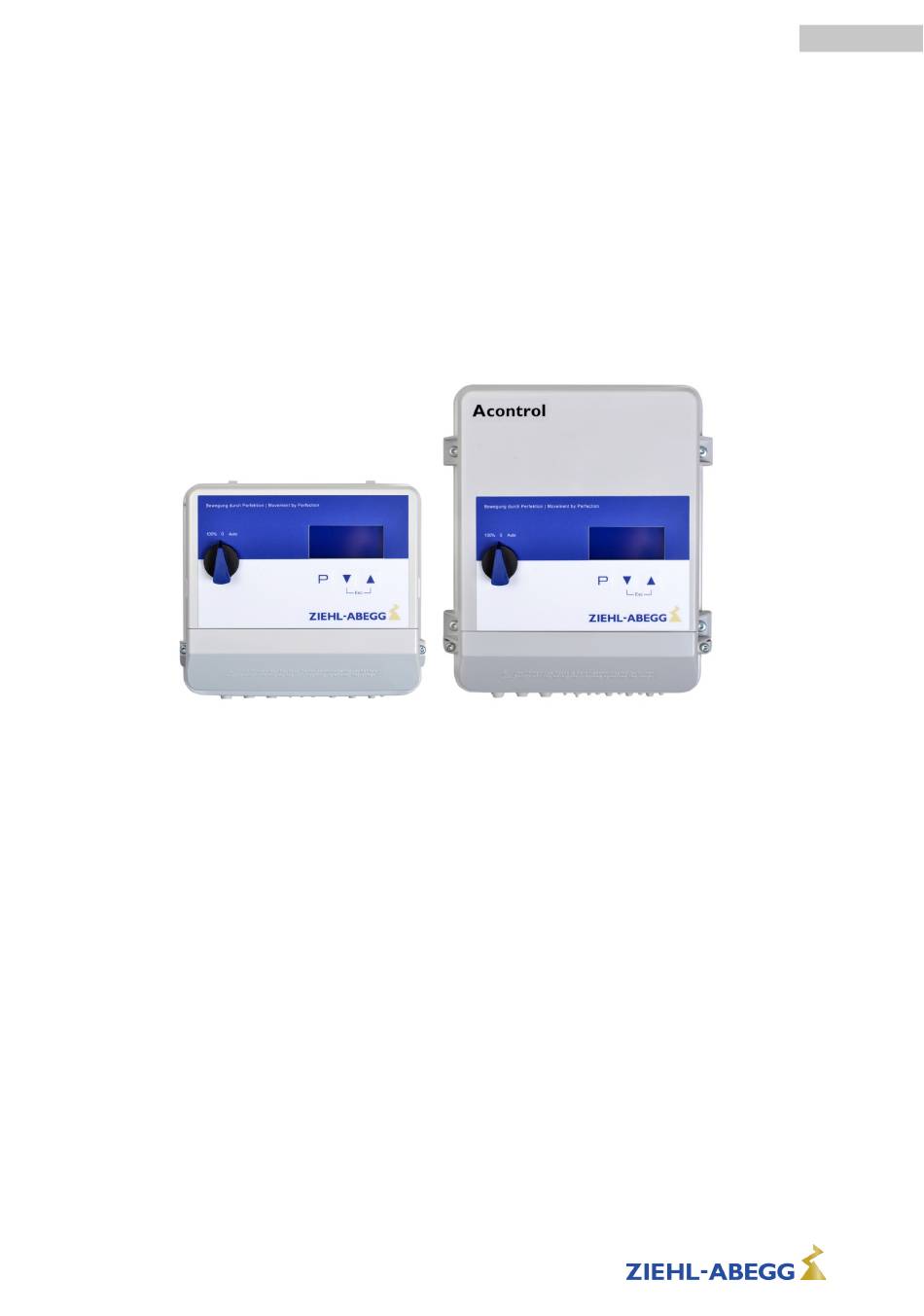

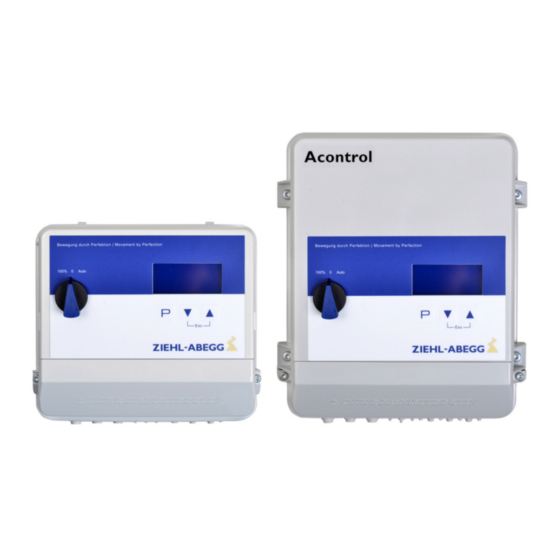

- Page 1 english Acontrol PTE-6AHQ / PTE-10AHQ Air-conditioning controller for single phase fans in agriculture Operating Instructions Keep for reference! Software version: D1337A from Version 1.04 L-BAL-E044-GB 1911 Index 003 Part.-No.
-
Page 2: Table Of Contents
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Content General notes ............. Structure of the operating instructions . - Page 3 Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Installation - Ventilation ..........7.2.1 Minimum speed cut off .
-
Page 4: General Notes
We do not accept any liability for possible errors or omissions in the information contained in data, illustrations or drawings provided. ZIEHL-ABEGG SE is not liable for damage due to misuse, incorrect use, improper use or as a consequence of unauthorized repairs or modifications. -
Page 5: Explanations Of Symbols
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Safety instructions Explanations of symbols Safety instructions are highlighted with warning triangles and are depicted according to the degree of hazard as follows. Attention! General hazardous area. Death or severe injury or significant property damage can occur if the corresponding precautions are not taken! Danger due to electric current Danger by dangerous, electric voltage! Death or severe injury can occur if the corresponding... -
Page 6: Work On The Device
Use only genuine spare parts / genuine wearing parts / genuine accessories from ZIEHL-ABEGG.Th- ese parts were specifically designed for the device. There is no guarantee that parts from non-original sources are designed and manufactured in correspondence with load and safety requirements. -
Page 7: Product Overview
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Product overview 3 Product overview Application The controller described is used for continuous speed adjustment on variable voltage 1~ motors used to drive ventilators or pumps. Maintenance The device must be checked for soiling and, if necessary, cleaned in periodic intervals. Transport •... -
Page 8: Minimum Space Requirement
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Electrical installation Minimum space requirement In order to ensure sufficient ventilation of the device, clearance on all sides of at least 50 mm has to be maintained to the housing walls, switch cabinet doors, wiring ducts, etc. The same clearance applies to the installation of several devices next to each other. -
Page 9: Emc-Compatible Installation
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Electrical installation • Never clean electrical equipment with water or similar liquids. Information The respective connections are represented in the enclosure of this Operating Instructions (see connection diagram)! EMC-compatible installation 5.2.1 Motor cable The applicable standard for interference emissions is EN 61000-6-3. -
Page 10: Running Noise
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Electrical installation 5.4.1 Running noise When controlling ventilators using electronic voltage regulators, motor noise can occur (due to the system), which can be troublesome (Phase cutting = series “P...”). On fast running ventilators with a high level of air noise, this noise is relatively low. On slow running ventilators with a low level of air noise, this noise may be dominant in the lower speed range due to the occurrence of resonance. -
Page 11: Relay Outputs (K1, K2)
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Electrical installation Relay outputs (K1, K2) The controller has two relay outputs (contact rating see technical data): • For Fault indication Relays K1 – Connection of the floating contacts to the terminals 11, 12, 14. –... -
Page 12: Controls And Menu
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Controls and Menu 6 Controls and Menu Main switch Controller off Auto Continuous speed control 100 % Ventilators are operated directly from the mains with no control. Equipment fuse disabled! Multipurpose LC display and keyboard Overview display 1. -
Page 13: Menu Operation
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ The Installation menu Menu operation Selection of the menu group to the right through the down key ▼, to the left through the up key ▲. ▼ ▼ By pushing the P button, one reaches individual menu ▲... -
Page 14: Installation - Ventilation
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ The Installation menu Installation - Ventilation ↑ ▼+▲ ↓ Ventilation 7.2.1 Minimum speed cut off In some cases in which minimum air ventilation is not needed, this feature can be used to prevent an undercooling of the room. -
Page 15: Installation - Shutter
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ The Installation menu Installation - Shutter ↑ ▼+▲ ↓ Shutter Shutter input 0 = Sensor on E1 = Control via offset to setpoint ventilation (factory setting) 1 = Sensor on E2 = Control independent from the ventilation nominal value Shutter input Kl. -
Page 16: Installation - Setpoint Derating
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ The Installation menu Installation – Setpoint derating ↑ ▼+▲ ↓ Setp. Derating Increase If the compartment temperature rises above the “setpoint” + the “control range”, the setpoint is increased via an automatic timer per hour by the adjustable value (e.g. 0.2 Increase K/h). -
Page 17: Io Setup = Assignment Of Inputs And Outputs
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ The Installation menu IO Setup = Assignment of inputs and outputs ↑ ▼+▲ ↓ IO Setup Outdoor temperature OFF = No measurement of the supply air temperature. If ON = measurement of supply air temperature active. Sensor on “E2” is taken into Outdoor temperature consideration for the temperature alarm message (Adjustable alarm differential). -
Page 18: Start-Up
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Start-up Output curve P1 Output curve P2 Output curve P3 Output curve P4 (18°) (36°) (54°) (72°) (90°) Output curve P5 04.08.2008 v_kennl_anlaog_ausg_6pkt.vsd R Pband (K) Shutter bracket 8 Start-up Prerequisites for commissioning Attention! 1. -
Page 19: Quickinfo, Setpoint, Min. And Max. Compartment Temperatures
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Settings for operation Quickinfo, setpoint, min. and max. compartment temperatures ↑ ▼+▲ ↓ S:20.0° SH:94% Setpoint Setting range: 0...40 °C Factory setting: 20 °C Setpoint When a second sensor (optional) is connected to the input “E2” measured temper- ature. -
Page 20: Setting Ventilation
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Settings for operation Setting Ventilation Ventilation ↑ The ventilation level control is additionally to the bargraph displayed here ▼+▲ in digits for informational purposes. ↓ Ventilation 9.3.1 For the regulation of the fan Setpoint Setting range: 0...40 °C Factory setting: 20 °C... -
Page 21: For Throttle Shutter Control
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Settings for operation 9.3.2 For throttle shutter control The shutter function is used to control one throttle shutter in the chimney above or below the fan. Shutter offset Setpoint for throttle shutter (on 0 - 10 V output “Shutter”) = setpoint ± offset Setting range: -10.0...+10.0 K Shutter offset Factory setting: -1.0 K... -
Page 22: Setpoint Derating
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Settings for operation 9.3.3 Setpoint derating Activation for automatic reduction (Setpoint automatic in summer) Setpoint derating OFF = Setpoint derating switched off Setp. Derating ON = Setpoint derating switched on Setp. Derating 05.08.2008 v_absenkauto_aktiv_pte.vsd 1 Display for automatic set point adaptation is active... -
Page 23: Temperature Monitoring Settings (Alarm Functions)
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Settings for operation Temperature monitoring settings (Alarm functions) Alarm Whether or not a malfunction is present is shown for informational purposes Alarm • OFF = currently no alarm pending • ON = Alarm is pending The pending alarm message is displayed alternating e.g. -
Page 24: Settings For Heating
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Settings for operation Example for the alarm maximum message 1. Display actual-value alternates with an alarm message S:25°C SH:99% Overtemp. 2. In the menu group overview, “Alarm” “Alarm ON” appears alternately with the pending alarm message. Alarm Overtemp. -
Page 25: Heating Control By Relay (Two-Point Mode)
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Settings for operation 9.5.1 Heating control by relay (two-point mode) 9.5.1.1 Example for two-position control independent of the ventilation nominal value (factory setting) • In installation menu “Mode 1” = Two-position controller, heating input = “0” =“E1” •... -
Page 26: Controlling The Heating Via The 0
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Settings for operation Positive hysteresis value = Heating function Negative hysteresis value = Cooling function A [°C] A [°C] 12.08.2008 12.08.2008 v_heiz_pos_hys_abs.vsd v_heiz_neg_hys_abs.vsd H Hysteresis H Hysteresis S Setpoint S Setpoint A Compartment temperature A Compartment temperature 0 Heating OFF... - Page 27 Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Settings for operation Heating or cooling function dependent on the setting in the installation menu “Heat actual < set” Heating function Cooling function M [%] M [%] max. max. min. min. A [°C] A [°C] S / V...
-
Page 28: Menu Table
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Menu table 10 Menu table Information The individually made programming can be saved with PIN 9091 and restored with PIN 9090 (Quickinfo Menu- PIN). Attention! Entering PIN 9095 completely resets the device back into its delivered condition. Any changes that have been made to the settings are thus lost! ▼... - Page 29 Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Menu table Parameter Factory setting Compartment setting Installation Ventilation Msco MSCO value -5.0 K Startvoltage 15 % Shutter Shutter input Kl. Val<Set=+ Ventilation link Heating Heating mode Heating input Heat.Val<Set=+ Setp. Derating Increase 0.2 K/h Derating...
-
Page 30: Malfunctions / Trouble Shooting
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Malfunctions / trouble shooting 11 Malfunctions / trouble shooting A momentary pending alarm or error message appears alternately with the standard display. Display Cause Adjustment All displays remain con- Defect in device Not possible to remedy. -
Page 31: Enclosure
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Enclosure 12 Enclosure 12.1 Technical data Max. heat Rated cur- Max. line Integrated semi- dissipation Rated tem- rent fuse conductor fuse Weight approx. perature Type Part-No. [°C] [Part.-No.] [kg] PTE-6AHQ 303606 M 10 A 5x20 mm PTE-10AHQ 303607... -
Page 32: Connection Diagram
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Enclosure 12.2 Connection diagram ...6 F1=M10A / ...10 F1=FF20A PTE-6/10AHQ Auto 100 % Kontaktbelastung Contact rating max. AC 250 V 5 A PE PE A2 GND E2 GND E1 GND (D2) (D2) Abschirmung Störung/Alarm... -
Page 33: Dimensions [Mm]
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Enclosure 12.3 Dimensions [mm] PTE-6AHQ PTE-10AHQ L-BAL-E044-GB 1911 Index 003 Part.-No. 33/36... -
Page 34: Index
Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Index 12.4 Index alarm list alarm message Assignment chimney control cable curve excess temperature Heat dissipation humming noises increase IO Setup line fuse lowest temperature mains connection mains voltage maximum control current Maximum temperature Menu language minimum air ventilation... - Page 35 Operating Instructions Acontrol – model series PTE-6AHQ / PTE-10AHQ Index servomotor set point derating Setpoint automatic Setpoint derating standard voltages summer minimum Technical data 3, 31 throttle shutter time counting two-point controller undercooling Ventilation link L-BAL-E044-GB 1911 Index 003 Part.-No. 35/36...
-
Page 36: Manufacturer Reference
Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Telephone: +49 (0) 7940 16-0 Telefax: +49 (0) 7940 16-504 info@ziehl-abegg.de...
