Nortek GoControl WA00Z-1 Instruction Manual

INSTR,INSTL,WA00Z-1,GO CONTROL; P/N: 10008665 X2; INK: BLACK; MATERIAL: 20# MEAD BOND; SIZE: 8.500" x 11.000"; TOLERANCE ± .125"; SCALE: 1-1
NOTE: This unit must be added to the Network only where it will be permanently installed. The proper operation of this node in the
mesh network is dependent on it knowing its location with respect to other nodes. You cannot "test bench" confi gure this unit, then install.

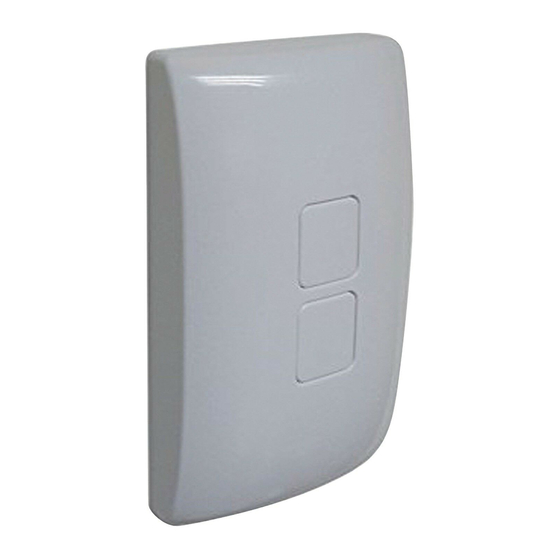

WA00Z-1 WALL MOUNTED SWITCH

The GoControl™ family Z-Wave® certifi ed wireless lighting products (smart
LED bulbs, switches, dimmers, outlets, and plug-in modules), security
devices (alert sounder, passive infrared sensor and door/window transmitter)
and Control products (Garage Door and thermostats) bring a new level of
intelligent wireless capability to commercial and residential environments.
The Z-Wave wireless protocol is an international wireless standard for remote
home automation, security and other applications. Embedded in each device,
the Z-Wave smart chip enables two-way RF communication among hundreds
of Z-Wave enabled devices, allowing products and services from multiple
manufacturers to work seamlessly. The WA00Z-1 Wall Mounted Switch is
simple to set up and can be installed anywhere to operate other load bearing
Z-Wave devices.
GoControl Z-Wave products are easy to install, and allow dealers to create an
integrated wireless network with nearly limitless expansion and interoperability
with security, energy management, home entertainment, appliances, and more.
For indoor use only. Retain instructions for future use.

Z-WAVE PLUS FEATURES

The WA00Z-1 contains a Z-Wave 500 Series Module that supports Z-Wave
Plus ® features. A Z-Wave certifi ed portable or stationary Controller can
communicate with the Z-Wave 500 Series Module.
Depending on the capability of the Controller or gateway software, the following
operations can be performed with the WA00Z-1. Refer to the Controller or
gateway manual for details.
• Turn the Associated device ON and OFF.
• Dim the Associated device.
• Add or Remove the WA00Z-1.
• Over-the-air firmware update by the gateway (if the gateway has the OTA
function) or static Controller.
• Lifeline function which automatically notifies the Associated modules and
the network that a manually reset device is no longer in the network, thus,
the corresponding Association becomes invalid.
PRINTER'S INSTRUCTIONS:

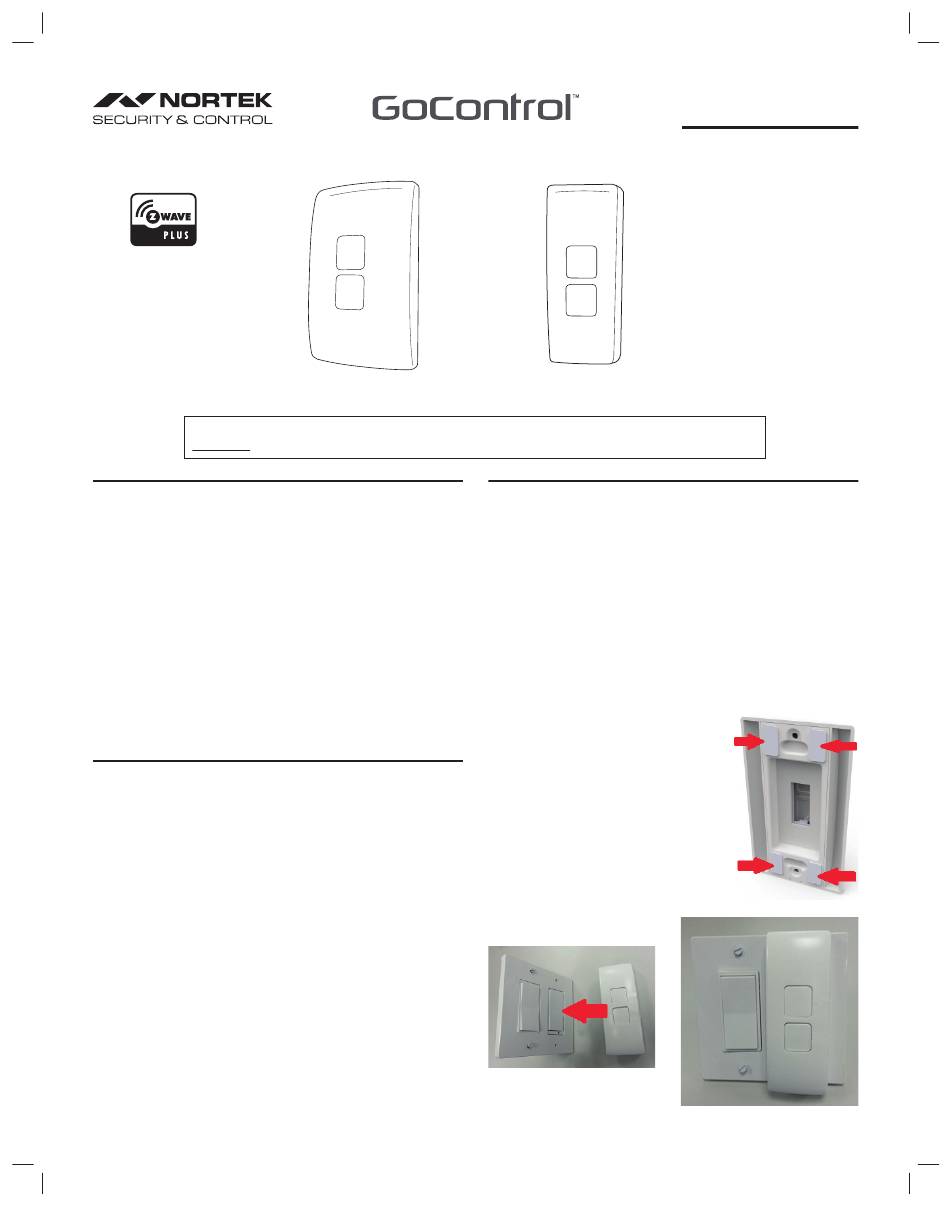

Shown with single-gang
trim plate

INSTALLATION

1
Z-Wave Radio Frequency (RF) Controlled
Scene and NWI Capable, Wall Mounted Switch, Series 500
Shown with multi-gang
trim plate
The WA00Z-1 can be installed anywhere, adding a switch where it is most
convenient.
The WA00Z-1 can be installed without any screws by using the included
double sided tape. In some cases, mounting screws can be used to secure the
WA00Z-1 over an existing wall switch.
Activate the two CR2032 lithium coin cell batteries in the battery compartment
in the WA00Z-1 main unit by removing the two battery pull tab strips.
Once the batteries are activated, select the proper faceplate to be used for
WA00Z-1. Use the wider faceplate to cover a single gang wall switch. Use the
narrower faceplate when used on a multi-gang wall switch.

Installation with double sided tape

Install the WA00Z-1 with the included double sided tape as follows.
1. Snap on the faceplate on the WA00Z-1 so that the two buttons are fl ush with
the surface of the faceplate.
2. Place the double sided tapes in the 4 corners
on the back side of WA00Z-1 main unit as
shown.
3. Attach the WA00Z-1 on top of the existing wall
plate. Position the WA00Z-1 properly over the
switch (the battery compartment should be
on the bottom side and existing wall switch
should be in ON position). Make sure the
surface is clean and dry before securing.
4. Secure the WA00Z-1 tightly by pressing fi rmly
on the existing wall plate
WA00Z-1
