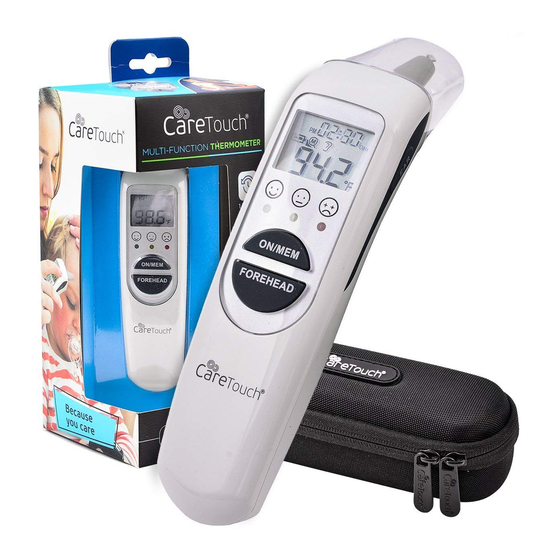

MFT-9 Multi-function Infrared Thermometer
Intended use:
The infrared ear/forehead thermometer can measure the infrared heat generated
by eardrum/central forehead area and surrounding tissues to reflect patient's
body temperature accurately.
Intended operator: At least 11 years old (5 years intensive reading experience), no maximum.
Specifications
 Temperature measurement range:
Ear / Forehead mode: 93.2~108°F (34~42.2°C), Surface mode: -7.6~176°F (-22~80°C)
 Operating temperature range: 50~104°F (10~40°C), 15%~85% RH
 Storage temperature range: It should be stored at room temperature between -4~122°F
(-20~+50°C), RH≦85%
Transportation temperature shall be less than 158°F (70°C), RH≦95%
 Atmospheric pressure: 800~1013 hPa
 Comply with ASTM E1965-98, EN ISO 80601-2-56, IEC/EN60601-1-2(EMC),
IEC/EN60601-1(Safety) standards, ISO10993, RoHS.
 Accuracy:
For ear / forehead mode: ±0.4°F (0.2°C) within 95~107.6°F (35~42°C),
For surface mode: ±0.5°F (0.3°C) within 71.6~108°F (22~42.2°C),
 Temperature alarm & Memory locations under "Ear/Forehead mode"
(with each measurement date/time/mode icon)
 3 color LED Zone Indicator
 Real time clock, °F / °C Switch mode
 Battery: one lithium cell battery (CR2032 *1pcs)
 Battery life: around 3,000 continuous readings.
 Expected Service Life: 4 years
 This thermometer converts the ear/forehead temperature to display its "oral equivalent."
(according to the result of the clinical evaluation to get the offset value)
 Enclosure Rating: IP22
 Dimensions: 146.4 x 38.3 x 54.8 mm
Weight: 63.3 grams including battery
The device should not submerge into any liquids and expose it to direct moisture.
There is no gender and age limitation for using infrared thermometer.
This is not an AP or APG product.

Functions

The real time clock will be recorded with the memory function and help you to recognize each
Real Time Clock
measurement result. (It includes the 12/24 Format_Hour_Minutes_Date.)
 Please see the "Real time clock setting" section to learn how to setup the time in the first use.
Suitable ambient temperature is important for the baby and patient, the thermometer always help you
recognize the room temperature.
Room Temperature
 Setting "Real time clock" first to enable this function. After power off, room temperature will be shown
on the screen with
 Please see the "Use of the thermometer" section to learn how to get the correct room temperature.
The thermometer has been designed for practical use. It's not meant to replace a visit to the doctor.
Ear / Forehead
Please also remember to compare the measurement result to your regular body temperature.
Temperature
consult with doctor if you have health concerns.
 Please see the "Use of the thermometer" section to learn how to measure the body temperature.
The surface mode shows the actual, unadjusted surface temperatures, which is different from the body
temperature. It can help you to monitor if the object temperature is suitable for the baby or patient, for
Surface Mode
example the baby's milk.
 Please see the "Use of the thermometer" section to learn how to measure the object temperature.
The thermometer built the stopwatch function to help you to monitor the heartbeat since heartbeat is one
Stopwatch
of the healthy indexes for people.
 Please see the "Use of the Stopwatch" section to learn how to measure the heartbeat result.
If thermometer detects a body temperature ≧99.5°F (37.5°C), there will be a long beep sound followed
Temperature Alarm
by three short beep sound to warn the user for the temperature is above 99.5°F (37.5°C).
Under ear or forehead mode, if thermometer detects a body temperature <99.5°F (37.5°C), there will be "
Green" light signal; if temperature ≧99.5°F (37.5°C) and <100.4°F (38.0°C), there will be" Yellow" light
signal; if temperature ≧100.4°F (38.0°C), there will be" Red" light signal.
Zone Indicator
RED: Warning - Immediate response by the OPERATOR is required. Suggest continually monitoring
YELLOW: Caution - Prompt response by the OPERATOR is required.
GREEN: Ready for use.
There are total 9 sets memories for body temperature. Each memory also records the measurement
date/time/mode icon and site location.
Memory Locations
 When in power on, press the "ON/MEM" button to see the temperature stored with
 In "power off" mode (The LCD only shows the date, time and room temperature). Press and hold the
°F / °C Switch
"FOREHEAD" button, then immediately press and release the "ON/MEM" button. After 3 seconds, icon
"°F" will be switched to icon "°C". (You may use the same way to switch back to "°F")
±0.5°F (0.3°C) for other range.
others ±4% or ±4°F (2°C) whichever is greater.
icon.
the body temperature. If in doubt about the person's condition, seek medical assistance.
Before the measurement, please make sure the selected
button accords with the measured position.
Please
icon.
