Solarix LC-50 Assembly Manual

Network/server cabinet, for cabinets 600, 800 and 1 000 mm deep
Hide thumbs

Advertisement

Quick Links

Download this manual
Solarix LC-50
network/server cabinet
assembly manual
for cabinets 600, 800 and 1 000 mm deep

Advertisement

loading
Need help?

Need help?

Do you have a question about the LC-50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Solarix LC-50

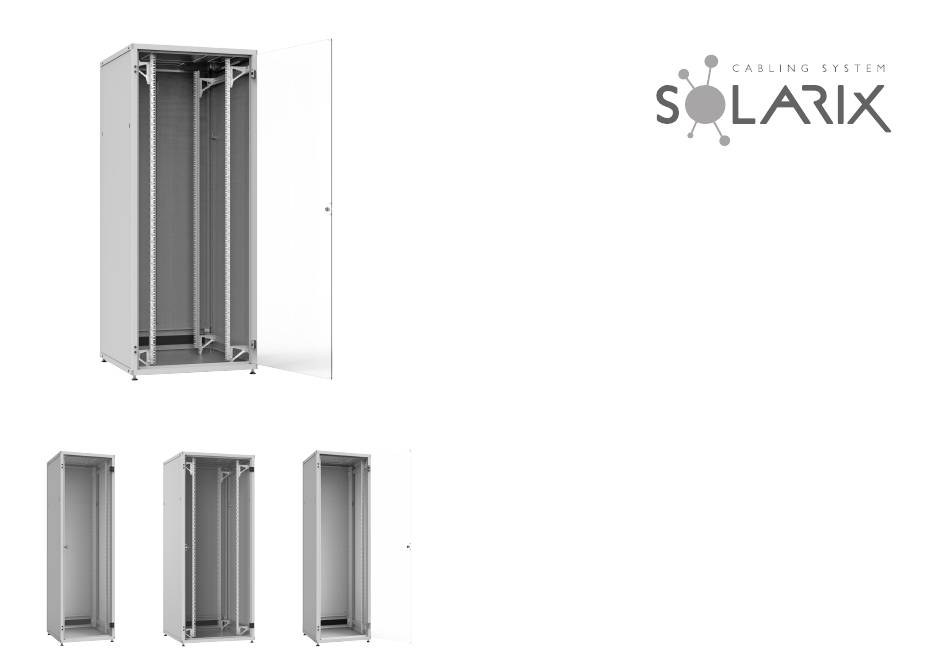

  • Page 1 Solarix LC-50 network/server cabinet assembly manual for cabinets 600, 800 and 1 000 mm deep...
  • Page 2 LC-50 assembly manual Packaging method, the contents of packaging Package 1 Package 3 Package 1 Package 3 F x1 G x1 F x1 G x1 Cabinet’s dimension [mm] Package’s dimension [mm] Front door Rear door Front door Rear door height...
  • Page 3 LC-50 assembly manual Packaging method, the contents of packaging Package 2 Package 1 Package 3 Package 2 Package 1 Package 3 Cabinet’s dimensions [mm] Packege’s dimensions [mm] width depth 1000 1005 x8 (D=600/800, W=600) x32 (D=600/800, W=800) x12 (D=1000, W=600)
  • Page 4 LC-50 assembly manual List of necessary tools Wrench 19 and 27 Screwdriver PH3 Hex key 8 Socket wrench SW10 and 8 (supplied with the cabinet and electric screwdriver - item no. 22)
  • Page 5 LC-50 assembly manual Frame’s assembly - list of elements Frame’s top plate Frame’s bottom plate See detail A Frame’s post Detail A x8 (80 Nm) Hex-socket screw M12x20 Pre-installed screws in the bottom (A) and the top (B) plate corners...
  • Page 6 LC-50 assembly manual Frame’s assembly - mounting posts to the bottom and the top plate Step 1 Step 2 Step 3 Step 4 Mounting of the post Mounting of the remaining posts to the bottom plate Detail B Detail C...
  • Page 7 LC-50 assembly manual Frame’s assembly - screwing the frame, fixing of the C-profiles - 600 or 800 mm deep cabinets Step 6 See detail H Fixing the complete frame (screwing) See detail G Hex key 8 Detail H (80 Nm)
  • Page 8 LC-50 assembly manual Frame’s assembly - screwing the frame, fixing of the C-profiles - 1000 mm deep cabinets Step 6a See detail H Fixing the complete frame (screwing) See detail G Hex key 8 Detail H (80 Nm) Step 7a...
  • Page 9 LC-50 assembly manual Fixing of the levelling feet and the mounting profiles Step 8 Step 9 Fixing of the levelling feet Fixing of the mounting profiles in 600 mm or 800 mm wide cabinets See detail K See detail M See detail L (5.2 Nm)
  • Page 10 LC-50 assembly manual Fixing of the side panels Step 10 Fixing of the side panels See detail O Detail O Installation of the locks in the side panels Note: For covers, use locks with a cam of this shape.
  • Page 11 LC-50 assembly manual Fixing of the door Step 11 Fixing of the door with 180° hinges Detail G See detail G See detail H Detail H...
  • Page 12 LC-50 assembly manual Fixing of the door Step 12 Fixing of the shortened door with 110° hinges See detail L and the 3U module panel with the brush strip Szczegół J See detail O on page 10 See detail K...
  • Page 13 LC-50 assembly manual The doors and the side panels earthing Step 13 Fixing of the earthing cables See detail P See detail O Detail O Detail P The earthing cable Mounted to door or side panel Mounted to cabinet's frame...

  • Page 14: Levelling The Cabinet

    LC-50 assembly manual Levelling the cabinet Detail Z Spirit level Wrench 19 1. Level the cabinet using the levelling feet (27) regulation. 2. After levelling the cabinet, tighten the nuts (28) to the cabinet’s bottom plate. See detail Z...
