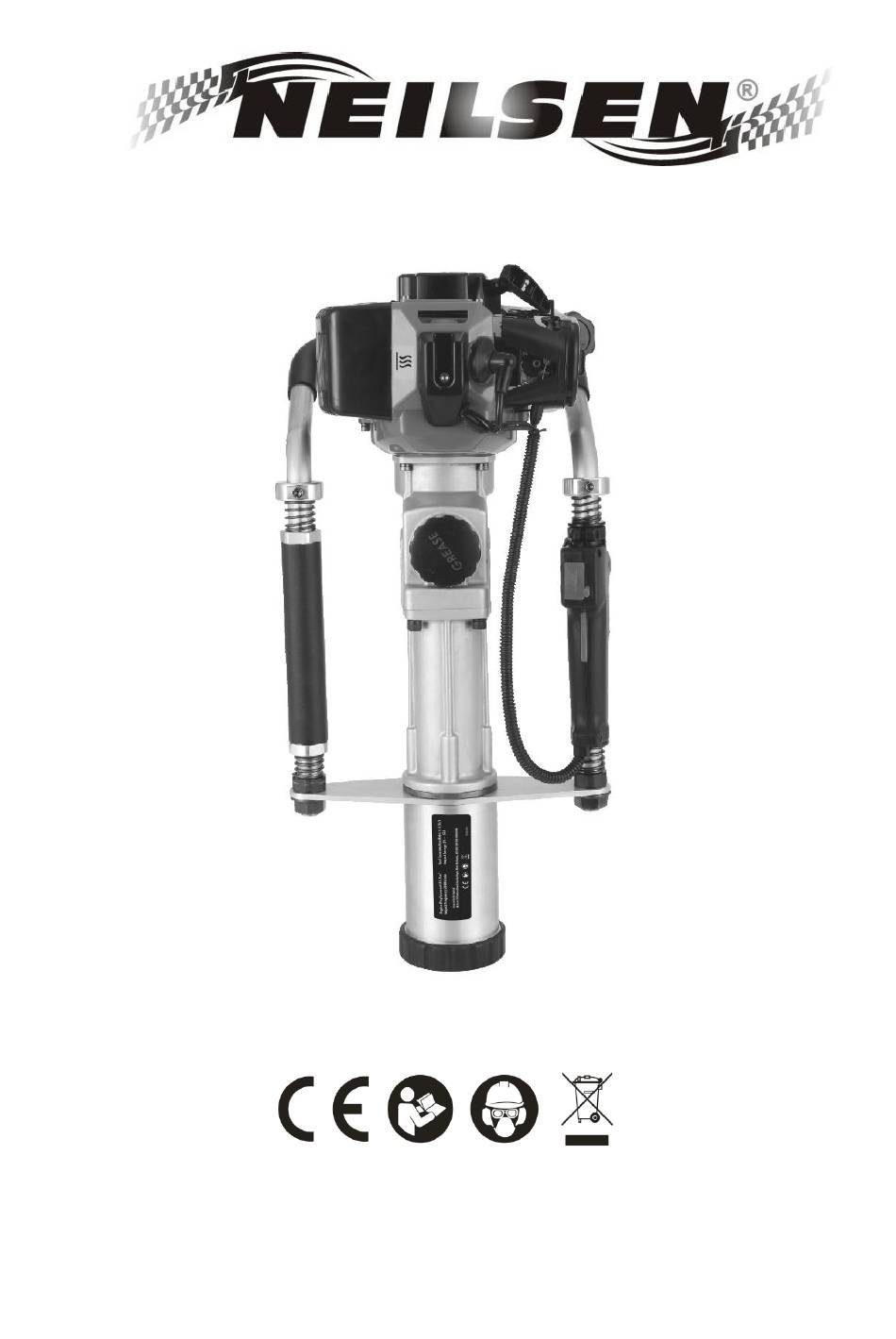

- Page 1 GASOLINE PILE DRIVER CT4343 ORIGINAL INSTRUCTIONS Read the operating instructions thoroughly before work and keep it for future reference. Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
-
Page 2: Ec Declaration Of Conformity
EC Directive based on its design and type, as brought into circulation by us. In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: GASOLINE PILE DRIVER Model: CT4343 Applicable EC Directives: EC-Machinery Directive 2006/42/EC EC- Directive of Electromagnetic Compatibility：... - Page 3 User Manual For your safety, please read the manual carefully before using the machine, otherwise physical injury or mechanical damage may be caused. Symbols Read instruction manual and follow the warning and safety precautions! Particular care and caution! Wear protective helmet, eye and ear protection, and respiratory protection! Wear protective gloves! No smoking!
- Page 4 1. Name of Main Parts Name of Part Name of Part Name of Part Combination Stop Button Spark Plug Cap Switch Ventilation Switch Oil Can Handle Rack Fuel Bubble Throttle Knob Throttle Button Front Placket Piling Socket Piling Socket Retainer Support Plate Handle Sleeve Grease Cap...
- Page 5 2 . Description of Safe Operation 1. The operator must wear slip-resistant safety shoes and suitable clothing. For long-time operation, he or she must wear a goggle,a helmet, and earplugs. 2. While operating the machine, please keep balance of the body, and stand in front of Air Filter to operate the machine.
- Page 6 Preparation before Use 4.1Piling Socket 4.1.1 Install or change piling socket retainer. Select a corresponding retainer according to the sizes of the piling from 20mm-45mm or 46mm-80mm, as it’s shown in Fig.3., such as Fig 3 4.2 Fuel Use 90# gasoline and two-stroke special engine oil or above Recommended mixing ratio Condition Gasoline: engine oil...
- Page 7 Choke (ON and OFF Start Handle position of cold engine) Fuel Bubble Fig 4 5.2. Set the machine upright according to Fig. 4. Hold the upper part of the handle tightly with one hand while the other pulls the pulling handle of starter for over 50cm quickly. Do not let the pulling handle go back freely in repeated pulling but hold it tightly to avoid injury resulting from quick resilience.
- Page 8 . Turning off the Machine 7.1 Release throttle button and carry out idle running of the machine for 3-5 minutes. 7.2 Pull Stop Button to the position of flameout. See the position of Stop Button in Fig.5. Stop Button Fig 5 Technical Maintenance 8.1 Air Filter Check air filter regularly.
- Page 9 8.3 Carburetor Oil can and carburetor generally have residual oil. After some time, the residual oil will become greasy oil which will block up the oil line, causing incapability of starting the engine. Therefore, when the machine is not used for more than one week, be sure to completely take the fuel out. Method: Pull out the oil inlet pipe, pressthe fuel bubble of the carburetor repeatedly for oil discharge, and press the oil inlet pipe back to its...
- Page 10 . Failure Analysis and Its Eliminating Methods Problem analysis and solving Example 1: Difficulties in starting engine in cooling state. →Wipe dry thespark plug Whether thespark plug is damp ↓ →Replace the spark plug Whether the spark plug produces electric spark ↓...
- Page 11 Key Data of Product Gasoline engine type Single cylinder, air cooling, 2 stroke Model CT4343 Fuel Mixed oil (Gasoline: two-stroke engine oil=25:1) Fuel tank capacity 0.9L Weight (excluding fitting) 11Kg Displacement 32.7cm Max torque and speed 1.45N.m/5000r/min ≤0.50L/h Fuel consumption rate...
- Page 12 Maintenance Cycle The following Data are given from the common use of the product. Under worse working conditions such as dusty environment or long work hours of the pile driver, the maintenance cycle should be shortened correspondingly. Outlook check (state, √...
- Page 13 12. Parts List and Exploded View of CT4343 Pile Driver Parts Parts Name Name Gasoline Engine Front Placket Driven Disk Elastic Washer 8 Inner Hexagon Cylindrical-head Screw Inner Hexagon M5×12 Cylindrical-head Screw M8×20 Elastic Washer 5 Front Paper Pad Bearing Pressing Plate...
- Page 14 Exploded View of JH65GPD Pile Driver...
- Page 15 13. Parts List and Exploded View of CT4343 Gasoline Pile Driver Parts Parts Name Name Cross Recessed Pan Head Combination Screw M5×20 1-36 Inlet Pipe Starter 1-37 Inlet Pipe Pad Starter Aluminum Pad 1-38 Cylinder Block Start Dial Disc 1-39 Cylinder Block Gasket Oil Seal FB12×22×7...
- Page 16 Exploded View of JH65GPD Gasoline Pile Driver...
- Page 17 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
