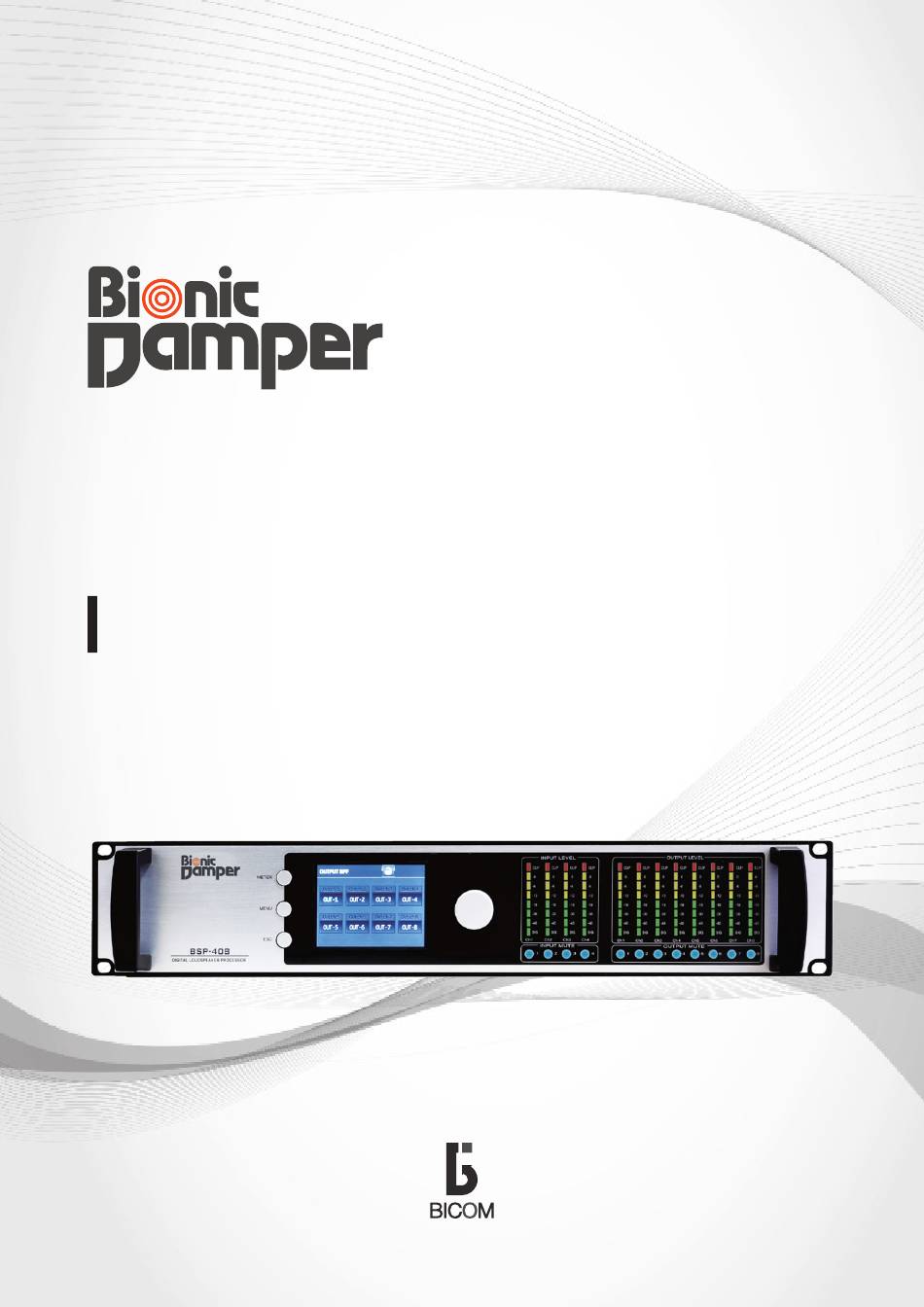

  • Page 1 OPERATION MANUAL DIGITAL LOUDSPEAKER PROCESSOR BSP - 408...

  • Page 2: Before Use

    Before use Make sure to read the instructions carefully before use and use the product in the correct manner to exert the functions of this product sufficiently for long. Cautions for handling Cautions for installation Do not open the cap of the Do not connect power plug into the power outlet before access comple- product.

  • Page 3: Safety Instructions

    DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 Safety instructions Read carefully ‘safety instructions’ and ‘operation manual’ before use and use in the correct manner. After reading, keep this at a location to refer at any time. Warning If there is a strange sound or smoke is coming from the product, turn off the power ■...
  • Page 4 Warning Do not block the ventilating hole of the product. Internal heat may result in fire. ■ Avoid the usage as below. - Do not turn over or lay on its side - Do not push into this product nor use the product in a box or other narrow place of bad ventilation than the rack.
  • Page 5 DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 Product property ■ Product Overview DSP-based Loudspeaker Management Processor BSP series is digital loudspeaker processor of professional sound market and designed based on 40bit Float- ing Point DSP chip and high-quality converter of 96KHz and 24bit. BSP series provides 31 band graphic equalizer, 9 band parametric equalizer, X-over (crossover), limiter and other different functions for loudspeak- er management.

  • Page 6: Front Panel Functions

    Front Panel Functions ④ ⑤ ① ② ③ ⑥ ① Mode Buttons There are three keys: •METER Key: show the information of gain and routing status •MENU Key: go to menu screen for device’ s parameter set-up •ESC Key: move to previous menu ②...

  • Page 7: Rear Panel Functions

    DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 Rear Panel Functions ⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ① ① Main Power Unit Turn the device power on/off. AC main input to the universal switched mode power supply, op- erates over a wide range of AC input voltages from 100V to 240V, 50/60Hz. Main Fuse is located in a finger-proof holder adjacent to the mains inlet and its spec is 2.5A-250V.
  • Page 8 ⑦ Digital Input terminal Receives AES/EBU digital input signal. This connection is wired like the audio analog connection, but we recommend the use of the proper thress conductor, 110-Ohm, twisted pair cable. ⑧ Digital Output terminal Send AES/EBU digital output signal. ⑨...
  • Page 9 DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 MENU TREE METER INPUT STATUS OUTPUT STATUS INPUT MENU INPUT : 4CH ANALOG, AES/EBU INPUT set-up SELECT GAIN : 4 INPUT channels GAIN value set-up GRAPHIC EQ : 4 INPUT channels 31 Band frequency GAIN set-up : 4 INPUT channels 9 Band frequency filter time and frequency GAIN set-up PARAMETRIC EQ : 4 INPUT channels delay time set-up (Time period set-up)
  • Page 10 Set-up modification and method < BSP-408 LCD set-up screen > Set-up modification is done by LCD touch and the application is immediately executed. Also, when the Lock key is turned on at the LCD screen, no modification of any data value is unavailable. In this case, turn off ‘Lock’ to modify any data value.
  • Page 11 DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 A. Select MENU → INPUT → INPUT SELECT. B. This screen is to route the input source selected willingly from 4 sound source inputs on LCD screen (you may set up analog or digital input into the input port you want). 2-2) INPUT GAIN set-up A.
  • Page 12 B. On the Gain set-up screen and at the input to control its volume (IN 1~4), click button to modify the sound GAIN. 2-3) INPUT GRAPHIC EQ set-up A. Select MENU → INPUT → GRAPHIC EQ B. On the INPUT G-EQ set-up screen, select the input channel you want (CH 1 ~ CH4). Then, click button to modify the sound GAIN.
  • Page 13 DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 A. Select MENU → INPUT → PARAMETRIC EQ. B. Select the input channel (CH1~CH4) you want on the INPUT P-EQ set-up screen and set the frequency filter you want among , or C. Select any Band (1~9) you want among 9 Band Parametric EQ. then select the value of Fc (Central fre- quency), Gain, and Q (Slope) and set up the value you want by clicking button or number buttons.

  • Page 14: Output Setup

    A. Select MENU → INPUT → INPUT DELAY. B. On the INPUT DELAY set-up screen, select the input channel you want (CH1~CH4) and set up the Meter you want by clicking buttons or number buttons. 3) OUTPUT set - up 3-1) OUTPUT MATRIX set-up A.
  • Page 15 DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 disappears and it will be cancelled. 3-2) OUTPUT ROUTE set-up A. Select MENU → OUTPUT → OUTPUT ROUTE B. Set which number of device port to send analog/digital output as for the OUTPUT channel as the output set-up.
  • Page 16 A. Select MENU → OUTPUT → GAIN B. On the Gain set-up screen and at the out to control its volume (OUT 1~8), click button to modify the sound GAIN. 3-4) OUTPUT BPF(Band Pass Filter) set-up A. Select MENU → OUTPUT → BPF. B.
  • Page 17 DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 C. Select the filter to set up on BPF set-up screen. D-1. The FIR function set-up screen appears if you select FIR filter. ① Set-up the standard frequency to filter LOW part frequency. ② Set-up the standard frequency to filter HIGH part frequency. ③...
  • Page 18 3-5) OUTPUT GRAPHIC EQ set-up A. Select MENU → OUTPUT → GRAPHIC EQ. B. On the OUTPUT G-EQ set-up screen, select the output channel you want (CH1~CH8) and the frequency band among 31Band frequencies to control the sound GAIN. 3-6) OUTPUT PARAMETRIC EQ set-up...
  • Page 19 DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 A. Select MENU → OUTPUT → PARAMETRIC EQ. B. Select the output channel (CH1~CH8) you want on the OUTPUT P-EQ set-up screen and set the frequency filter you want among , or C. Click button and select any Band (1~9) you want among 9 Band Parametric EQ.
  • Page 20 A. Select MENU → OUTPUT → OUTPUT DELAY. B. On the OUTPUT DELAY set-up screen, select the output channel you want (CH1~CH8) and set up the Meter you want by clicking buttons or number buttons. 3-8) OUTPUT LIMITER set-up A. Select MENU → OUTPUT → OUTPUT LIMITER B.

  • Page 21: System Setup

    DIGITAL LOUDSPEAKER PROCESSOR BSP - 408 4) SYSTEM set-up A. Select MENU → SYSTEM ① You may identify system name, IP, GATEWAY, SUBNET MASK, and MAC ADDRESS. ② Click to check system version. 5) CONFIG set-up A. Select MANU → CONFIG → PRESET B.
  • Page 22 Specification and Function Classification Details SPEC Internal Sampling Rate 96KHz A/D, D/A A/D, D/A Bit Resolution 24Bit Performance Dynamic Range 115dB (@A-weight) Inputs and outputs 4 Input, 8 Outputs Input Impedance 20KΩBlanced Maximum Input Level 20dBu (@0dB input Gain) Analog THD+N <...

  • Page 23: About Warranty

    This product is warranted against detects in components and workmanship only, for a period of two years from the date or shipment to the end user. During the warranty period, BICOM will, at its discretion, either repair or replace products that prove to be defective, provided that the product is returned, shipping prepaid, to an authorized BICOM service facility.
  • Page 24 BSP-408 www.ibicom.net Headquarter and plant 50 Gwajeong-ro 348 gil, Yeonje-gu, Busan, South Korea TEL : +82 (51) 867-3700 / FAX : +82 (51) 853-9588 Operating headquarter 112 Jandari-ro, Mapo-gu, Seoul, South Korea TEL : +82 (2) 336-0336 (ext. 300) / FAX : +82 (2) 336-0076 MADE IN KOREA BSP-408-R0...
