KISANKRAFT KK-CSP-5720 User Manual

KISANKRAFT KK-CSP-5720 User Manual

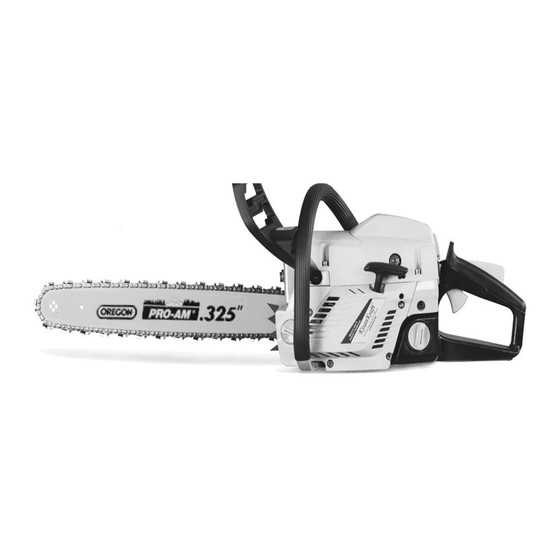

Heavy duty petrol chainsaw

Advertisement

Quick Links

KisanKraft
HEAVY DUTY
Product
Petrol Chainsaw
KisanKraft
Brand
KK-CSP-5720
Model
KK-CSP-8650
W
ARRANTY
6
P
ERIOD
Dealer's
Invoice Date
Buyer's Info (Name, Address, Phone,
etc.):
Buyer's Sign
What is covered: KisanKraft Limited and its manufacturers warrant this product to
be free from defects in material or workmanship. All parts defective in material and
workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its
manufacturers at the premises of Authorized Dealers, of such parts as appear to
KisanKraft or its manufacturers, upon inspection, to be defective in material and/or
workmanship. KisanKraft or its manufacturers make no warranty with respect to trade
accessories not manufactured or sold by them.
What is not covered: The warranty shall become null and void and neither
KisanKraft Limited nor any of its manufacturers, nor its authorized dealers assumes
any responsibility, if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of
machine or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical
damage, (6) Repairs made by unauthorized parties and/or with unauthorized parts,
(7) Improper set up, adjustments, tampering or altered products
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer's stamp.
KisanKraft Limited
: www.kisankraft.com
Warranty Certificate
®
MONTHS
(formerly known as KisanKraft Machine Tools P Ltd)
: info@kisankraft.com
(D
C
EALER
OPY
KisanKraft
Invoice
Date
KisanKraft
Invoice No.
F
OR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER
.
IS EARLIER
Dealer's
Invoice No.
Dealer's Stamp (Address, Phone, TIN,
etc.):
Dealer's
Sign
: +91.80. 22178200
)
Page 1 of 52

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KK-CSP-5720 and is the answer not in the manual?

Questions and answers

Summary of Contents for KISANKRAFT KK-CSP-5720

  • Page 1 This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers at the premises of Authorized Dealers, of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship.
  • Page 2: Kk-Csp

    Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited or any of its manufacturers has the authority to increase or alter the obligations of this warranty. Assignment / Transfer of warranty: The warranty cannot be assigned and shall not transfer if the product is resold by the first buyer.
  • Page 3 ® KK-CSP-5720-8650 User Manual KisanKraft Limited (Formerly known as KisanKraft Machine Tools Pvt. Ltd) Sri Huchhanna Tower, #4,1 Main,7-A Cross, Maruthi Layout, Dasarahalli, HAF Post, Hebbal, Bangalore 560024,Karnataka, INDIA ♦ Bangalore (HO) ♦ Ahmedabad ♦ Bhopal ♦ Bhubaneswar ♦ Coimbatore ♦...
  • Page 4 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 4 of 52...
  • Page 5: Table Of Contents

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 CONTENTS BEFORE GETTING STARTED................8 SAFETY SYMBOLS ..................8 SAFETY PRECAUTIONS ................10 PARTS OVERVIEW ..................15 INSTALLING GUIDE BAR AND SAW CHAIN ..........16 FUEL AND CHAIN OIL .................. 17 STARTING AND STOPPING ................20 SAWING .....................
  • Page 6 This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers at the premises of Authorized Dealers, of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship.
  • Page 7 Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited or any of its manufacturers has the authority to increase or alter the obligations of this warranty. Assignment / Transfer of warranty: The warranty cannot be assigned and shall not transfer if the product is resold by the first buyer.
  • Page 8: Before Getting Started

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 BEFORE GETTING STARTED We wish to thank you for choosing our product. We are confident that the high quality of our product will meet your requirement and will give you long-lasting service. In order to avoid accidents or injury, please read this manual carefully before using the machine.
  • Page 9 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 IMPORTANT If warning seals peel off or become soiled and is impossible to read, you should contact the dealer from which you purchased the product to order new seals and affix the new seal(s) in the required location(s).
  • Page 10: Safety Precautions

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 Chain brake, activated (right) Chain brake, not activated (left) SAFETY PRECAUTIONS Before Using the Machine: Read this operation manual carefully to understand how to operate this properly You should never use the product when under the...
  • Page 11 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 as follows. (1) Helmet (2) Protection goggles or face Protector (3) Thick work gloves (4) Non-slip-sole work boots (5) Ear protectors And you should carry with you the below given things: (1) Attached tools and files.
  • Page 12 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 Use caution and keep by standers and animals out of the working area whose diameter is 2.5 times of the cutting object. Inspect the machine for worn, loose, or damaged parts .Never operate the machine...
  • Page 13 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 with thumbs and fingers encircling the chain saw handles. A firm grip will help you reduce kickback and maintain control of the saw.  Make certain that the area in which you are cutting is free from obstructions Do not let the nose of the guide bar contact a log, branch, or any other obstruction which could be hit while you are operating the saw.
  • Page 14 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650  The way the chain brake is activated, either manually or automatically by the inertia release mechanism, depends on the force of the kickback and the position of the chain saw in relation to the object that the kickback zone of the bar strikes.
  • Page 15: Parts Overview

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 the sharp chain. Even a non-moving chain can cause serious cuts to yourself or persons you bump into with an exposed chain.  Secure the machine during transport. PARTS OVERVIEW Front handle Bar protector...
  • Page 16: Installing Guide Bar And Saw Chain

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 INSTALLING GUIDE BAR AND SAW CHAIN WARNING The saw chain has very sharp edges. Use thick protective gloves for safety. Pull the guard towards the front handle to check that the chain brake is not on.
  • Page 17: Fuel And Chain Oil

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 The chain is correctly tensioned when it does not sag from the underside of the bar, but can still be turned easily by hand. Hold up the bar tip and tighten the bar nuts with the plug wrench.
  • Page 18 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 25:1 Mix Chart Petrol(L) 2-cycle oil (ml) 30:1 Mix Chart Petrol(L) 1200 1500 2-cycle oil (ml) WARNING  Keep open flames away from the area where fuel is handle or stored.  Mix and store fuel only in an approved gasoline container.
  • Page 19 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 Untwist and remove fuel cap. Rest the cap on a dustless place. Put fuel into the tank to 95% of the full capacity. Fasten the fuel cap securely and wipe up any fuel spillage around the unit.
  • Page 20: Starting And Stopping

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 STARTING AND STOPPING Starting the Engine: The chain brake should be activated when starting the chain saw. Activate the chain brake by pushing the front hand guard forwards. Press the oil cup repeatedly until fuel begins to fill the diaphragm (about 3~6 times).
  • Page 21: Sawing

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 NOTE When restarting immediately after stopping the engine, leave the choke knob at the open position. WARNING Do not start the engine while holding the chainsaw with hand. The saw chain may touch your body and is very dangerous.
  • Page 22 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650  Never use a chain saw by holding it with one hand. A chain saw is not safely controlled with one hand. Always have a secure, firm grip around the handles with both hands.
  • Page 23 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 WARNING When you fell a tree, be sure to warn person of the danger Bucking and Limbing WARNING  Always ensure your foothold. Do not stand on the log.  Be alert to the rolling over of a cut log. Especially when working on a slope, stand on the uphill side of the log.
  • Page 24: Maintenance

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 Cut up from the bottom, finish down from the top. MAINTENANCE WARNING Before cleaning, inspecting, or repairing your unit, make sure that engine has stopped and is cool. Disconnect the spark plug to prevent accidental starting.
  • Page 25 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 Guide bar When the guide bar is dismounted, remove Saw dust in the bar groove and the oiling port. Grease the nose sprocket from the feeding port on the tip of the bar.
  • Page 26 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 Spark Plug Clean the electrodes with a wire brush and reset the gap to 0.5~0.65mm as necessary. Sprocket Check for cracks and for excessive wear interfering with the chain drive. If the crack...
  • Page 27 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 WARNING It is very important for smooth and safe operation to keep the cutters always sharp. The chain needs sharpening if you observe any of the below mentioned: Sawdust becomes powder-like. You need extra force to saw in.
  • Page 28: Troubleshooting

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 After every cutter has been set, check the depth gauge and file it to the proper level as illustrated. WARNING Be sure to round off the front edge to reduce the chance of kickback or tie-strap breakage.
  • Page 29 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 No fuel in the tank Fill the tank with fuel Fuel valve is faulty or fuel No fuel in the Clear air vent hole carburetor tank air vent is plugged. Lines are bent Replace lines 2.
  • Page 30 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 Problem Probable Cause Remedy Faulty magneto or internal Replace he magnet short Overheated cylinders Replace the cylinder Right quantities of petrol Overload operation and oil should be mixed Faulty mixture or incorrect enable proper Engine doesn’t sound right...
  • Page 31: Technical Specifications

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 TECHNICAL SPECIFICATIONS Chain saw Model KK-CSP-5720 KK-CSP-8650 51cms (20”) 46cms (18”) Guide bar Size (in.) Displacement(cc) 50.8 Rated power (kW) 9000 Fuel Mixture (Petrol 25:Two-cycle oil 1) Fuel tank capacity(ml) Chain (Oregon) oil...
  • Page 32: Parts Diagram & List- Body

    KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 PARTS DIAGRAM & LIST- BODY : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 32 of 52...
  • Page 33 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 KK-No KK-Name KK-No KK-Name Front Damper (RC) B-36 Trigger Torsion Spring Washer Guidance B-37 Base Lump Guidance Lump B-38 Trigger control Rack Recall Spring B-39 Handle Cover Dental Plate B-40 Tensioner Cover Plate (RC)
  • Page 34 KisanKraft HEAVY DUTY Petrol Chainsaw ® KK-CSP-5720-8650 KK-No KK-Name KK-No KK-Name B-25 Front Handle B-59 Bolt Allen M5x20 Bolt Allen M5x20 W/P B-26 Fuel Pipe Short B-60 Washer B-27 Grommet Fuel Pipe B-61 Tapping Screw B-28 Fuel Pipe Long B-62 Screw ST M4.
  • Page 35: Stroke Petrol Engine- Manual

    Do not operate the engine with the muffler or air cleaner cover removed. (Inspect particularly the muffler at regular intervals for loose mounting screws, breakage or leakage, and repair or replace it if any abnormality is observed.) : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com...
  • Page 36 Cooling air inlet specifications.) Fuel tank cap Clutch Fuel tank 10. Ignition plug cap Muffler 11. Air cleaner Exhaust outlet 12. Carburetor (Types vary depending on the 13. Priming button specifications.) : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 36 of 52...
  • Page 37 Make sure to inspect these sections before operating the engine. Inspection of fuel  Is sufficient quantity of oil reserved?  Is not the fuel degenerated?  Use the proper fuel referring to the “Fuel” section. CAUTION : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 37 of 52...
  • Page 38 CAUTION Cracks, fissures or disconnection from joints could cause fire or explosion by leaked fuel. Service or replace damaged fuel pipe and grommet. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 38 of 52...
  • Page 39 (at the If only exploding sounds are heard, but it does not start, return the choke lever to the fully closed position and pull the starter grip vigorously once again. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 39 of 52...
  • Page 40 When the engine fails to start after trying recoil operation for 7 to 8 times. Return the starter lever to the operating position and try the recoil operation. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 40 of 52...
  • Page 41 In chase of a push button type switch, keep pressing the push button till the engine stops completely.  Replenish the fuel before using up completely. It will make easier at the next starting. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 41 of 52...
  • Page 42 Do not change the setting revolution speed of engine unnecessarily.  Be careful not to touch highly heated muffler or sections on the engine to avoid possible risk of burn. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 42 of 52...
  • Page 43 Inspection and retightening of  bolts, nuts  Inspection of fuel leakage  Inspection, cleaning of air cleaner Cleaning at cooling air inlet, cooling  fin and around muffler : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 43 of 52...
  • Page 44 After removing carbon accumulated on the electrodes and the insulator, adjust the clearance between the electrodes at 0.6 ~ 0.7 When mounting the plug cap, push it in securely Cleaning of fuel filter : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 44 of 52...
  • Page 45 Make sure to drain the fuel when storing the unit for a long period of time. Sufficient care must be taken not to use fires at the vicinity when handling the fuel. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com...
  • Page 46: Parts Diagram & List- Engine

    KisanKraft ® 2 - STROKE PETROL ENGINE PARTS DIAGRAM & LIST- ENGINE : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 46 of 52...
  • Page 47: Www.kisankraft.com

    Start Claw E-22 Cir clip Piston Pin E-55-3 Screw(Start Claw) Needle Bearing Piston Nut M8X1-Flanged E-23 E-56 E-24 Crank Shaft Assy E-57 Primer Bulb E-25 Key -Crankshaft E-58 Stand(Primer Bulb) : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 47 of 52...
  • Page 48: Www.kisankraft.com

    E-40 Air Cleaner Inside Cover E-74 x 50 E-41 Air Cleaner E-74-1 Bush For Bolt T-Slot E-42 Gasket Heat Insulation E-75 Nut Hex Flanged M5 E-43 Clutch Shoe Assy : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 48 of 52...
  • Page 49: Www.kisankraft.com

    KisanKraft ® PRODUCT RANGE KisanKraft has a large range of products to serve the farmers. A list of our products is given below: Brush Cutters and Accessories Cultivators and Accessories Brush Cutter/Power Weeder Petrol and Diesel Backpack Brush Cutter Sprayers and Accessories...
  • Page 50: Www.kisankraft.com

    KisanKraft ® PRODUCT RANGE Wide Range of Products for Every Need MISSED CALL: 07676065555 For more information give Many of our products have BIS: ISI certification. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 50 of 52...
  • Page 51: Www.kisankraft.com

    This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers at the premises of Authorized Dealers, of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship.
  • Page 52 Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited or any of its manufacturers has the authority to increase or alter the obligations of this warranty. Assignment / Transfer of warranty: The warranty cannot be assigned and shall not transfer if the product is resold by the first buyer.
