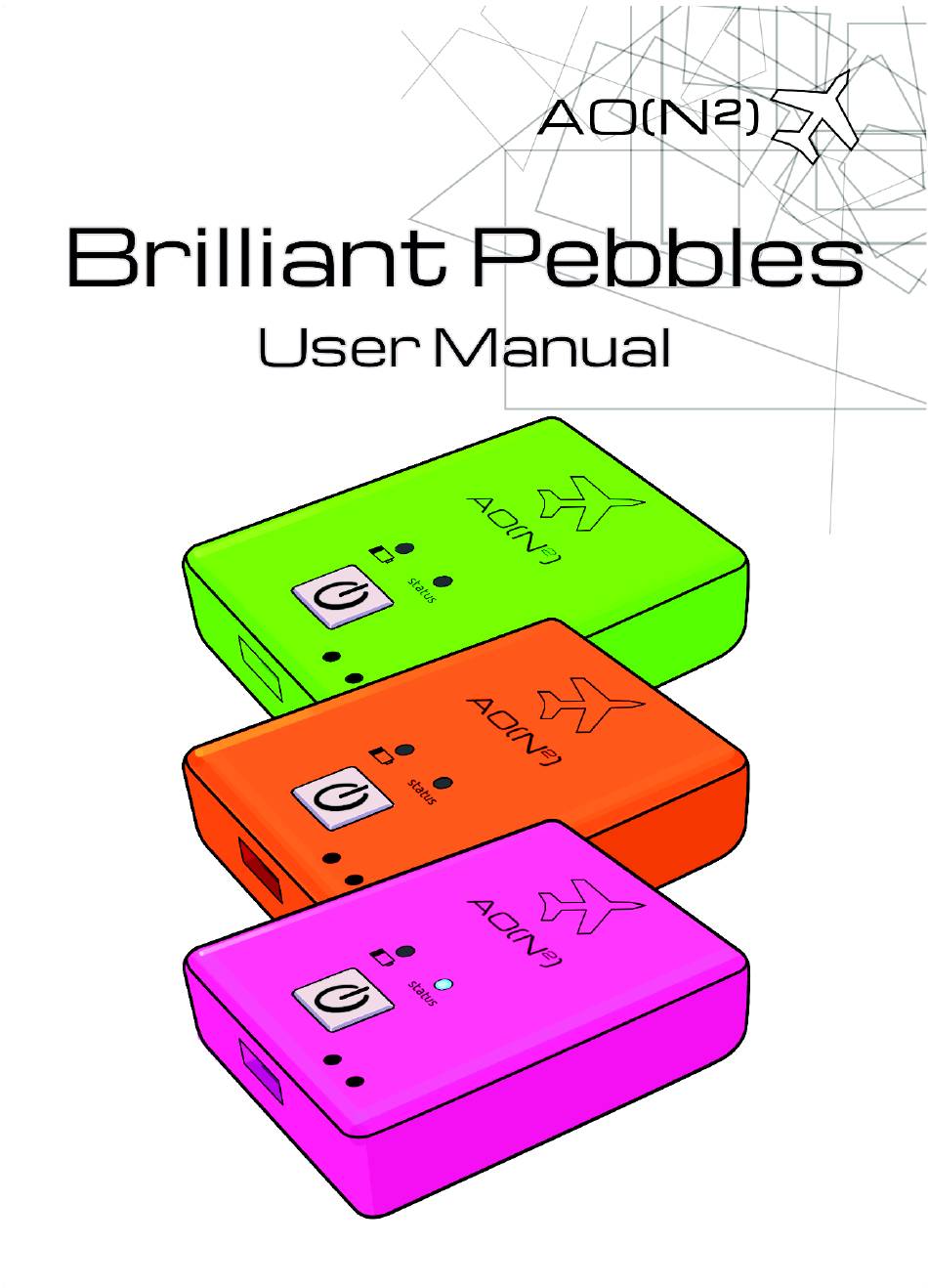

Summary of Contents for AO(N2) Brilliant Pebbles
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
Table of Contents Getting Started..................... 4 Default Settings....................5 Getting the Software................... 6 Using the Audible....................7 Manual Power Of....................8 Altimeter Modes....................9 Standby Mode..................9 Jump Mode..................9 USB Mode................... 9 Using the USB OTG adapter for Android devices........10 Audible Placement.................... 11 Frequently Asked Questions................12 Warranty and Support Information.............. -
Page 4: Getting Started
Getting Started Before you use the audible, please plug it in to a USB charger for at least 1 hour. A red light will indicate that the battery is charging: Red light - battery is charging A green light will go on when the battery charging is complete: If BOTH red and green LEDs are on when plugged in, this indicates a charging fault. -
Page 5: Default Settings
Default Settings The audible is programmed at the factory to the following default altitudes: Altitude Tone Duration 5500 feet (1676 metres) 3 seconds 4000 feet (1219 metres) 3 seconds 2000 feet (610 metres) 1 second 1000 feet (305 metres) 0.5 seconds If this works for you, then you can simply turn the device on and start jumping! Additional information on the device, including this manual, is... -
Page 6: Getting The Software
Getting the Software The AO(N²) Brilliant Pebbles app is available on 3 platforms: Laptops or desktops: Windows 7 or newer, 64-bit • OSX 10.9 (Mountain Lion) or newer • Phones or tablets with access to Google Play Store: Android 4.0 (KitKat) or newer •... -
Page 7: Using The Audible
Using the Audible Brilliant Pebbles is intended to be an easy to use device. Simply turn it on before starting jumping, and it will automatically turn itself of after 16 hours of operation. To switch on, press the power button. The blue... -
Page 8: Manual Power Of
Manual Power Of To turn of the audible manually, please press and hold the power button for at least 5 seconds, until the beeping sound stops and the blue status LED stops flashing. When switched of, the blue To turn of, 'status' LED press and hold will stop... -
Page 9: Altimeter Modes
Altimeter Modes Standby Mode The audible automatically sets its altitude to 0 when switched on, and continuously calibrates itself throughout the day. Standby mode is indicated by the status light blinking once every 4 seconds. Jump Mode When it detects a climb rate of at least 300 feet per minute (1.52 metres per second) the audible will switch to JUMP MODE. -
Page 10: Using The Usb Otg Adapter For Android Devices
Using the USB OTG Adapter for Android Devices Android phone or tablet adapter NOTE: direction of the cable is important Micro USB cable... -
Page 11: Audible Placement
Audible Placement The audible should be placed in your helmet with the logo side facing outwards and the hole pointing towards your ear. -
Page 12: Frequently Asked Questions
Frequently Asked Questions "When I convert between feet to metres and back, the altitudes are of by 1 or 2 feet – is this normal?" The altimeter works internally in metres. When the user enters their alarm values in feet, these are converted to metres and rounded of to the nearest metre. -
Page 13: Warranty And Support Information
Warranty and Support Information If within 12 months of the purchase of your instrument, a defect or damage is identified by faulty manufacture, AON2 will repair the unit at no cost to the end user. The warranty becomes void if damage is caused by external circumstances or if the device has been serviced or repaired by unauthorised third parties. -
Page 14: Technical Specifications
Technical Specifications operating altitude: -1500 to 30,000ft (-500m to 11000m) • pressure sensor precision: ±1m (±3.3 ft) • battery life: approximately 2 months, rechargeable lithium • automatic power-of (AAD-like operation): 16 hours ◦ USB charging ◦ weight: 21 grams • dimensions: 45x34.6x13.5mm •... -
Page 15: Ce Declaration Of Conformity
CE Declaration of Conformity Manufacturer: AON2 LTD. 68 Wood Mead, Stoke Gifford, Bristol BS16 1GQ, United Kingdom Telephone: +447815598568 Product: Brilliant Pebbles Audible Skydiving Altimeter Model Number: Brilliant-Pebbles-001 AON2 LTD, registered in England as company number 09436751, hereby declares that the above-referenced...
