Termoprodukt TERMIO-15 User Manual

Temperature datalogger
Hide thumbs Also See for TERMIO-15:
Table of Contents

Advertisement

Quick Links

www.termoprodukt.com.pl

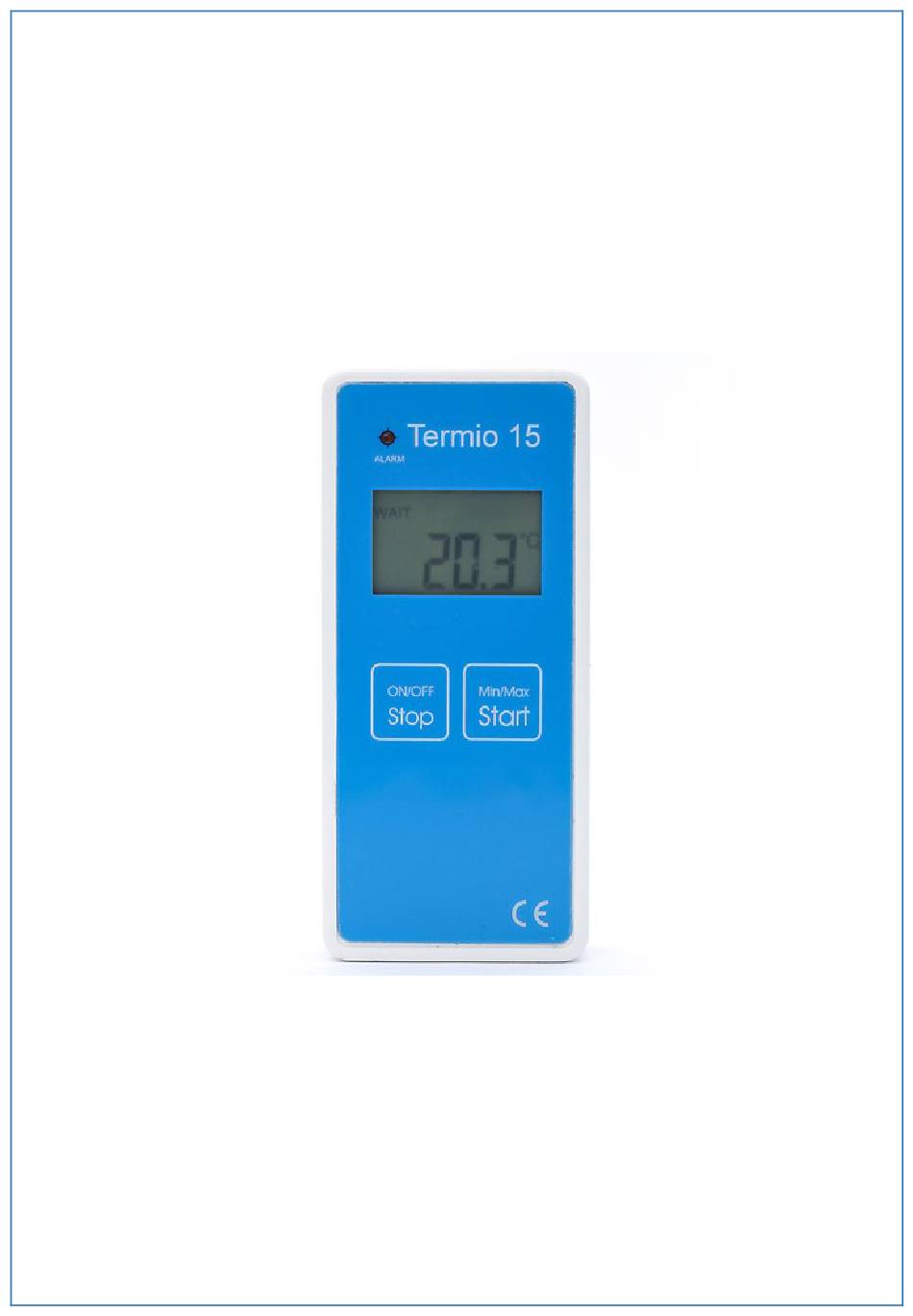

Temperature Datalogger
TERMIO-15
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TERMIO-15 and is the answer not in the manual?

Questions and answers

Related Manuals for Termoprodukt TERMIO-15

Summary of Contents for Termoprodukt TERMIO-15

  • Page 1 Temperature Datalogger TERMIO-15 USER MANUAL...

  • Page 2: Table Of Contents

    Table of contents 1. Features & destination ........................3 2. Specifications ............................4 3. Description ............................4 4. Installation PC software and starting up ....................5 5. Main window ............................5 6. Measurements .............................7 7. Registration ............................8 8. Settings .............................. 11 9. Results (logs) ............................. 12 10.

  • Page 3: Features & Destination

     save the results as .txt or .pdf format  update the soft of Datalogger TERMIO-15 Logger Termio-15 is equipped with a bootloader to update software of the device. Storing can be switched on/off directly from the device by pushing a button on the front panel...

  • Page 4: Specifications

    You can place this small-sized device everywhere. It can be easily connected to USB port by the adapter. 2. Specifications Temperature range -30°C to 70°C with external probe Resolution 0,01°C Accuracy -/+0,7°C or better Display Saving frequency From 1 minute...

  • Page 5: Installation Pc Software And Starting Up

    4. Installation PC software and starting up To install PC software on your computer: 1. Click and install SETUP.EXE file located in TERM15-INSTALL folder 2. Connect reader's plug to USB port 3. Place TERMIO-15 in the reader 5. Main window...
  • Page 6 After turning on the LogSoft you will see the main window of the programme. In case the device is connected, current status of the device will be read automatically. On the main window one can see basic information about Datalogger.

  • Page 7: Measurements

    The middle part of the bottom bar shows graphically the current status of the connection with logger. One can observe if the device is connected to the computer because reading of the basic data from the logger lasts during the connection. In case TERMIO-15 isn't connected to the computer, the bar stays still.

  • Page 8: Registration

    If the Datalogger is connected to the computer, one can see an information "Reading Data" in "Logger status" section. If TERMIO-15 is disconnected, one can see that the "USB interface is not connected". In "the Clock" tab we can manage "Current time" to set current date and time to the device.
  • Page 9 Remember that each beginning and stopping the storing creates a new file in device's memory. Beginning of the storing can be set in several ways. In a "Results" tab You can see 12 files and information about each of them (extension date and a number of stored measurements).
  • Page 10 It is impossible to stop measuring if the storing is set to "all the time" mode. Each try to turn it off "using a timer" or "using a button" will cause creating a new file in device's memory. After that the storing will be continued.

  • Page 11: Settings

    8. Settings In a "Settings" tab the user can set alert temperature limits. In case the temperature is under/over the set limit, the user can notice arrows on screen and red flashing led. The user can set alarms to "inactive", "always active" or "active while logging".
  • Page 12 The user can switch on the flashing led in LED DIODE tab:...

  • Page 13: Results (Logs)

    As You can see below in the "Results" tab are shown few created files: FILE1, FILE2, etc. Each process from start to stop logging creates a new file in device's memory. Choose "Delete" to delete all files at once from the TERMIO-15 memory. The user can't delete chosen files.
  • Page 14 Example of the stored data saved in TXT format: 0001 2013-09-02 11:59:14 20,67 0002 2013-09-02 11:59:15 20,66 0003 2013-09-02 11:59:16 20,67 0004 2013-09-02 11:59:17 20,67 0005 2013-09-02 11:59:18 20,68 0006 2013-09-02 11:59:19 20,67 0007 2013-09-02 11:59:20 20,67 0008 2013-09-02 11:59:21...

  • Page 15: Datalogging

    Example of the stored data saved in PDF format: Example of the stored data saved and presented in a graph format: 10. Datalogging To start the registration: Connect the device to the computer. Turn the computer on and start the LogSoft.

  • Page 16: Device's Work

    Set a method of start in a "Registration" tab, a logging rate and a task after filling a device's memory. In case of choosing a logging with a timing, choose a date and time. Set temperature alert ranges in the "Settings" tab.

  • Page 17: Battery Replacement

    "WAIT" on display. 12. Battery replacement A shape of battery on TERMIO-15 display signalizes the user that they should replace the battery. While using the battery, the device is working: it measures the temperature, it saves it to its memory and it displays exceeded temperature values.
  • Page 18 If the device works in low temperatures, the battery is low faster that 1000 000 registrations. A shape of the battery alarms to replace the battery or it would be stopped or stop working properly. Battery's replacement makes the battery's shape disappear from the device's screen.
