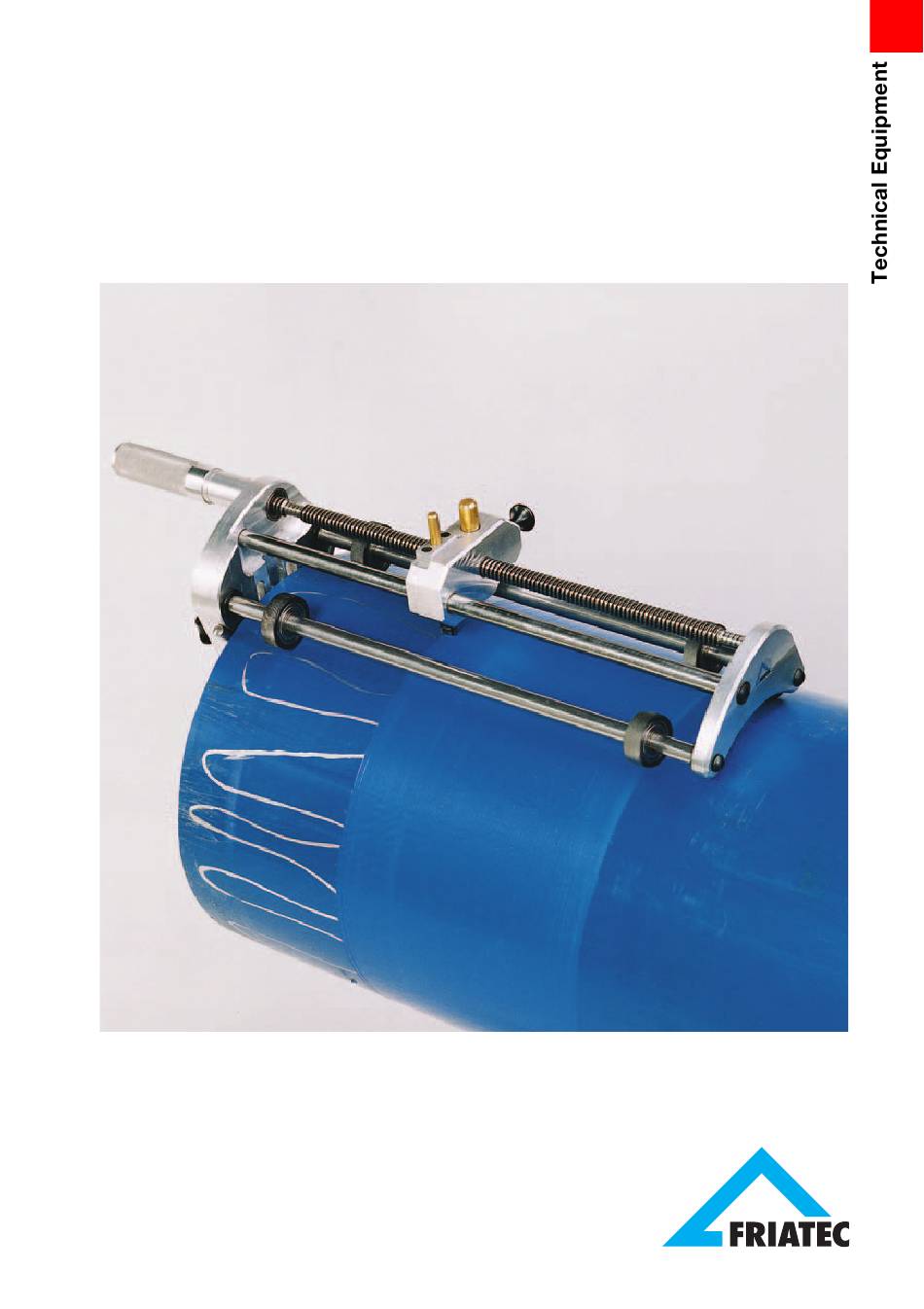

- Page 1 Operating Instructions Scraper Tool FWSG 710 L...
- Page 2 The FWSG 710 L scraper is for use pipe surface along the entire length on PE pipes with a diameter rang- of the coupler or half of it: ing from 10" IPS – 28" IPS and 10" DIP – 20" DIP. It is designed to •...
- Page 3 The appropriate dimension ranges are marked twice along the scraper's guide rod. The first marking nearer the front plate serves to set the areas to be scraped for a simple fusion process. The second marking nearer the end plate refers to the employment of slide-over couplers.
- Page 4 • Set clamping carriage in lower position: - Loosen twist grip knob. - By pressing against the twist grip knob, allows free movement of the clamping carriage. Move down clamping carriage (Picture 3). • Set blade housing to scraping length required (single or double scraping length).
- Page 5 III. Mounting of scraper • Move scraper across pipe in such a way that the clamping carriage is inside the pipe and the scraper blade is on the surface of the pipe (Picture 5). The housing must be flush with the front edge of the pipe.
- Page 6 V. Dismantling of the equipment • Loosen twist grip knob and remove scraper from pipe. • In order to prevent injuries or scraper damage, the blade housing should be moved up to the front plate on completion. VI. Preparing the fusion process •...
- Page 7 VII. Replacing scraper blade Operational safety The scraper tool FWSG 710 L is based on quality management Warning! according to DIN ISO 9001:2000 Risk of injury on the scraper and was checked with operational blade. safety in mind before dispatch. It is...
- Page 8 IPEX/FRIATEC PE ELECTROFUSION SYSTEMS Technical Plastics Division 426 Fairforest Way · Greenville, SC 29607 Tel.: 864-286-8800 · Fax: 864-234-2060 www.friatecusa.com · E-Mail: thoeng@ipexinc.com...
