Summary of Contents for TurboStart SMARTCHARGER CHG25A

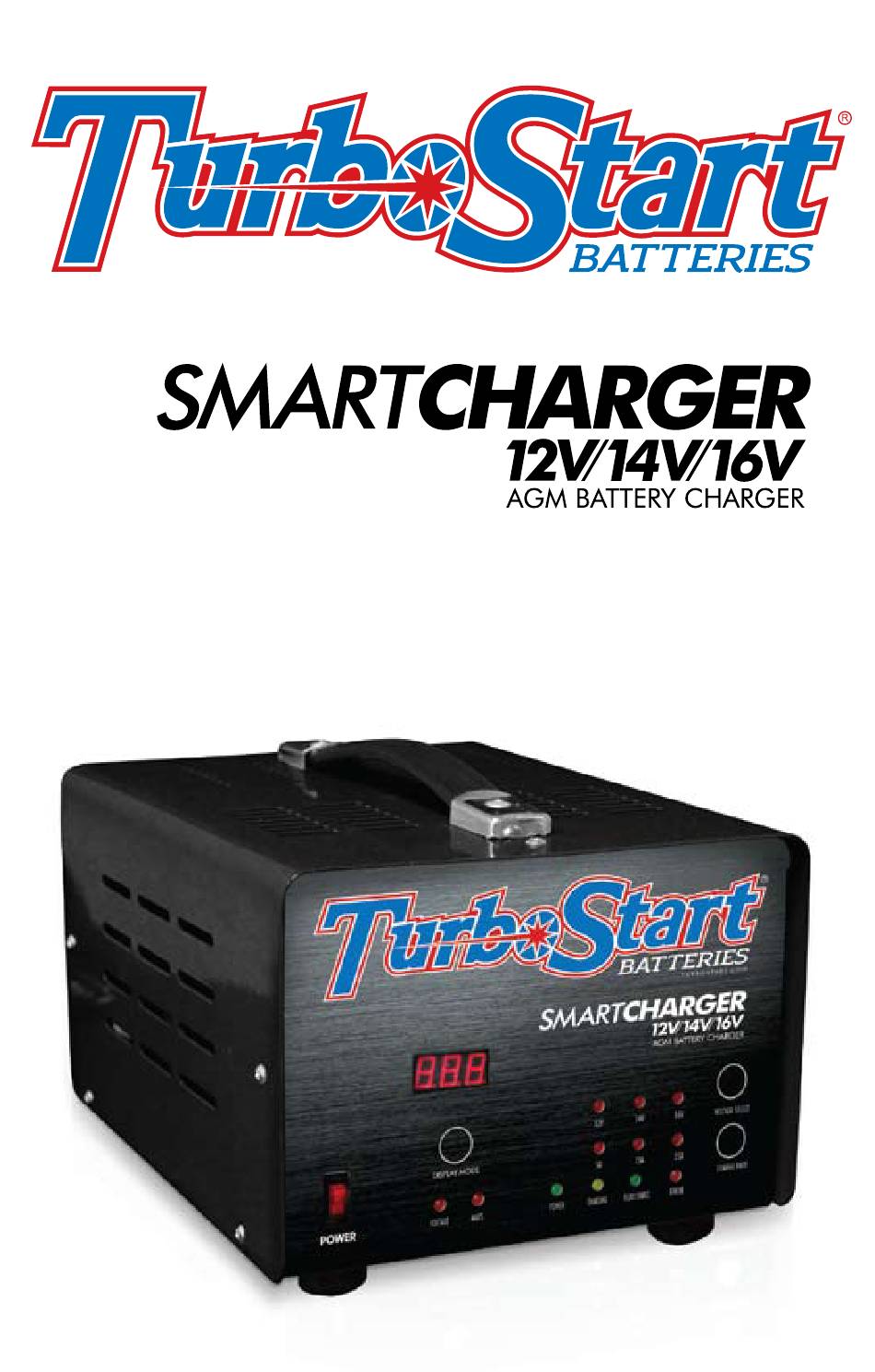

- Page 1 Controlled Multi-Stage SMARTprocessor 12V/14V/16V Charger P/N CHG25A / CHG25AE User GUide...
- Page 2 TurboStart designs and produces performance energy solutions for performance vehicles. Whether it’s a daily driven hot rod, custom street rod, or an all out on road or off road race vehicle, TurboStart has the battery, charger, and accessories to best solve your vehicles energy needs.
-
Page 3: Table Of Contents
Contents Turbostart SMARTCHArGer USER GUIDE Chapter 1, safety and Precautions ..........p. 1-2 Chapter 1 covers safety guidelines and precautions for using your SMARTCHArGer. Features and Functions Chapter 2, ............. p. 3-4 Chapter 2 explains the features, functions, specs, and benefits of the SMARTCHArGer. -
Page 4: Chapter 1, Safety And Precautions
9) Someone should be in the range of your voice or close enough to come to your aid when working with a lead-acid battery. 10) Do not attempt to remove the vent covers on sealed lead-acid batteries such as the TurboStart 16V AGM battery. Sealed... - Page 5 TurboStart Batteries recommend a minimum of a 16AWG cord for lengths up to 50’ and a...
-
Page 6: Features And Functions
Features of the Turbostart Turbostart SMARTCHArGer USER GUIDE Chapter 2 SMARTCHArGer are a group of advanced battery chargers designed specifically for high performance SMARTCHArGers 12V/14V/16V sealed lead-acid batteries. combine the reliability of a HFM rectified SMARTCHArGers assembly with a control board to create a battery charger that can rapidly and safely recharge SMARTprocessor 12V/14V/16V maintenance free, deep cycle, gel-cell, and AGM (Absorbed Glass Mat) batteries in several sizes. - Page 7 Physical specifications Turbostart SMARTCHArGer USER GUIDE Chapter 2 Physical Specifications - Dimensions ........ 8 ” W x 7” H x 11 ” D - Weight ........24 lbs (10.87 kg) - AC Input Connections ....5.0’ (1.5 m) AWG 16 - DC Output Connections ....
-
Page 8: Chapter 3, Operations
Battery Charging Turbostart SMARTCHArGer USER GUIDE Chapter 3 charge batteries in what is known as the multi-stage charging sequence. The charging SMARTCHArGers voltage delivered to the battery depends on the battery’s depth of discharge. The 3 stages are: • Stage 1 - Bulk • Stage 2 - Absorption/Equalization • Stage 3 - Float... - Page 9 SMARTCHArGer 2) Select the correct battery voltage. 3) Select the correct charging rate.(TurboStart 16V AGM battery should be charged at 15A when at the shop or 25A for rapid charging at the track.) 4) Connect the red positive (+) clip of the charger cables to the positive (+) terminal of the vehicle battery.
- Page 10 Turbostart SMARTCHArGer USER GUIDE Chapter 3 1) Volt & AMP Output Display: (Selectable) Indicates either voltage or amperage output of the charger. During Stage 1, “Bulk Charging”, amperage will display the selected charge rate. During Stage 2, “Absorption Charging”, this rate will naturally fall to zero as the battery percent of change nears 100%.
-
Page 11: Chapter 4, Troubleshooting
Troubleshooting Turbostart SMARTCHArGer USER GUIDE Chapter 4 Please read this chapter before calling Customer Service. If you cannot solve the problem with the , record the information asked for on “Information About Your System” on the back page SMARTCHArGer and then call Customer Service. Thank You. -
Page 12: Faqs
FAQ’s Turbostart SMARTCHArGer USER GUIDE Can I change the clamps on the charger with quick disconnects? Yes. We recommend soldering all electrical connections where possible. Can I run my electric water pump and cooling fan while charging? Yes with a word of caution. There are two issues. First the charger will only provide 25A maximum charge current. Any amperage being consumed by extra electrical loads (ie. - Page 13 CC = Charge current. The rated current output of the charger in amps. 80% = Typical charging efficiency for lead-acid batteries. Example: A TurboStart 16V AGM battery rated at 50 amp-hours is 60% discharged, that is, it has a DOD = 60%. Charging time with an 15A unit is calculated as follows: SMARTCHArGer Charging time = 50Ah x 60% = 1.3 hours (1 hours, 21 minutes)
-
Page 14: Warranty
TurboStart. There will be no obligations or liability on the part of TurboStart for consequential damages arising from the use of the product or any indirect damages with respect to loss of property, revenue, or costs for removal, installation, or reinstallation. -
Page 15: Customer Info
Customer information Turbostart SMARTCHArGer USER GUIDE As soon as you unpack your TurboStart , record the following information and be SMARTCHArGer sure to keep your proof of purchase. Serial Number (on back panel) Purchased From Purchase Date If you need to contact Customer Service, please record the following details before calling. This information will help our representatives give you better service.
