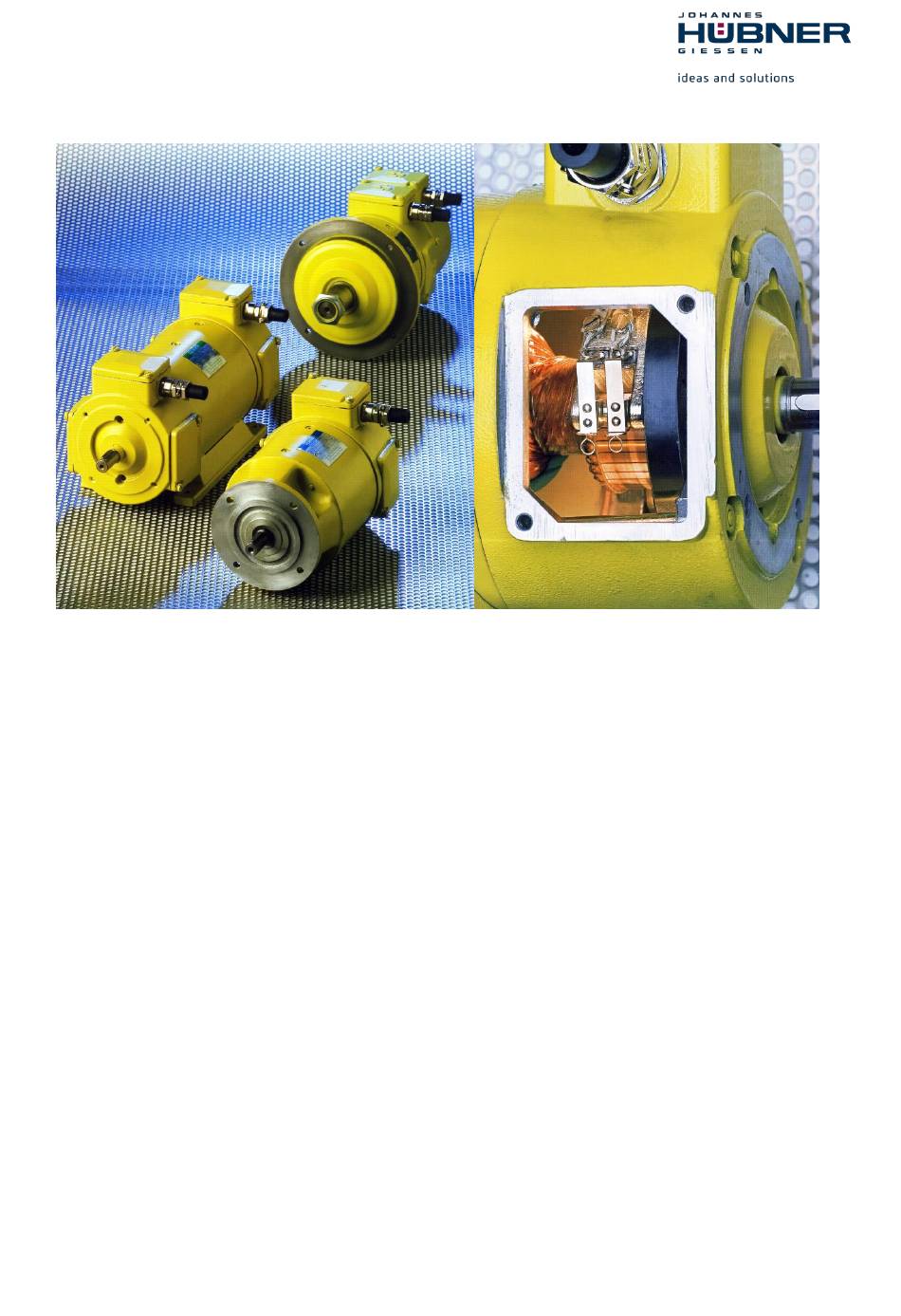

Operating and Assembly Instructions
D.C. tachometer generator
TDP 1,2
Read the Operating and Assembly Instructions prior to
assembly, starting installation and handling!
Keep for future reference!
Translation of the original Operating and Assembly Instructions
TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc
ID 74713

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDP 1,2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hubner TDP 1,2 Series

  • Page 1 English Operating and Assembly Instructions D.C. tachometer generator TDP 1,2 Read the Operating and Assembly Instructions prior to assembly, starting installation and handling! Keep for future reference! Translation of the original Operating and Assembly Instructions TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc ID 74713...

  • Page 2: D.c. Tachometer Generator Tdp

    Johannes Hubner Fabrik elektrischer Maschinen GmbH. Subject to errors and changes due to technical improvements. Copyright © Johannes Hubner Fabrik elektrischer Maschinen GmbH All rights reserved. TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...

  • Page 3: Table Of Contents

    D.C. tachometer generator TDP 1,2 Directory General ......................5 Information about the Operating and Assembly Instructions ......5 Scope of delivery ................... 5 Explanation of symbols .................. 5 Disclaimer ...................... 6 Copyright ....................... 6 Guarantee terms.................... 6 Customer service................... 6 Safety ......................
  • Page 4 D.C. tachometer generator TDP 1,2 Annex ......................41 11.1 Connection diagram ..................41 Spare parts ....................42 Dimension drawings .................. 43 13.1 Screw tightening torques ................54 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...

  • Page 5: General

    D.C. tachometer generator TDP 1,2 General Information about the Operating and Assembly Instructions These Operating and Assembly Instructions provide important instructions for working with the device. They must be carefully read prior to starting all tasks, and the instructions contained herein must be followed.

  • Page 6: Disclaimer

    D.C. tachometer generator TDP 1,2 Disclaimer All information and instructions in these Operating and Assembly Instructions have been provided under due consideration of applicable guidelines, as well as our many years of experience. The manufacturer assumes no liability for damages due to: ...

  • Page 7: Safety

    D.C. tachometer generator TDP 1,2 Safety DANGER! This section provides an overview of all the important safety aspects that ensure protection of personnel, as well as safe and trouble-free device operation. If these safety instructions are not complied with significant hazard can occur. Responsibility of the owner The device is used in commercial applications.

  • Page 8: Special Dangers

    D.C. tachometer generator TDP 1,2 Special dangers Residual risks that have been determined based on a risk analysis are cited below. 2.6.1 Electrical current Danger of death from electricity! There is an immediate danger of death from contact with live components. Damage to the insulation or individual components can be lethal.

  • Page 9: Technical Data

    D.C. tachometer generator TDP 1,2 Technical Data Type plate The type plate is located on the side of the housing and contains the following information: ENGLISH RUSSIAN  Manufacturer, address Manufacturer  CE mark  S/N = Serial number = Serial number ...

  • Page 10: Type Key

    D.C. tachometer generator TDP 1,2 Type key TDP S 1,2 G N – 3 spez (Example) + FSE 102 overspeed switch Optional + B16/3 + FG 4 (FG 40) Special version ( version different from normal) Voltage version (Description 0,6 up to 14) see tables preferred voltages/special voltages page 13 –...

  • Page 11: Type Explanation

    D.C. tachometer generator TDP 1,2 Type explanation Single tacho-generator Type: TDP 1,2 TDPS 1,2 TDPL 1,2 One magnet system One armature winding Voltage gradient TDP 1,2 20V up to 280V at 1000 rpm TDPS 1,2 20V up to 200V at 1000 rpm TDPL 1,2 45V up to 400V at 1000 rpm Double tacho-generator...

  • Page 12: Dimensions, Power Consumption, Environment, Speed

    D.C. tachometer generator TDP 1,2 Dimensions, Power consumption, Environment, Speed Indication Value Unit Weight See chapter 13 dimension drawings /mechanical data kg Dimensions See chapter 13 dimension drawings /mechanical data mm Open circuit voltage (DC) See type plate on machine V DC Rated voltage with load (DC) See type plate on machine V DC Maximum rated current...
  • Page 13 D.C. tachometer generator TDP 1,2 Type TDPS 1,2 Rated power at 1000 rpm 15 W Moment of inertia approx. 7 kgcm Breakaway torque approx. 12 Ncm Weight approx. 8 kg Preferred voltages Type Rated voltage at Max. Max. permissible Optimum Armature No-load- 1000 rpm...
  • Page 14 D.C. tachometer generator TDP 1,2 Type TDP 1,2 TDP 1,2 N Rated power at 1000 rpm 25 W Moment of inertia approx 8 kgcm Breakaway torque approx. 12 Ncm Weight approx. 10 kg Preferred voltages Type Rated voltage at Max. Max.
  • Page 15 D.C. tachometer generator TDP 1,2 Type TDPL 1,2 Rated power at 1000 rpm 50 W Moment of inertia approx 14 kgcm Breakaway torque approx. 12 Ncm Weight approx. 15 kg Preferred voltages Type Rated voltage at Max. Max. permissible Optimum Armature No-load- 1000 rpm...
  • Page 16 D.C. tachometer generator TDP 1,2 Type TDPS 1,2 + TDPS 1,2 TDPS 1,2 + TDPS 1,2N Rated power at 1000 rpm 2 x 12 W Moment of inertia approx 8 kgcm Breakaway torque approx. 15 Ncm Weight approx. 11 kg Preferred voltages Type Rated voltage at...
  • Page 17 D.C. tachometer generator TDP 1,2 Type TDP 1,2 + TDP 1,2 Rated power at 1000 rpm 2 x 25 W Moment of inertia approx 15 kgcm Breakaway torque approx. 15 Ncm Weight approx. 16 kg Preferred voltages Type Rated voltage at Max.
  • Page 18 D.C. tachometer generator TDP 1,2 Type TDPS 1,2 + TDPS 1,2 G TDPS 1,2 + TDPS 1,2 GN Rated power at 1000 rpm 2 x 15 W Moment of inertia approx 15 kgcm Breakaway torque approx. 15 Ncm Weight approx. 16 kg Preferred voltages Type...

  • Page 19: General Technical Data, Electric Implementation

    D.C. tachometer generator TDP 1,2 General technical data, electric implementation Magnet system design The magnet system of these machines consists of two permanent block magnets, developed especially for these machines and manufactured in AINi Co alloy. The direction of magnetization is determined by the material's optimum direction of magnetization. In order to guarantee operation free of ageing problems, the permanent magnets are aged artificially until they reach optimum remanent energy density.
  • Page 20 D.C. tachometer generator TDP 1,2 Voltage The listed voltages are detailed in the technical tables for the different, available machine types. Intermediate values and special voltages are possible (optional) When values are lower than the listed voltages (<10 V) the listed power rating must be reduced to (brush voltage drop).
  • Page 21 D.C. tachometer generator TDP 1,2 Maximum speed The maximum speeds listed in the tables are restricted on the one hand by the max. permissible segment voltage and on the other hand by the permissible peripheral speed. In special cases appropriate design measures make it possible to exceed the maximum speeds listed in the tables. It is possible that the maximum speed will have to be reduced when utilizing machines with built-in shaft seals.
  • Page 22 D.C. tachometer generator TDP 1,2 Temperature coefficient Temperature compensation The temperature coefficient of the permanent magnets used is dependent on the material used and is approx. +/- 0,10% per 10 degrees K of temperature change. This value applies to a temperature range of approx.
  • Page 23 D.C. tachometer generator TDP 1,2 Attachment harmonics, arising from coupling or fitting faults, influence the generator voltage because they are superimposed on the machine harmonics. In general, two fitting faults occur: phase-angle errors and parallel misalignment. The frequency of the resulting harmonics generated corresponds to that occurring at twice a given speed (phase angle) or once that value (parallel misalignment).
  • Page 24 D.C. tachometer generator TDP 1,2 Description of the method of measurement used to determine linearity: The tacho-generator to be tested is coupled to a prime mover fitted with a flywheel and operated through a speed range of 100 to 3000 rpm. An incremental encoder (1000 pulses/rotation) is used to measure the speed digitally to one decimal place.
  • Page 25 D.C. tachometer generator TDP 1,2 Brush contact voltage Silver-graphite brushes with very low contact voltage are mainly used for D.C. tacho-generators. The total voltage drop at the sliding contact commutator is affected by peripheral speed, current density under the brushes, brush pressure, and the condition of the patina on the brush contact face. The load resistance should not be made too high.
  • Page 26 D.C. tachometer generator TDP 1,2 DC double-tacho-generator with permanent and separate excitation Types TDP 1,2 + TDF 1,2 This is single-shaft machine comprising a permanent magnet tacho-generator and a separately excited tacho-generator. The speed-proportional voltage of the permanent magnet machine is used to excite the separately excited generator.

  • Page 27: Mechanical Design

    D.C. tachometer generator TDP 1,2 Mechanical design Construction types To DIN EN 60 034-7; IEC 34-7 (replaces DIN 42950). Modified versions have an additional letter added. (B 5 s, B 5 k, B 10 s, B 5 g ...). The different construction types are shown in the dimension drawings. All flange construction types can additionally be fitted with a foot (for example: B35...).
  • Page 28 D.C. tachometer generator TDP 1,2 Note must also be taken of the fitting position. See below for V-construction type vertical mounting positions. Vent plug and cover screw are interchangeable, depending on fitting position. With flange construction type V1, V3, V18 and V19 on request. 2nd shaft extension exit complies with IP 55;...

  • Page 29: Design And Function

    D.C. tachometer generator TDP 1,2 Design and function Block diagram A1 (+) A2 (-) Fig. 2: Block diagram clockwise rotation Short description The DC-Tacho-Generator TDP 1,2consists of a permanent magnet stator for excitation and a rotor from which DC voltage is drawn via carbon brushes. The rotating rotor generates a DC voltage at a given linear relationship in proportion to its speed.

  • Page 30: Transport, Packaging And Storage

    D.C. tachometer generator TDP 1,2 6 Transport, packaging and storage Safety instructions for transport CAUTION! Improper transport can cause property damage! Comply with the symbols and warnings on the packaging.  Handle with care  Protect from moisture  Protect from heat over 40°C and direct sunlight ...

  • Page 31: Installation, Commissioning And Dismantling

    D.C. tachometer generator TDP 1,2 7 Installation, commissioning and dismantling Uses DC-Tacho-Generators from the series TDP 1,2 are used to convert rotary motion (rpm) to DC voltage in proportion to the rotating speed. These encoders are suitable for deployment with larger industrial drives such as those used in steel and rolling mills, in coal mining operations, in process technology, in railway systems, in power plants, in marine engineering and so on.

  • Page 32: Installation Work

    D.C. tachometer generator TDP 1,2 Installation work 7.3.1 Installation and commissioning Please note: It is the owner's responsibility to ensure that all moving parts are properly safeguarded and ensure that the machine is safe to operate! Observe the max. permissible voltage when repeating the winding test (contact the manufacturer). It is essential to prevent the ingress of oil or grease into the commutator area! Oil mist as well as touching the carbon brushes with oily fingers will cause the carbon brushes to wear significantly;...
  • Page 33 D.C. tachometer generator TDP 1,2 Before closing the terminal box you must ensure that  The connections have been terminated according to the wiring diagram.  All connections in the terminal box have been securely tightened.  All minimum clearance values have been maintained (greater than 8 mm up to 500 V, greater than 10 mm up to 750 V) ...

  • Page 34: Dismantling

    D.C. tachometer generator TDP 1,2 Dismantling Observe and adhere to safety information (2)!  Shut down and ensure the machine cannot be restarted.  Turn off and isolate the power supply; turn off and isolate the power supply to any additional or auxiliary circuits.
  • Page 35 D.C. tachometer generator TDP 1,2 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...

  • Page 36: Disorders

    D.C. tachometer generator TDP 1,2 Disorders Diagnosis Chart Disturbance Possible cause Troubleshooting Speed measurement control Wrong speed Voltage check Consulting Winding short producer Reduce current. Voltage to low Maximum permissible current is exceeded Magnets magnetize new Irrreversibler damage the (consult manufacturer). magnets (aging) Neutral zone adjusted.
  • Page 37 D.C. tachometer generator TDP 1,2 Bearing makes noise or is Mounting error / clutch problem Mounting precision check jammed Corroded bearings Replace bearing by manufacturer Insufficient lubrication. contact the manufacturer. Too little/much bearing play. Replace bearings Contact the manufacturer Grind marks in the bearing Replace bearings;...
  • Page 38 D.C. tachometer generator TDP 1,2 Brush contact resistance too Change condition of circulating high – badly formed patina (brush contact face - (remedy lack of moisture; avoid commutator contact face) as a dust in ambient air). result of the air being too dry. Carbon brushes wearing excessively Brush pressure too high...

  • Page 39: Recommended Inspections

    D.C. tachometer generator TDP 1,2 Recommended Inspections The here described device is partly maintenance free. Nevertheless, following check is recommended to guarantee an optimum and undisturbed operation. Inspection and maintenance schedule NOTES! No other actions are required to be carried out on the device in addition to the following cyclical inspections described in this inspection schedule.
  • Page 40 D.C. tachometer generator TDP 1,2 Check ball bearings for noise, running Bearings must be replaced Every 48 months smoothly. Service life approx. 20 000 by the manufacturer or a hours (lubricated for life); however, certified workshop only. service life depends on speed, environmental conditions and load.

  • Page 41: 10 Disposal

    D.C. tachometer generator TDP 1,2 10 Disposal The manufacturer is not obligated to take back electronics waste. The device consists of hybrid components, and in part must be disposed of as special waste (electronic scrap) according to country- specific legislation. Local municipal authorities or specialized disposal companies provide information on environmentally responsible disposal.

  • Page 42: Spare Parts

    D.C. tachometer generator TDP 1,2 Spare parts Spare parts are available on demand via the service address on page 2. NOTES! When ordering spare parts, always state the serial number of the device. TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...

  • Page 43: Dimension Drawings

    D.C. tachometer generator TDP 1,2 Dimension drawings TDP 1,2 Construction type B5/B3 HM 83 M 53 023 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 44 D.C. tachometer generator TDP 1,2 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 45 D.C. tachometer generator TDP 1,2 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 46 D.C. tachometer generator TDP 1,2 B35 construction HM 83 M 53023 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 47 D.C. tachometer generator TDP 1,2 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 48 D.C. tachometer generator TDP 1,2 Single- or double tacho with mounted coupling Type: HKI 97-112-K 20/… According to dimension drawing HM 80 M 51411 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 49 D.C. tachometer generator TDP 1,2 Single tachos Single- or double tacho with mounted coupling Type: HKI 97-112-K 20/… According to dimension drawing HM 80 M 51411 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 50 D.C. tachometer generator TDP 1,2 B35 construction HM 83 M 53044 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 51 D.C. tachometer generator TDP 1,2 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 52 D.C. tachometer generator TDP 1,2 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...
  • Page 53 D.C. tachometer generator TDP 1,2 TDP1,2-MANUALen_R5(2018-12-19)ID74713 .doc...

  • Page 54: Screw Tightening Torques

    D.C. tachometer generator TDP 1,2 13.1 Screw tightening torques Screws used to mount the machine (screw material, the material pairings to be fastened and the length of thread engagement) are to be calculated to VDI 2230 (Page 1). The materials used and the construction to which the generator is to be fastened must guarantee a permanently secure and reliable joint.
