Summary of Contents for DuroZone JTZ-HP

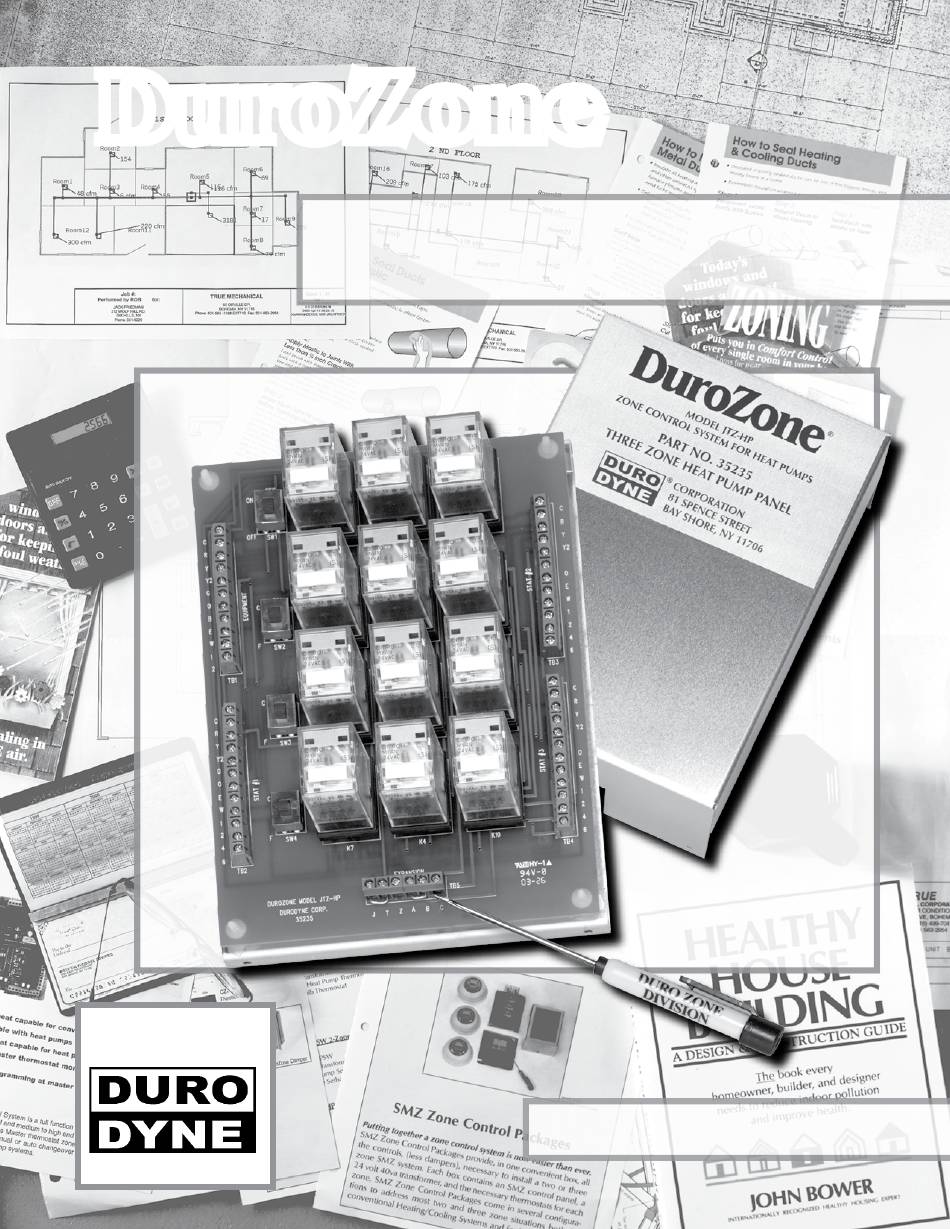

- Page 1 DuroZone DuroZone ® MODEL JTZ-HP ZONE CONTROL SYSTEM DuroZone ® is a division of ® PART# 35235 Corporation...
- Page 2 (“COOL” or “HEAT”) the zone panel is in. All other zones will function only when their thermostats are in the same mode as the zone # 1 thermostat. This panel has a built in fossil fuel function option available. The JTZ-HP panel is also expandable to control more than 3 zones.
- Page 3 DuroZone JTZ-HP WIRING INSTRUCTIONS PAGE 3...
- Page 4 DuroZone JTZ-HP WIRING INSTRUCTIONS PAGE 4...
- Page 5 DuroZone JTZ-HP WIRING INSTRUCTIONS PAGE 5...
- Page 6 (ES Switch in position “F”). If you are unsure how to configure the ES Switches, install and wire the thermostats and the JTZ-HP panel as per the instructions. Power up the JTZ-HP panel, put the thermostats in the Emergency Heat Mode and set the temperature on the thermostats so they are below room temperature.
- Page 7 24 volts at “C” & “O” of the Zone #3 Terminal Strip (TB4). If the voltage is not present, check the Wiring and the Zone #3 Thermostat for proper operation. If the voltage is present and Relay O3 (K4) is not energized, call DuroZone Technical Support.
- Page 8 “C” & “E” on the Zone #1 Terminal Strip. If the voltage is not present, check the Wiring and the Zone #1 Thermostat for proper operation. If the voltage is present, call DuroZone Technical Support. If relay E1 (K5) is energized and the heat pump does not disengage, or the auxiliary heat does not activate, call DuroZone Technical Support.
