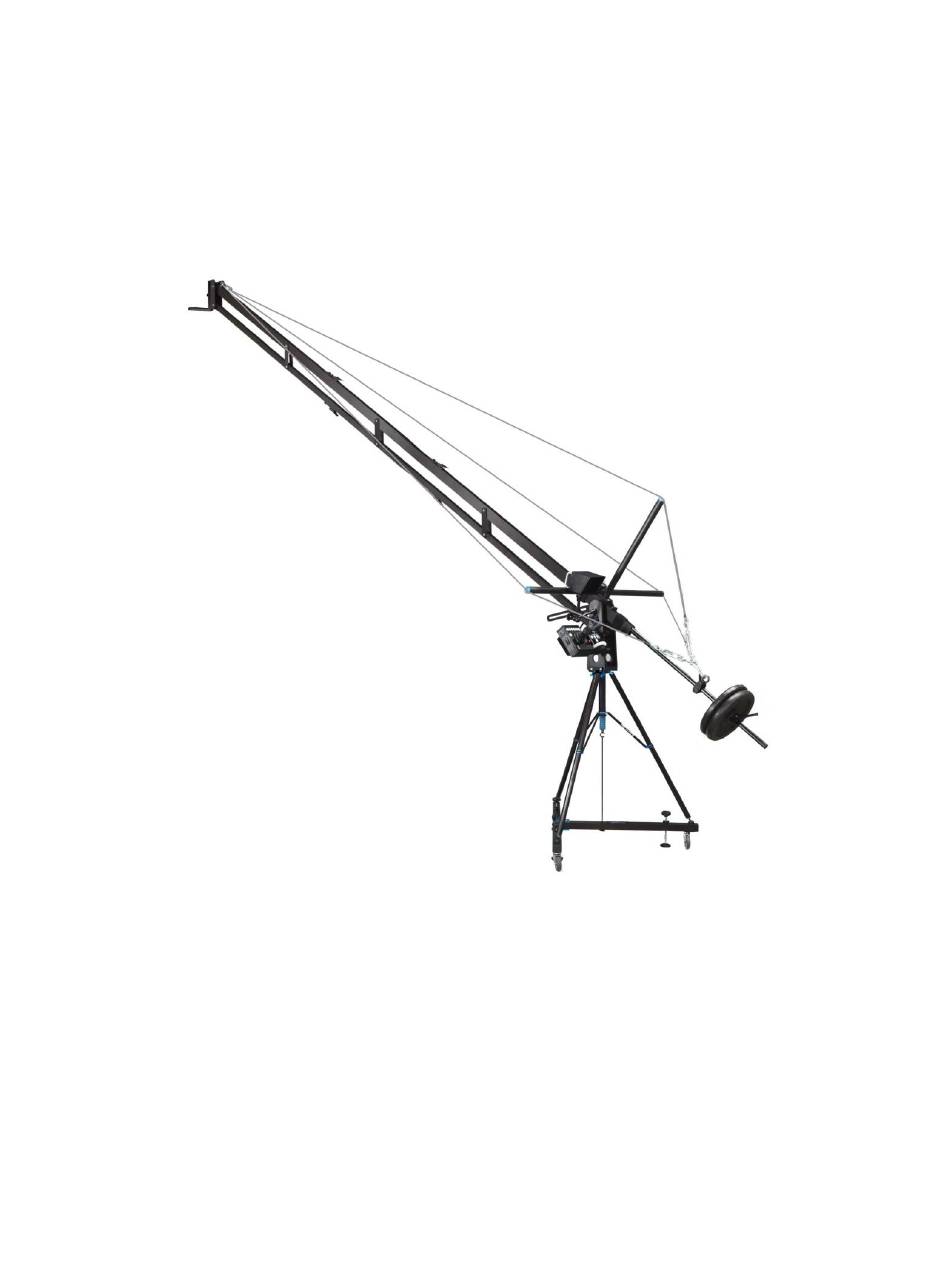

- Page 1 One Minute Long Crane User Manual...
- Page 2 Introduction Perfect for run-and-gun shooting, small productions, music videos and weddings, the One Minute Long Crane is light to carry and easy to assemble. The system utilizes light weight material, bringing the total weight of the unit to 25kg while extending in lengths from 3.2m to 5,6m (see the photo below).
- Page 3 1.1 One Minute Long Crane set includes: 1 Extension with tripod adapter 2 additional extensions Tripod L-holder for mounting the head String holders Dolly frame Apapter for 3,2 m version Crane-arm fastener Dolly tripod clip Weights-holding rod Velcro-strip weight Magic Arm, monitor holder...
- Page 4 2. Mounting different Longitudes of One Minute Long Crane To mount the One Minute Long crane, follow the steps: Firstly, you need to assemble the Dolly Frame, by attaching two dolly segments with the enclosed screw. Unfold the legs of the tripod,...
- Page 5 Put the extension 1 adapter in the corresponding slot in the tripod. Fasten the crane arm to the tripod with the enclosed crane arm fastener, as described in the picture. While doing that, hold the upper end with the other hand so that it does not move.
- Page 6 The One Minute version (3,2m) of the crane is now assembled. Add the small version adapter directly to the extension 1 in order to add the Remote Head. Small version adapter One Minute Crane does not need any strings. One Minute Crane – 3,2m To mount One Minute XL crane mount the LAST extension to the first extension...
- Page 7 Add the strings as shown in the charter 2.1 Mounting the strings. One Minute Long Crane is now mounted. One Minute Long Crane – 5,6m Put the weights onto the weights-holder to make the counter balance. (Weights are not included in the set!)
- Page 8 One Minute XL Crane - 4,2m version uses 3 springs (1 top and 2 side strings) One Minute Long Crane - 5,6m version uses 3 springs (1 top and 2 side strings) + 3 string extensions (one per string).
- Page 9 Attaching the Remote Head Any Remote Head can be mounted on One Minute Long Crane: To mount a Remote Head attach the L holder onto the top of the crane arm. L holder can be mounted in two different ways,...
- Page 10 Pan and tilt breaks Pan and tilt movements of the crane can be fixed with pan and tilt breaks. (See the picture below)
