Model 1008
MII
Mechanical CPR System
Instructions for Use (IFU) Manual
h
(Part Number
16005)
Manufactured in the USA by:
4717 Talon Court SE
Grand Rapids, MI 49512 USA
Tel: (800) 530-9939 or (616) 554-9696
Fax: (616) 554-3067
e-mail:
mii@michiganinstruments.com
website:
www.life-stat.com
REV: 2019-04
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIFE-STAT 1008MII and is the answer not in the manual?

Questions and answers

Related Manuals for Michigan Instruments LIFE-STAT 1008MII

Summary of Contents for Michigan Instruments LIFE-STAT 1008MII

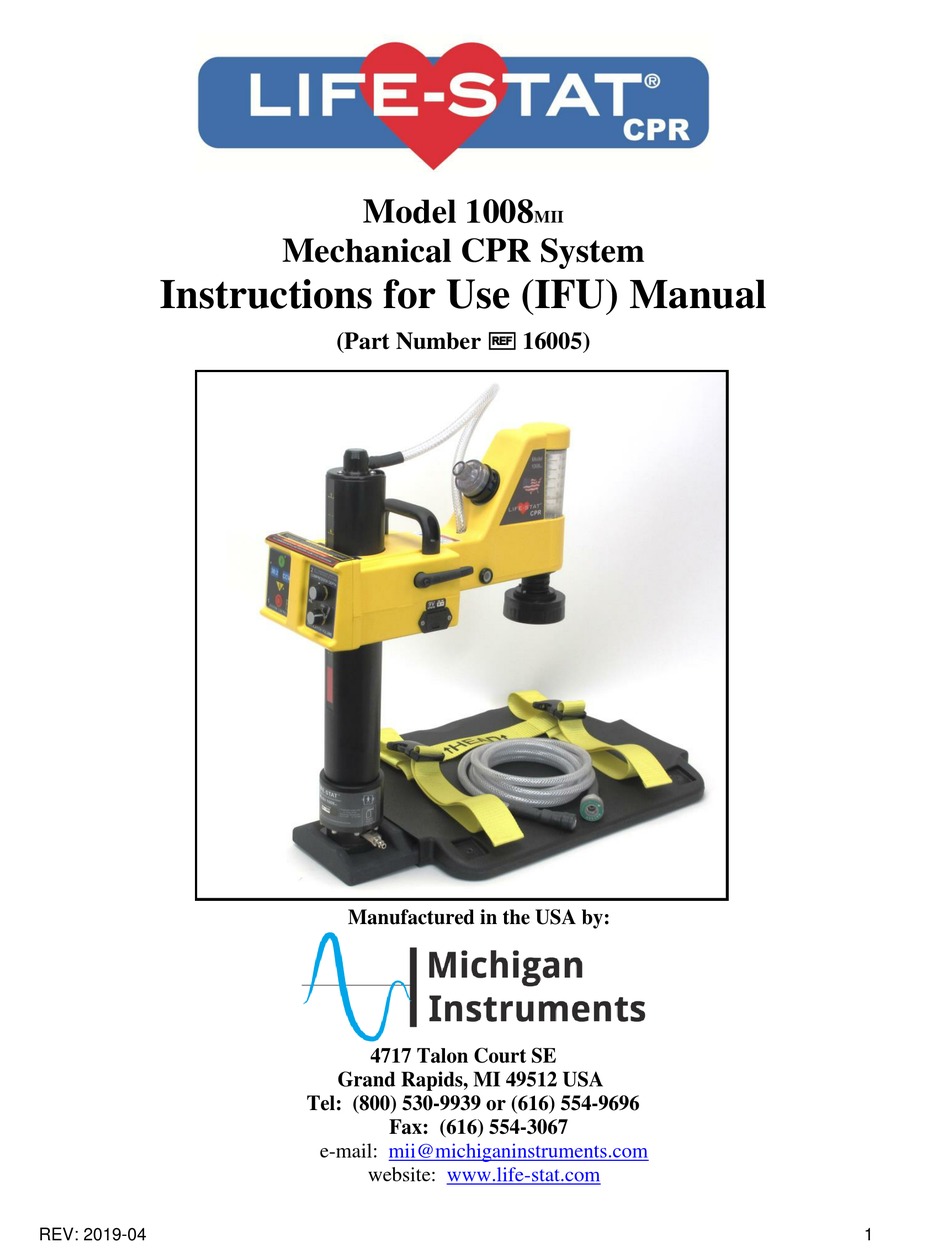

  • Page 1 Model 1008 Mechanical CPR System Instructions for Use (IFU) Manual (Part Number 16005) Manufactured in the USA by: 4717 Talon Court SE Grand Rapids, MI 49512 USA Tel: (800) 530-9939 or (616) 554-9696 Fax: (616) 554-3067 e-mail: mii@michiganinstruments.com website: www.life-stat.com REV: 2019-04...
  • Page 2 Copyright PROTECTED UNDER ONE Copyright © OR MORE OF THE FOLLOWING U.S. PATENTS: 6,171,267 5,743,864 Michigan Instruments 4717 Talon Court SE Grand Rapids, MI 49512 All rights reserved Symbols used on the device and in this IFU: Symbol Meaning Symbol Meaning Manufacturer –...

  • Page 3: Table Of Contents

    Contents 1-Introduction ..................................5 ® 1.1 The Life-Stat Model 1008 Instructions for Use (IFU) ....................5 1.2 Use of Warnings, Cautions, and Notes .......................... 5 1.3 Indication for Use ................................6 1.4 Contraindication................................6 1.5 Benefits of Mechanical CPR ............................6 1.6 General Warnings and Cautions ............................
  • Page 4 5.6 Mobile Oxygen Carrier (MOC) ........................... 31 5.7 Periodic Preventive Maintenance..........................31 5.8 Shift Check .................................. 33 5.9 Functional Check ................................. 35 5.10 Troubleshooting Guide: ............................. 37 ® 5.11 Life-Stat Model 1008 Detailed Specifications ...................... 38 5.12 Electromagnetic Environmental Declaration......................39 ®...

  • Page 5: 1-Introduction

    1-Introduction Federal law restricts this device to sales to, or on the order of, a licensed medical practitioner. ® 1.1 The Life-Stat Model 1008 Instructions for Use (IFU) NOTE: The purpose of this manual is to explain the use, care, and user maintenance of the device, not to teach cardiopulmonary resuscitation.

  • Page 6: Indication For Use

    1.3 Indication for Use ® The Life-Stat CPR System is used to perform Cardiopulmonary Resuscitation (CPR) on adult patients only in cases of clinical death, as defined by a lack of spontaneous breathing and pulse. ® WARNING: The Life-Stat is to be used solely for the purpose of delivering mechanical cardiopulmonary resuscitation (CPR) in accordance with established American Heart Association (AHA) guidelines.

  • Page 7: General Warnings And Cautions

    1.6 General Warnings and Cautions WARNING: Improper application of this equipment can cause serious injury. This manual must be thoroughly understood in order to use this device correctly and to avoid possible serious injury. WARNING: Federal law restricts this device to sales to, or on the order of, a licensed medical practitioner.
  • Page 8 (Blank Page Intentional) REV: 2019-04...

  • Page 9: 2-Product Description

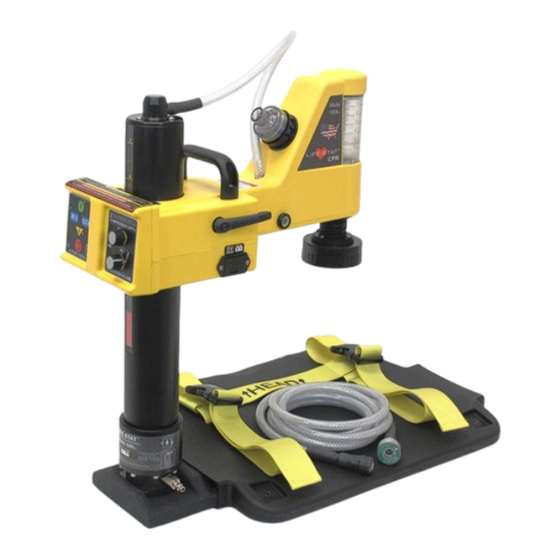

    2-Product Description ® 2.1 Life-Stat Cardiopulmonary Resuscitator ® The Michigan Instruments Life-Stat is the latest model of our portable, automatic cardiopulmonary resuscitation (CPR) medical devices which have been in use since 1964. 2.2 General Description ® The Life-Stat system provides consistent CPR support for cardiac arrest patients under conditions ®...
