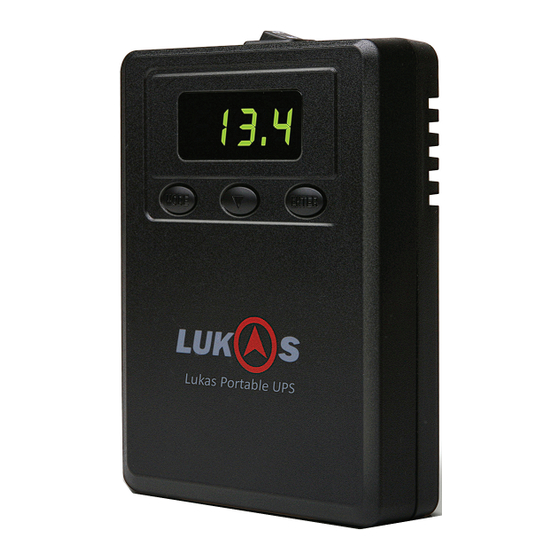

LUKAS LK-530-12V
User's Manual
Thank you for purchasing LUKAS Portable UPS.
※
Be sure to read this manual carefully to ensure proper usage.
※
Some functions can be changed without notifying users in order to improve
※
product performance.
This manual is written based on LK-530-12V of Qrontech Co., Ltd.
※
and may include technical or editorial errors and/or omissions.
When using blackboxes that have low voltage cut-off function,
※
disable low voltage cut-off function or set to the lowest cut-off voltage
so as to make efficient use of this product. (Using the this device with
blackbox with low voltage cut-off function is not recommended.)
Advertisement
Table of Contents
Summary of Contents for Lukas LK-530-12V
- Page 1 Some functions can be changed without notifying users in order to improve ※ product performance. This manual is written based on LK-530-12V of Qrontech Co., Ltd. ※ and may include technical or editorial errors and/or omissions. When using blackboxes that have low voltage cut-off function, ※...
-
Page 2: Table Of Contents
TableofContentsdkadfkcheuqhcdlzkeican Contents Precautions For Use …………………………………… 3 1. Precautions For Use This product went through strict quality management and inspection processes. However, misuse of electrical products could cause fire or ……………………………………………… 6 2. Components human casualties. Observe precautions written before use. …………………………………………... - Page 3 TableofContentsdkadfkcheuqhcdlzkeican 3. Tips For Battery Maintenance As the lithium ion battery in the portable UPS is a product using the chemical reactions, - Keep it in a dry place without corrosive gases at the temperature of 0~45℃. its performance goes down when it is used repetitively or stored for a long time. (Optimum storage temperature: 20~25℃...
-
Page 4: Components
TableofContentsdkadfkcheuqhcdlzkeican Components Product Features • This product is located between the main power(power of vehicle) and the - Make sure that all of the following items are present when you receive your product. - Product Package is subject to change for improving product performance or quality. equipment in use(blackbox, navigation etc.) to be used as the subsidiary power in case the main power is cut off. -
Page 5: Parts Names & Functions
TableofContentsdkadfkcheuqhcdlzkeican How To Install Parts Names And Functions 1-hole cigarette socket 1) Open the fuse box inside of the vehicle, Power On/Off switch pull out the fuse(continuous power) and DC In jack DC Out jack Cigarette lighter cable connect with B+ wire. Segment LED Display MODE ENTER... -
Page 6: How To Use
- Power supply is stopped if the battery voltage drops to below 9V. (Leave the continues power cable plugged) - LK-530-12V does not work at voltage of below 9V even if the key is pressed. 3) Disconnect the DC source power cable from DC IN terminal. -
Page 7: How To Set & Segment Messages
TableofContentsdkadfkcheuqhcdlzkeican How To Set & Segment Messages Trouble Shooting_When It Does Not Work Numbers Status Operation Segment Message - Check if the power switch is on. of Clicks - Press the key to check the segment LED works. If the segment LED does not work, Display of battery Normal the battery voltage of the device might have dropped to below 9V. -
Page 8: Product Specification
TableofContentsdkadfkcheuqhcdlzkeican Quality Assurance Product Specification Model Name LK-530-12V Product S/N Product Name Portable UPS Model Name LK-530-12V Customer’s Name Customer’s Phone No. Input Voltage / Current 11V ~ 15V / 3A Purchased Date Purchased Place Output Voltage / Current 9V ~ 15V / 1A Operating Temperature Charging 0~45℃... - Page 9 TableofContentsdka Ver. 02 LUKAS LK-530-12V Customers Service Information - Customers Center: (+82) 2-2093-1257 - Address: A-1201 Woorim-Bluenine, 240-21 Yeomchang-dong, Gangseo-gu, Seoul 157-811, Korea - Website: www.lukashd.com - Inquiry: lukas@qrontech.com...
