Summary of Contents for Mito Mito Meter

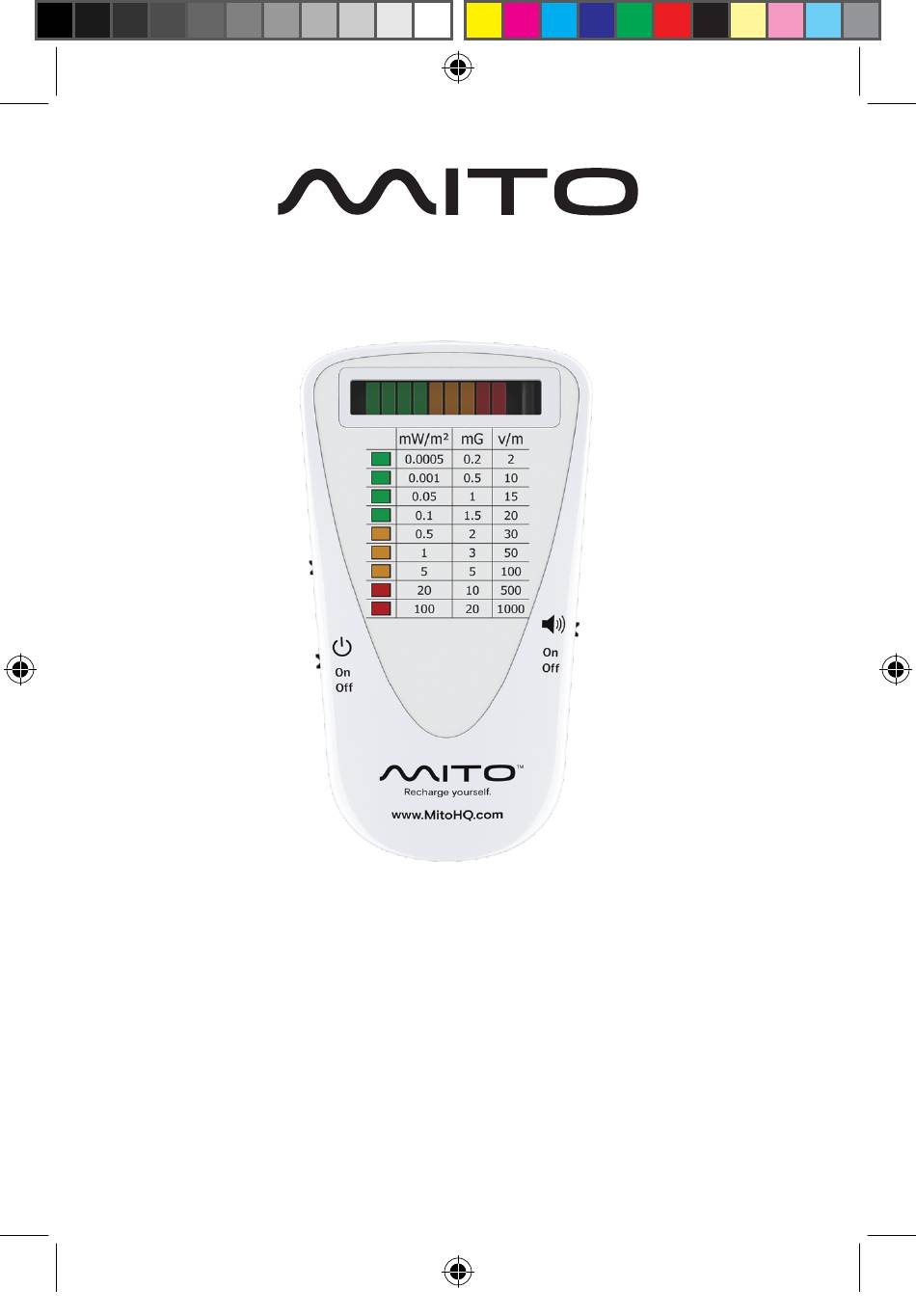

- Page 1 Recharge yourself. EMF METER Making the invisible visible. USER MANUAL EMF MeterManual (A6) V1.indd 1 2/14/18 1:41 PM...
- Page 2 Introduction The Mito Meter is a compact, simple to use, but sophisticated, general purpose (Electromagnetic Field) meter that can measure EMF intensity from: cell towers, mobile phones, smart meters, Wi-Fi routers, various cordless devices, magnetic and electric elds from power lines, fuse boxes, home appliances and more.
- Page 3 IMPORTANT NOTICE This detector shows the intensity of measurements using 9 LEDs: Green,Yellow and Red. (Green = low, Red = high) These colors are intended as a visual guide , and not to indicate safe or unsafe readings. Furthermore, this device is intended to allow non-professionals to measure EMF levels with a simple, intuitive interface.
-
Page 4: Package Contents
Package Contents • Mito Meter including: 1x LiPo rechargeable battery (installed). • Mini-USB (1 Meter) cable for charging and data transfer. Note: This is a non-standard cable designed especially for use with this product. • USB Adaptor (Female) to USB C (Male). - Page 5 EMF MeterManual (A6) V1.indd 5 2/14/18 1:41 PM...
-
Page 6: Operation
Operation The Mito Meter is a 3-mode detector, these modes are: • RF - Radio Frequency • LFM - Low Frequency Magnetic • LFE - Low Frequency Electric It is recommended to fully charge the device before using it for the rst time. To do so, use the supplied mini-USB cable to connect to a USB charger or computer. - Page 7 EMF Levels Charging (Hidden when not active) USB Connection EMF MeterManual (A6) V1.indd 7 2/14/18 1:41 PM...
- Page 8 5 times a second for the LEDs, and twice a second by the PC software. Note: The Mito Meter is a broadband detector, meaning it captures all signals from all sources within the selected mode frequency range at a particular location.
- Page 9 Mode Switch Power ON/OFF EMF MeterManual (A6) V1.indd 9 2/14/18 1:41 PM...
-
Page 10: Performing Measurements
Performing Measurements Switch on the device and select a measurement mode: There are 9 levels of intensity shown by 9 LEDs: from GREEN through YELLOW to RED. By matching the LED reading with the appropriate numbers on the chart, numerical values can be noted. The device uses directional antennas for the measurements, thus it is necessary to carefully rotate the device in all directions at any location a... - Page 11 EMF Levels EMF MeterManual (A6) V1.indd 11 2/14/18 1:41 PM...
- Page 12 Understanding the Readings mW/m = Milliwatts per square meter Used to measure the power density of an RF (Radio Frequency) source. Use this value when measuring EMF from: cell towers, smart meters, Wi-Fi, Bluetooth, cordless phones and microwave ovens. mG = Milligauss Used to measure AC (Alternating Current) magnetic eld intensity, such as from AC power lines, fuse boxes, and home appliances.
- Page 13 Notes on Signal Sources • Be aware that some EMF sources in the home, such as cell phones, smart meters, and Wi-Fi emitters (RF signals), change levels very rapidly due to protocol de nitions. • Cell phones will adjust their levels based on the signal strength from the cell tower and any intervening obstacles to that signal.
- Page 14 Using and Installing the Software The Mito Meter software (which is a download) can be used to record and view readings from the Meter once it is connected to a PC using the supplied mini-USB cable. Files are saved in CSV format, and can be imported into Microsoft Excel or other similar software.
- Page 15 The software downloads as a zip le – Unzip the le and run the “Monitoring.exe” le. No installation is required. Supported OS: Windows 7, Windows 8, Windows 8.1 and Windows 10. EMF MeterManual (A6) V1.indd 15 2/14/18 1:41 PM...
-
Page 16: Driver Installation
Driver Installation Download the drivers from: www.mitometer.com/software Open the download and start the installation by following the on-screen instructions. (See graphic) Once installed, no further action is required. EMF MeterManual (A6) V1.indd 16 2/14/18 1:41 PM... - Page 17 DOWNLOAD AND OPEN FILE: Follow instructions to install the Driver. Accept by clicking ‘Yes’. Accept and install. Firmware Installation EMF MeterManual (A6) V1.indd 17 2/14/18 1:41 PM...
-
Page 18: Using The Software
Connect the meter to a PC using the special mini-USB cable supplied, and power ON. • On your PC: Open the Mito Meter application. Make sure the Meter is turned on, and that it is connected to the PC via the supplied USB cable. Now ‘click’ the “Search device”... - Page 19 Search for and connect to a Save collected data to le. compatible device via the COM port on your computer. Enter software settings. Starts data collection from the device. (This button will only work if a compatible device is connected.) Updates the rmware on the device.
-
Page 20: Firmware Updates
Firmware Updates Firmware, is software installed on the Meter. It is important to check that the version on the Meter is up to date. The current rmware on the device will be shown at the top of the application window once the device is connected: Firmware Version Go to our website to check for the latest release at:... - Page 21 Enter the location, on your hard drive, of the le that you have downloaded, and click “Upload.” The rmware on your device will be updated. Note: The Meter must be connected to the computer via the USB cable. EMF MeterManual (A6) V1.indd 21 2/14/18 1:41 PM...
-
Page 22: Troubleshooting
Troubleshooting Question: Answer: • Mito The device The battery is not Meter does not turn charged. Connect the on when not device to a power connected to source with the USB the USB. cable, and allow to charge for several hours. -
Page 23: Maintenance
Note: Please remember to follow local ordinances regarding disposal of electronic equipment. Warranty The Mito Meter comes with a 1 year limited warranty. For more information, or to contact us, please email support@mitohq.com EMF MeterManual (A6) V1.indd 23 2/14/18 1:41 PM... -
Page 24: Technical Speci Cations
Technical Speci cations RF Frequency range: 100MHz to 8GHz RF measuring range: -60dBm to +5dBm RF Typical accuracy: ±6 dB LFM (magnetic eld) 50Hz to 10KHz Frequency range: LFM measuring range: 0mG to 50mG with 0.1mG resolution LFM accuracy: LFE (electric eld) 50Hz-50KHz Frequency range: LFE measuring range:... - Page 25 EMF MeterManual (A6) V1.indd 25 2/14/18 1:41 PM...
