Summary of Contents for Ekosystem AB eurofire XL-GRYM

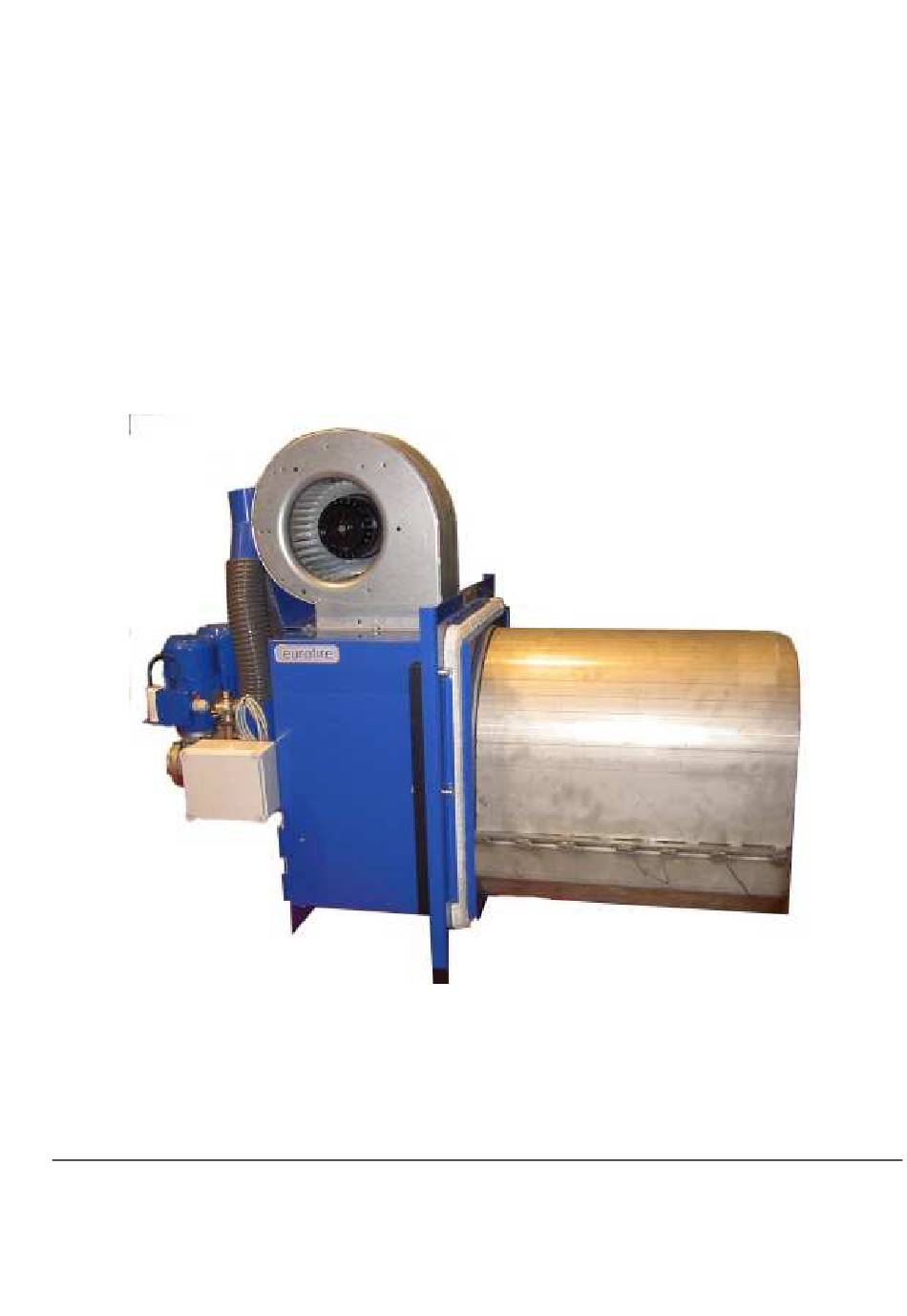

- Page 1 Datum 080708, rev 0 eurofire XL-GRYM 500, 700 kW The Pellet Burner of the 21 Century Ekosystem AB Björkevägen 84, S-805 97 GÄVLE, Sweden...
-
Page 2: Table Of Contents
Dealer, Name and Address ......................14 Measured and Installed Settings ....................14 Integral part of documentation of eurofire BIG burner is TM3007 User Manual - MPU Control Unit Instruction. Ekosystem AB reserves the right to make modifications to its equipment at any time... -
Page 3: General Information
Read these instructions thoroughly before installing and starting the burner Thank you for placing your trust and confidence in an Ekosystem AB product. We trust your experience of this product will be one of total satisfaction, before you use this product please note the following: For safe and fault free function it is of great importance that the burner is installed correctly and the instructions for its installation and use are followed. -
Page 4: Installation
Installation Pellet Store and Feed Screw A feed-screw supplies the burner with fuel from an external fuel storage area. The storage area can vary in size, containing a weeks supply of pellets to a whole years supply. The pellet store should be so constructed that the feed-screw is at a maximum angle of 45° to the hori zontal floor plane. -
Page 5: Installation Instructions
Installation Instructions 1. Automatic Feed-Screw Connect the automatic feed-screw motor to the top of the feed-screw and tighten firmly Place the feed-screw into the pellets storage bin. Make sure the feed-screw mechanism is not steeper than at a 45° angle to the horizontal floor plane. - Page 6 Construction of the burner Internal Feed - Screw Secondary Air Supply Hood Igniters Burner Cassette Primary Air Supply...
- Page 7 Sprinkler’s Feed-Tube/Clamp Sprinkler Secondary Air termosensor Internal Feed-Screw Motor Supply Fan Internal Feed - Screw Electric Box Primary Air Supply Fan Service Inlet Control Cabel Overheating termosensor...
-
Page 8: Adjustments Of The Burner
Adjustmens the Burner Adjusting the burner may only be carried out by trained service personnel. Note: Ensure mains power to the MPU Control Unit is switched off before the temperature gauge and regulator is disconnected from the control function. Delivery settings The MPU Control Unit has pre-set factory settings, but adjustment may be necessary due to variables in: The pellets energy content - pellets quality - required output - chimney draught - feed-screw type, and installation configuration. -
Page 9: Fuel Quantity And Pellets Travel Time To The Burner
Fuel Quantity and Pellets Travel Time to Burner The time pellets take from store to burner, depends on the pellets storage location in relationship to the burners location. There are several models of screw-feed to chose from, each model can be configured and rigged differently to convey pellets to the burner. -
Page 10: Maintenance And Service
Maintenance and Service Always turn off the power to the burner before servicing or working on the burner. Cleaning the Burner Once every fortnight, thoroughly clean the burners combustion area, including the slots at the rear, using a wire brush. Make sure the slots are clean. If lower quality pellets are used, clean as frequently as need. Once, each winter/heating season the inside of the burner should be cleaned from all debris. -
Page 11: Electrical Connection Diagram
Electrical Connection Diagram The connecting The burner is delivered with a temperature gauge PID regulator, it regulates the wanted running temperature of the burner and a lambda sensor, which controll exhaust gas parameters. The regulator with cooperation with lambda sond measures and controls adjustments for achieving and holding on required temperature by activating full modulational oparation of burner, this reduces the number of start ups and saves fuel. -
Page 12: Technical Data
The eurofire pellets burner fulfils emissions requirements for installation within urban areas according to The Swedish Housing Authority (Boverk) according to the authorities building regulations BBR, BFS 1993:57 with modification up to and including 1998:38. Manufacturer: Ekosystem AB Björkvägen 84 S-805 97, GÄVLE, Sweden... -
Page 13: Drowing/Dimensions
Drowing/Dimensions... -
Page 14: Installation Report
Installation Report Installation Report Dealer/retailer Company Name Consultant Name Address Postal code Contact person Telephone Cell E-mail Type / Output Manufacturers number Date of Manufacturer Measured and Installed Settings Date Flue Gas Temp Chimney Draught Installers Name...
